TBMC-CG Abgaskalorimeter, computergesteuert (PC)

7.2.3.- MOTOREN 9.9.- VERBRENNUNGSMOTOREN
COMPUTER CONTROLLED EXHAUST GAS CALORIMETER - TBMC-CG

INNOVATIVE SYSTEME

The Computer Controlled Exhaust Gas Calorimeter, "TBMC-CG", designed by EDIBON, is a calorimeter thought to measure the heat contained in the exhaust gases of a combustion engine.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
FSS

Fehlersimulationssystem
ELK

EDIBON Softwareentwicklungskit, Powered by NI LabVIEW™
ECR

Modulares Industriesystem von EDIBON mit NI CompactRIO
ESN

EDIBON Scada-Net Systeme
ECL

EDIBON Cloud Lernen

Laboratorien

9TV
 Labor für Thermodynamik und Thermotechnik für die technische und berufliche Bildung
9HE
 Thermodynamik- und Wärmetechniklabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Lesen Sie mehr
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Lesen Sie mehr
Setting up at Polytechnic School (University Carlos III of Madrid)
Setting up at Polytechnic School (University Carlos III of Madrid)
This is the last installation we have done at the Polytechnic School (University Carlos III of Madrid). There we have installed several units in the Thermal and Fluids Engineering Department.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

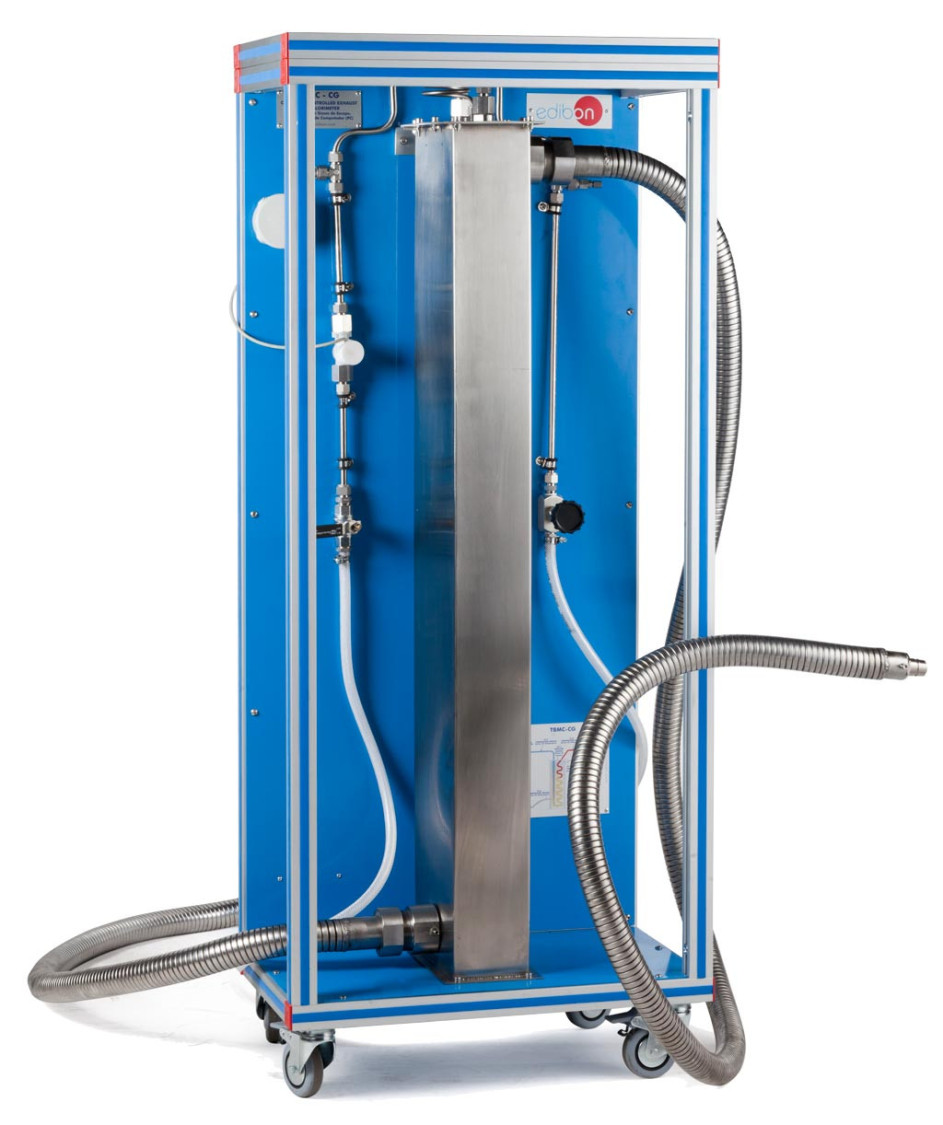

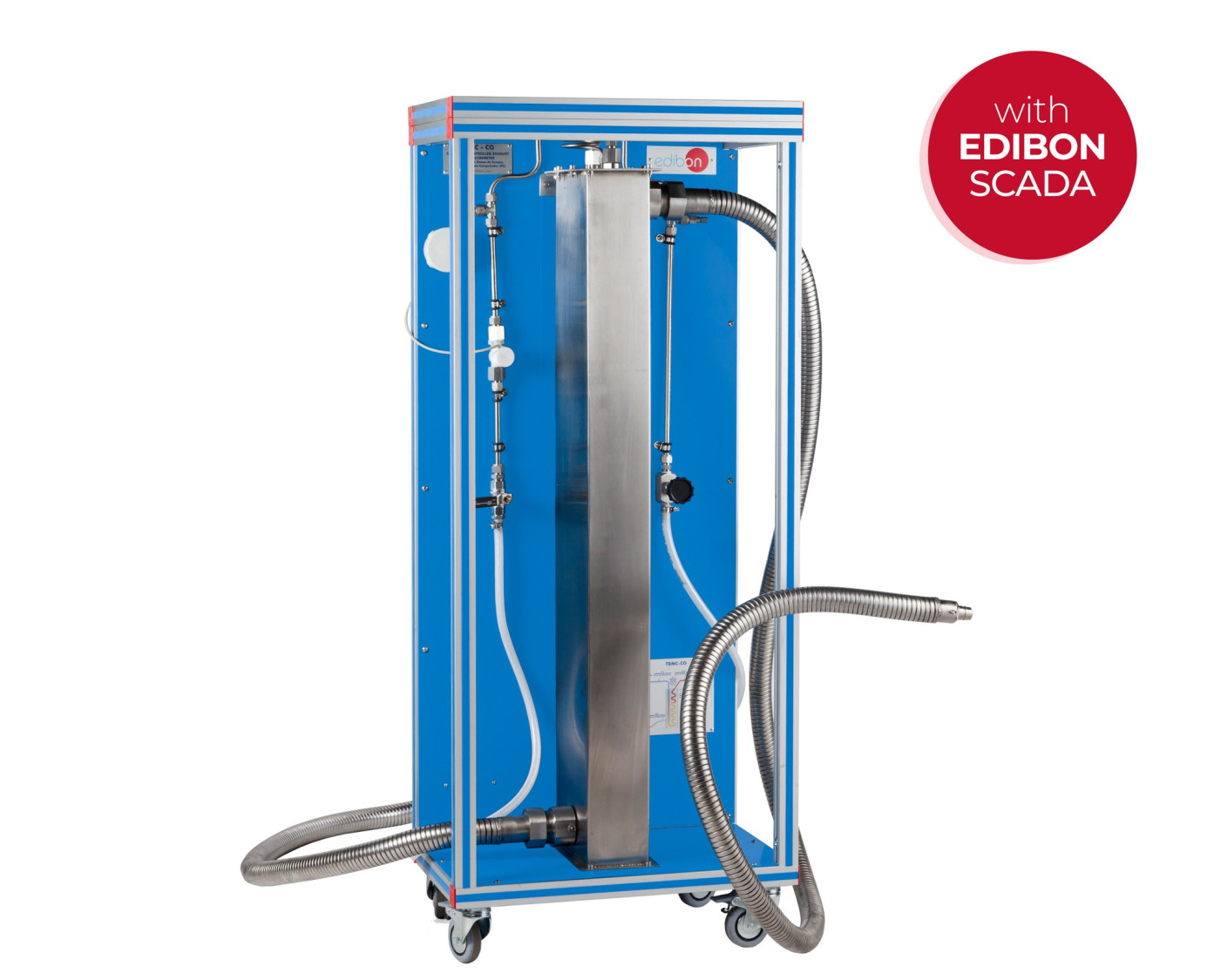

The Computer Controlled Exhaust Gas Calorimeter, "TBMC-CG", is mounted on a laminated aluminium profiles frame and panels in painted steel.

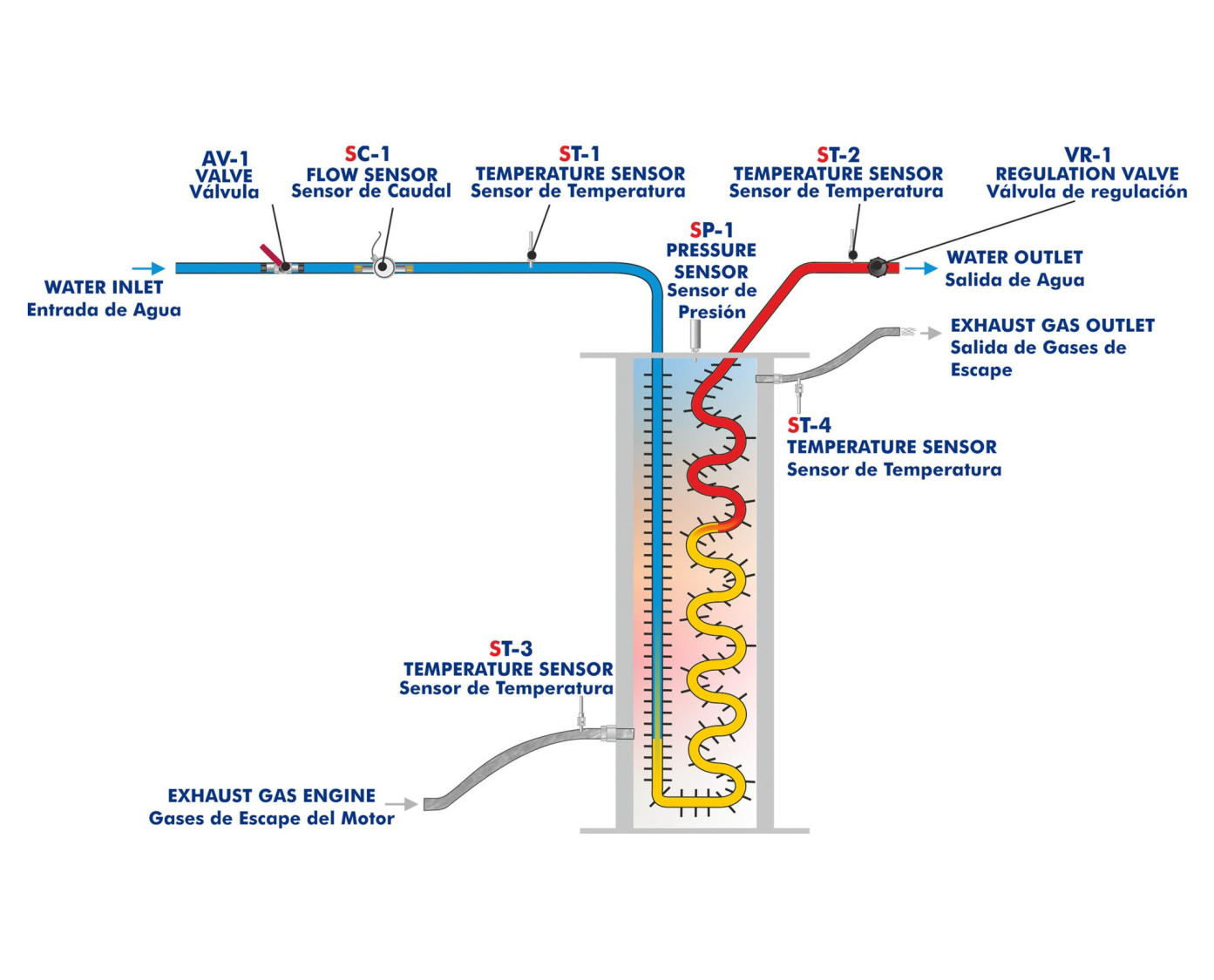

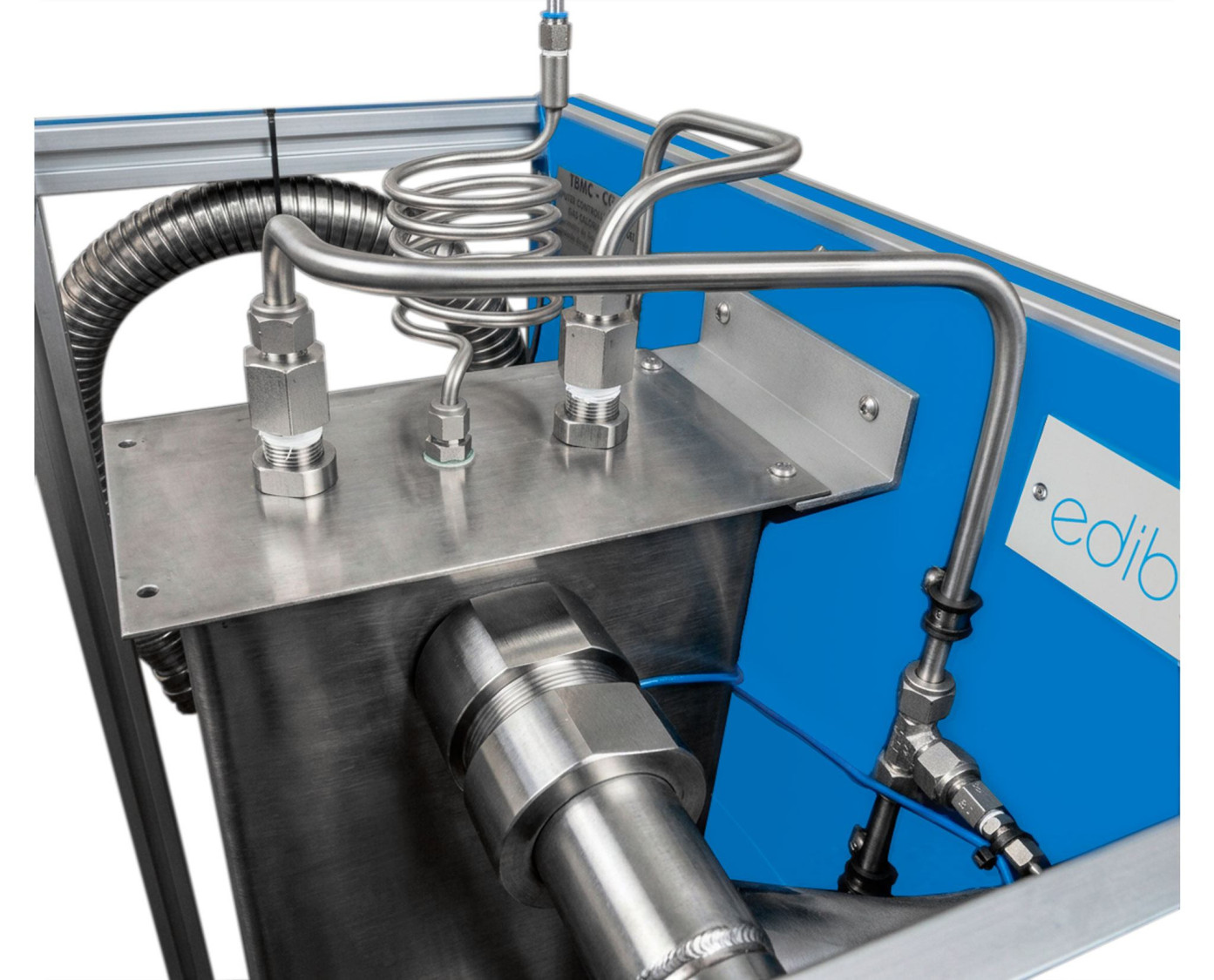

The main element consists on a double-wall tank made in stainless steel. Through the tank interior the exhaust gases of a combustion engine flow from the lower to the upper part. These gases cross the external surface of a finned steel pipe. Through the pipe interior, crosscurrent water flows with the aim of absorbing the heat contained in the gases which flow through the exterior.

The function of the double-wall is having an air chamber between the gases to be analyzed and the external environment to minimize the heat losses with the exterior.

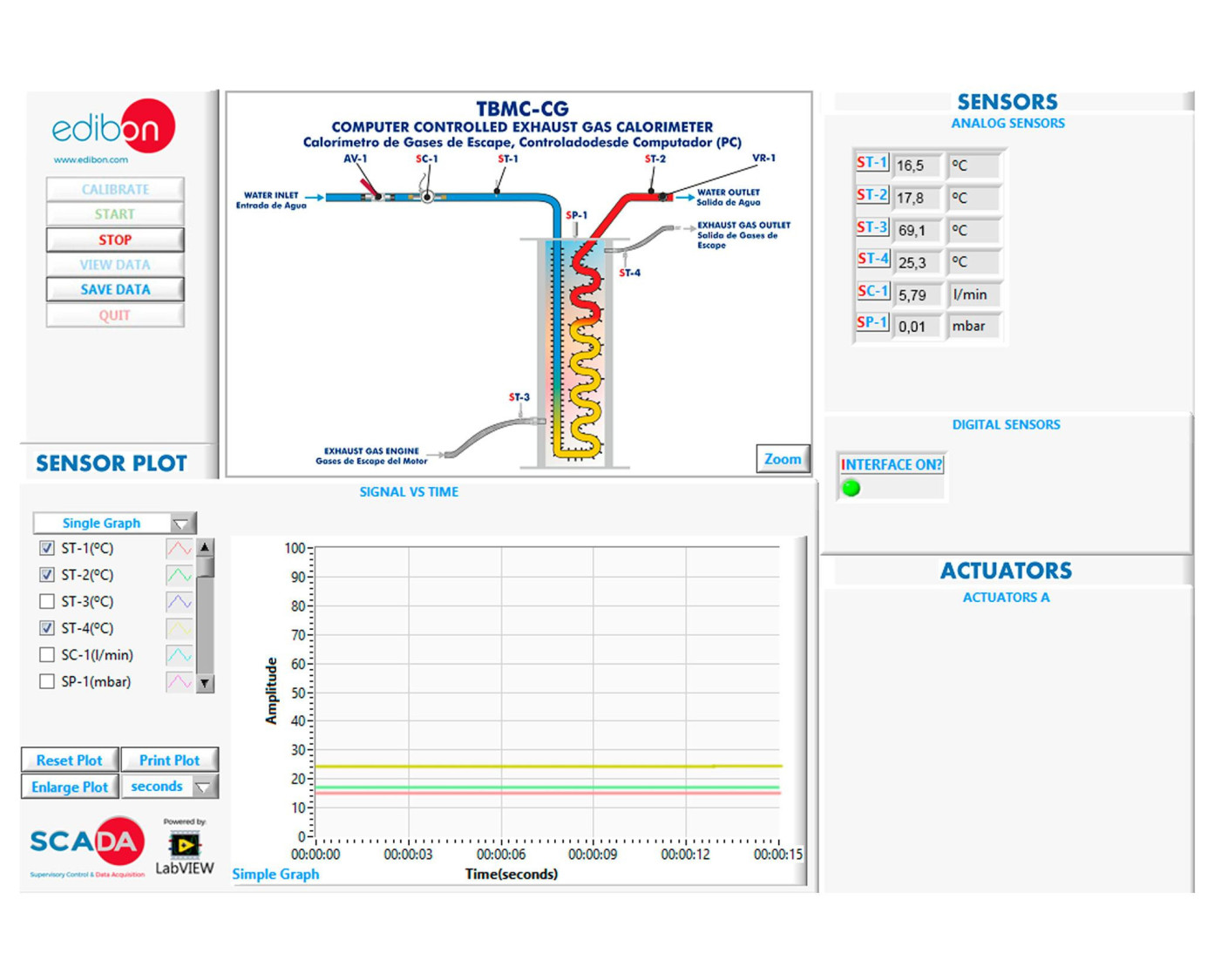

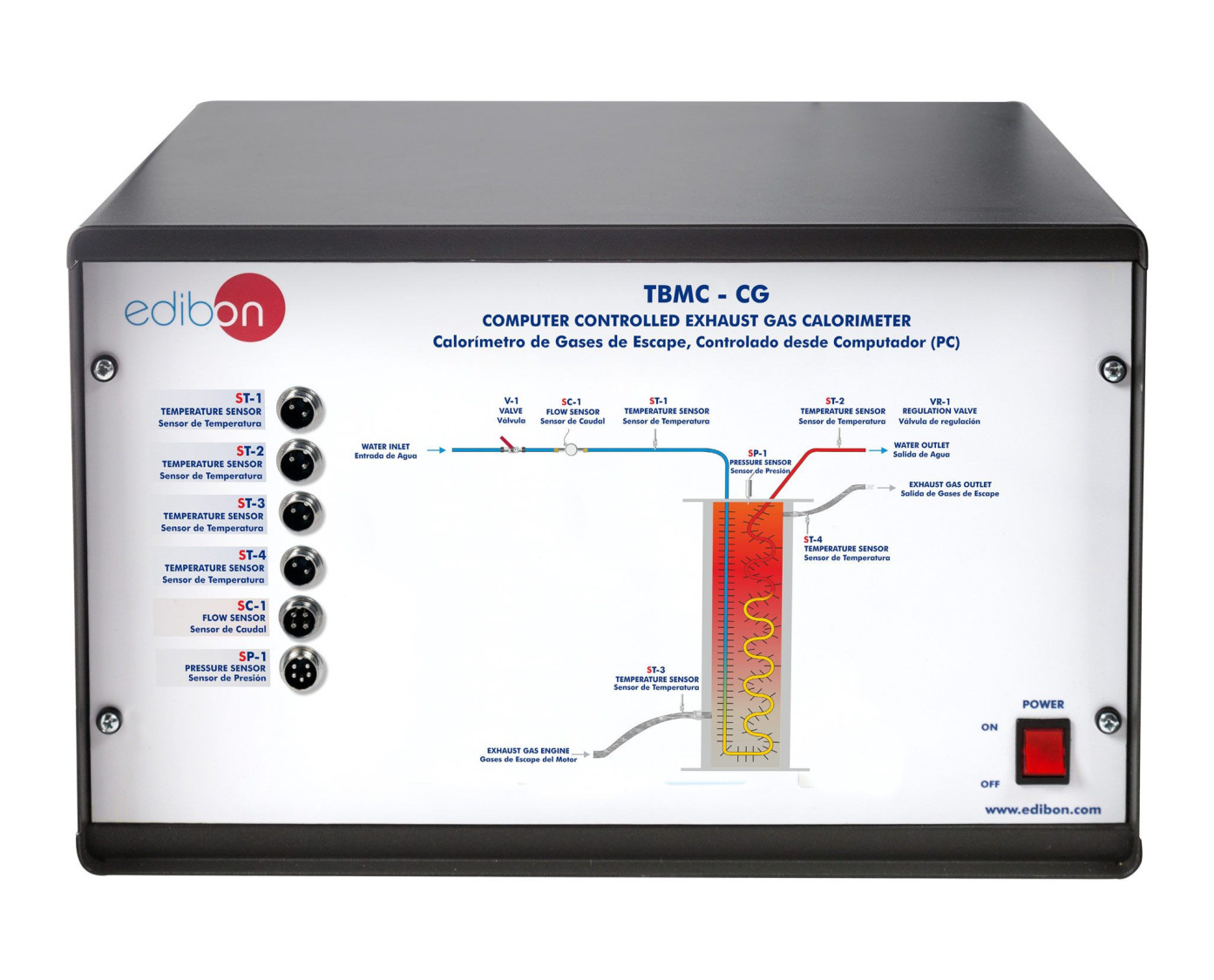

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Determination of the heat content of exhaust gases from test engines.
  2. Heat and energy balance studies.
  3. Determination of exhaust gas thermal output power given up.
  4. To determine the specific heat capacity of exhaust gases.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TBMC-CG unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TBMC-CG unit process.
  9. Several other exercises can be done and designed by the user.

QUALITÄT

KUNDENDIENST

Informationen anfordern
