MDA Ackermann-Lenkmechanismus

7.1.2.1.- MECHANISMEN 14.1.2.1.- MECHANISMEN
ACKERMANN STEERING MECHANISM - MDA

INNOVATIVE SYSTEME

The Ackermann Steering Mechanism, "MDA", allows to explain the special features of the Ackermann steering geometry and to study the influence of the steering angle with varying steering geometry.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV
 Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung
7HE
 Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

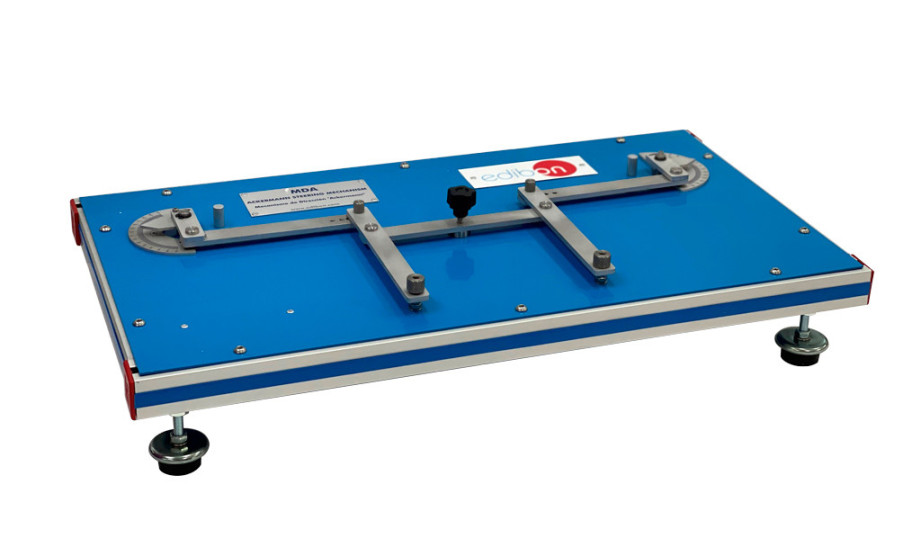

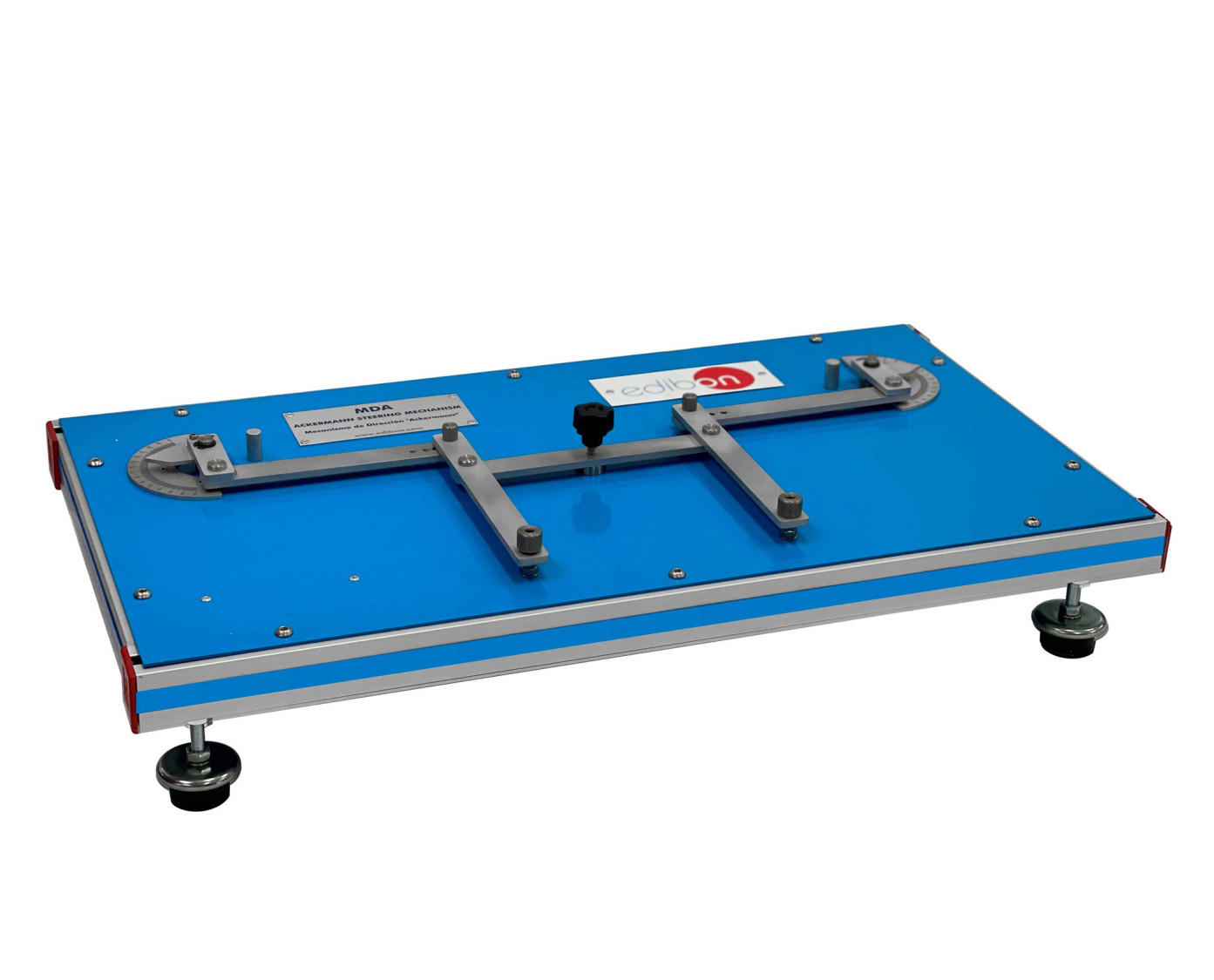

The Ackermann Steering Mechanism, "MDA", is a bench-mounted unit designed to determine the lead angle of a steering trapezoid in an Ackermann steering mechanism, the disadvantages of incorrectly adjusted track rods and the influence of the track rod length.

This unit consists of a complete Ackermann linkage model mounted on a flat frame. The symmetrical linkage system consists of two track rods and an intermediate steering rod.

Each track rod is coupled to a lever and a pivot. These pivots simulate the point where each wheel of a car is connected to. The whole system can turn from left to right by hand. There are two rotating indicators, attached to the pivots, which indicate the steering angle on graduated discs.

The linkage system is fully adjustable so that Ackermann angles can be varied. The length of the track rods may be modified to demonstrate the effect of misalignment or damage of the steering.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Determination of the lead angle of a steering trapezoid.
  2. Demonstrating how Ackermann angles are determined in a steering system.
  3. Study of the influence of the track rod length.
  4. Determining the steering error as a function of the steering angle with varying steering geometry.
  5. Determining the variation on turns caused by track maladjustment.
  6. Determining the variation on turns caused by damage.
