AEL-AD15B Anwendung der Positionssteuerung
INNOVATIVE SYSTEME

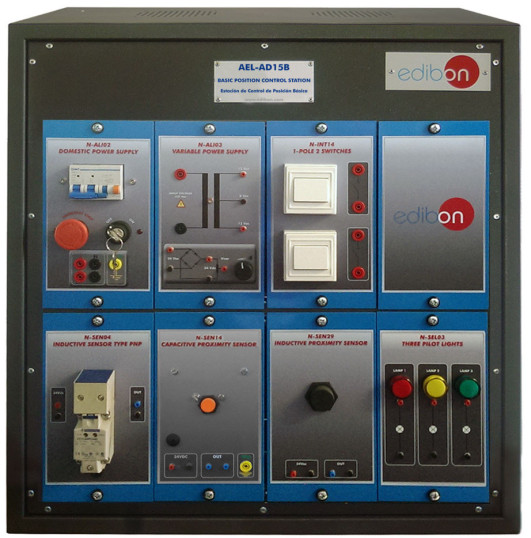

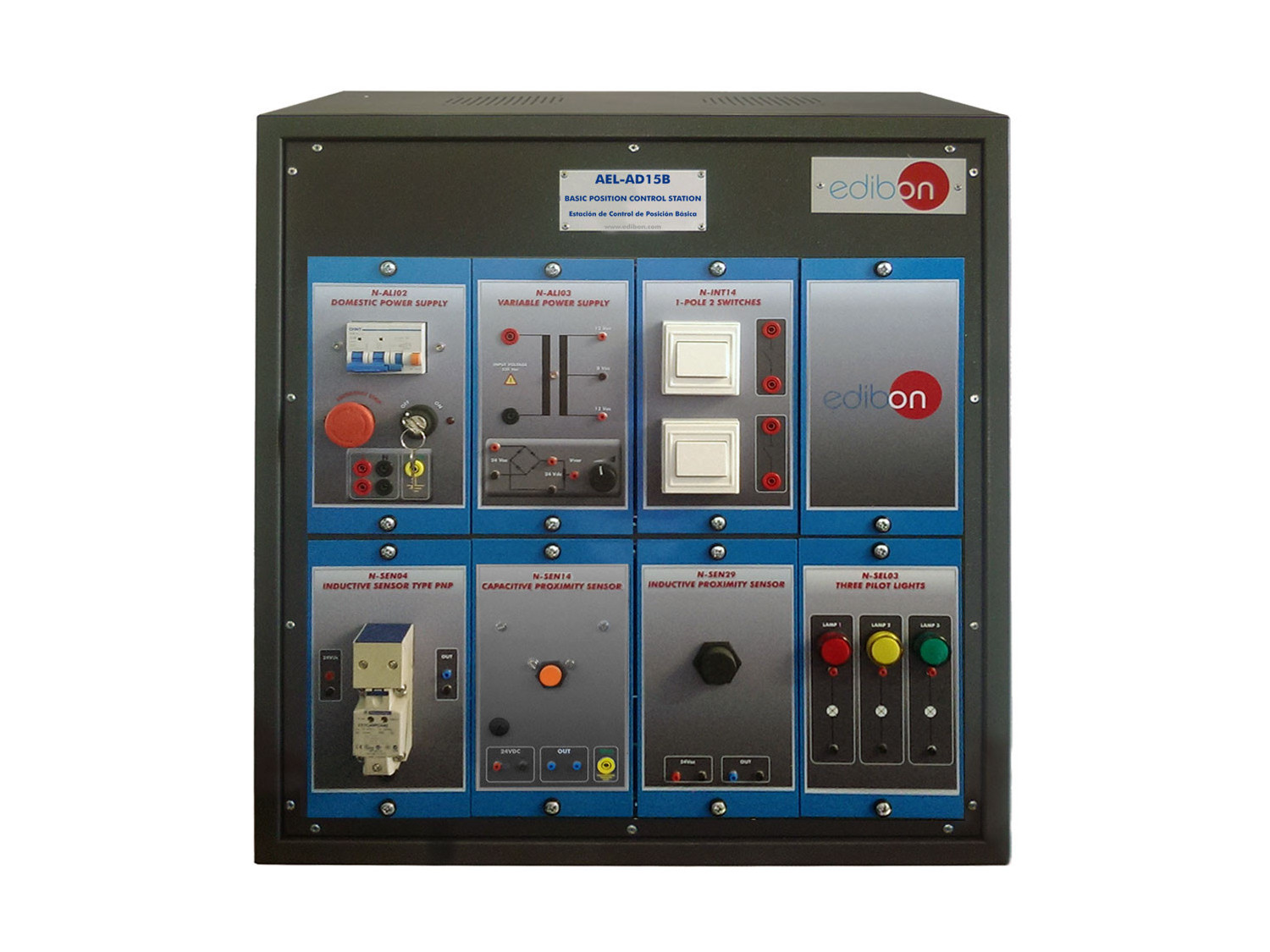

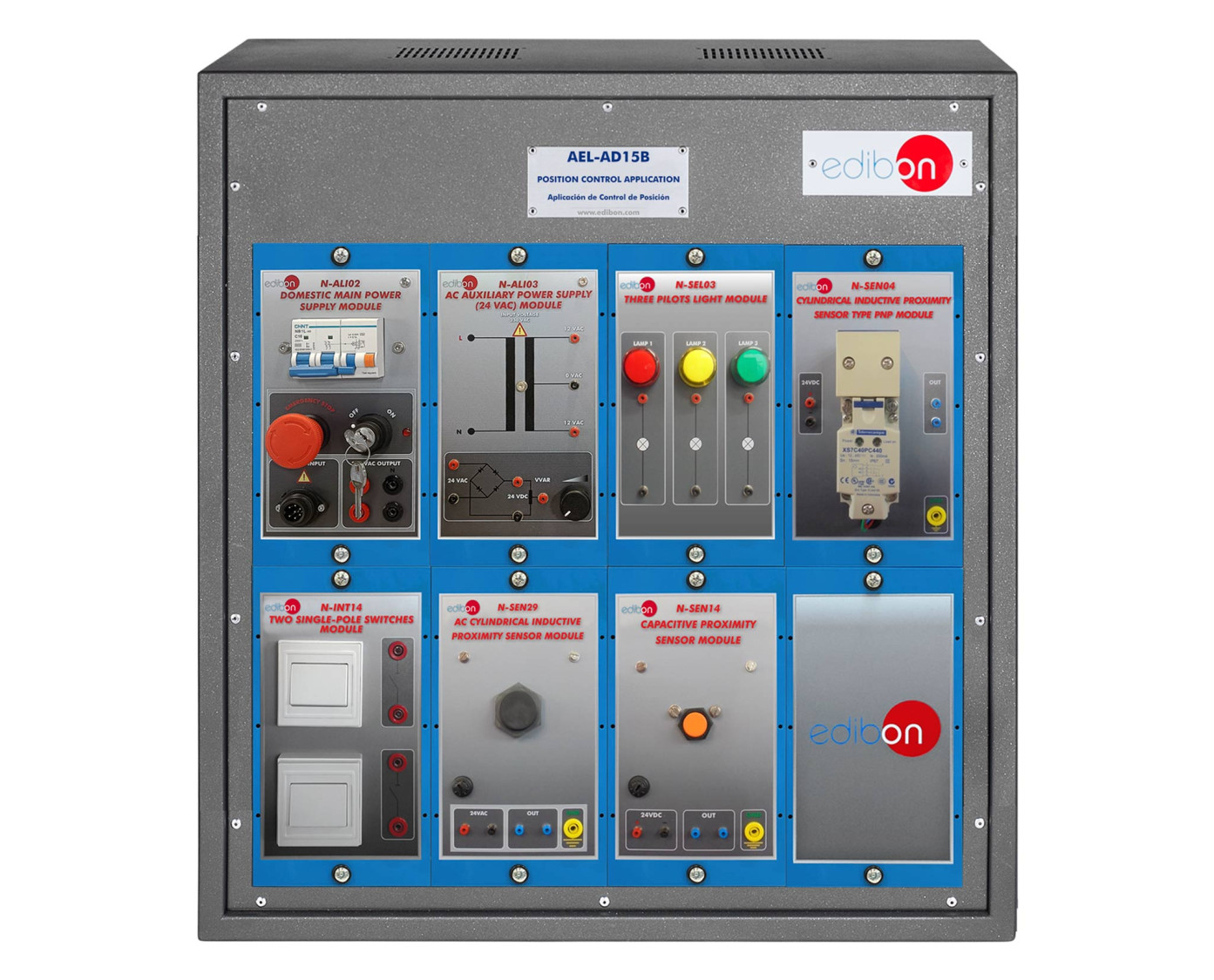

The Position Control Application, "AEL-AD15B", has been designed by EDIBON to study different types of position sensors and their possible applications.
Erweiterungen
ÄHNLICHE NEUIGKEITEN
ALLGEMEINE BESCHREIBUNG
The Position Control Application, "AEL-AD15B", has been designed by EDIBON to study different types of position sensors and their possible applications. For that propose, this application includes the following sensors:
- A PNP type inductive sensor which works with DC and detects metals in a specific distance range.
- A capacity proximity sensor to detect both metals and no metals.
- A inductive sensor which works with AC and detects any metal.
The application also includes three pilot-lights to check the working of these sensors, which can be used in several industrial processes, such as water level detection in a tank, or to control objects in an assembly line, etc. With this application, the student will acquire some practical ideas about the operation of these devices.
ÜBUNGEN UND GEFÜHRTE PRAKTIKEN
GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN
- Checking and measuring on of the main power supply.
- Checking the working of the auxiliary power supply.
- Checking the operation of the inductive sensor type PNP.
- Checking the operation of the capacitive sensor.
- Checking the operation of the AC inductive sensor.
- Body detection tests with the different types of sensors and materials.
- Real applications of a detection system.
