AEL-AD5 Anwendung von Beleuchtung mit Zeitsteuerung

The Lighting Application with Timer Switch, "AEL-AD5", has been designed by EDIBON to show the working of timer switches and other lighting switches.

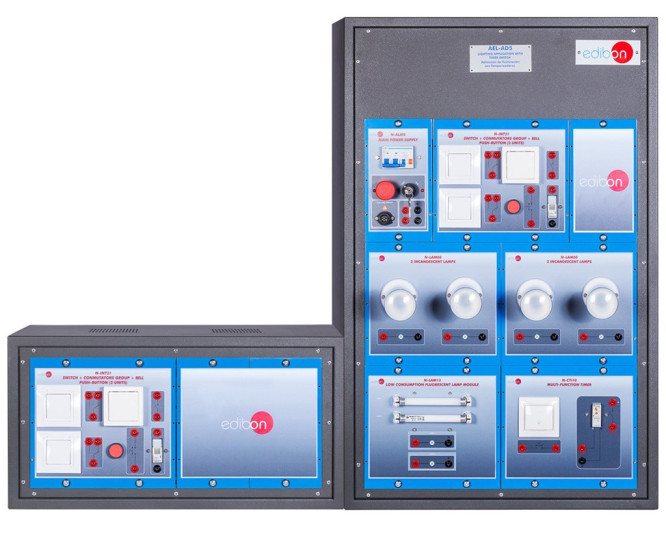

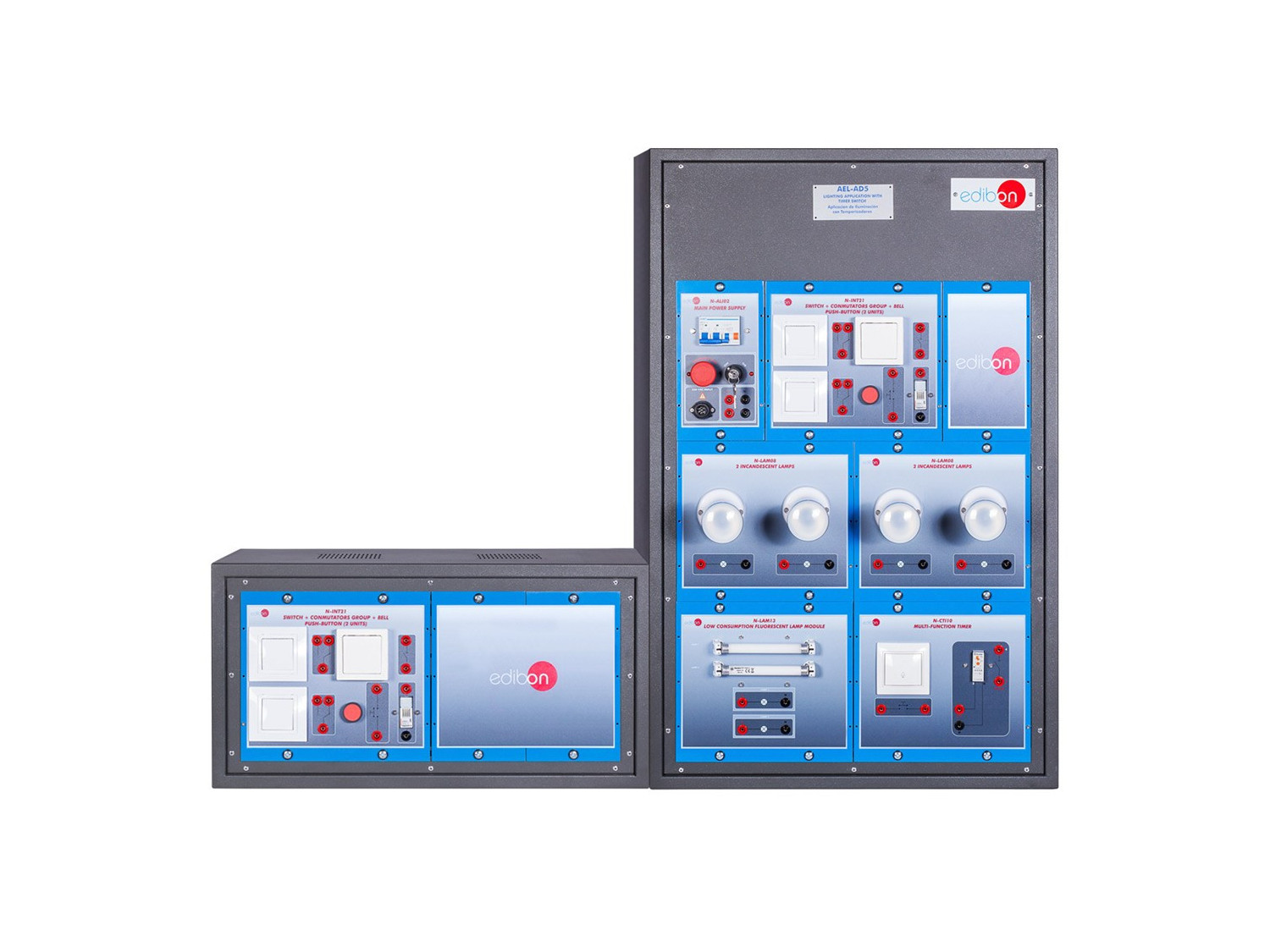

This application is formed by the following modules: a timed switch, a module with a switch, commutators group and a bell push-button, two modules with two incandescent lamps each one and a low consumption fluorescent module. Thanks to this application, the student can learn the working of timed switches applied to lighting, and simulate different situations to apply the automatic timed lighting and learn the wiring of these kinds of installations.
