AEL-ACEM Anwendung von Dreiphasen-Wechselstrom-Induktionsmotoren

4.3.2.1.- AC-ELEKTROMOTOREN UND GENERATOREN
AC THREE-PHASE INDUCTION MOTORS APPLICATION - AEL-ACEM

INNOVATIVE SYSTEME

The AC Three-Phase Induction Motors Application, "AEL-ACEM", has been designed by EDIBON to show the students AC electric motors wirings, development of logic control circuits and different starting methods such as direct starting, star-delta starting, run investment, soft starting and many other possibilities.

Allgemeine Beschreibung anzeigen

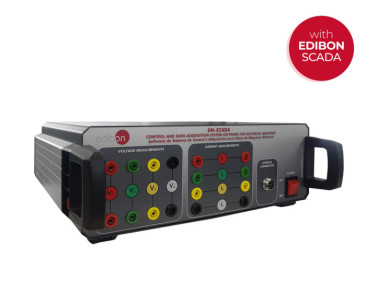

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Lesen Sie mehr
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

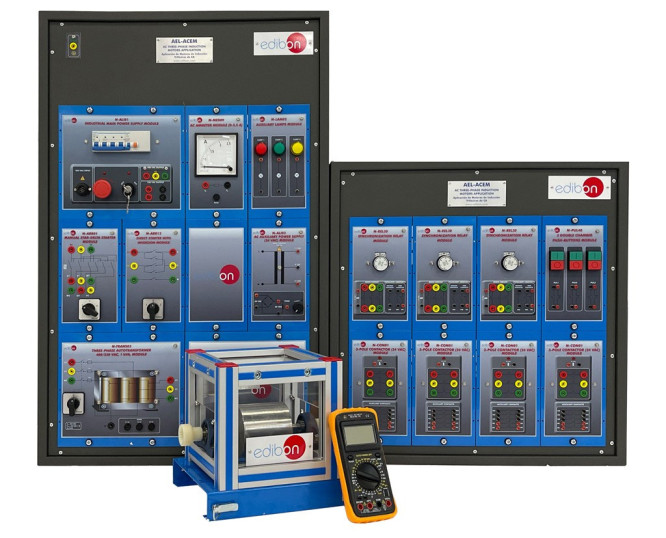

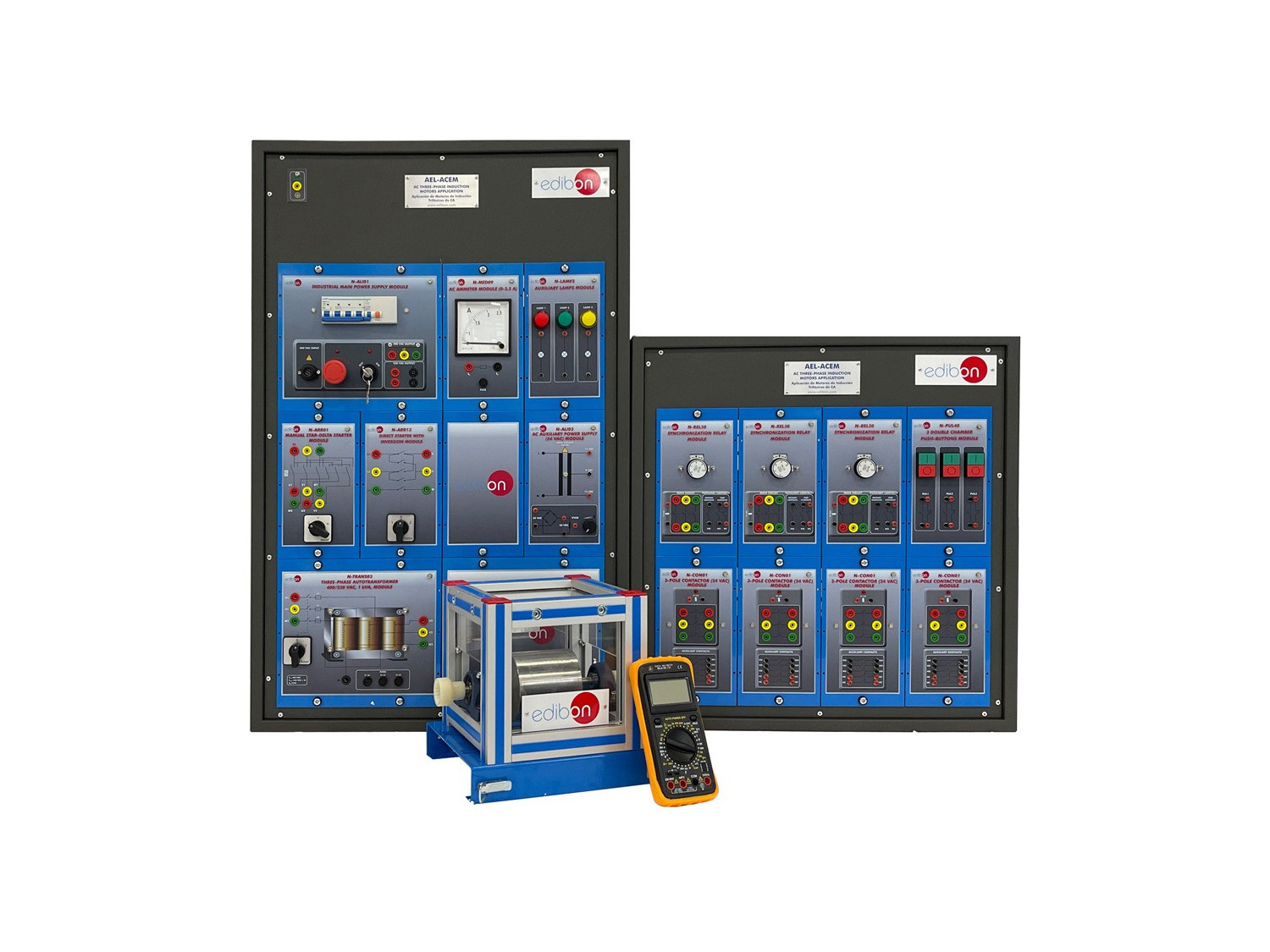

This AC Three-Phase Induction Motors Application, "AEL-ACEM", consists of a base equipment which is formed by several modules such as power supplies, push buttons, three-phase autotransformer, A.C. ammeter, circuit breakers, timers, flywheel, etc. In addtion, this base equipment is complemented by different options. Each option includes a different motor with its specific modules to carry out properly operations.

With this application, the user will take a complete experience about the most important operations carried out with several industrial machines such as Asynchronous three-phase motor of squirrel cage, asynchronous three-phase motor of wound rotor, Dahlander three-phase motor, asynchronous three-phase motor of two independent speeds, asynchronous single-phase motor with starting capacitor, Universal Motor, asynchronous single-phase motor with starting and running capacitor, Asynchronous single-phase motor with split phase, three-phase reluctance motor, three-phase AC synchronous generator, etc.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Some practical possibilities with Independent Excitation 3PH Synchronous Motor-Generator study kit, "EMT6-AC-KIT":

  1. Checking the main power supply.
  2. Wiring of the AC Synchronous generator.
  3. Study of the parameters to be controlled in AC Synchronous generator.
  4. Study of speed VS output voltage of synchronous generator at current excitation constant.
  5. Study of current excitation VS output voltage of synchronous generator at frequency constant.
  6. Study of drop voltage of synchronous generator with load.
  7. Comparison of the operations with other acquired motors.

Some practical possibilities with 3PH Squirrel Cage Motor study kit, "EMT7-AC-KIT":

  1. Checking the main power supply.
  2. Wiring the Three-Phase Asynchronous Motor of Squirrel cage.
  3. Study of the control parameters of the Three-Phase Asynchronous Motor of Squirrel cage.
  4. Study the direct starting of the Three-Phase Asynchronous Motor of Squirrel cage.
  5. Manual star-delta starting circuit of the Three-Phase Asynchronous Motor of Squirrel cage.
  6. Manual reversing operations of the Three-Phase Asynchronous Motor of Squirrel cage.
  7. Automatic star-delta starter of the Three-Phase Asynchronous Motor of Squirrel cage.
  8. Automatic star-delta reversing circuit of the Three-Phase Asynchronous Motor of Squirrel cage.
  9. Autotransformer starting.
  10. Comparison of the operations with other acquired motors.

Some practical possibilities with 3PH Wound Rotor Motor study Kit, "EMT8-AC-KIT":

  1. Checking the main power supply.
  2. Wiring the Three-Phase Asynchronous Motor of wound rotor.
  3. Study of the control parameters of the Three-Phase Asynchronous Motor of wound rotor.
  4. Study the direct starting the Three-Phase Asynchronous Motor of wound rotor.
  5. Manual starting with rotor resistor.
  6. Manual star-delta starting circuit of the Three-Phase Asynchronous Motor of wound rotor.
  7. Manual reversing operations of the Three-Phase Asynchronous Motor of wound rotor.
  8. Automatic starting with rotor resistor.
  9. Automatic star-delta starting of the Three-Phase Asynchronous Motor of wound rotor.
  10. Automatic star-delta reversing circuit of the Three-Phase Asynchronous Motor of wound rotor.
  11. Autotransformer starting.
  12. Comparison of the operations with other acquired motors.

Some practical possibilities with Dahlander, 2 speeds study Kit, "EMT9-AC-KIT":

  1. Checking the main power supply.
  2. Wiring the Three-Phase Dahlander Motor.
  3. Study of the control parameters of the Three-Phase Dahlander Motor.
  4. Study the direct starting of the Three-Phase Dahlander Motor.
  5. Manual speed variation of a Dahlander motor.
  6. Manual reversing operations of the Three-Phase Dahlander Motor.
  7. Autotransformer starting.
  8. Comparison of the operations with other acquired motors.

Some practical possibilities with 3PH Squirrel-Cage Motor, 2 speeds study kit, "EMT10-AC-KIT":

  1. Checking the main power supply.
  2. Wiring the Asynchronous three-phase motor of two independent speeds.
  3. Study of the control parameters of the Asynchronous threephase motor of two independent speeds.
  4. Study the direct starting ot the Asynchronous three-phase motor of two independent speeds.
  5. Manual speed variation of a motor with two independent speeds.
  6. Manual reversing operations of the Asynchronous three-phase motor of two independent speeds.
  7. Automatic speed variation of a motor with two independent speeds.
  8. Autotransformer starting.
  9. Comparison of the operations with other acquired motors.

Some practical possibilities with 1PH Squirrel-Cage Motor with Starting Capacitor, "EMT11-AC-KIT":

  1. Checking the main power supply.
  2. Wiring the Asynchronous single-phase motor with starting capacitor.
  3. Study of the control parameters of the Asynchronous single-phase motor with starting capacitor.
  4. Study the direct starting the Asynchronous single-phase motor with starting capacitor.
  5. Manual reversing operations of the Asynchronous single phase motor with starting capacitor.
  6. Direct and time-delay control of a single phase motor.
  7. Comparison of the operations with other acquired motors.

Some practical possibilities with Universal Motor study kit, "EMT12-AC-KIT":

  1. Working of Universal Motor in AC.
  2. Working of Universal Motor in DC.
  3. Checking the main power supply.
  4. Wiring the Universal Motor.
  5. Study of the control parameters of the Universal Motor.
  6. Study the direct starting of the Universal Motor.
  7. Manual reversing operations of the Universal Motor.
  8. Direct and time-delay control of a single phase motor.
  9. Comparison of the operations with other acquired motors.

Some practical possibilities with 1PH Squirrel-Cage Motor with starting and running capacitor.

  1. Checking the main power supply.
  2. Wiring the Asynchronous single-phase motor with starting and running capacitor.
  3. Study of the control parameters of the Asynchronous single phase motor with starting and running capacitor.
  4. Study the direct starting the Asynchronous single-phase motor with starting and running capacitor.
  5. Manual reversing operations of the Asynchronous single phase motor with starting and running capacitor.
  6. Direct and time-delay control of a single phase motor.
  7. Comparison of the operations with other acquired motors.

Some practical possibilities with Asynchronous Single-Phase Motor with Split Phase.

  1. Checking the main power supply.
  2. Wiring the Asynchronous single-phase motor with split phase.
  3. Study of the control parameters of the Asynchronous single phase motor with split phase.
  4. Study of the direct starting of the Single-phase Asynchronous Motor of split phase.
  5. Manual reversing operations of the Asynchronous single-phase motor with split phase.
  6. Direct and time-delay control of a single phase motor.
  7. Comparison of the operations with other acquired motors.

Some practical possibilities with 3PH Reluctance Motor.

  1. Checking the main power supply.
  2. Wiring the Three-Phase Reluctance Motor.
  3. Study of the control parameters of the Three-Phase Reluctance Motor.
  4. Study the direct starting of the Three-Phase Reluctance Motor.
  5. Manual reversing operations of the Three-Phase Reluctance Motor.
  6. Comparison of the operations with other acquired motors.
Mehr sehen

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Several other exercises can be done and designed by the user.

ÄHNLICHE VERFÜGBARE GERÄTE

APPLICATION OF AC THREE-PHASE INDUCTION MOTOR OF SQUIRREL CAGE - AEL-ACINA
  • AEL-ACINA
Available
4.3.2.1.- AC-ELEKTROMOTOREN UND GENERATOREN
AEL-ACINA
Anwendung des Dreiphasen-Käfigläufer-Induktionsmotors
The Application of AC Three-Phase Induction Motor of Squirrel Cage, "AEL-ACINA", is designed for the study of the main operations performed in the industrial field with three-phase squirrel cage induction motors. The student will learn the most...
Einheit Anzeigen

QUALITÄT

KUNDENDIENST

Informationen anfordern
