AEL-AD33 Anwendung von Störungen in Einphasen-Installationen

4.1.2.2.- ELEKTRISCHE RISIKEN UND SCHUTZ
SINGLE-PHASE INSTALLATIONS FAULTS APPLICATION - AEL-AD33

INNOVATIVE SYSTEME

The Single-Phase Installations Faults Application, "AEL-AD33", has been designed to study several protections belonging to home installations.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

Laboratorien

4TV
 Elektrizitätslabor für technische und berufliche Bildung
4HE
 Elektrizitätslabor für die Hochschulbildung
11PTC
 Labor für Petroleum Training Center

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Lesen Sie mehr
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

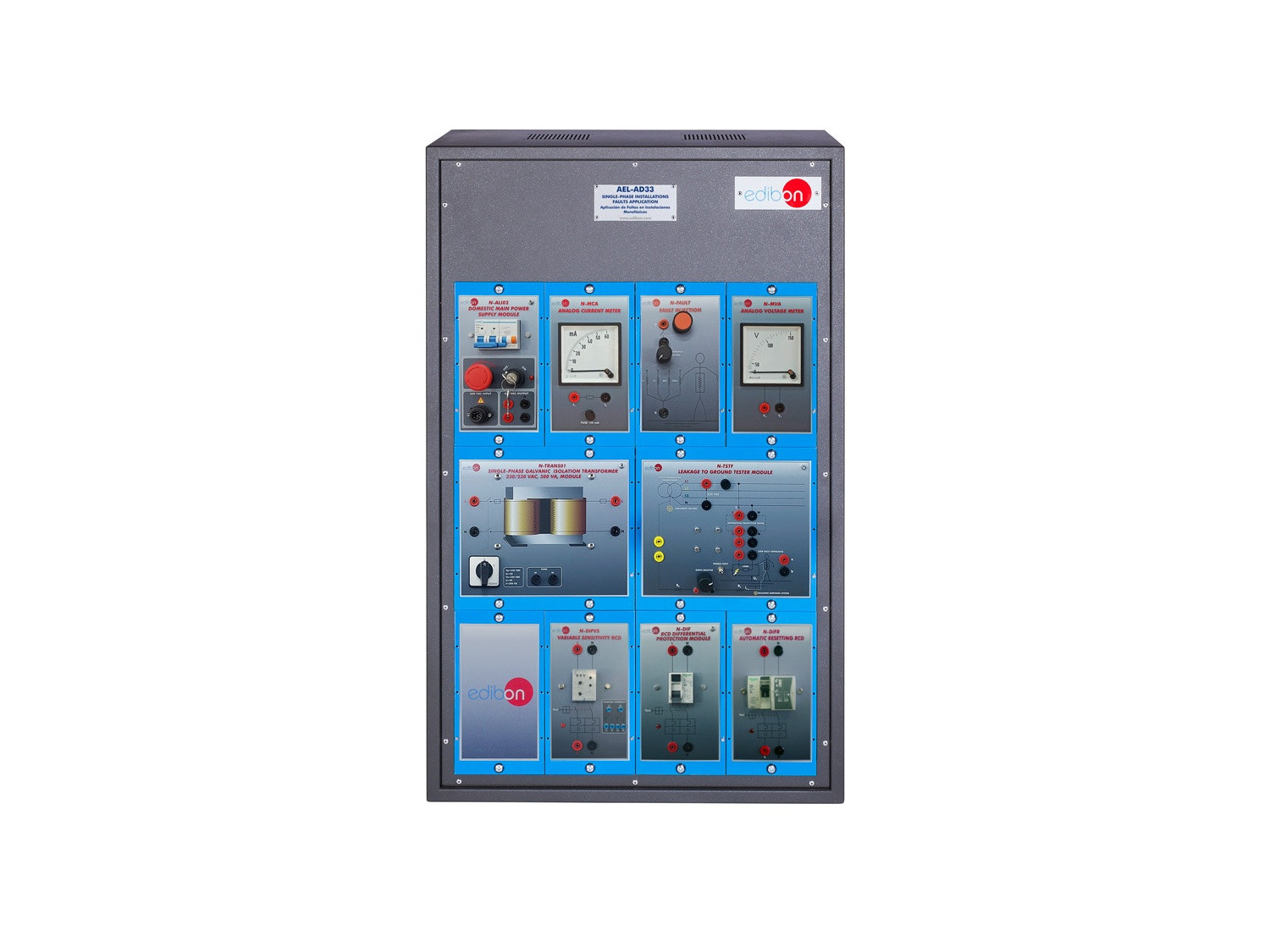

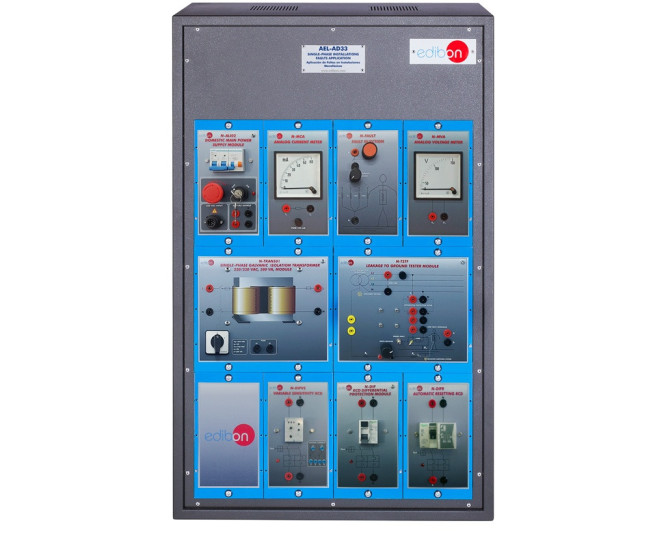

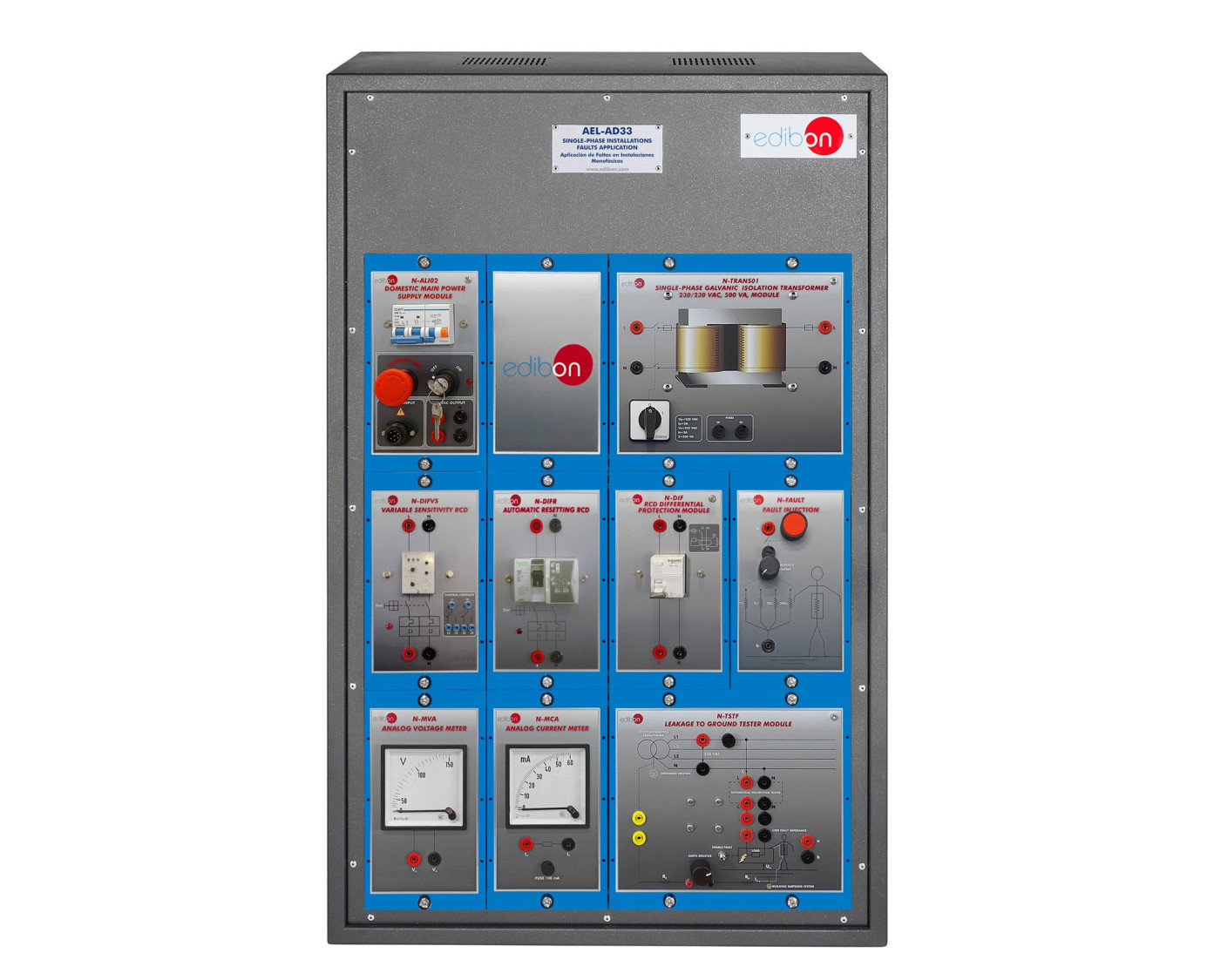

The Single-Phase Installations Faults Application, "AEL-AD33", has been designed to study several protections belonging to home installations. Through the safety elements, the student can simulate different faults and verify the reasons why each type of protection acts. It includes some innovative electric devices for the protection of people and installations against the effects of electric current, which ensure the continuity of power availability, as well as people safety. It includes a single-phase transformer to simulate earth derivations under safety conditions. It includes protections for: differential protection with automatic reset and differential protection with variable sensivity.
