N-EM-CTRA Arbeitseinheit

6.2.2.1.- HERSTELLUNGSSYSTEME

INNOVATIVE SYSTEME

"N-EM-CTRA" represents an automatic working cell which produces pieces by soldering two simple pieces.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ALLGEMEINE BESCHREIBUNG

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

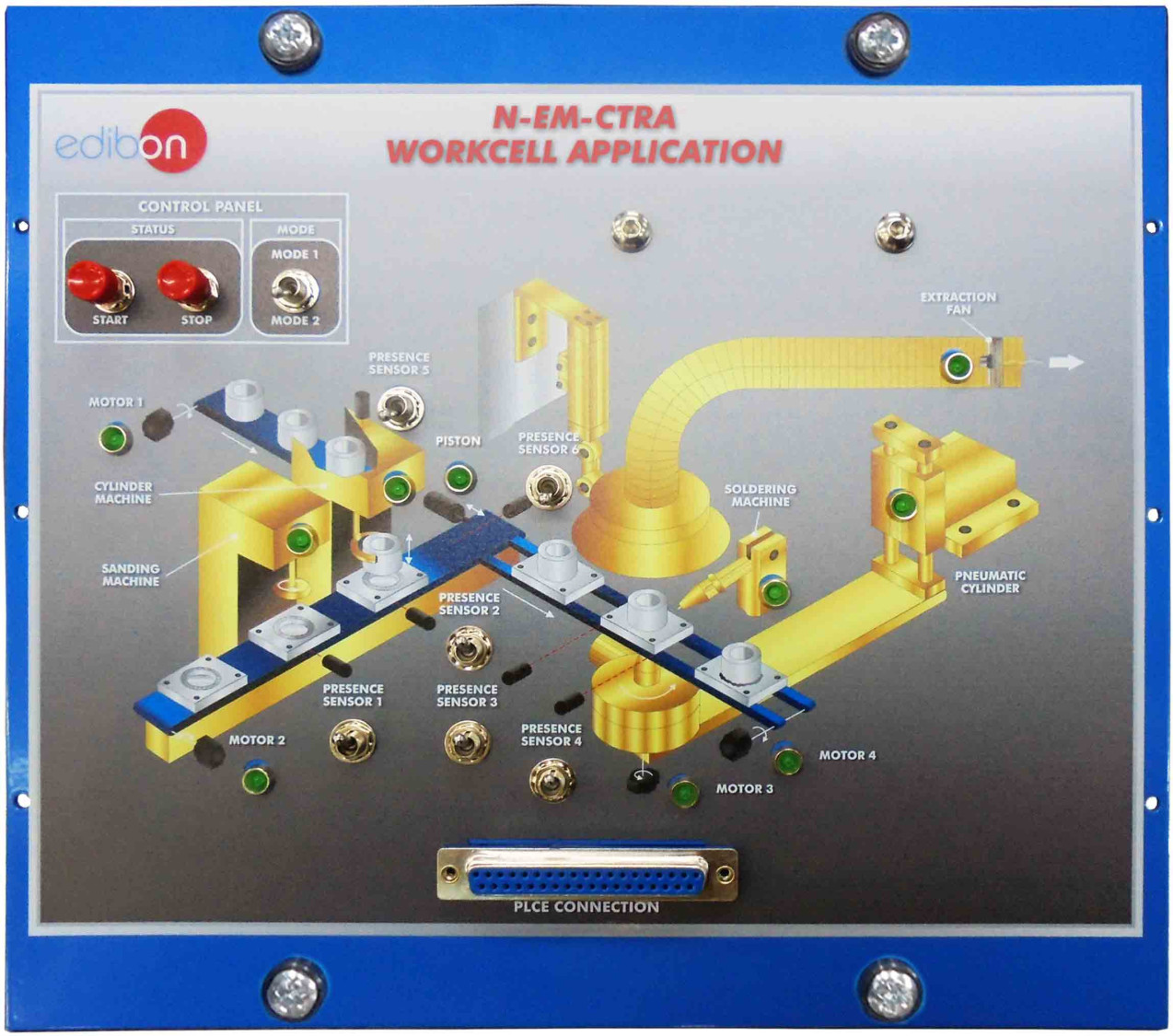

"N-EM-CTRA" represents an automatic working cell which produces pieces by soldering two simple pieces. The working cell include a transport system to place the two simple pieces at the soldering machine. The different switches and pushbuttons emulate the presence sensors located along the workcell.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.
