1 - 21 von 21 Artikel(n)

UNIT FOR STUDYING FORCES IN A JIB CRANE - MFPG

MFPG

Available

7.1.6.- STRUKTURMECHANIK

MFPG

Gerät zur Untersuchung von Kräften in Kranarmen

The Unit for studying Forces in a Jib Crane, "MFPG", is designed to study the tensile and compressive forces in a planar central force system based on the example of a crane jib.The unit represents a planar central force system in which multiple...

Available

7.1.6.- STRUKTURMECHANIK

MVS

Gerät für eine Hängebrücke

The Suspension Bridge Unit, "MVS", has been meticulously designed by EDIBON to explore the dynamics of stresses in a suspension bridge system. This unit simulates a suspension bridge using a deck and two parallel main cables, allowing students to...

MARP

Available

7.1.6.- STRUKTURMECHANIK

MARP

Gerät für einen parabolischen Bogen

The Parabolic Arch Unit "MARP" contains a pre-shaped articulated arch, which can be subjected to point or evenly distributed loads by means of seven uniformly distributed cables (cords) with hangers.One support of the arch is fixed whereas the...

MART

Available

7.1.6.- STRUKTURMECHANIK

MART

Gerät für einen dreigelenkigen Bogen

The Three-Hinged Arch Unit "MART" allows the student to become familiar with three-hinged arches, to calculate the bearing forces (for point load, for uniformly distributed load and for moving load), to investigate the influence of the load on the...

UNIT FOR STUDYING FORCES IN A SIMPLE BAR STRUCTURE - MFBS

MFBS

Available

7.1.6.- STRUKTURMECHANIK

MFBS

Gerät zur Untersuchung von Kräften in einer einfachen Stabstruktur (einfachen Fachwerken)

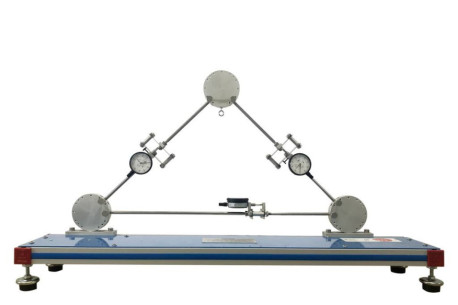

The Unit for Studying Forces in a Simple Bar Structure, "MFBS", designed by EDIBON allows the study of forces acting on a simple truss when is subjected to a point load in one of the nodes that make up the structure.It consists of a group of five...

UNIT FOR STUDYING FORCES IN DIFFERENT SINGLE PLANE TRUSSES - MFCS1

MFCS1

Available

7.1.6.- STRUKTURMECHANIK

MFCS1

Gerät zur Untersuchung von Kräften in verschiedenen Aufbauten von ebenen Fachwerken

The Unit for studying Forces in Different Single Plane Trusses, "MFCS1", allows the measurement of the bar forces in various single plane trusses, the study of the dependency on the external force and the comparison of the experimental bar forces...

UNIT FOR STUDYING FORCES IN AN OVERDETERMINATE TRUSS - MFCS2

MFCS2

Available

7.1.6.- STRUKTURMECHANIK

MFCS2

Gerät zur Untersuchung von Kräften in hyperstatischen Fachwerken

The Unit for studying Forces in an Overdeterminate Truss, "MFCS2", allows the measurement of the bar forces in a statically determinate truss and in a statically overdeterminate truss, the study of the distribution of forces in the single plane...

UNIT FOR STUDYING DEFORMATION OF TRUSSES - MFCS3

MFCS3

Available

7.1.6.- STRUKTURMECHANIK

MFCS3

Gerät zur Untersuchung von Verformungen in Fachwerken

The Unit for studying Deformation of Trusses, "MFCS3", allows the measurement of the stresses in the bars in different types of trusses, and the study of the dependence of the external force and the comparison of the experimental forces in the...

Available

7.1.6.- STRUKTURMECHANIK

MFL

Gerät für einen zweigelenkigen Bogen

The Two Hinged Arch Unit, "MFL", designed by EDIBON allows to study the response of an arched beam when an external load is applied on it.The arch is supported on two supports, a fixed one and a movable one. The displacement and horizontal...

Available

7.1.6.- STRUKTURMECHANIK

MPO

Gerät für ein Portal

The Portal Frame Unit, "MPO", designed by EDIBON, allows for precise measurements of vertical and horizontal deflection in an embedded rectangular portal frame. By applying various loads with specific weights, changes in the portal frame’s...

Available

7.1.6.- STRUKTURMECHANIK

STH

Gerät für Spannungshypothesen

The Stress Hypotheses Unit, "STH", allows the study and testing of stress hypotheses by applying loads in different directions on a test specimen point and measuring the deformations produced.Normal and shear stresses are applied, avoiding...

SIMPLE STABILITY PROBLEMS STUDY UNIT - MEPE

MEPE

Available

7.1.6.- STRUKTURMECHANIK

MEPE

Gerät zur Untersuchung von Stabilitätsproblemen

The Simple Stability Problems Study Unit, "MEPE", has been designed to study the stability of a bar subjected to buckling by obtaining the critical load in different configurations. The unit consists of two bars of same length connected by a...

UNIT FOR STUDYING METHODS TO DETERMINE THE ELASTIC LINE - MDLE

MDLE

Available

7.1.6.- STRUKTURMECHANIK

MDLE

Gerät zur Untersuchung der Methoden zur Bestimmung der elastischen Linie

The Unit for studying Methods to Determine the Elastic Line, "MDLE", consists of set of beams, several supports (with clamp fixing and dial gauges, and with force gauge), a device to generate a bending moment, fixed pulleys, dial gauges and a set...

Available

7.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG)

MCD

Gerät für einen dünnwandigen Zylinder

The Thin Cylinder Unit, "MCD", has been developed to enable the student to verify various analytical formulae with actual measured results. Strain gauges mounted in various positions and orientations on the cylinder provide an opportunity for...

UNIT TO STUDY STRESS ON A MEMBRANE - SSM

Available

7.1.6.- STRUKTURMECHANIK

SSM

Gerät zur Untersuchung von Spannungen in einer Membran

The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.The main element of the equipment is a thin disc or membrane...

Available

7.1.6.- STRUKTURMECHANIK

MVV

Gerät für Kragträger

The system consists of a vertical cantilever rigidly clamped at its lower end to the main column which is attached to a rigid structure. Beams of different sections may be used.A loading head, located at the upper end of the column, can rotate...

Available

7.3.2.1.- MECHANISCHE TESTS

MDB

Gerät zur Untersuchung der Durchbiegung in gekrümmten Balken

The Deflection of Curved Bars Unit "MDB" consists of a structure of aluminum and steel that allows the incorporation of different curved bars to be studied. It allows tests with curved bars of different shape.The use of two dial gauges placed...

Available

7.3.2.1.- MECHANISCHE TESTS

MFV

Pfeildemonstrator für Balken

The Beam Deflection Unit, "MFV" has been designed to enable the students to observe and study the following phenomena in simply supported beams and cantilever beams:Relation between the deflections and the applied loads.Effect of the length and...

MFLT

Available

7.3.2.1.- MECHANISCHE TESTS

MFLT

Gerät zur Untersuchung des Knickens von Stäben

The Strut Buckling Unit "MFLT" allows the student to obtain experimentally the buckling critical load of slender struts subjected to compression.The unit allows to study the buckling of pieces of different lengths, ranging from 300 mm. to 625 mm.,...

Available

7.3.2.1.- MECHANISCHE TESTS

MUP

Universelles Gerät für Knickversuche

The Universal Buckling Unit "MUP" is a bench-top unit whose frame is made of anodized aluminum profiles and plates and steel elements, on which a bubble level is installed to equilibrate the system.The unit has been designed to carry out tests...

SHEAR FORCE AND BENDING MOMENTUM UNIT - MMF

Available

7.3.2.1.- MECHANISCHE TESTS

MMF

Gerät für Biegemoment und Scherkraft

The Shear Force and Bending Momentum Unit, "MMF", unit is formed by an aluminum and steel structure that allows us to perform a mechanical study of different structures.An articulated structure makes it possible to convert the application of one...
