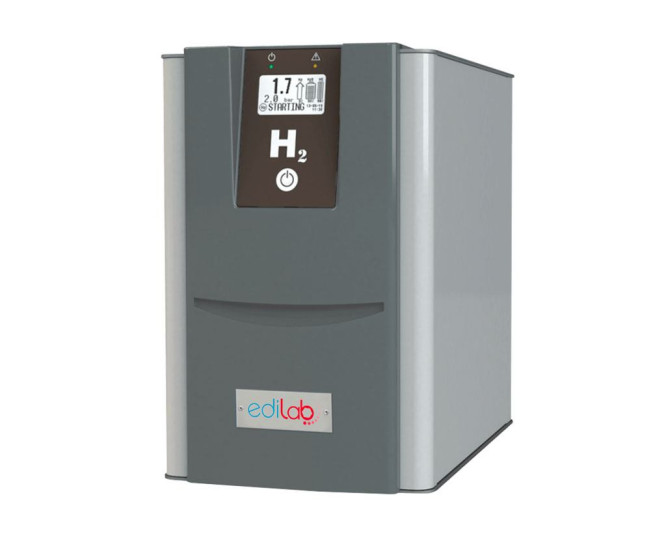

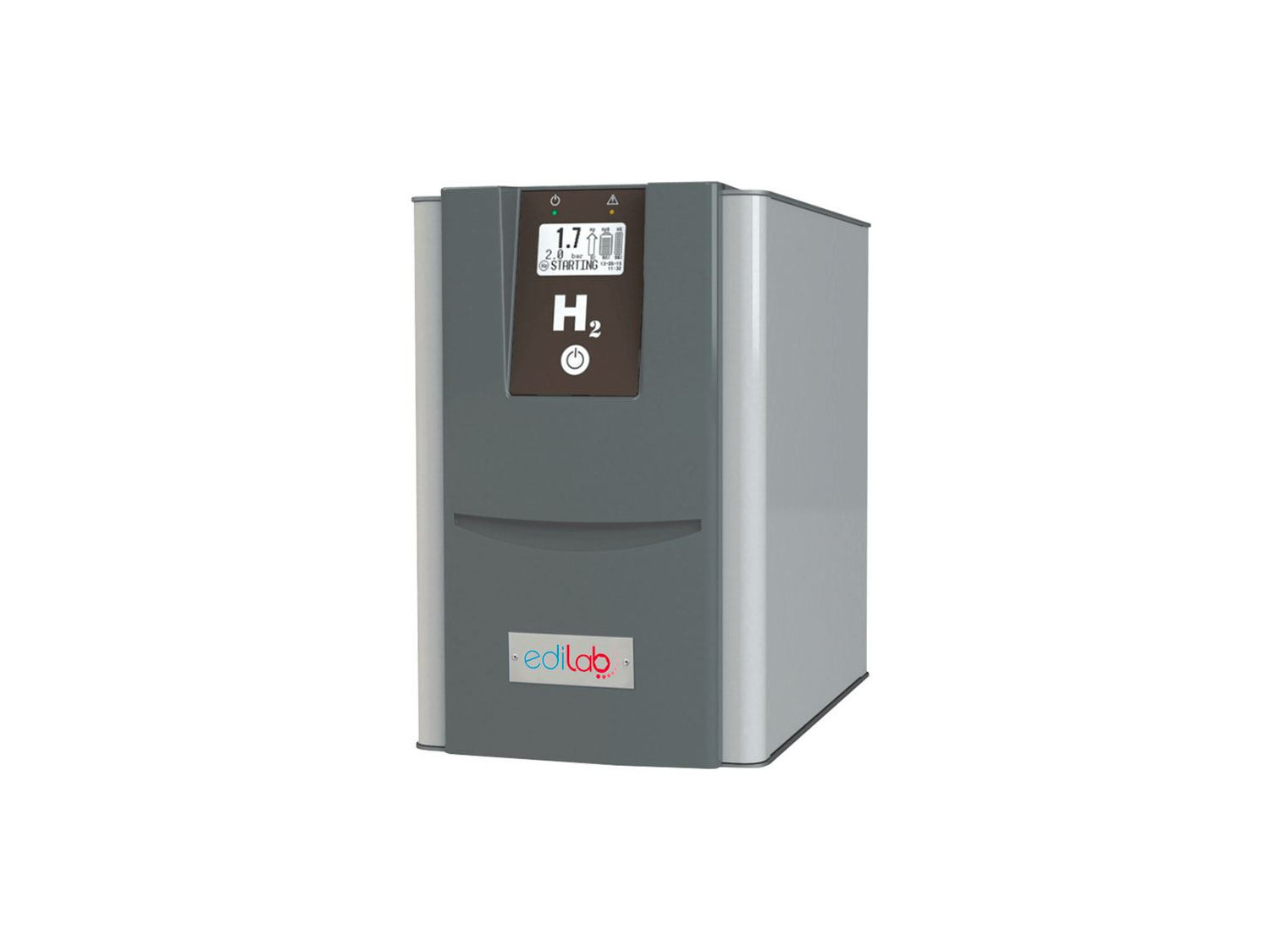

EDILAB-ELEC2 Elektrolysegerät (60 Nl/h)

The Electrolyzer (60 Nl/h), "EDILAB-ELEC2", designed by EDIBON, can separate hydrogen and oxygen from water by applying electricity.

The "EDILAB-ELEC2", consists of an electrolyzer to generate hydrogen which uses a high performance and efficiency system based on water electrolysis. Hydrogen to be used safely is obtained from it. The electrolysis cell is a PEM type membrane. It only needs deionized or distilled water and generates 60 l/h of 99.99% purity hydrogen.

The generated hydrogen gas is accumulated in the hydrogen / water separator and the desiccant housing. The pressure is controlled by a pressure transducer. The output pressure is indicated on the display. The hydrogen is dried by passing it through a drying tube. The hydrogen then passes throught the shutoff valve and exits the generator through the outlet port at the rear.
