RADIAL FLOW TURBINE - FME21

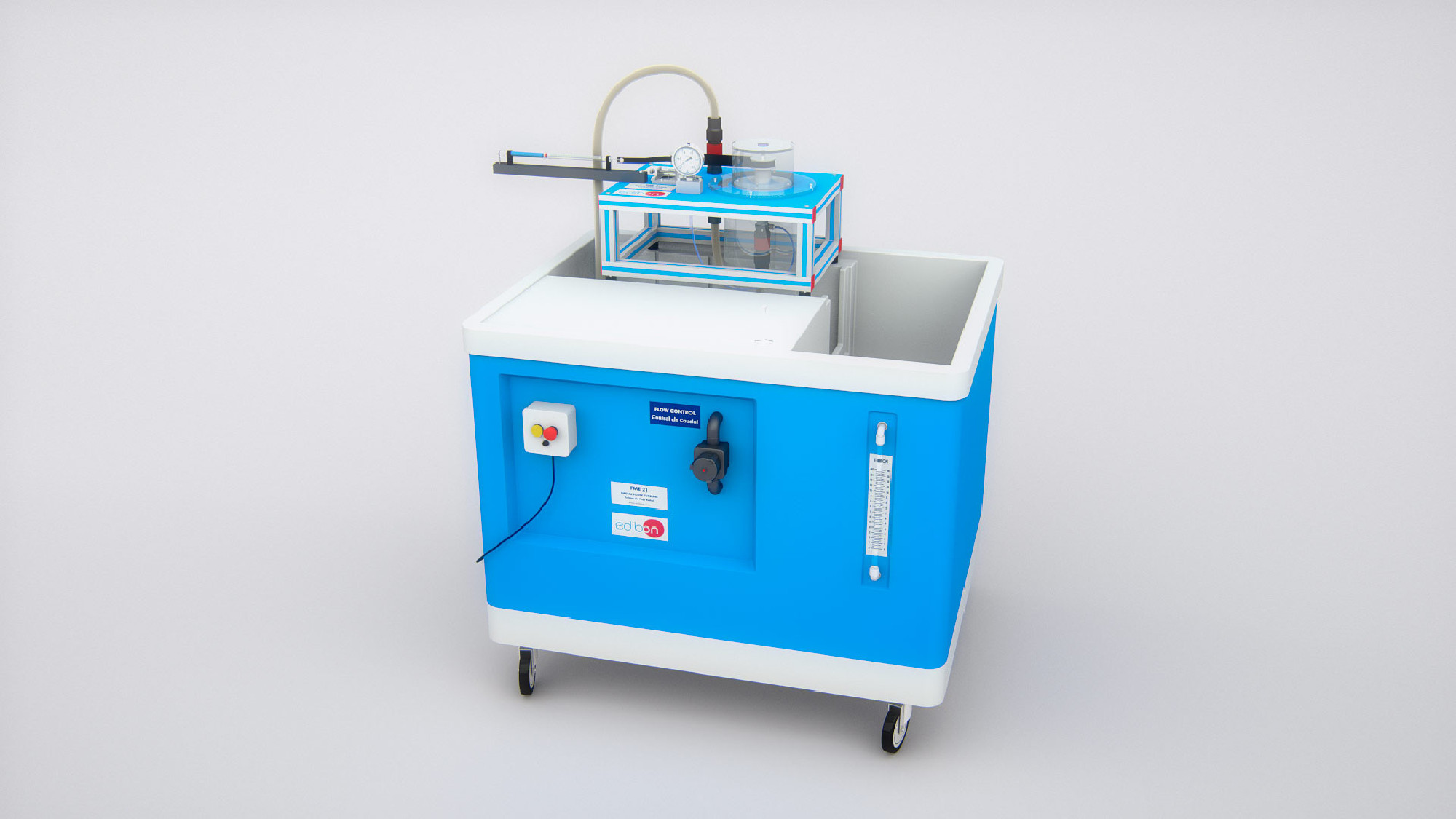

Complete FME21 Unit

RADIAL FLOW TURBINE - FME21

FME21 Unit with service unit FME00

RADIAL FLOW TURBINE - FME21
RADIAL FLOW TURBINE - FME21

INNOVATIVE SYSTEME

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

8TV
 Strömungsmechanik-Labor für die technische und berufliche Bildung
8HE
 Strömungsmechanik-Labor für die Hochschulausbildung
11PTC
 Labor für Petroleum Training Center

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

The Radial Flow Turbine unit, "FME21", designed by EDIBON, allows the study of a turbomachine, specifically radial turbines capable of handling slower flow levels than other turbine models.

This unit consist of a miniature Radial Turbine with two nozzles at 180° with respect to the perpendicular direction at the rotating axis. A Bourdon type manometer is placed at the inlet nozzle.

A band brake connected to a dynamometer allows to control the load given to the turbine.

A tachometer determines the velocity measurement.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Flow calculation.
  2. Obtaining of the M (n, Ha), N(n, Ha), h (n, Ha) curves.
  3. Obtaining of the M (n, Q), Nm (n, Q), h (n, Q) curves.
  4. Adimensionalization.

ERFORDERLICHE ELEMENTE

ÄHNLICHE VERFÜGBARE GERÄTE

COMPUTER CONTROLLED RADIAL FLOW TURBINE - TFRC
  • TFRC
Available
