FME08 Gerät des Drucks auf Oberflächen

8.1.3.- HYDROSTATISCH
HYDROSTATIC PRESSURE - FME08

INNOVATIVE SYSTEME

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

8TV
 Strömungsmechanik-Labor für die technische und berufliche Bildung
8HE
 Strömungsmechanik-Labor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Setting up at the University of Trinidad and Tobago
Setting up at the University of Trinidad and Tobago
Recently, we have had the pleasure of making an installation at the University of Trinidad and Tobago
Lesen Sie mehr
Setting up at Slippery Rock University
Setting up at Slippery Rock University
We are very pleased that we have recently completed an installation in the department of Physics and Engineering at the Slippery Rock University.  It's always a pleasure to work on projects like this!
Lesen Sie mehr
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

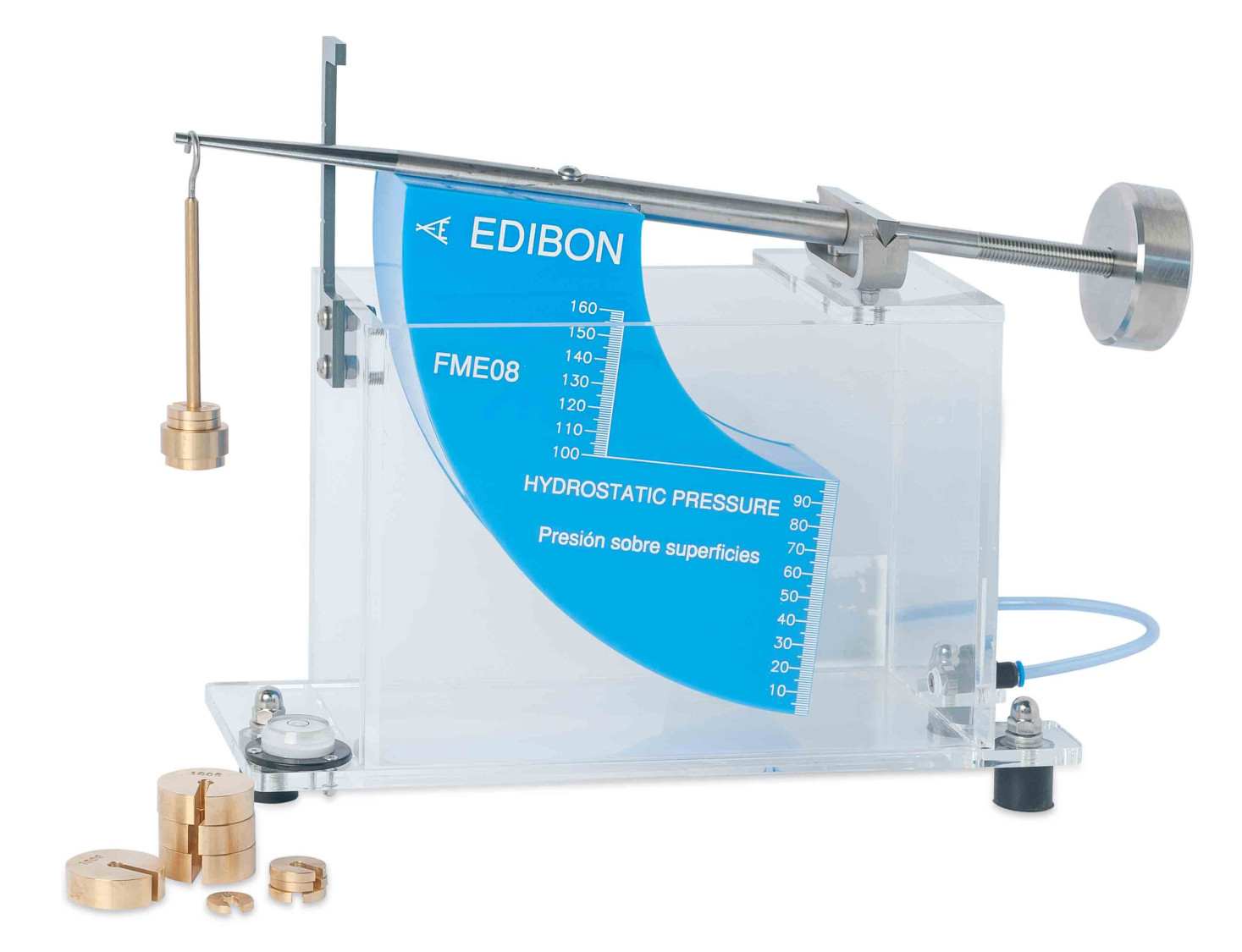

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.

This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.

When the quadrant is immersed in the water tank, the force acting on the flat, rectangular front surface will create a moment with relation to the support axis.

The tilting arm incorporates a pan and an adjustable counterweight.

The tank has adjustable legs that determine its correct leveling.

It has a drain valve.

The level reached by the water in the tank is indicated on a graduated scale.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Determination of the center of pressures with an angle of 90°, partially submerged.
  2. Determination of the resultant force with an angle of 90°, partially submerged.
  3. Determination of the center of pressures, angle <> 90° partially submerged.
  4. Determination of the equivalent force with an angle <>90° partially submerged.
  5. Determination of the center of pressures with an angle of 90° totally submerged.
  6. Determination of the resultant force with an angle of 90° totally submerged.
  7. Determination of the center of pressures, angle <>90° totally submerged.
  8. Determination of the resultant force, angle <>90° totally submerged.
  9. Balance of momentum.

QUALITÄT

KUNDENDIENST

Informationen anfordern
