FME10 Gerät des Manometer-Kalibrators

8.1.2.- MESSUNG

INNOVATIVE SYSTEME

The Pressure Gauge Calibrator, "FME10", designed by EDIBON, allows the study of the operation of a Bourdon type pressure gauge using a standard set of calibrated weights and the determination and the study of the pressure gauge hysteresis curve.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

8TV

Strömungsmechanik-Labor für die technische und berufliche Bildung

8HE

Strömungsmechanik-Labor für die Hochschulausbildung

ALLGEMEINE BESCHREIBUNG

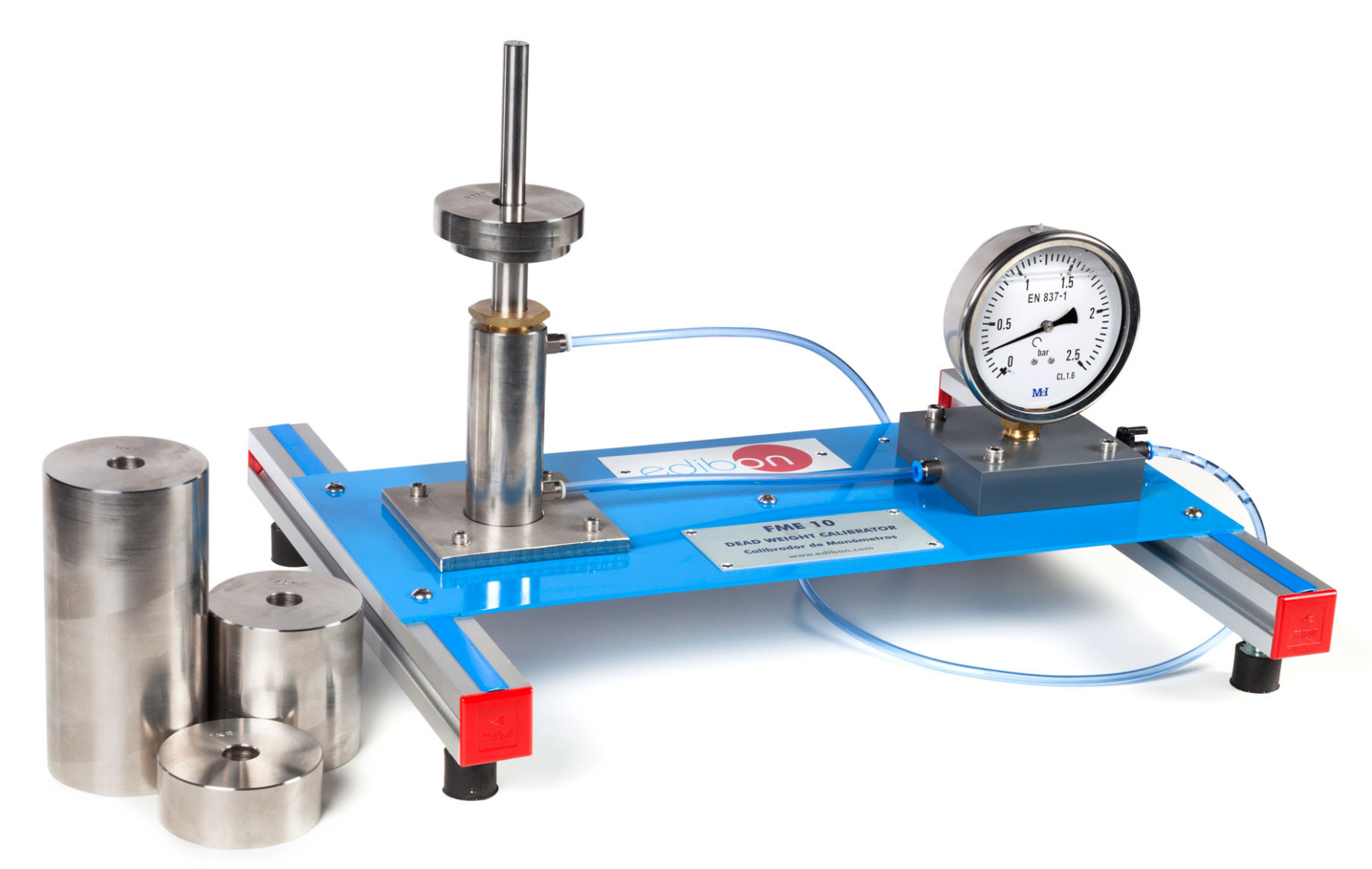

The unit consists of a hollow cylinder in whose interior a precision piston moves. Using a system of calibrated weights, we produce predetermined pressures inside the cylinder.

The Bourdon manometer that must be contrasted is connected to the cylinder by means of a flexible pipe.

Unit levelling through adjustable feet.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Bourdon type manometer calibration.
Hysteresis curve determination.
