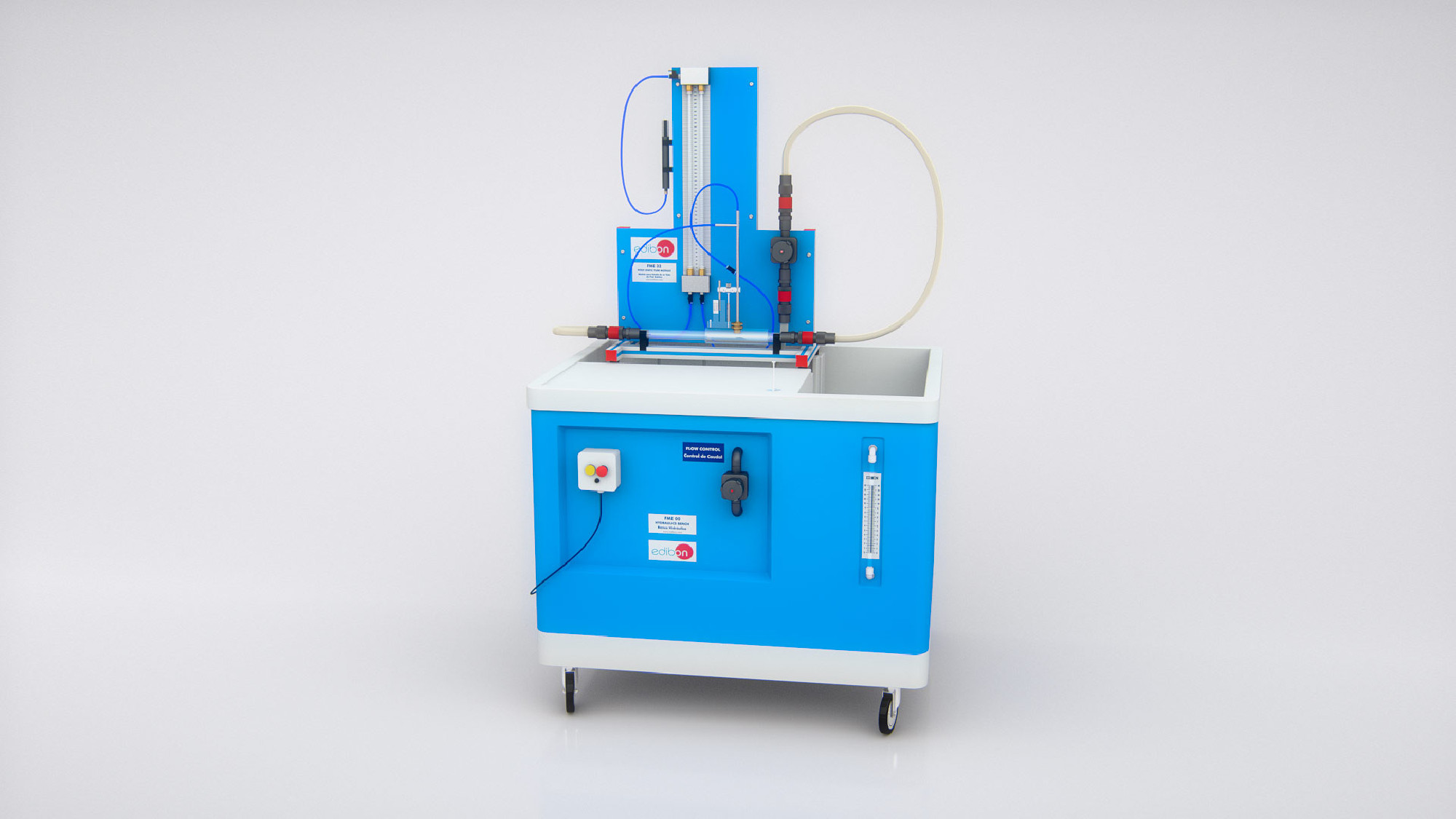

FME32 Unit with service unit FME00

INNOVATIVE SYSTEME

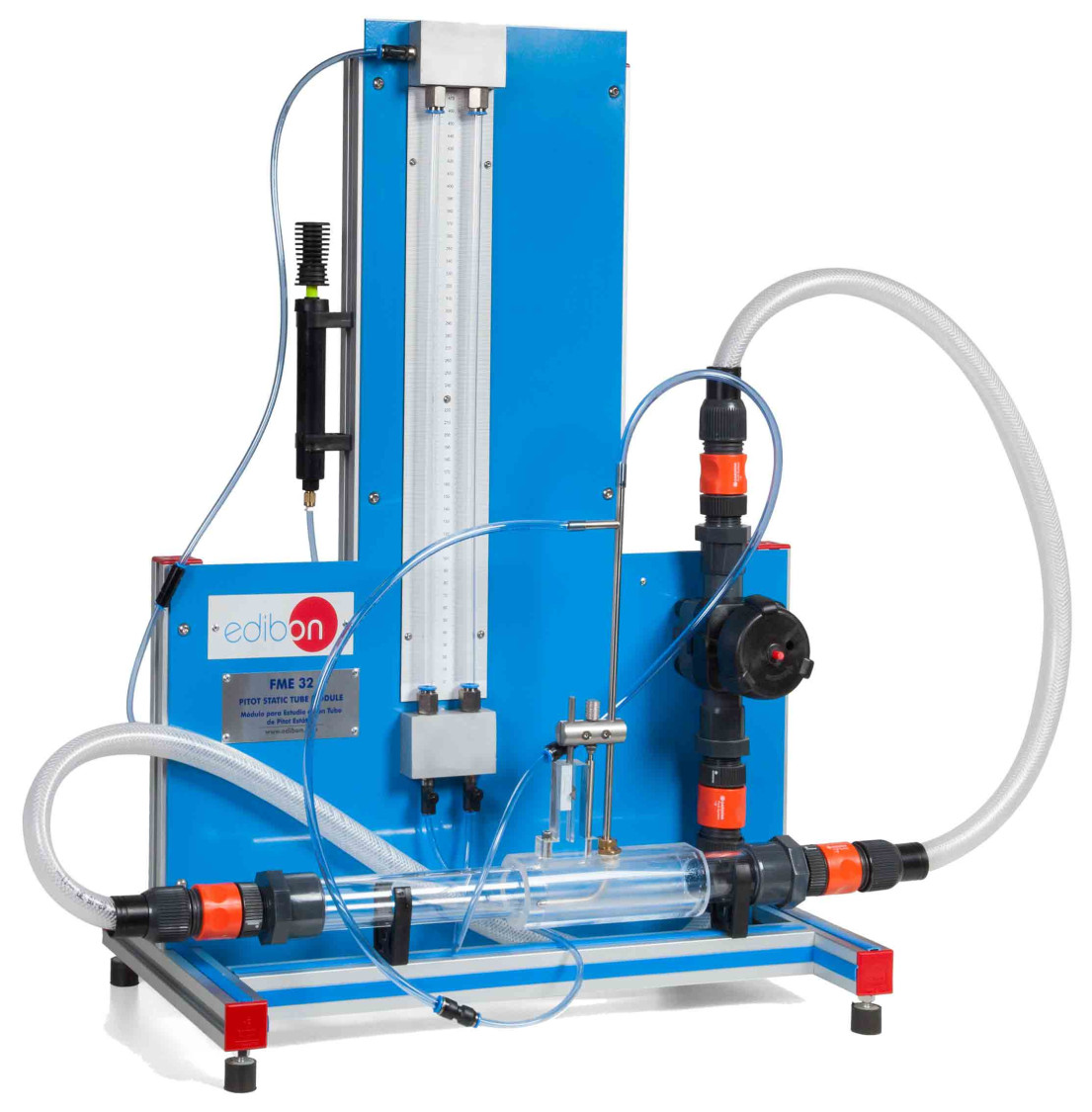

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

8TV

Strömungsmechanik-Labor für die technische und berufliche Bildung

8HE

Strömungsmechanik-Labor für die Hochschulausbildung

ALLGEMEINE BESCHREIBUNG

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.

The Pitot static tube can be moved across the whole cross-section of the tube, and thus to measure the pressure profile.

This tube is connected to manometers via hoses.

The position of the measuring head relative to the bottom edge of the tube can be measured on a scale.

The water supply can come from the Hydraulics Bench (FME00) or from the Basic Hydraulic Feed System (FME00/B).

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Study of the function of a pitot static tube.
To use a pitot static tube.
Determination of tube flow speed profiles.
Demonstration that the flow speed is proportional to the pressure difference between the total pressure and the static pressure.
Error determination in flow measurements using the Pitot tube as measurement instrument.
Factor Cd determination in the Pitot tube.

ERFORDERLICHE ELEMENTE

ERGÄNZENDE AUSRÜSTUNG

BASIC FLUIDS MECHANICS INTEGRATED LABORATORY - LIFLUBA

LIFLUBA

Available

8.1.7.- HYDRAULISCHE MASCHINEN: TURBINEN

LIFLUBA

Integriertes Labor für Grundlagen der Fluidmechanik

Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...

FME02

Available

8.1.2.- MESSUNG

FME02

Gerät des Strömungsflusses über Wehrkronen

The Flow over Weirs, "FME02", designed by EDIBON, has many elements that are used in combination with the Hydraulics Bench (FME00): A special mouthpiece is coupled to the outlet mouthpiece for water in the Hydraulics Bench (FME00).Two soothing...

FME10

Available

8.1.2.- MESSUNG

FME10

Gerät des Manometer-Kalibrators

The Pressure Gauge Calibrator, "FME10", designed by EDIBON, allows the study of the operation of a Bourdon type pressure gauge using a standard set of calibrated weights and the determination and the study of the pressure gauge hysteresis...

FME37

Available

8.1.2.- MESSUNG

FME37

Gerät des Kalibrators für Durchflussmesser

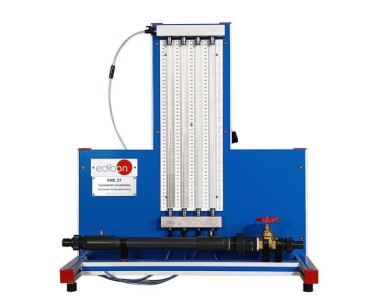

The Flowmeter Calibrator, "FME37", designed by EDIBON, allows for the assessment of the accuracy and performance of the most commonly used flow meters. It features a panel of four-tube pressure gauges displaying pressure differences at various...
