FME02 Gerät des Strömungsflusses über Wehrkronen

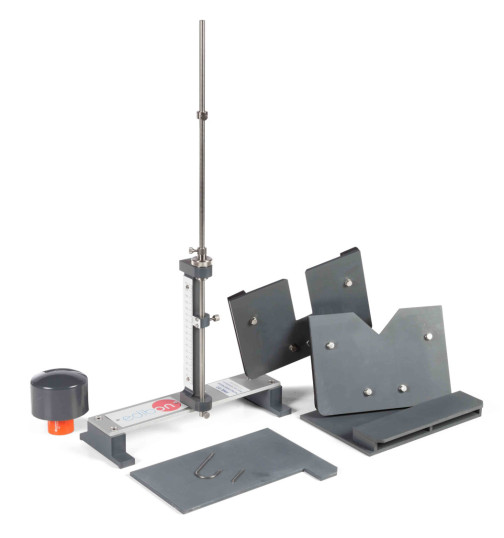

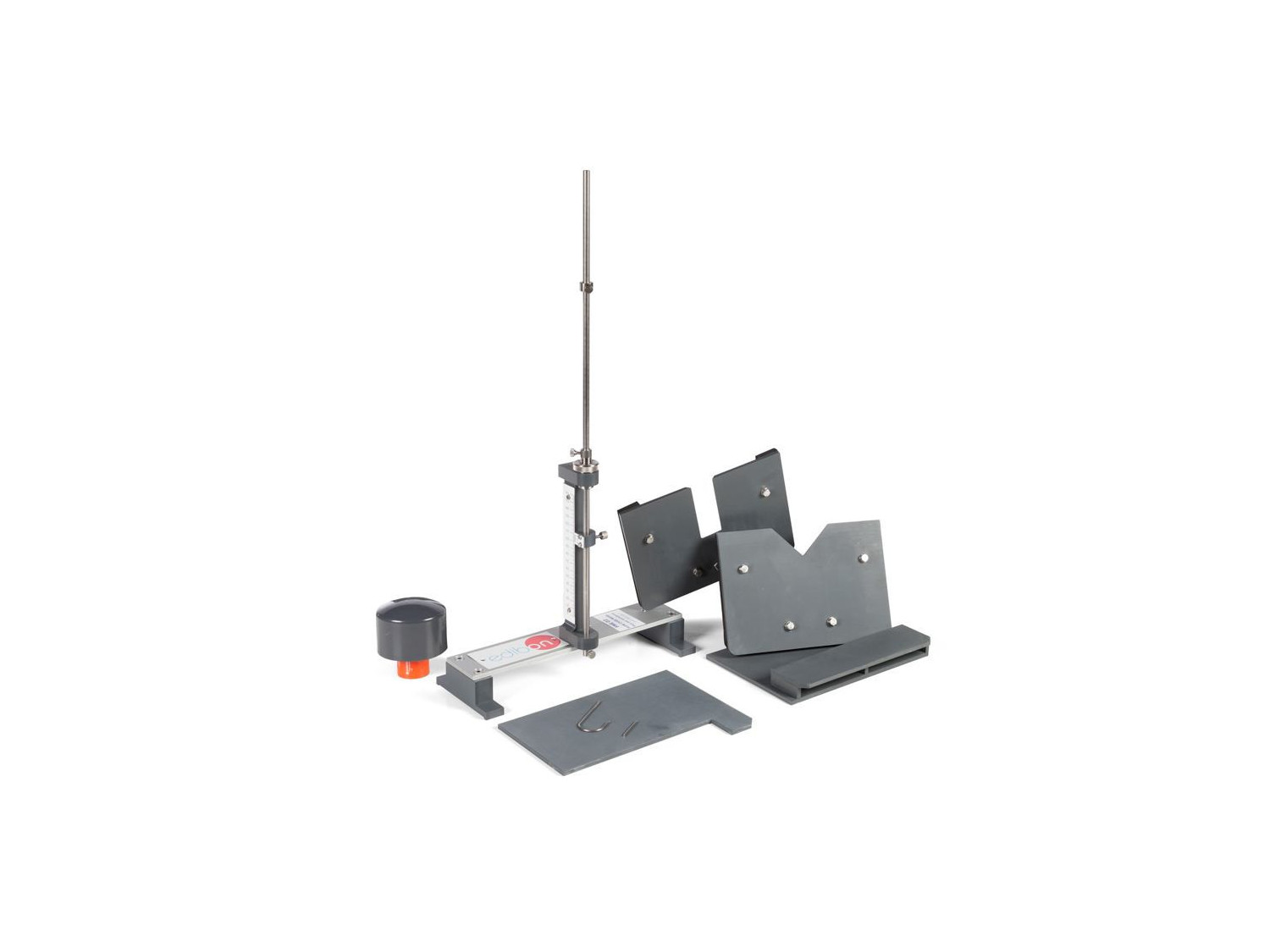

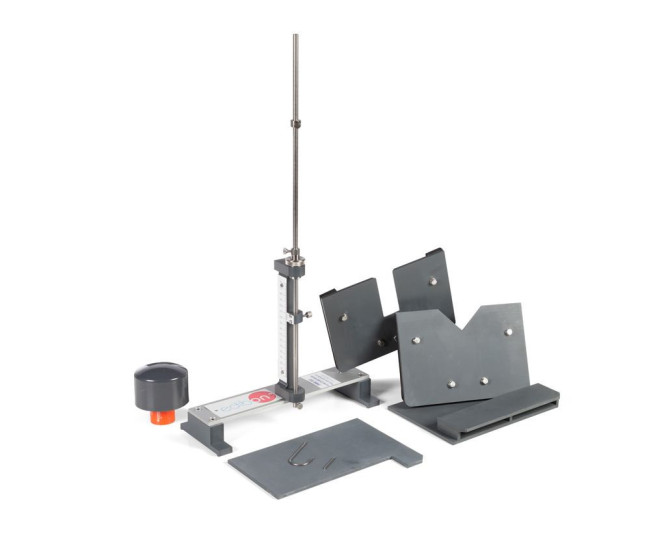

The Flow over Weirs, "FME02", designed by EDIBON, has many elements that are used in combination with the Hydraulics Bench (FME00):

• A special mouthpiece is coupled to the outlet mouthpiece for water in the Hydraulics Bench (FME00).
• Two soothing screens that, together with the previous element, provide a slow current in the channel.
• A level meter consisting of a "nonius" adjusted to a mast, where the heights are pointed out on a caliber coupled to it.
• A small hook or point is attached to the bottom of the mast to carry out the measures.
• Two drains (a rectangular neckline and a V-shape) are attached to the final part of the channel of the Hydraulics Bench (FME00).
