DEPRESSION MEASUREMENT SYSTEM (VACUUM GAUGE) - FME26

Complete FME26 Unit

FME26 Unit with service unit FME00

INNOVATIVE SYSTEME

The depression measurement system, in pressure fall, FME 26, is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

8TV

Strömungsmechanik-Labor für die technische und berufliche Bildung

8HE

Strömungsmechanik-Labor für die Hochschulausbildung

ALLGEMEINE BESCHREIBUNG

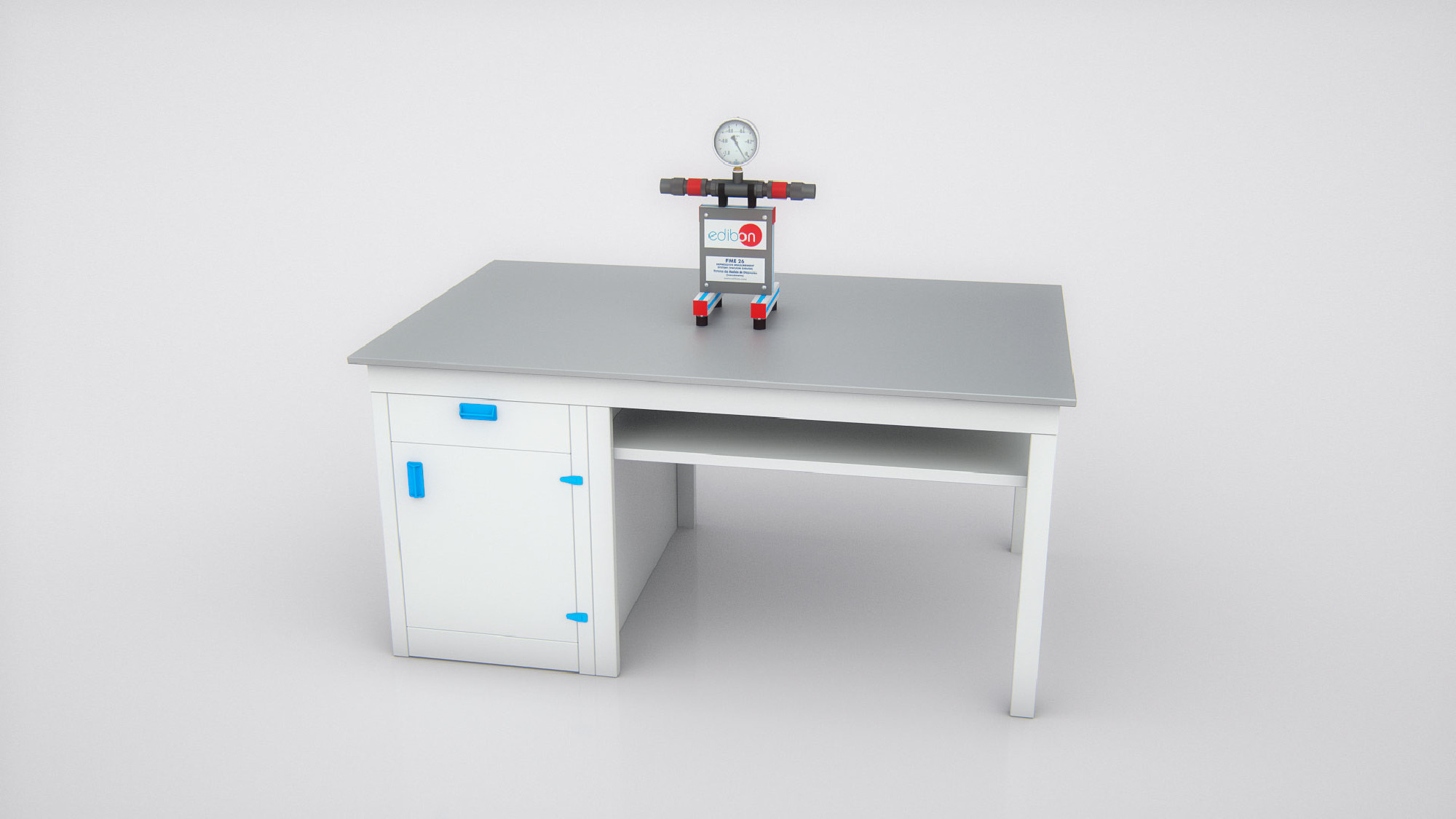

The Depression Measurement System (vacuum gauge), "FME 26", is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system. Such system will be usually a water pump that takes out some liquid from a tank.

Anodized aluminum structure that supports a vacuum gauge whose reading gives us the measurement.

Two quick connections at both sides of the vacuum gauge allow connecting reinforced flexible pipes.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

To measure the depression caused for the fluid aspiration by an hydraulic pump.
We can observe the different negative readings due to the different methods of fluid aspiration for its subsequent impulsion.
