INNOVATIVE SYSTEME

The Computer Controlled Butter Maker Teaching Unit, "EMANC", has been designed to introduce the user into the butter making process, a process that has basically remained the same from its origins.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
FSS

Fehlersimulationssystem
PLC

SPS Industrielle Prozesssteuerung
PLCHMI

Lokale/Remote IIoT-Steuerung und -Überwachung mit HMI
ELK

EDIBON Softwareentwicklungskit, Powered by NI LabVIEW™
ECR

Modulares Industriesystem von EDIBON mit NI CompactRIO
ESN

EDIBON Scada-Net Systeme
ECL

EDIBON Cloud Lernen

Laboratorien

12TV
 Lebensmitteltechnologie-Labor für technische und berufliche Bildung
12HE
 Lebensmitteltechnologielabor für höhere Bildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

The Computer Controlled Butter Maker Teaching Unit, "EMANC", has been designed to provide practical training in the manufacture of butter.

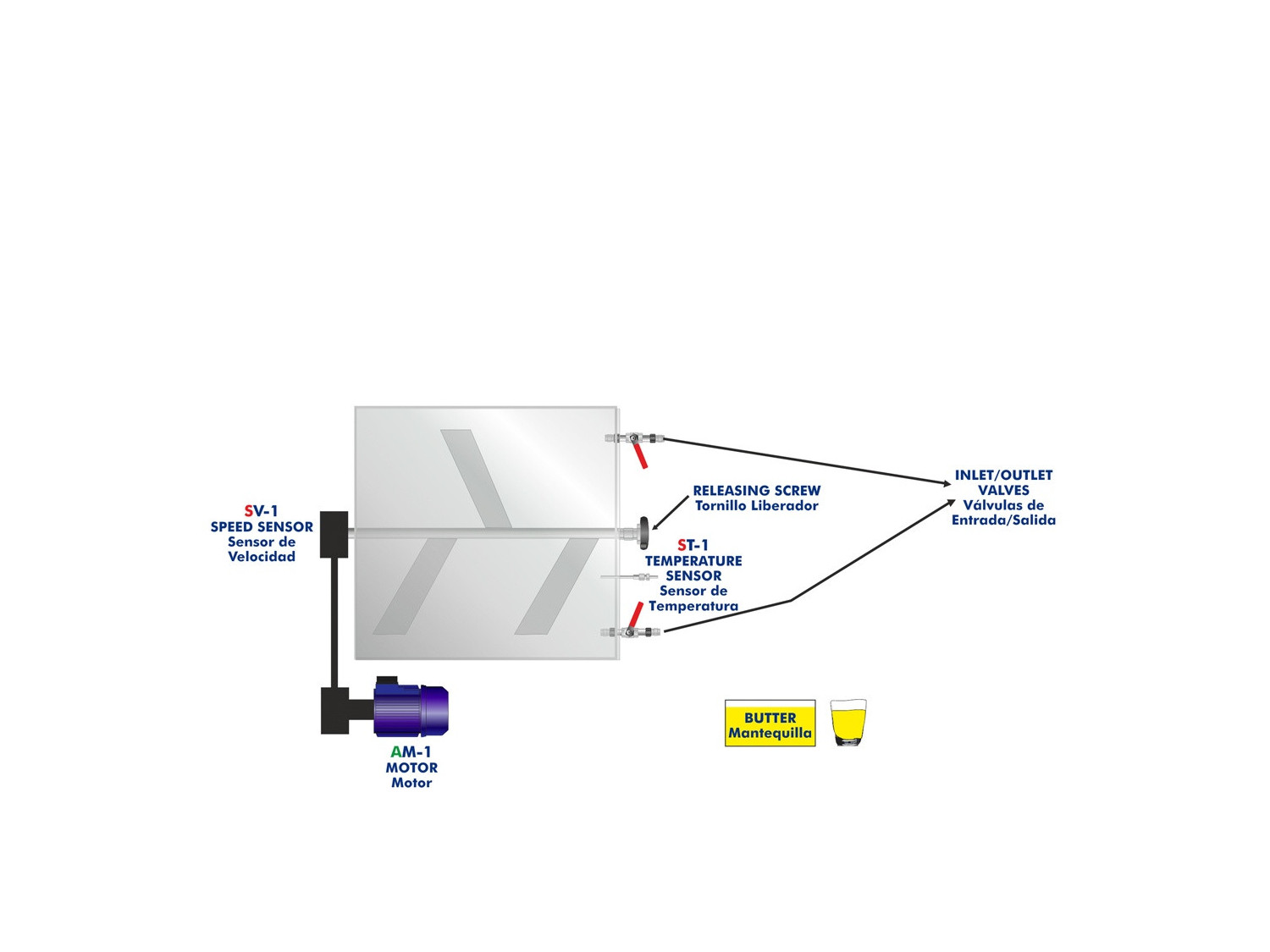

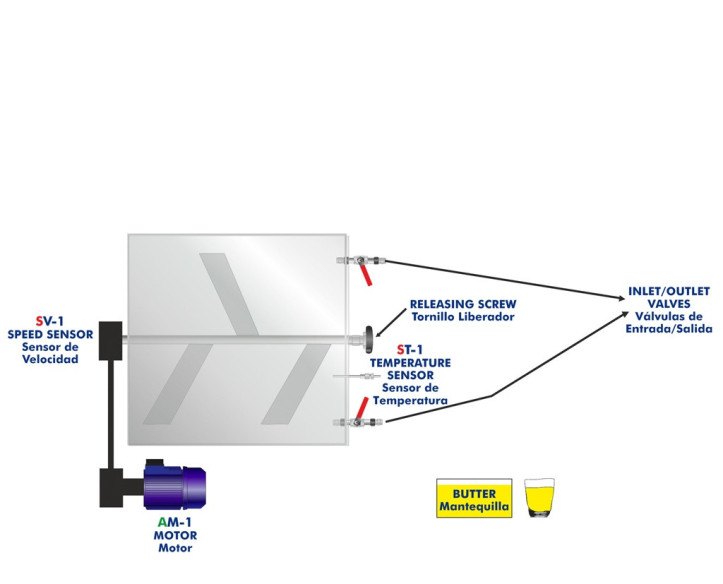

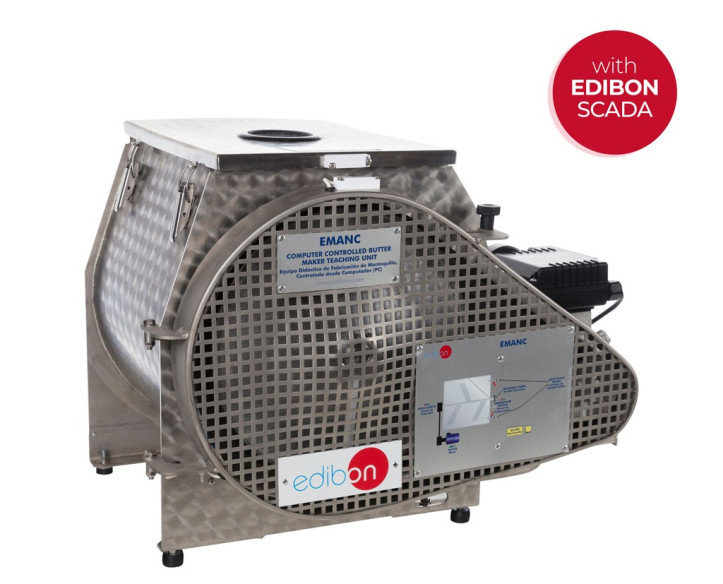

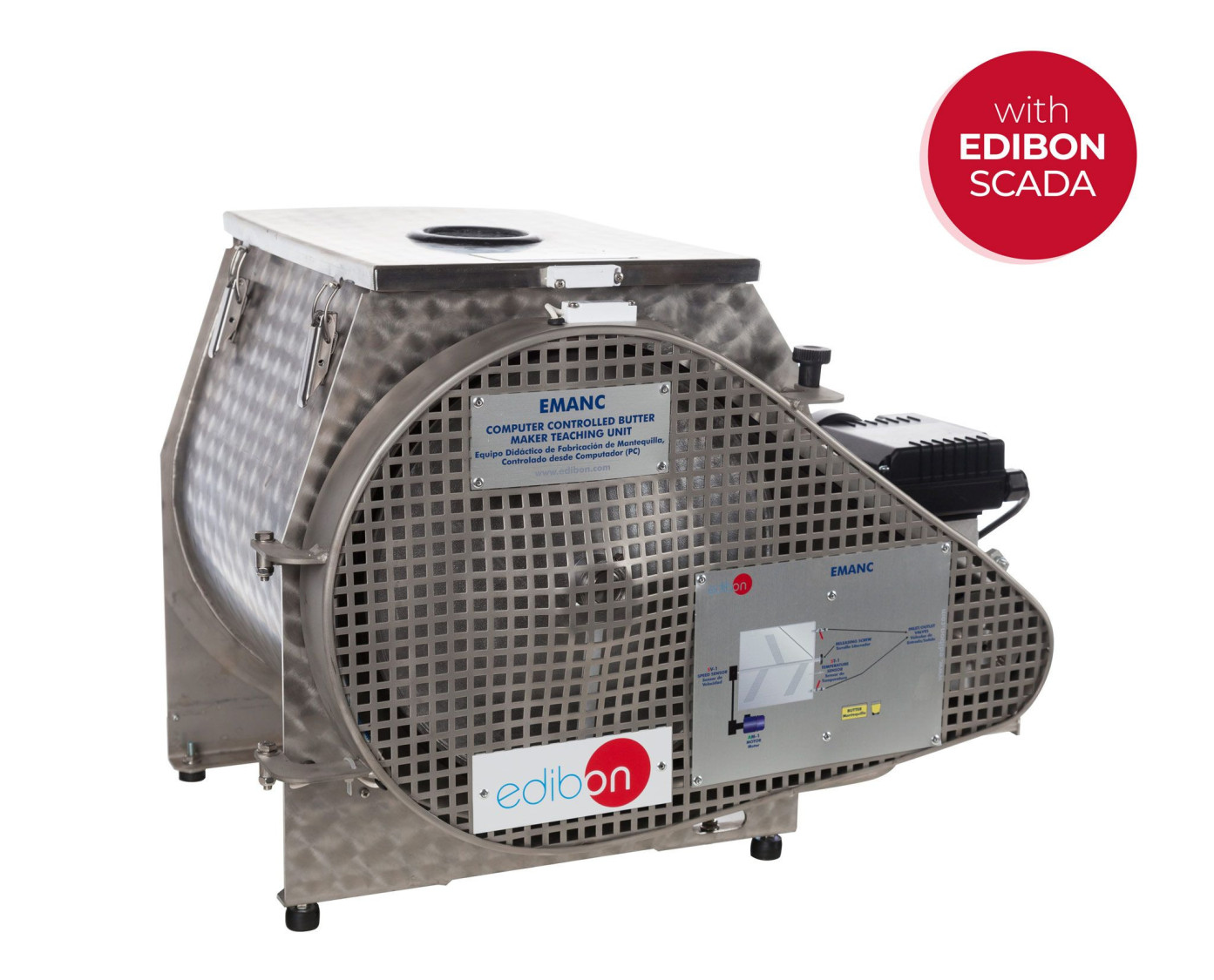

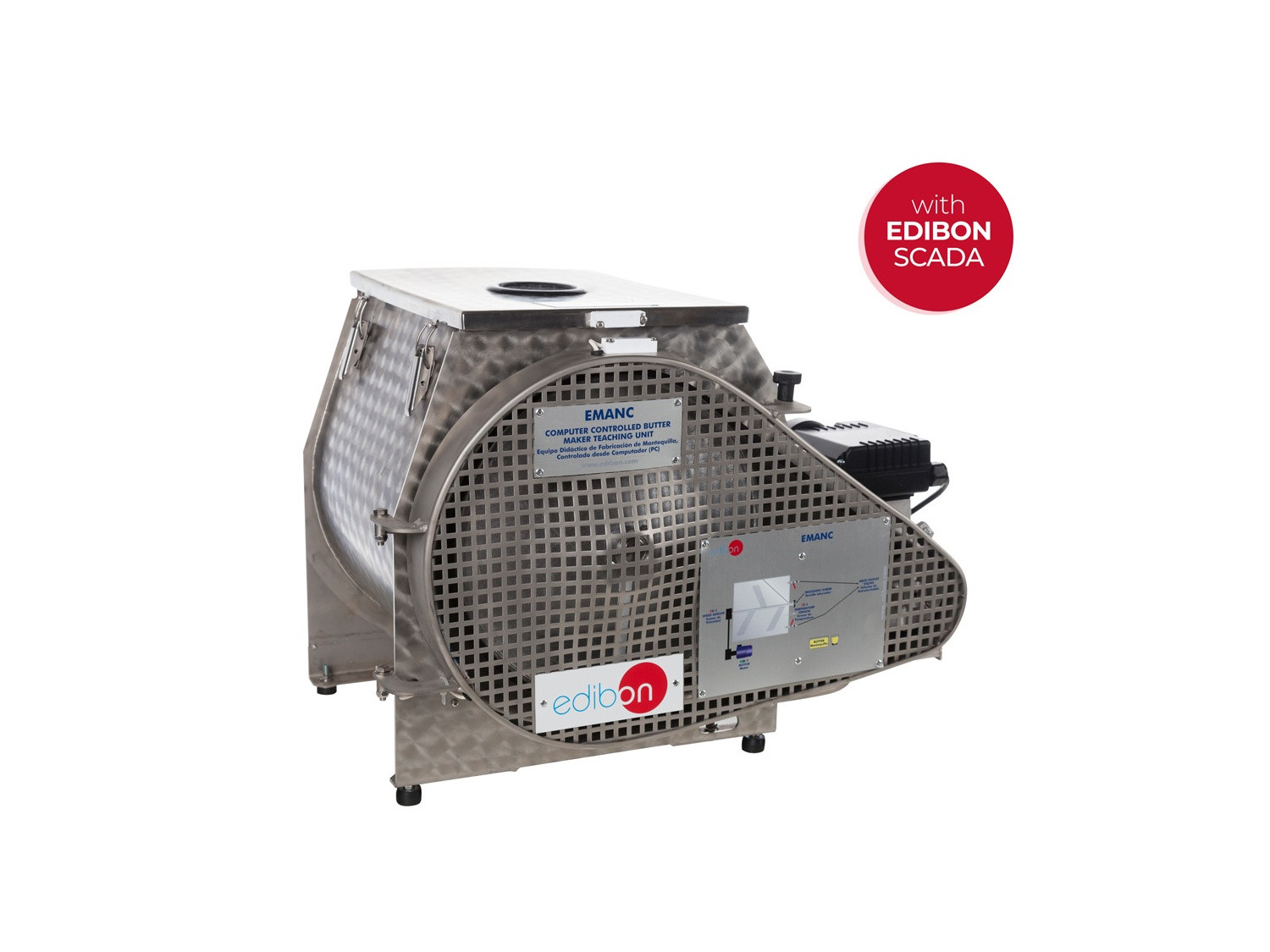

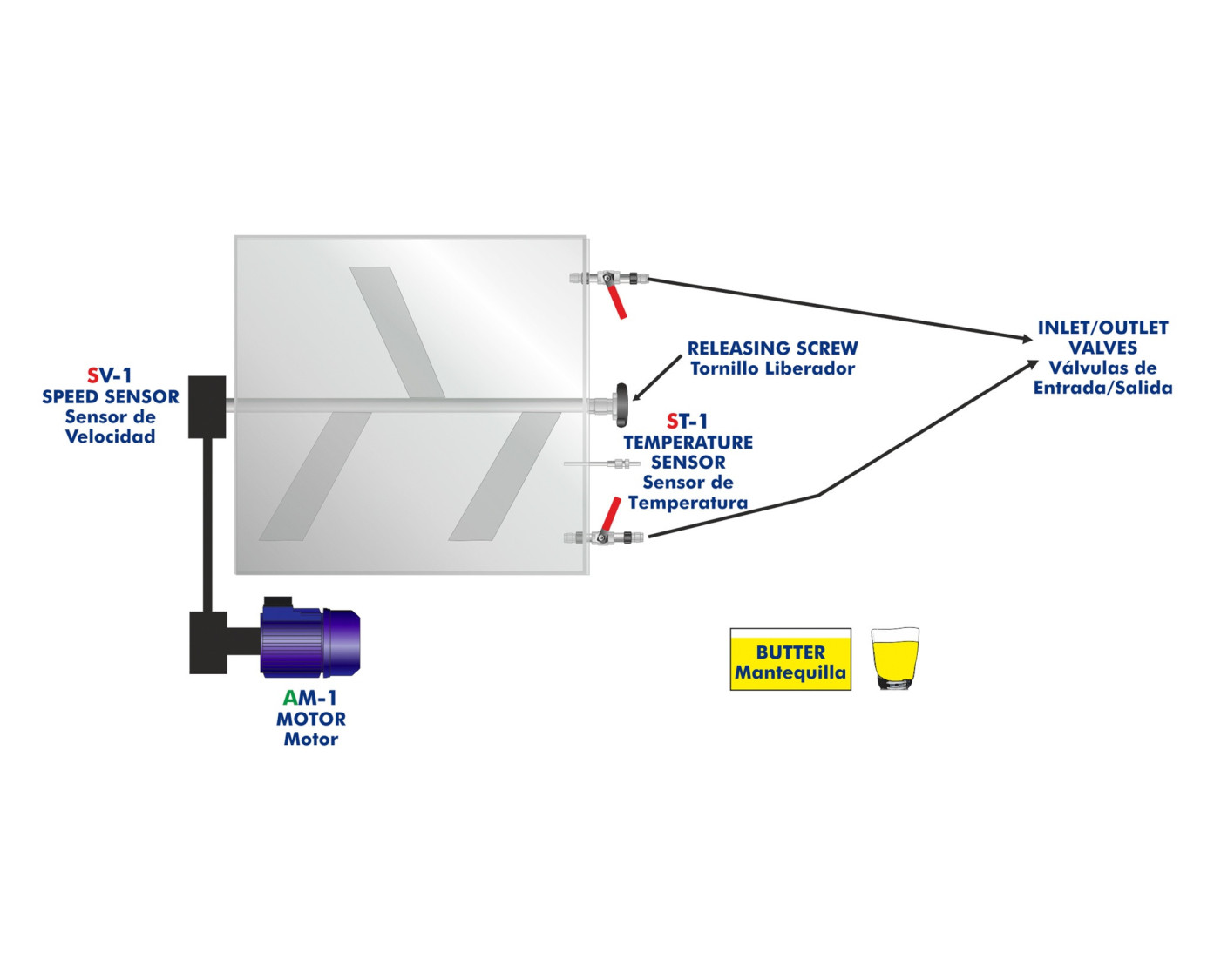

The main structure is a stainless steel tank with a capacity of 25 l. At the top, a cover made of stainless steel with four catches closes the tank. The cover has a transparent sight glass to check the state of the product inside.

A four-blade stirrer located inside the tank will churn the product.

The computer controlled motor is the most important element of the unit, since it makes the inner blades rotate.

The set is also unit with a safety system that blocks the blades when the upper cover is not correctly fitted.

A knob allows the release of the blades to facilitate the cleaning of the tank.

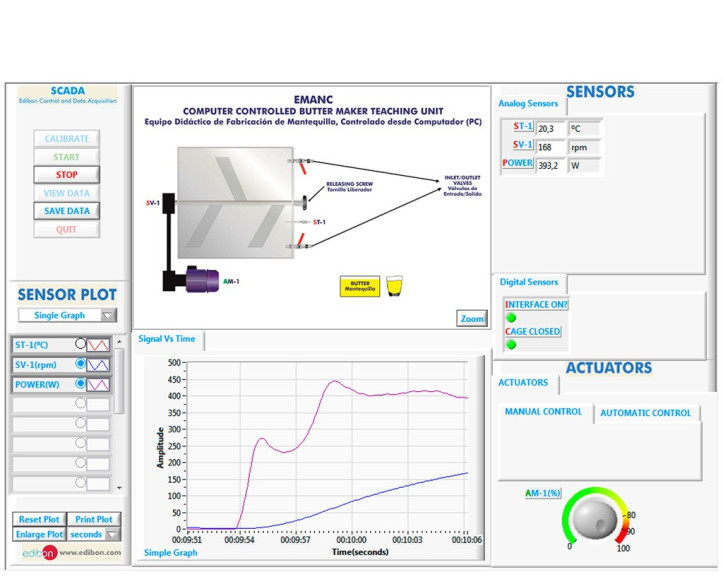

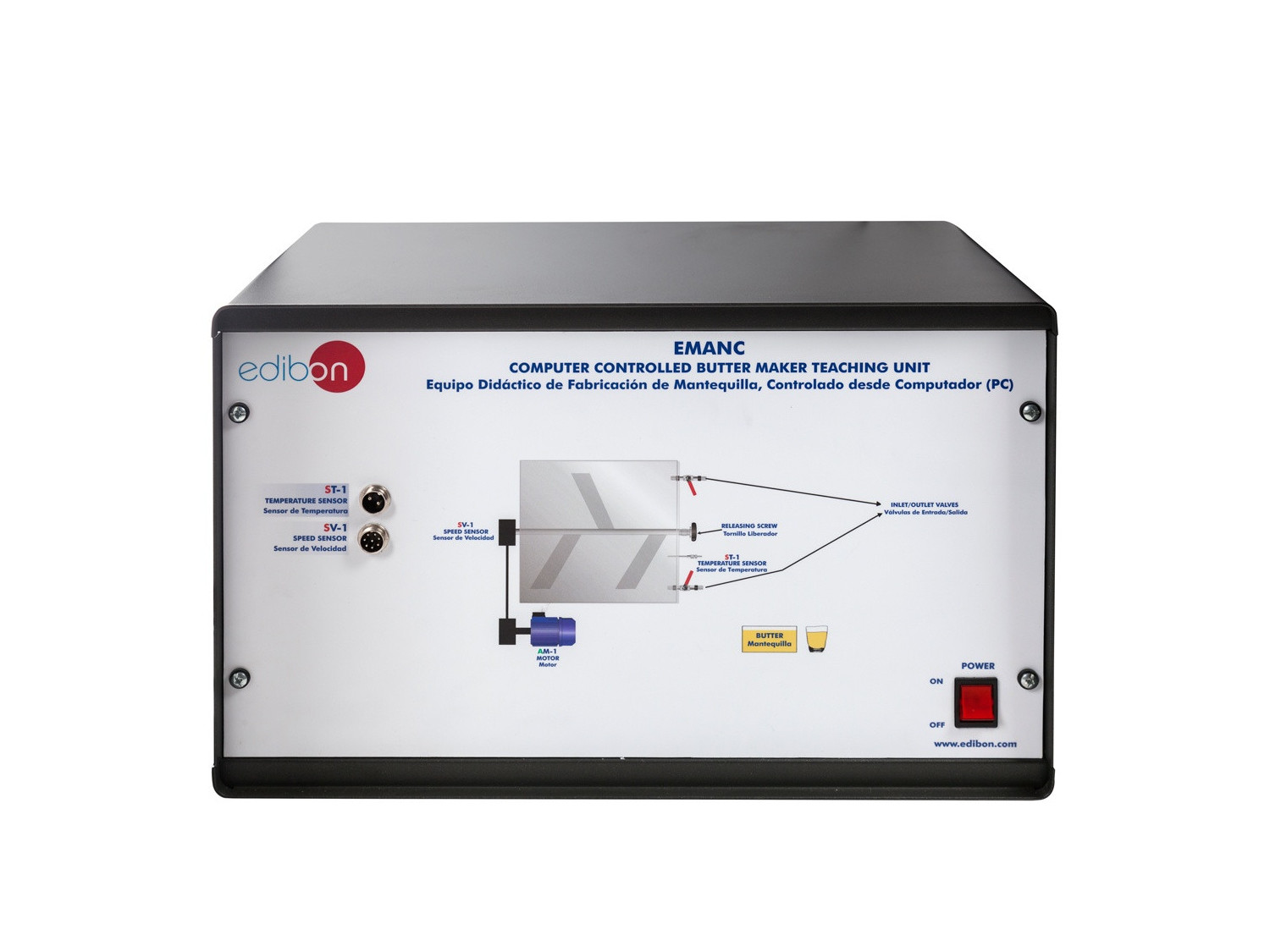

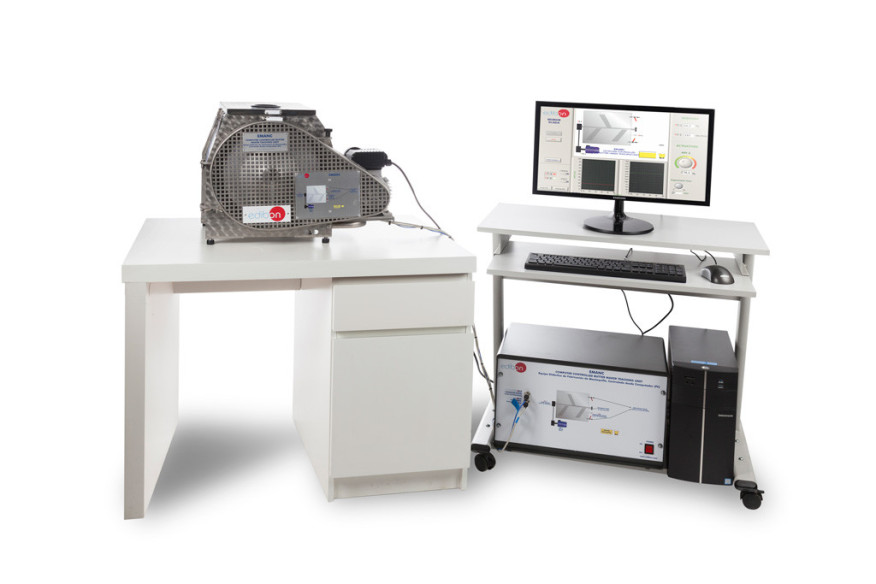

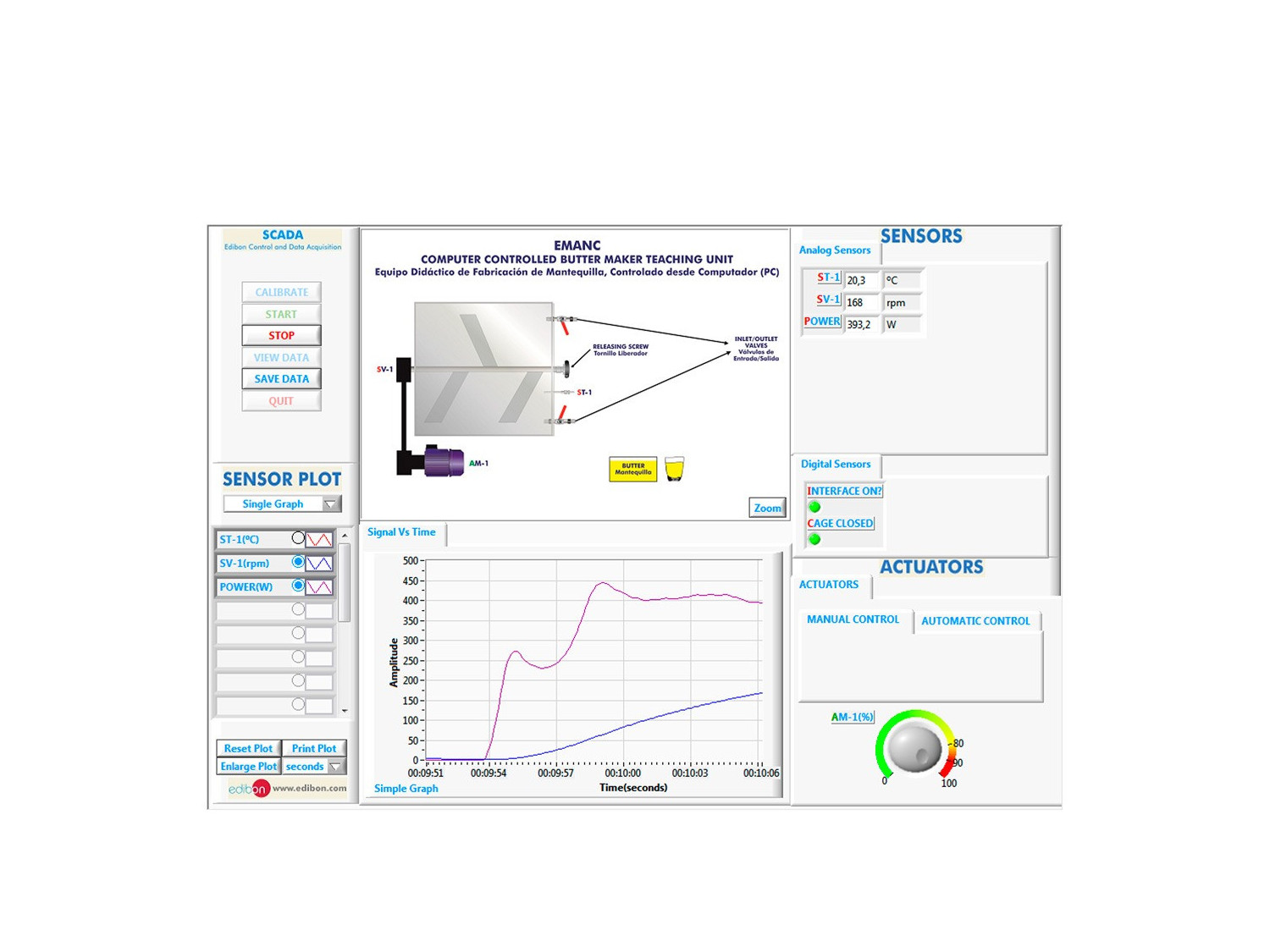

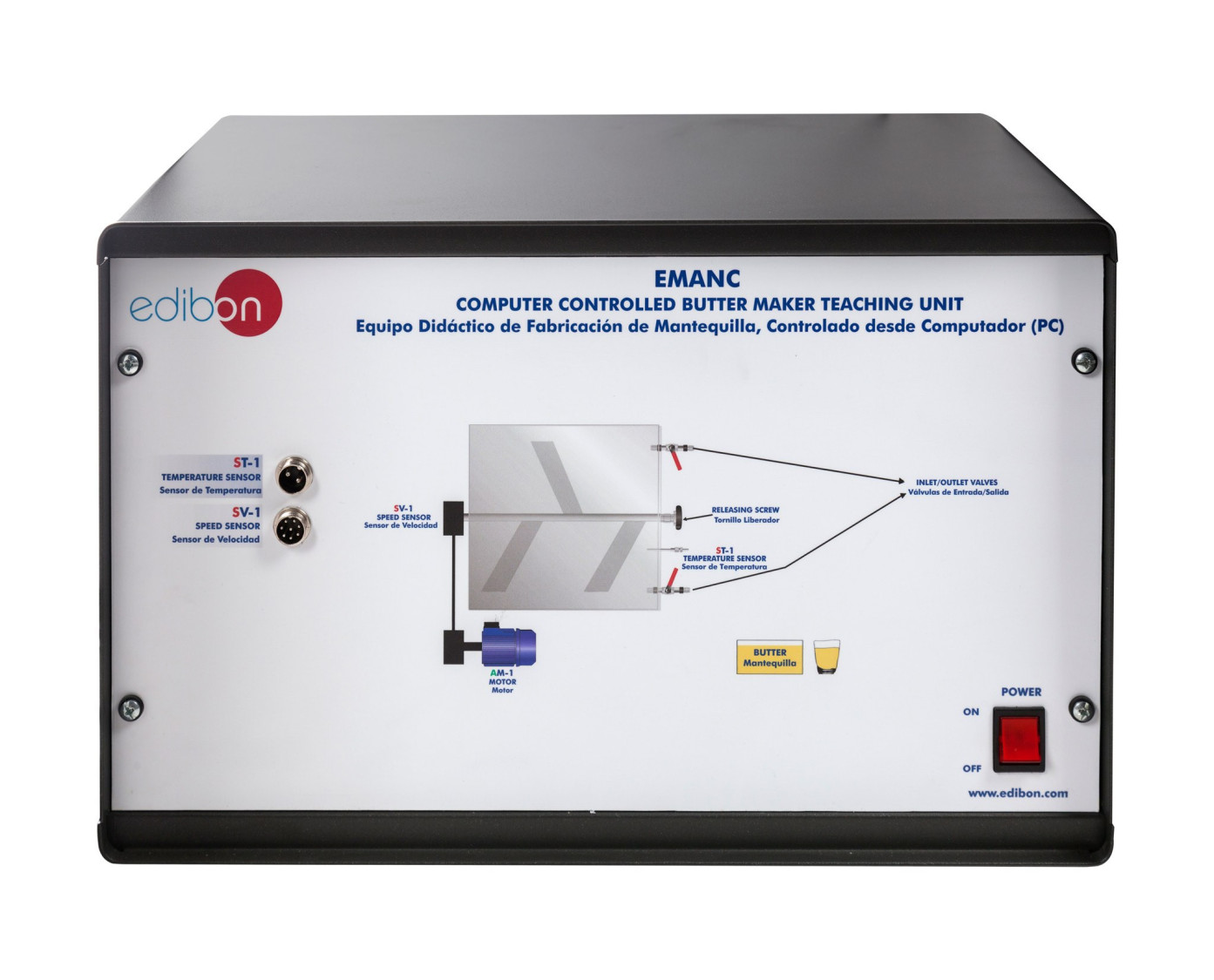

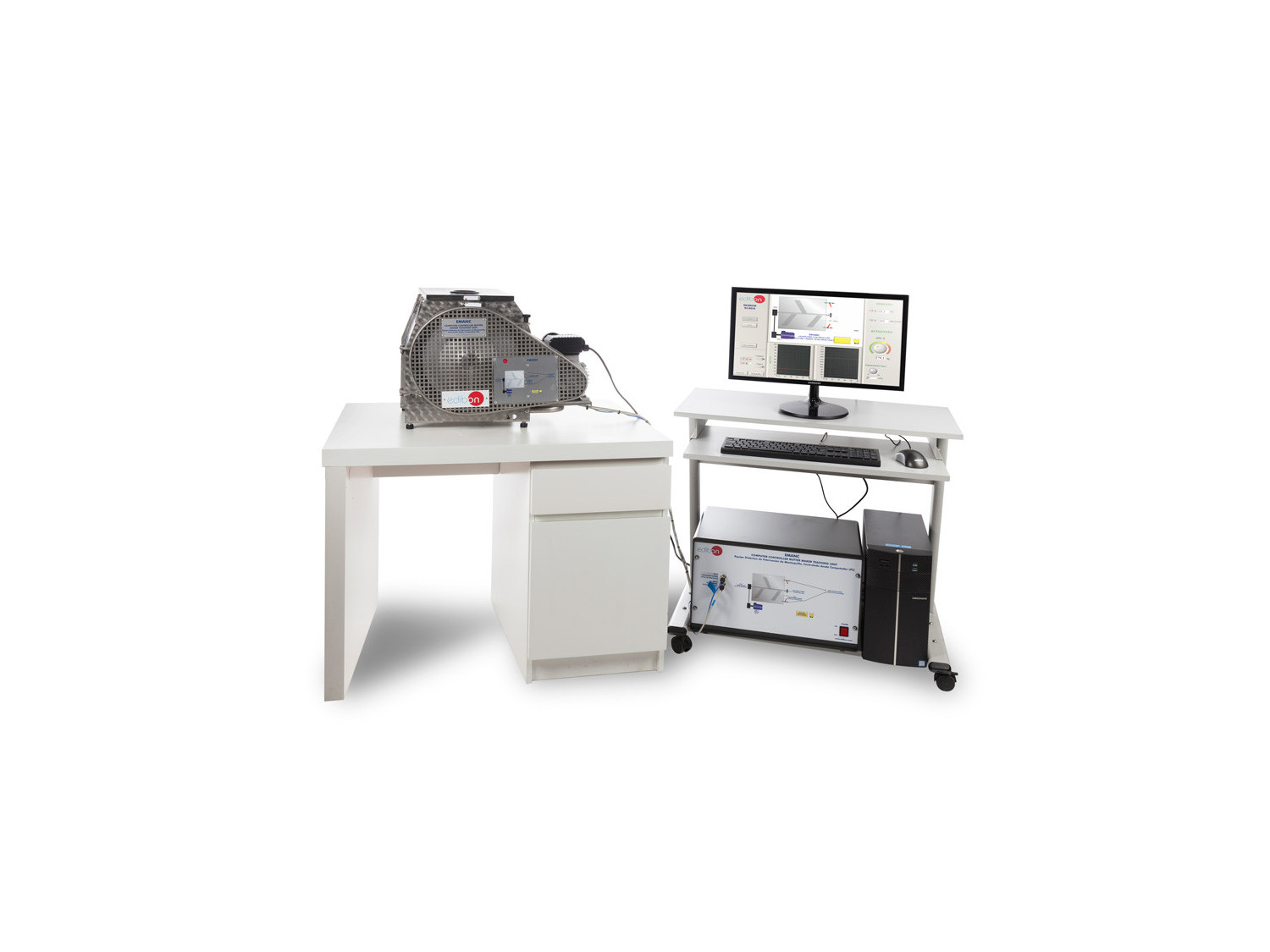

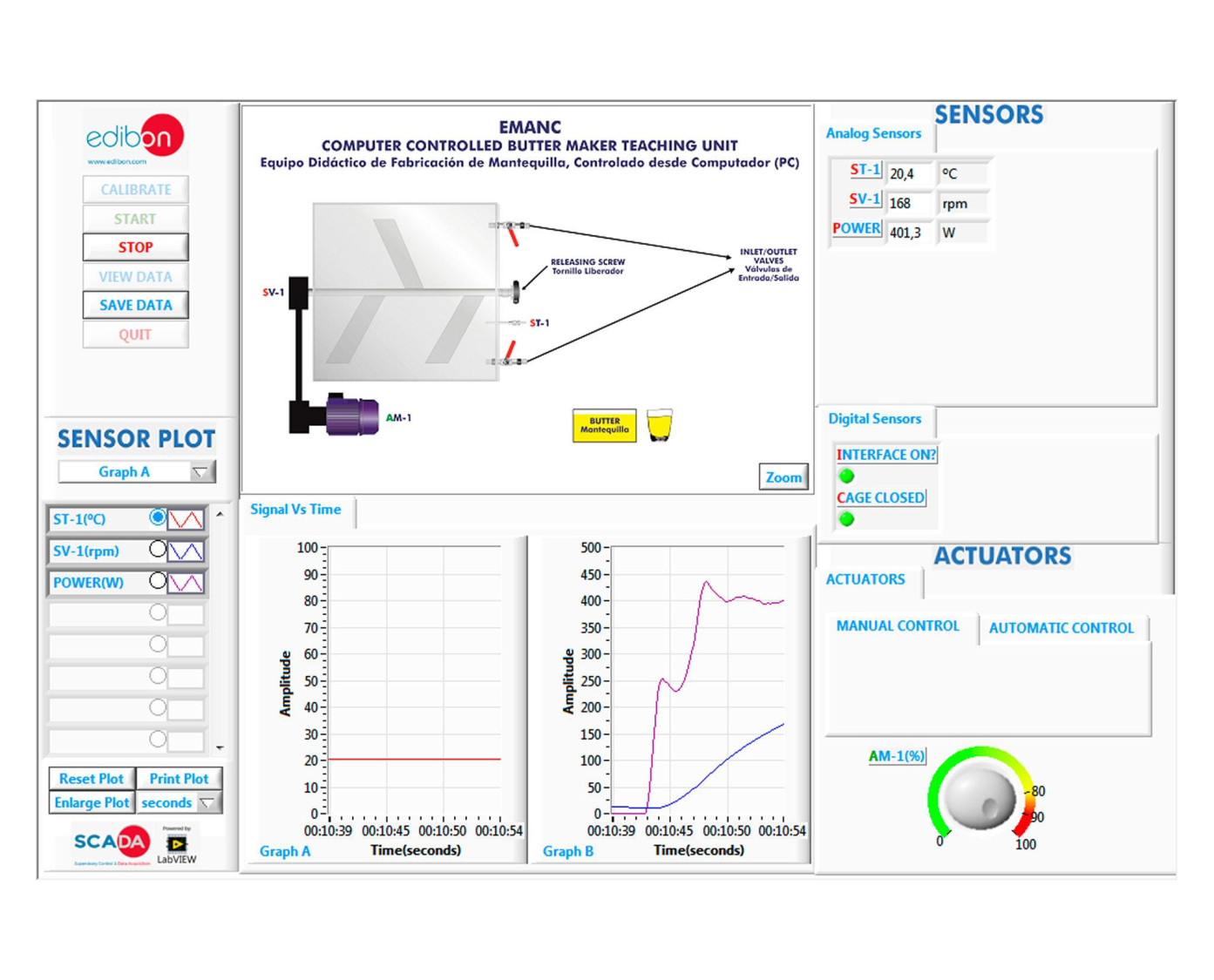

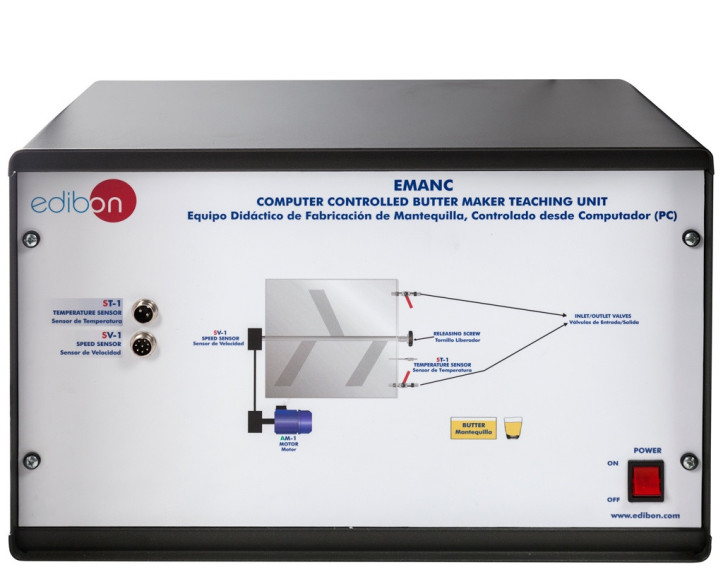

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Production of butter from different types of liquid cream.
  2. Production of butter by different methods with analytical and qualitative resolutions.
  3. Temperature study and agitation during the process.
  4. "Phase inversion" of the oil/water emulsion which occurs in churning.
  5. Thermodynamic evolution analysis of the butter production process.
  6. Study of the influence of the process time on the final product.
  7. Study of the influence of the turning speed on the final product quality.
  8. Sensors calibration.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the EMANC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the EMANC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. By using PLC-PI additional 19 more exercises can be done.
  11. Several other exercises can be done and designed by the user.

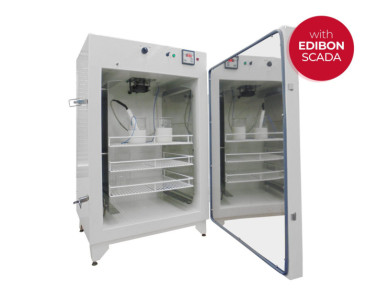

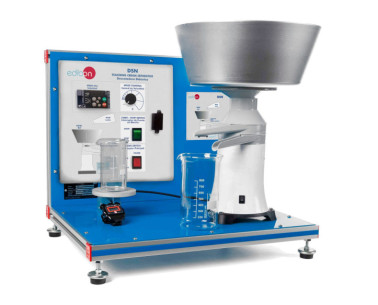

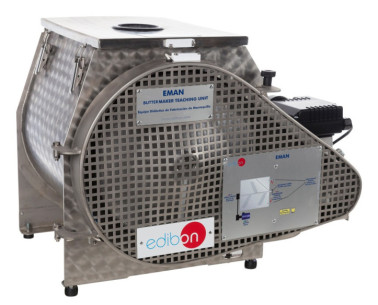

ÄHNLICHE VERFÜGBARE GERÄTE
