FIELD BUS APPLICATIONS UNIT - CEAB

INNOVATIVE SYSTEME

The Trainer for Field Bus Applications, "CEAB", provides the components to conform a real Profibus DP Network where the PC is the master device and different components included with the unit are the slave devices.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

Laboratorien

6TV
 Labor für Mechatronik und Automation für die Technische und Berufliche Bildung
6HE
 Mechatronik- und Automatisierungslabor für die Hochschulausbildung
2TV
 Elektroniklabor für technische und berufliche Bildung
2HE
 Elektroniklabor für die Hochschulausbildung
11PTC
 Labor für Petroleum Training Center

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

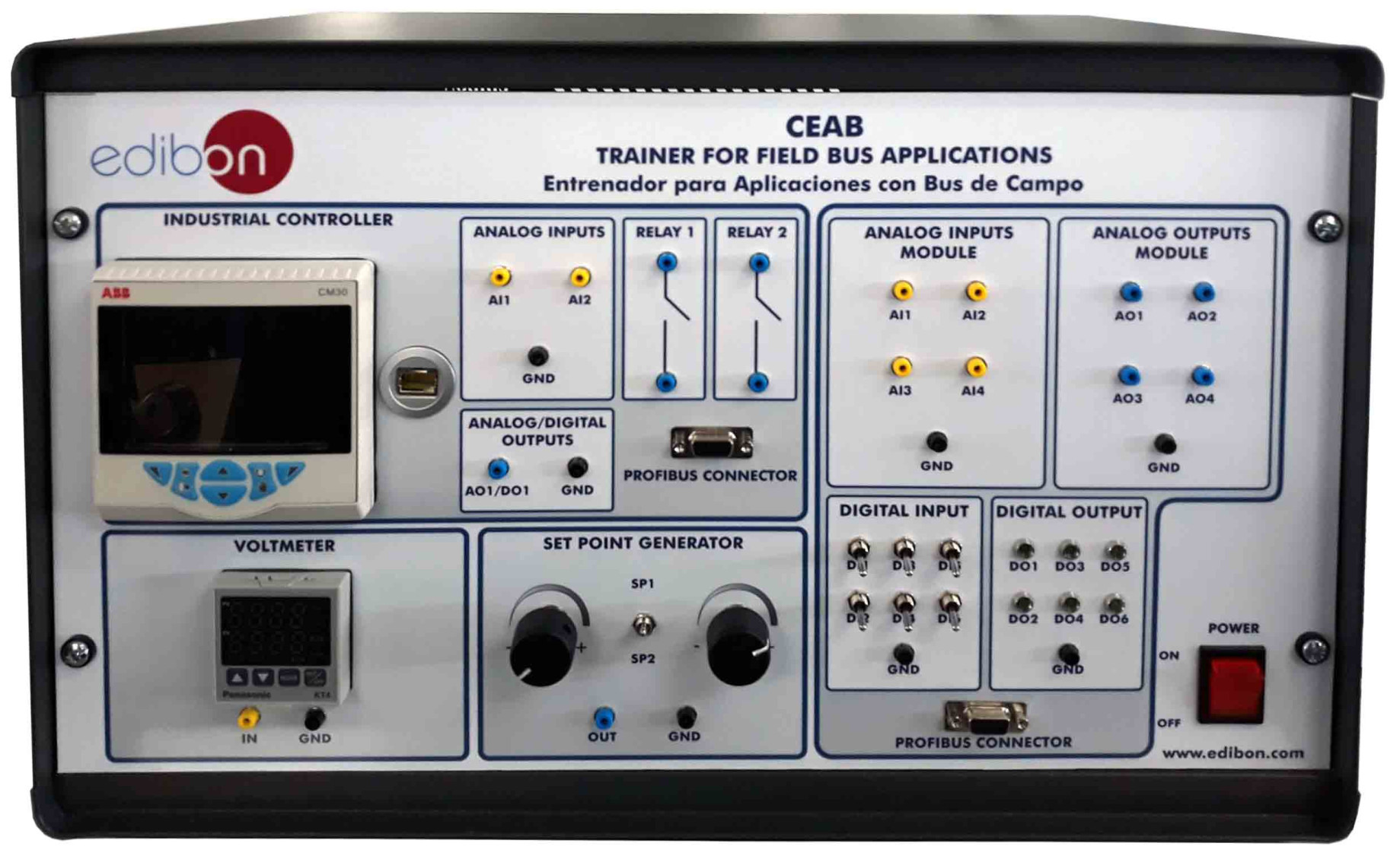

The Trainer for Field Bus Applications, "CEAB", provides the components to conform a real Profibus DP Network where the PC is the master device and different components included with the unit are the slave devices. The "CEAB" unit also allows to study protocols conversion through a gateway device, with an example of conversion from Modbus RTU to Profibus DP.

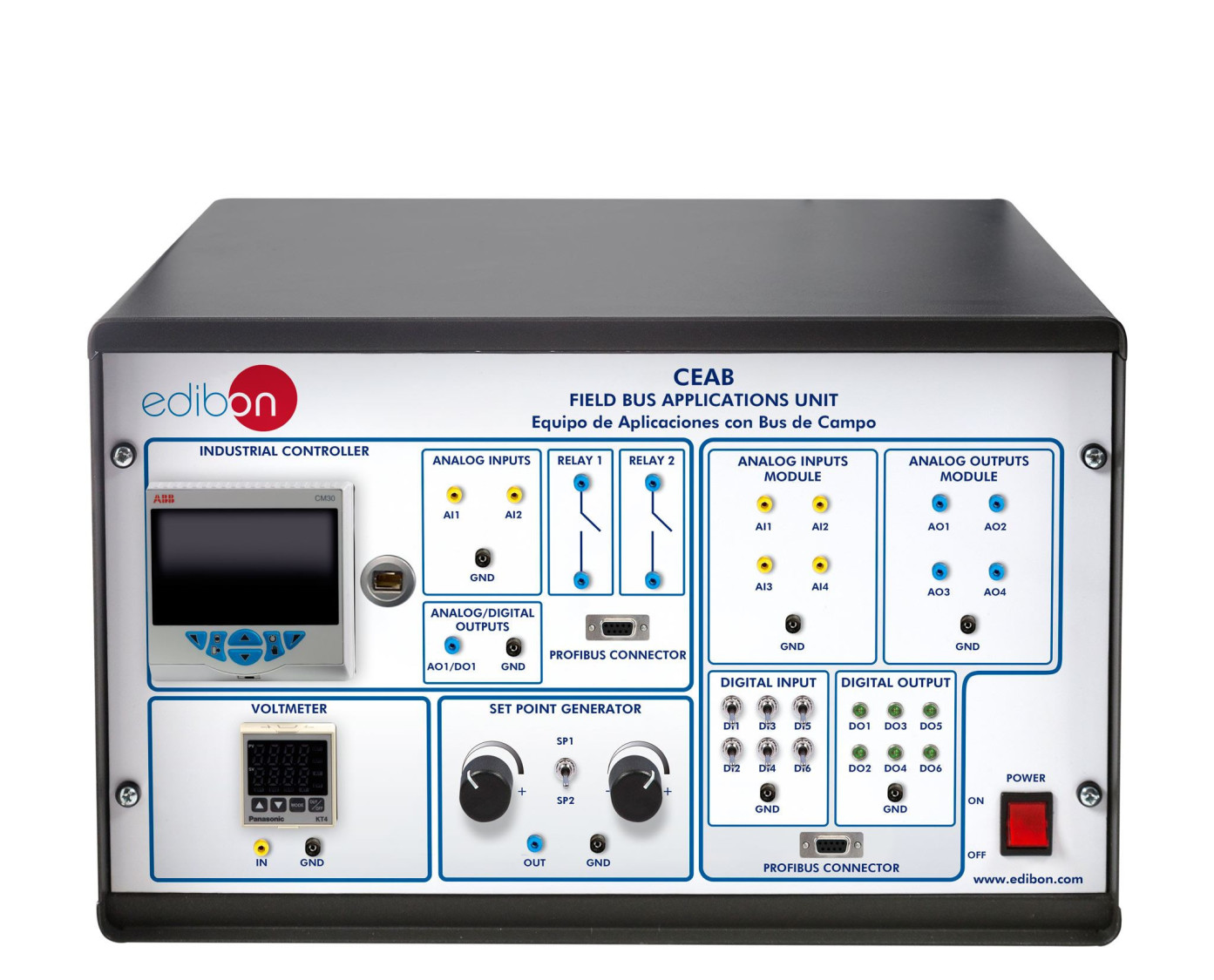

The "CEAB" unit is based on a modular design structure whose functionality is divided into different modules to allow the student a better understanding of the unit. The modules provided with the unit are: Industrial controller, Analog Inputs Module, Analog Outputs Module, Digital Voltmeter, Set Point Generator, Digital Inputs Module, Digital Outputs Module, and the Interface Card.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Study of the transfer function.
  2. Familiarize with the Set Point Generator, generation of a square signal using two analog signals.
  3. Familiarization with the operation with an industrial controller (operator page screen, trend display screen, etc).
  4. Operation and function of a digital industrial controller.
  5. Setting alarms and diagnosis generation.
  6. Familiarization with the Fieldbuses and the stations connected.
  7. Familiarization with the device master file "DMF".
  8. Network layout of the Profibus DP Fieldbus.
  9. Communication protocols.
  10. Installation, connection and familiarization with the software.
  11. Configuration of the Profibus DP network.
  12. Input/output mapping of the Industrial Controller and the digital and analog input and output device.
  13. Communication parameters configuration and reading the Profibus DP variables.
  14. OPC server configuration and creation of tags with an OPC client.
  15. Reading and writing the signal of the Digital and Analog Input and Output Profibus DP module with the OPC server.
  16. Setting the PID control parameters of an industrial controller with the front panel of the device.
  17. Setting the PID control parameters of an industrial controller with the OPC server.
