MMF Gerät für Biegemoment und Scherkraft

7.1.6.- STRUKTURMECHANIK 7.3.2.1.- MECHANISCHE TESTS 14.1.6.- STRUKTURMECHANIK

INNOVATIVE SYSTEME

The Shear Force and Bending Momentum Unit, "MMF", unit is formed by an aluminum and steel structure that allows us to perform a mechanical study of different structures.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV

Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung

7HE

Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ALLGEMEINE BESCHREIBUNG

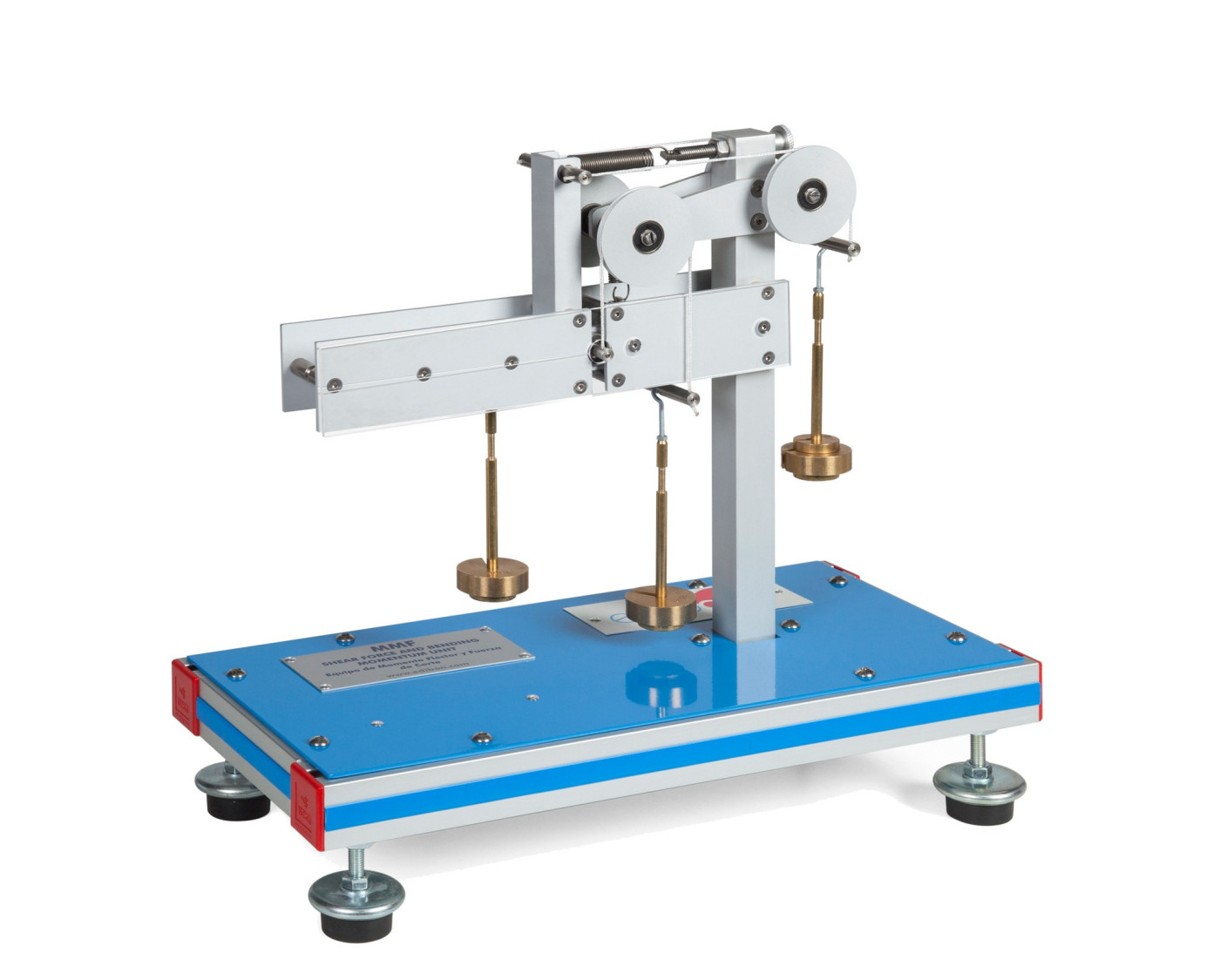

The Shear Force and Bending Momentum Unit, "MMF", unit is formed by an aluminum and steel structure that allows us to perform a mechanical study of different structures.

An articulated structure makes it possible to convert the application of one vertical force into both a bending moment and a shearing force on the beam. Both effects are created by the use of a set of weights that balance the system using a double-pulley system.

The different points in which the force can be applied make it possible to study the different reactions of the beam, allowing us to compare the experimental and theoretical results.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Study of cantilever beams subject to loads at different points.
Demonstration of the shear force as the algebraic sum of the transverse components of the forces to one side of the section.
Demonstration of the bending moment as the algebraic sum of the moments of the forces to one side of the section.
Study of the equilibrium and the applied balancing forces when the applied masses are varied.
