MTE2 Gerät für ein epizykloidales Getriebe (2 Elemente)

7.2.2.- ZAHNRÄDER, DIFFERENTIALE UND GETRIEBE
EPICYCLIC GEAR UNIT (2 ELEMENTS) - MTE2

INNOVATIVE SYSTEME

The Epicyclic Gear Unit (2 elements), "MTE2", consists of two coupled epicyclic gears sets.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV
 Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung
7HE
 Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

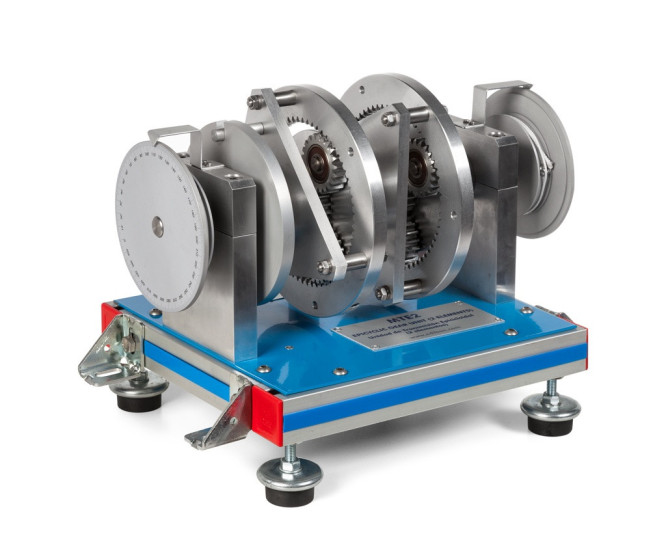

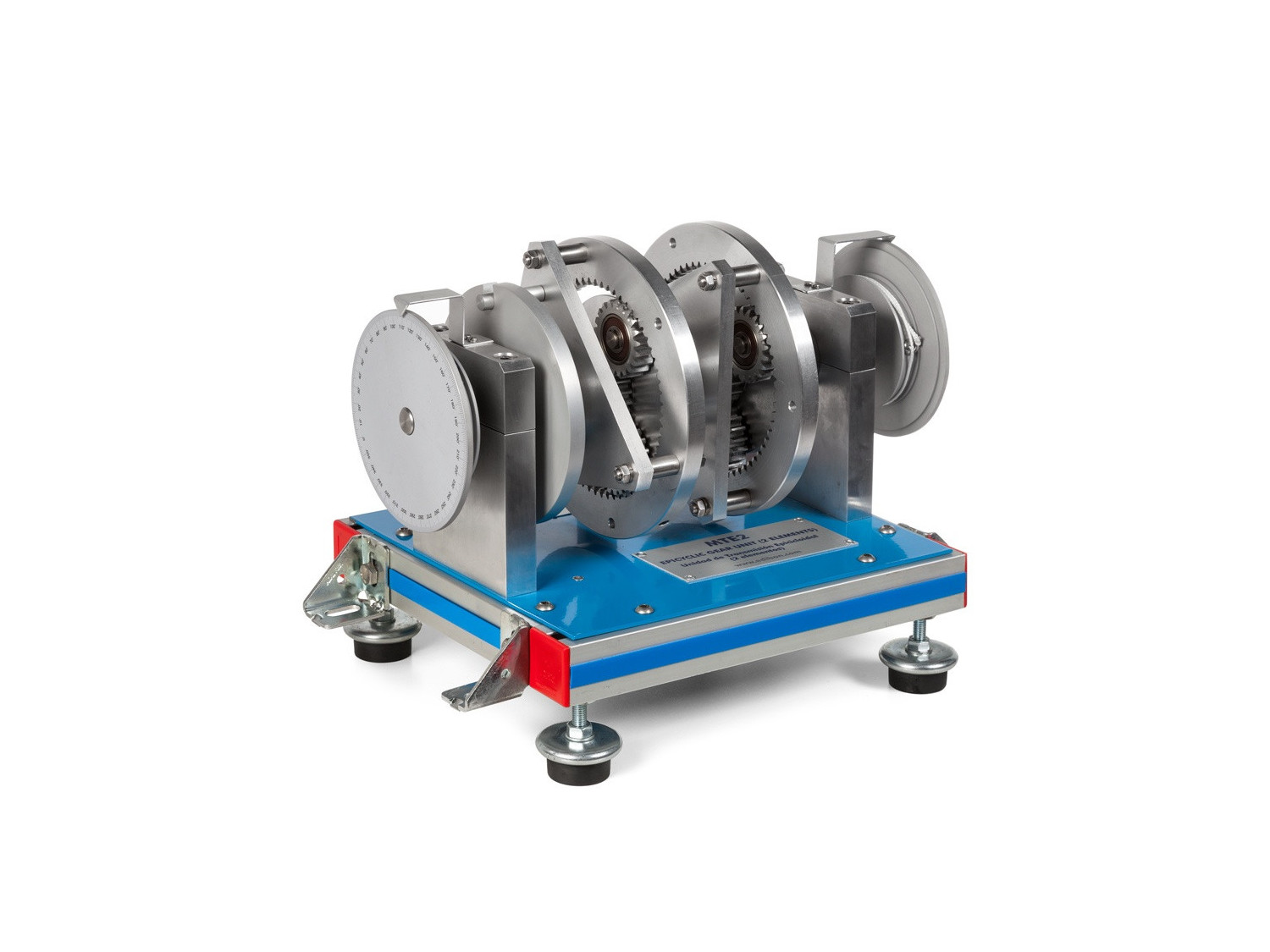

The Epicyclic Gear Unit (2 elements), "MTE2", consists of two coupled epicyclic gears sets. It will allow the students to carry out experiments of different gear ratios, as well as the torque conversions.

The epicyclic gears installed in the "MTE2", unit are the same and they consists of the following elements:

  • Sun gears (Z=21).
  • Satellite gears set (Z=21).
  • Ring (Z=63).

The unit has two graduated discs located at the input and output shafts, which will allow to check the velocity and torque ratios according to the application of the different brakes.

The power arrives to the epicyclic gears through the sun gears.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Demonstration of the function of an epicyclic gear system.
  2. To determine and verify the velocity and torque ratios between the input and output shafts.
  3. Study of the mechanical advantage and efficiency of a planetary system.
  4. Determination of the angular displacement at the input and output and comparison with calculated ratios.
  5. Determination of the minimum force at the input to move a weight at the output.

Gears selection:

  1. First gear.
  2. Second gear.
  3. Third gear.
  4. Neutral.

Power transmission:

  1. Checking the relation between the input motor torque and the output motor torque.

ÄHNLICHE VERFÜGBARE GERÄTE

BORG-WARNER AUTOMATIC TRANSMISSION - MBW
  • MBW
Available
7.2.2.- ZAHNRÄDER, DIFFERENTIALE UND GETRIEBE
MBW
Automatikgetriebe BorgWarner

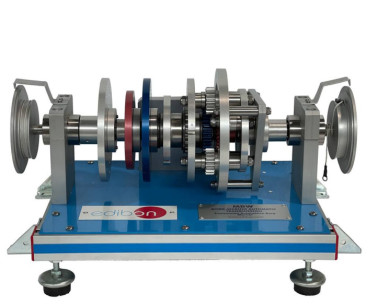

The main distinguishing element of automatic transmissions is its group of epicyclic gearing.The gear assembly of the "MBW" unit consists of:Two sun gears, one to transfer forward gear ratios and one reverse gear.Two sets of planet gears: long and...
Einheit Anzeigen
EPICYCLIC GEAR UNIT (1 ELEMENT) - MTE1
  • MTE1
Available
7.2.2.- ZAHNRÄDER, DIFFERENTIALE UND GETRIEBE
MTE1
Gerät für ein epizykloidales Getriebe (1 Element)

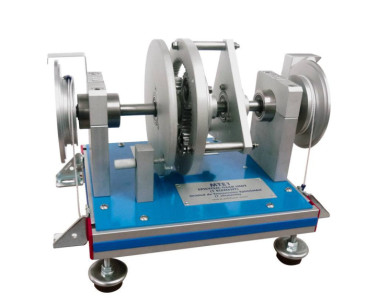

The Epicyclic Gear Unit (1 element), "MTE1", includes a set of epicyclic gears that allows the student to study different reduction ratios (direct drive and overdrive), as well as torque conversion.A simple epicyclic gears set consists of:Sun gear...
Einheit Anzeigen
EPICYCLIC GEAR UNIT (3 ELEMENTS) - MTE3
  • MTE3
Available
7.2.2.- ZAHNRÄDER, DIFFERENTIALE UND GETRIEBE
MTE3
Gerät für ein epizykloidales Getriebe (3 Elemente)

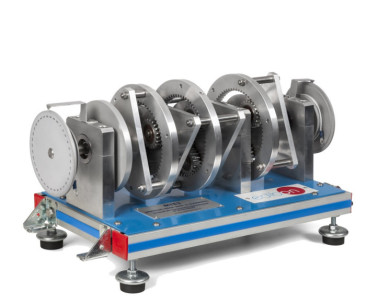

The Epicyclic Gear Unit (3 elements), "MTE3", consists of three coupled epicyclic gears sets. It will allow the students to carry out experiments of different gear ratios, as well as the torque conversions.The epicyclic gears installed in the...
