MCPG Gerät für einen dickwandigen Zylinder

7.1.6.- STRUKTURMECHANIK 14.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG)
THICK WALLED CYLINDER UNIT - MCPG

INNOVATIVE SYSTEME

The Thick-Walled Cylinder Unit, "MCPG", has been designed to study stresses and strains in a thick-walled cylinder under internal pressures.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

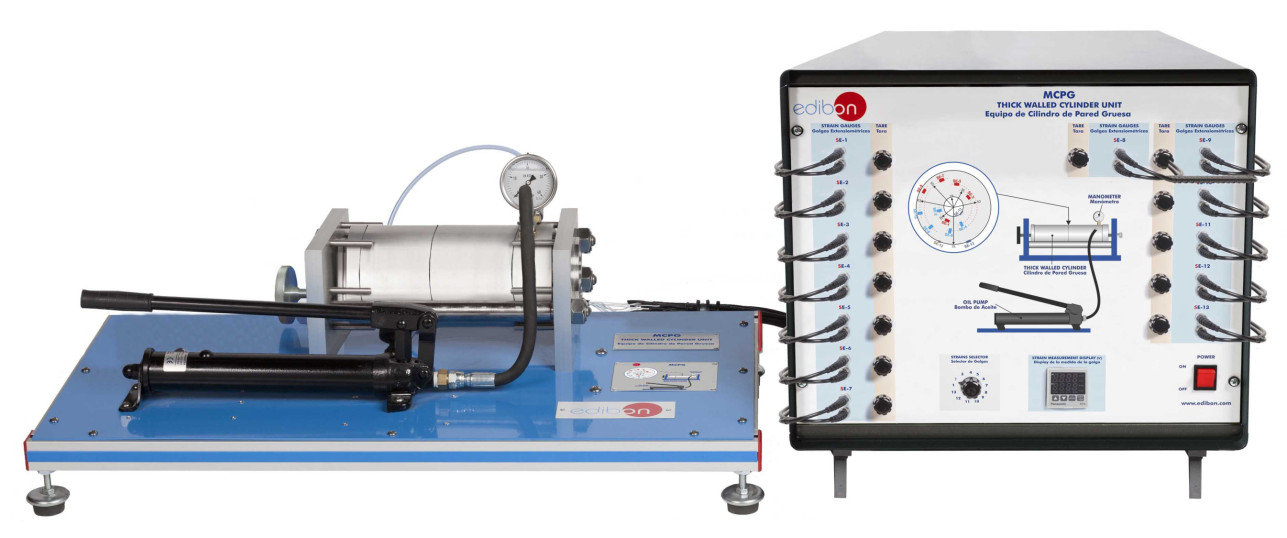

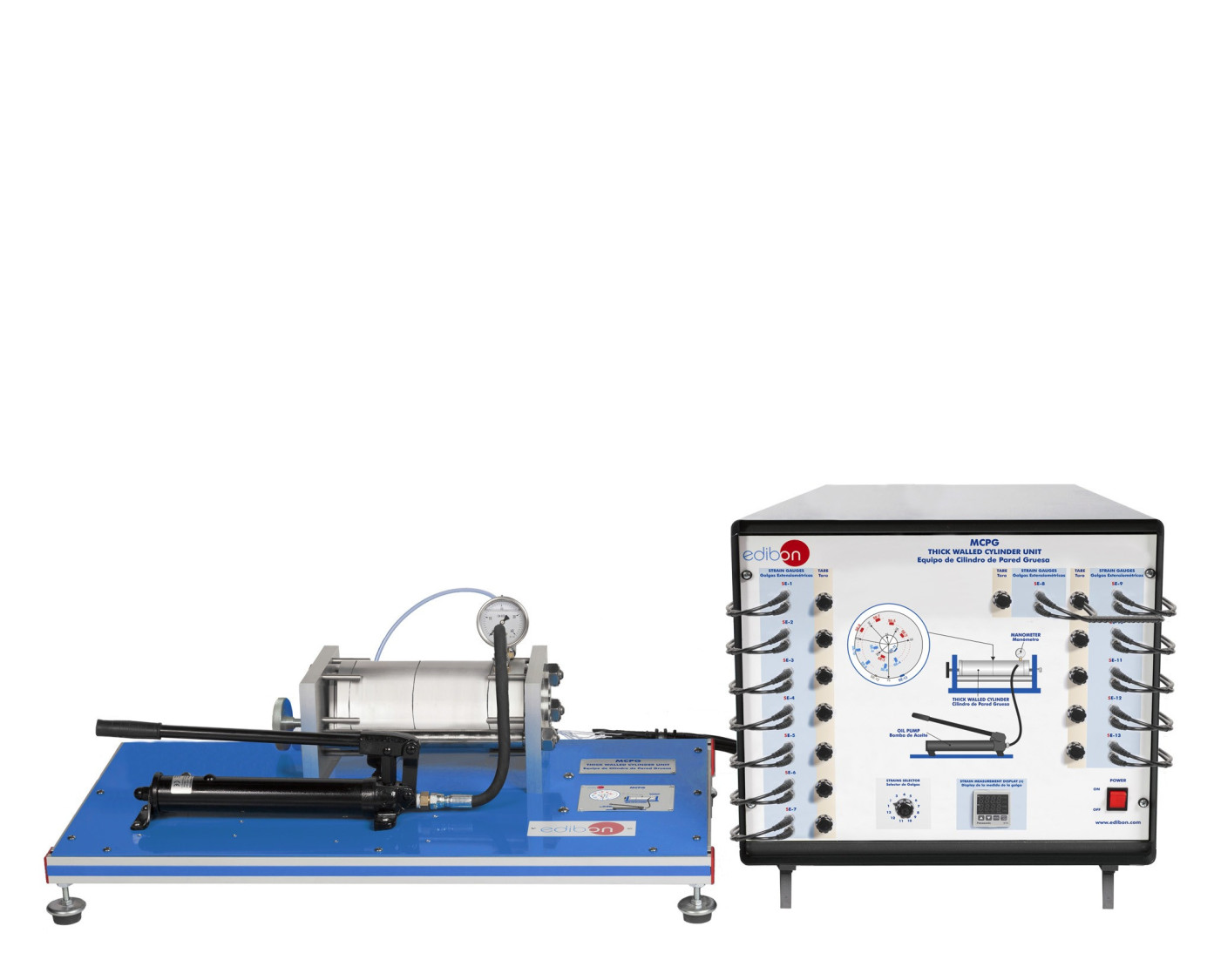

In the Thick-Walled Cylinder Unit, "MCPG", the stresses are determined through the measurement of the strains produced on the surface. These strains are measured by strain gauges.

The thick-walled vessel consists of an aluminum cylinder of length 300 mm, whose walls have a thickness of 50 mm. It is divided into two parts (closed on both sides) and the strain gauges are arranged in different radii in the center, in an eccentric slot.

In addition, there are also gauges on the inner and outer walls of the cylinder, allowing the measurement of strains in radial, tangential and axial direction.

Pressure inside is generated with oil by means of a hand-operated hydraulic pump and measured by a manometer located in the cylinder.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Study of stress in a thick-walled vessel under internal pressure.
  2. Measurement of strains with strain gauges.
  3. Study of stress distribution in three axes. Mohr’s circle.
  4. Determination of normal stress distribution in radial, tangential and axial direction.
  5. Analysis of the existing relationships between strains, pressure and stresses generated.
