POAC Gerät für fortschrittliche Oxidationsprozesse, computergesteuert (PC)

13.3.- ABWASSERAUFBEREITUNG

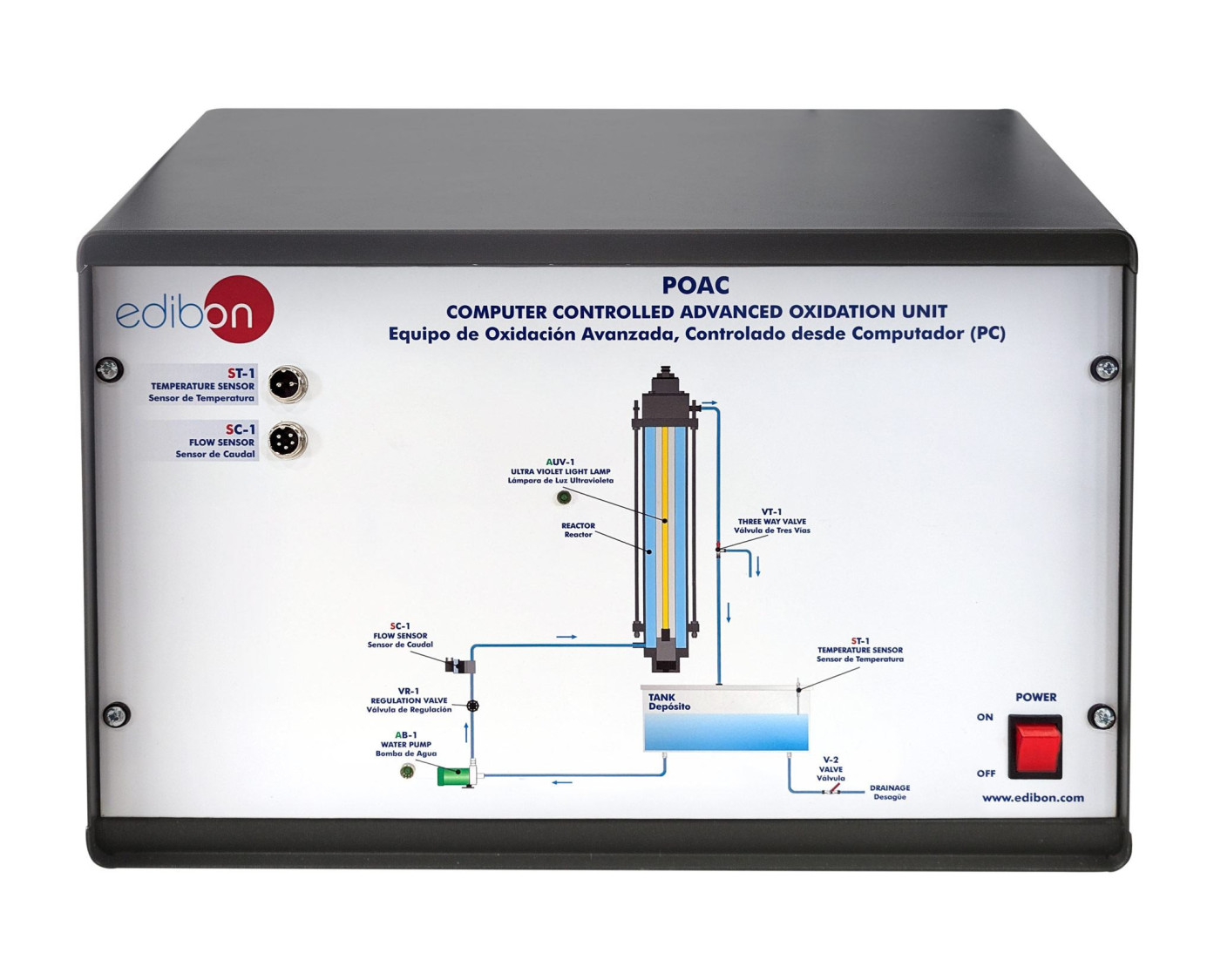

COMPUTER CONTROLLED ADVANCED OXIDATION UNIT - POAC

INNOVATIVE SYSTEME

The Computer Controlled Advanced Oxidation Unit "POAC" generates hydroxyl radicals (OH-) through ultraviolet light radiation with hydrogen peroxide.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
FSS

Fehlersimulationssystem
PLC

SPS Industrielle Prozesssteuerung
PLCHMI

Lokale/Remote IIoT-Steuerung und -Überwachung mit HMI
ELK

EDIBON Softwareentwicklungskit, Powered by NI LabVIEW™
ECR

Modulares Industriesystem von EDIBON mit NI CompactRIO
ESN

EDIBON SCADA-Net
ECL

EDIBON Cloud Lernen

Laboratorien

11TV
 Chemielabor für technische und berufliche Bildung
11HE
 Chemisches Ingenieurlabor für die Hochschulausbildung
11PTC
 Labor für Petroleum Training Center

ÄHNLICHE NEUIGKEITEN

CO₂ adsorption: a current necessity
CO₂ adsorption: a current necessity
In a world where climate change represents one of the greatest threats to our future, carbon dioxide (CO2) adsorption has become an urgent priority. The increasing concentration of CO2 in the atmosphere, primarily driven by human activities such as fossil fuel combustion and deforestation, has...
Lesen Sie mehr
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Direct Air Capture: Die Schlüsseltechnologie im Kampf gegen den Klimawandel
Direct Air Capture: Die Schlüsseltechnologie im Kampf gegen den Klimawandel
Direct Air Capture (DAC) ist eine innovative Technologie, die CO₂ direkt aus der Luft entfernt, indem chemische Reaktionen mit flüssigen Lösungsmitteln oder festen Adsorbentien eingesetzt werden. Trotz Herausforderungen wie hohen Kosten und Energieverbrauch bietet DAC eine potenzielle Lösung zur...
Lesen Sie mehr
Verstehen und Verbessern von Trinkwasseraufbereitungssystemen
Verstehen und Verbessern von Trinkwasseraufbereitungssystemen
Abwasserbehandlungsanlagen Während Trinkwasseraufbereitungsanlagen sich darauf konzentrieren, sicheres Trinkwasser bereitzustellen, behandeln Abwasserbehandlungsanlagen das gebrauchte Wasser, bevor es wieder in die Umwelt freigesetzt wird. Diese Anlagen spielen eine entscheidende Rolle beim...
Lesen Sie mehr
Setting up at Universidad de Oviedo
Setting up at Universidad de Oviedo
We want to present the installation that we have made in the Department of Chemical Engineering and Environmental Technology of the Oviedo University (UNIOVI) We are very proud to contribute to student learning and to be able to work in projects like this.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

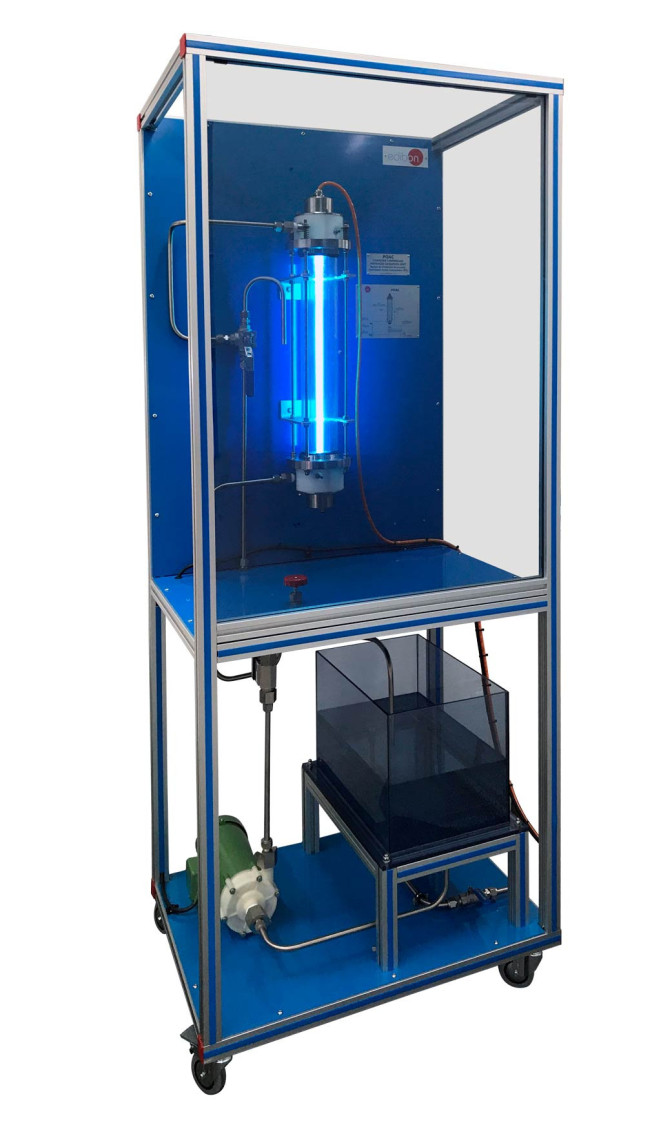

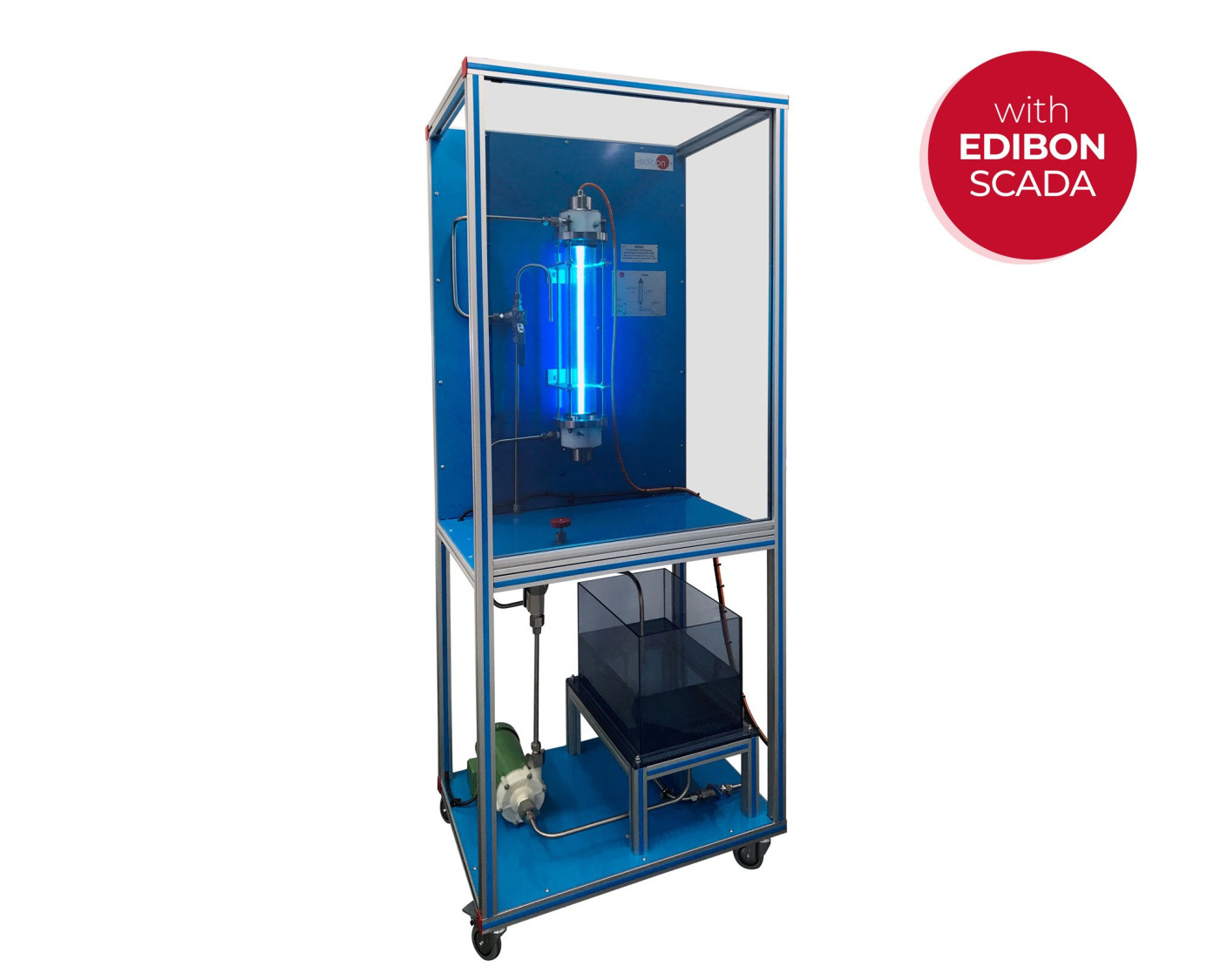

The Computer Controlled Advanced Oxidation Unit "POAC" generates hydroxyl radicals (OH-) through ultraviolet light radiation with hydrogen peroxide.

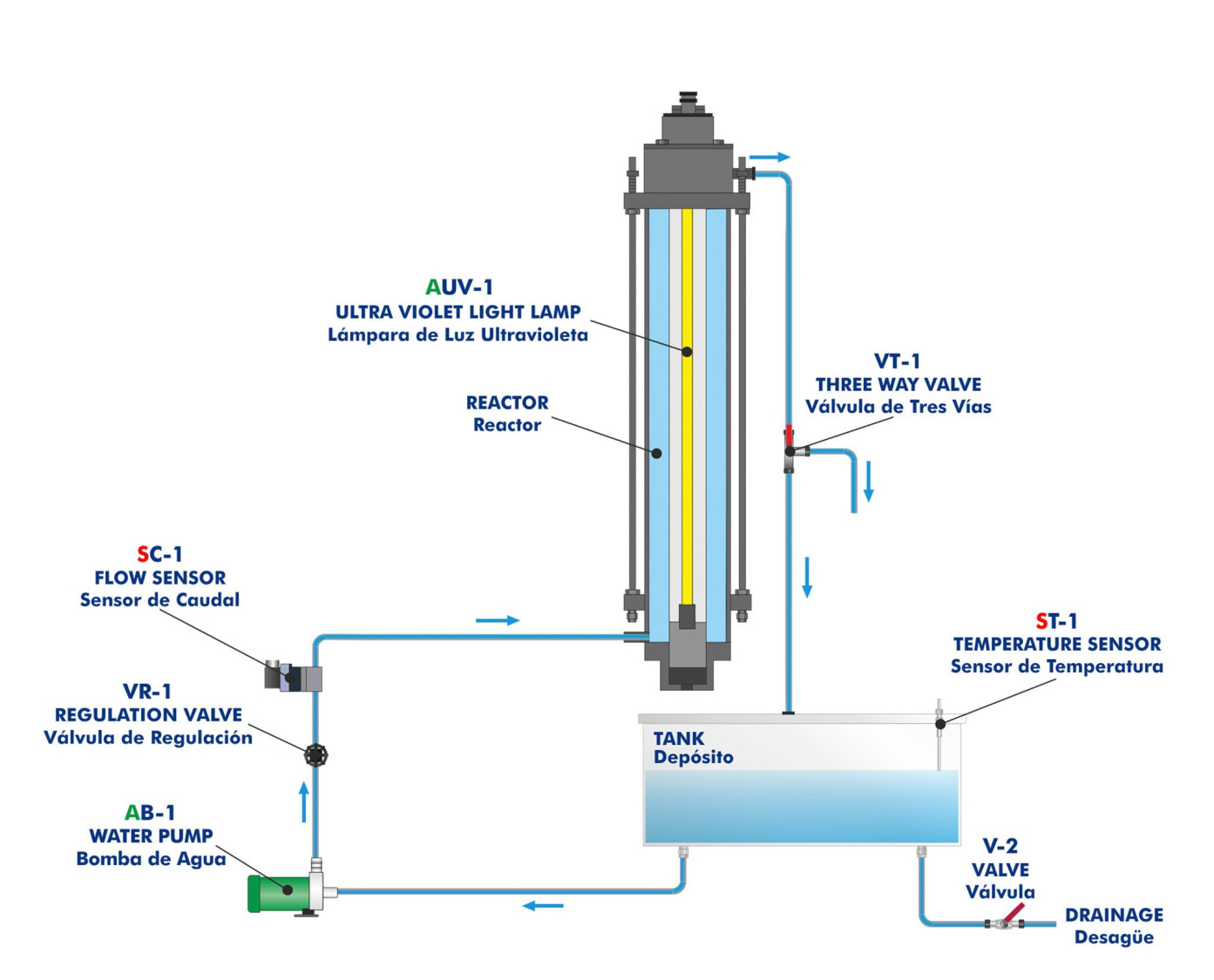

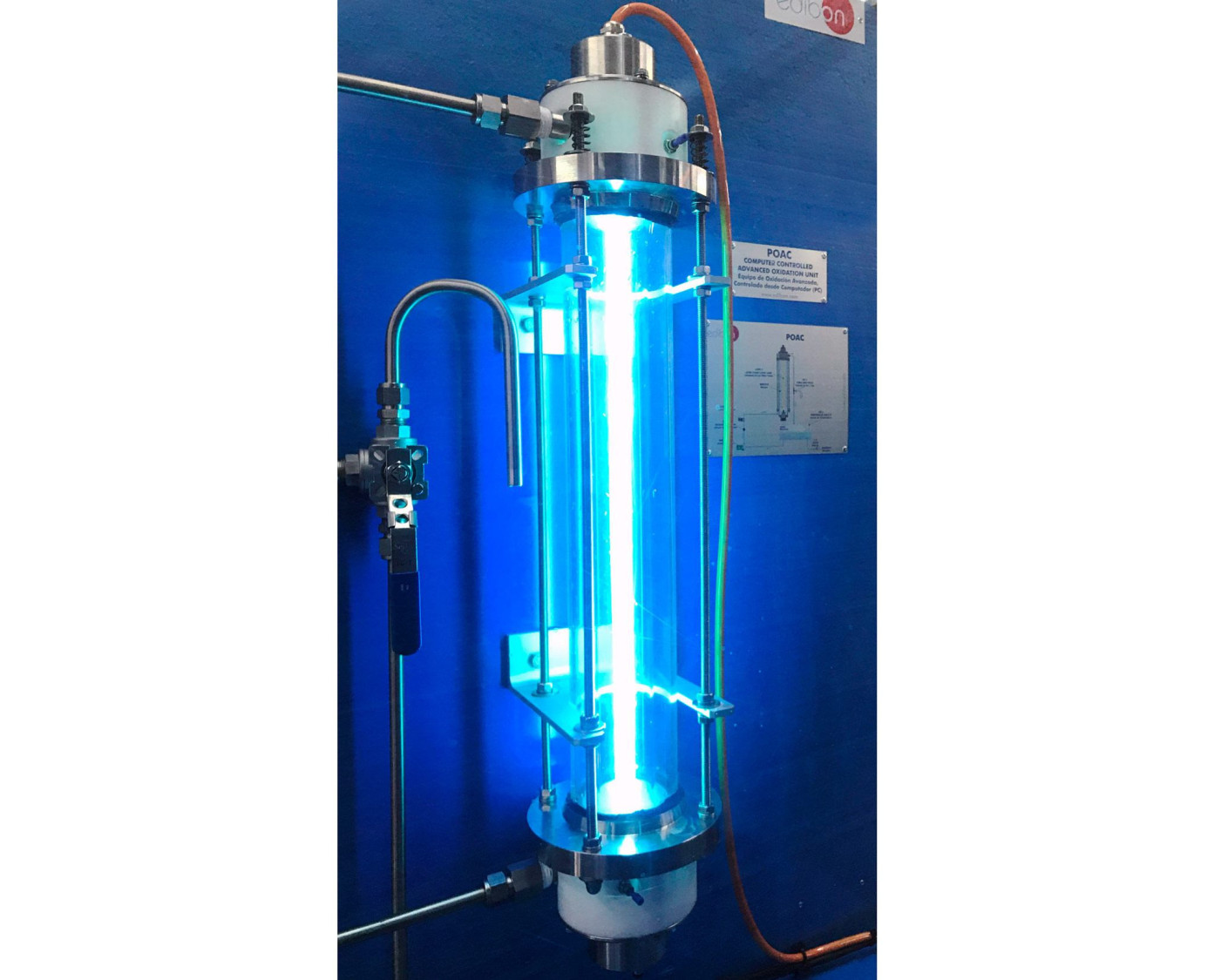

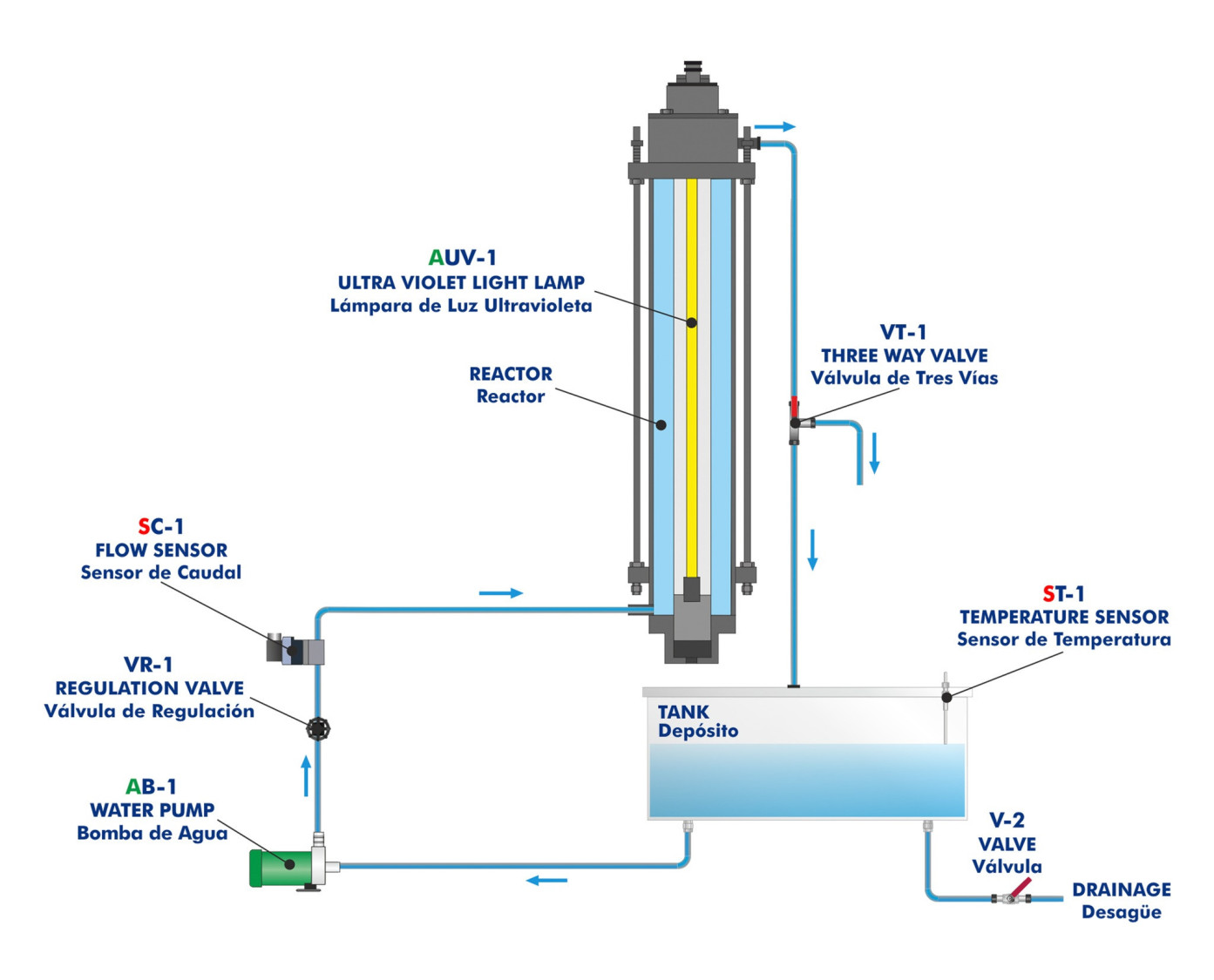

Raw water is enriched with hydrogen peroxide in a transparent tank and is driven by a pump towards a reactor where an ultraviolet lamp with protective tube is lodged.

The reactor has manifolds at its upper part that allow the flow of raw water forming a falling film on the inner walls of the reactor. As it descends, it receives ultraviolet light radiation, forming hydroxyl radicals, which oxidize non-biodegradable soluble substances from the water to be treated.

The reactor is open by its upper side. Water flows towards the tank, forming a closed circuit. A flow sensor allows to measure the raw water flow rate through the circuit.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Study of advanced oxidation process for wastewater treatment.
  2. Study of advanced oxidation with hydrogen peroxide and UV light.
  3. Influence of the amount of hydrogen peroxide in the oxidation process.
  4. Analysis of the reaction kinetics.
  5. Sensors calibration.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains: proportional, integral, derivative parameters, etc. in real time.

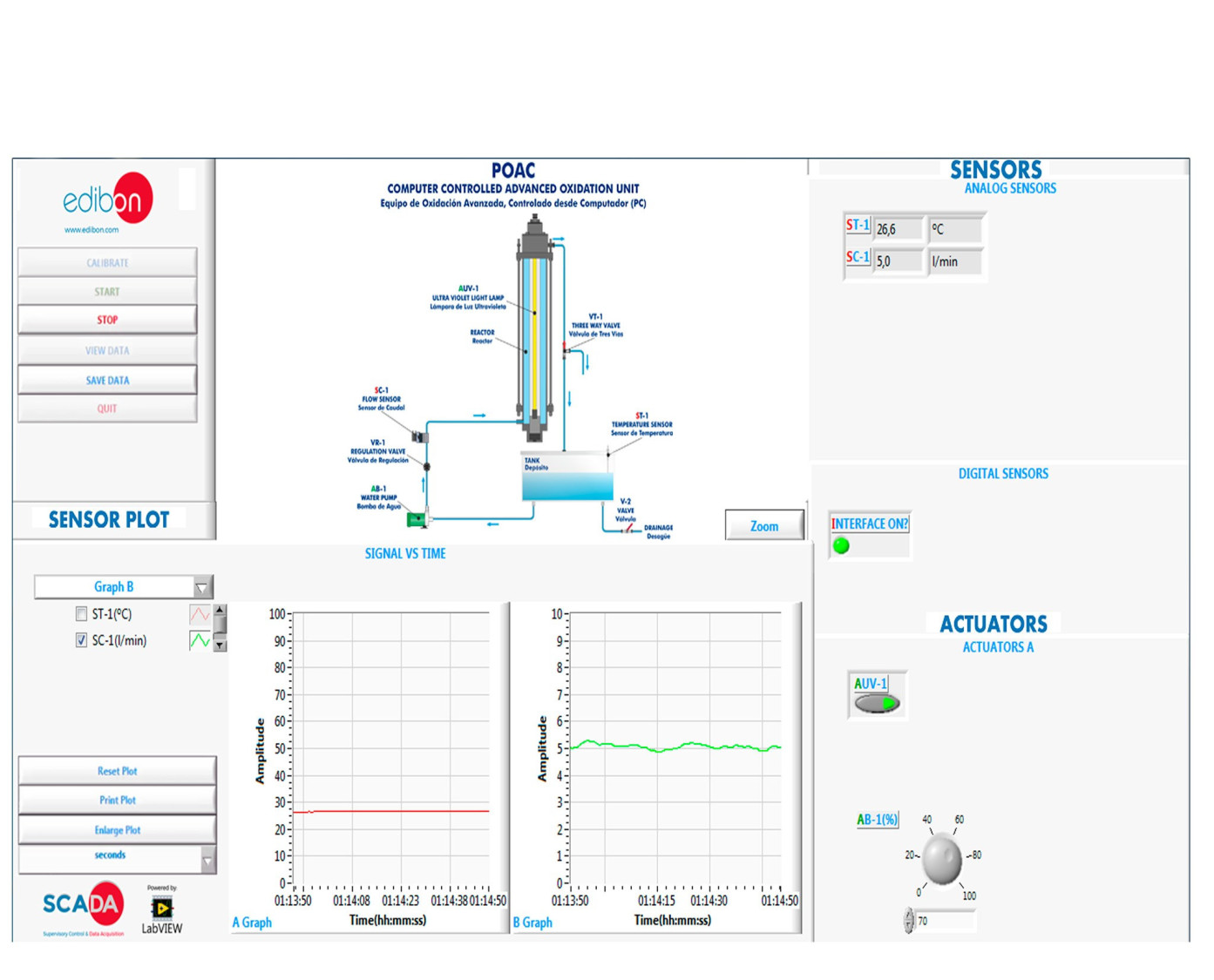

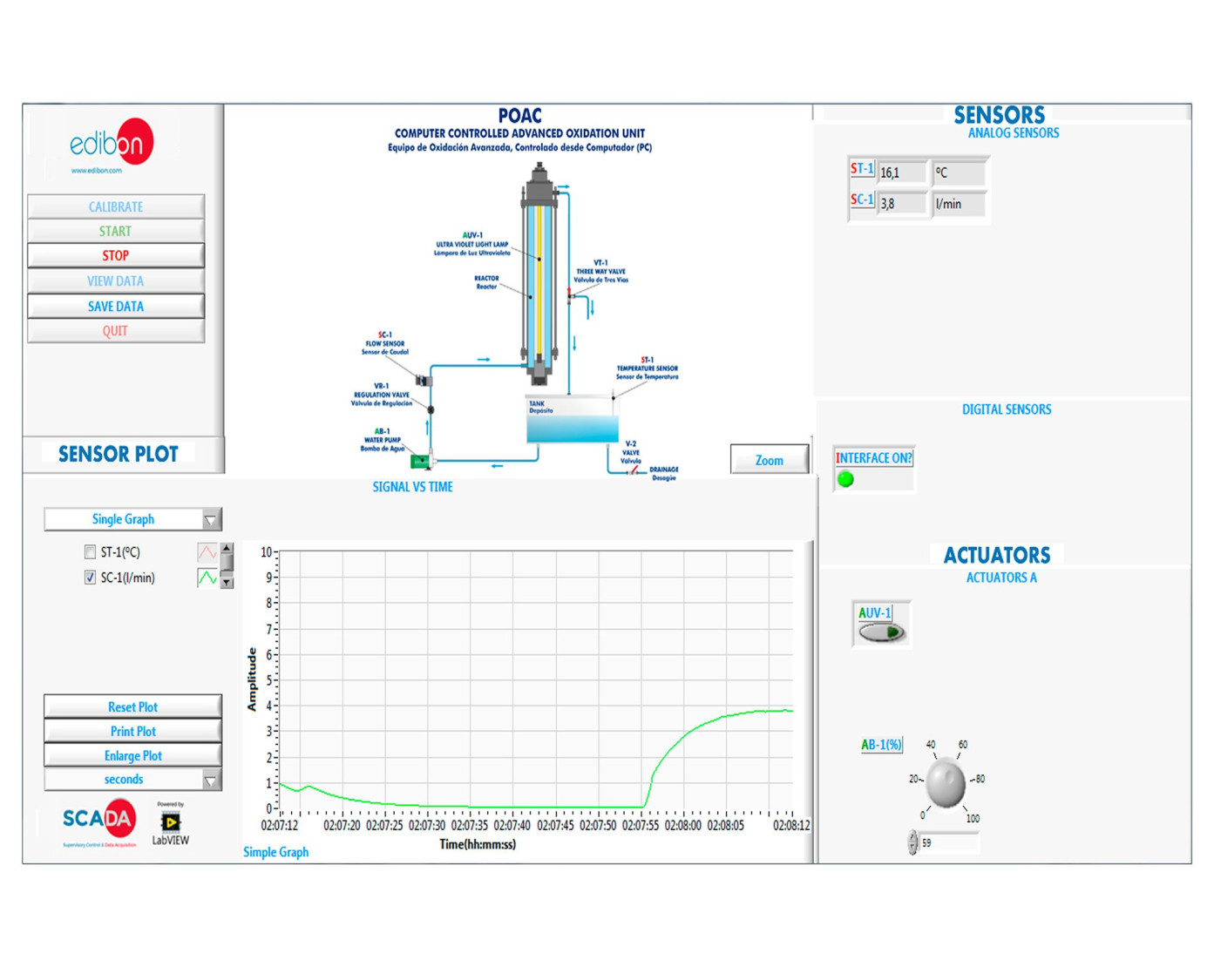

  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
    5. This unit can be used for doing applied research.

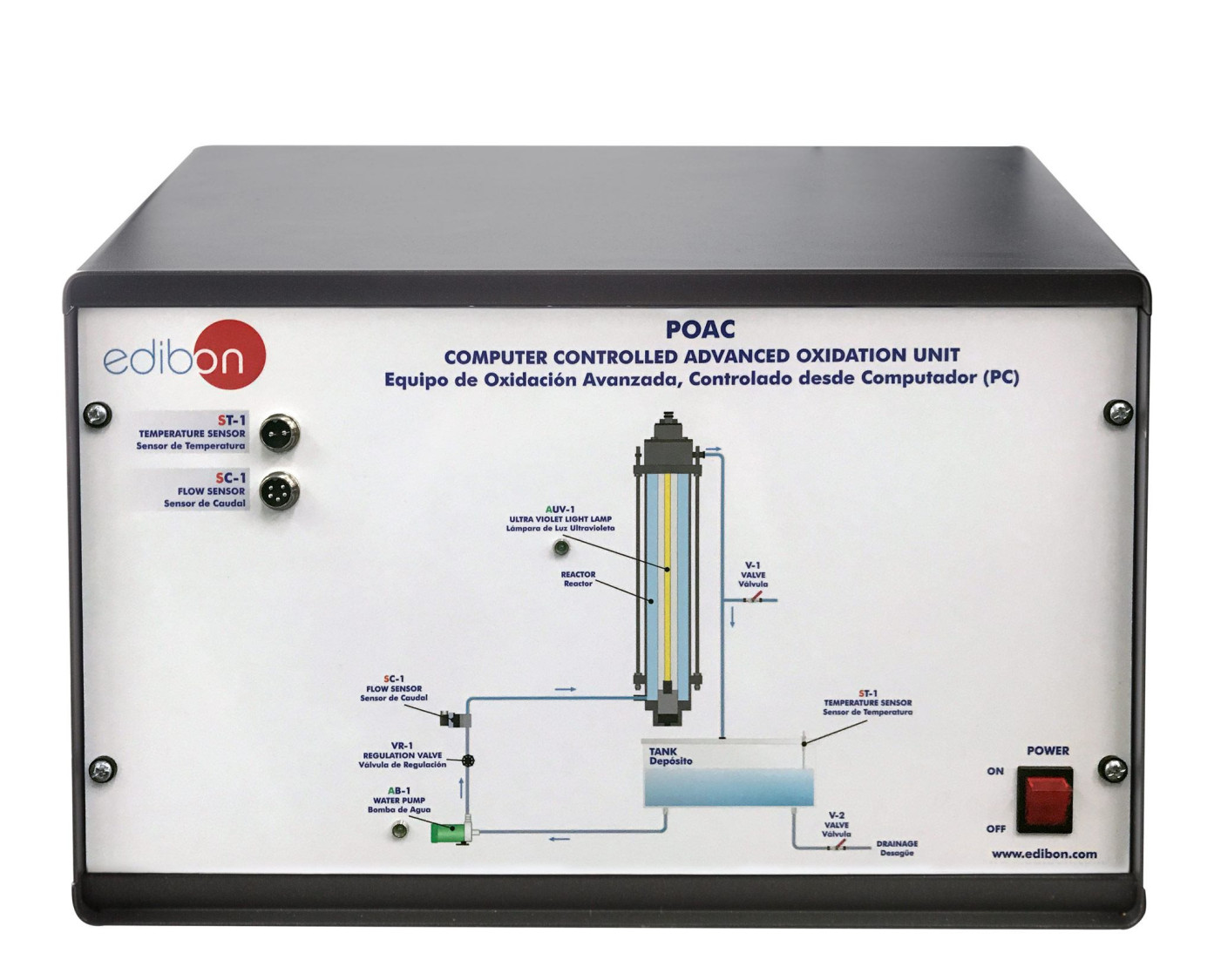

11.- This unit can be used for giving training courses to Industrieseven to other Technical Education Institutions.12.- Control of the POAC unit process through the control interfacebox without the computer.13.- Visualization of all the sensors values used in the POAC unitprocess.- By using PLC-PI additional 19 more exercises can be done.- Several other exercises can be done and designed by the user.
