EEDB Gerät für Härteprüfungen "Brinell"

7.3.2.1.- MECHANISCHE TESTS 14.1.8.- MECHANISCHE TESTS

INNOVATIVE SYSTEME

The Brinell Hardness Testing Unit, "EEDB" allows Brinell hardness measurement on different materials.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV

Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung

7HE

Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ALLGEMEINE BESCHREIBUNG

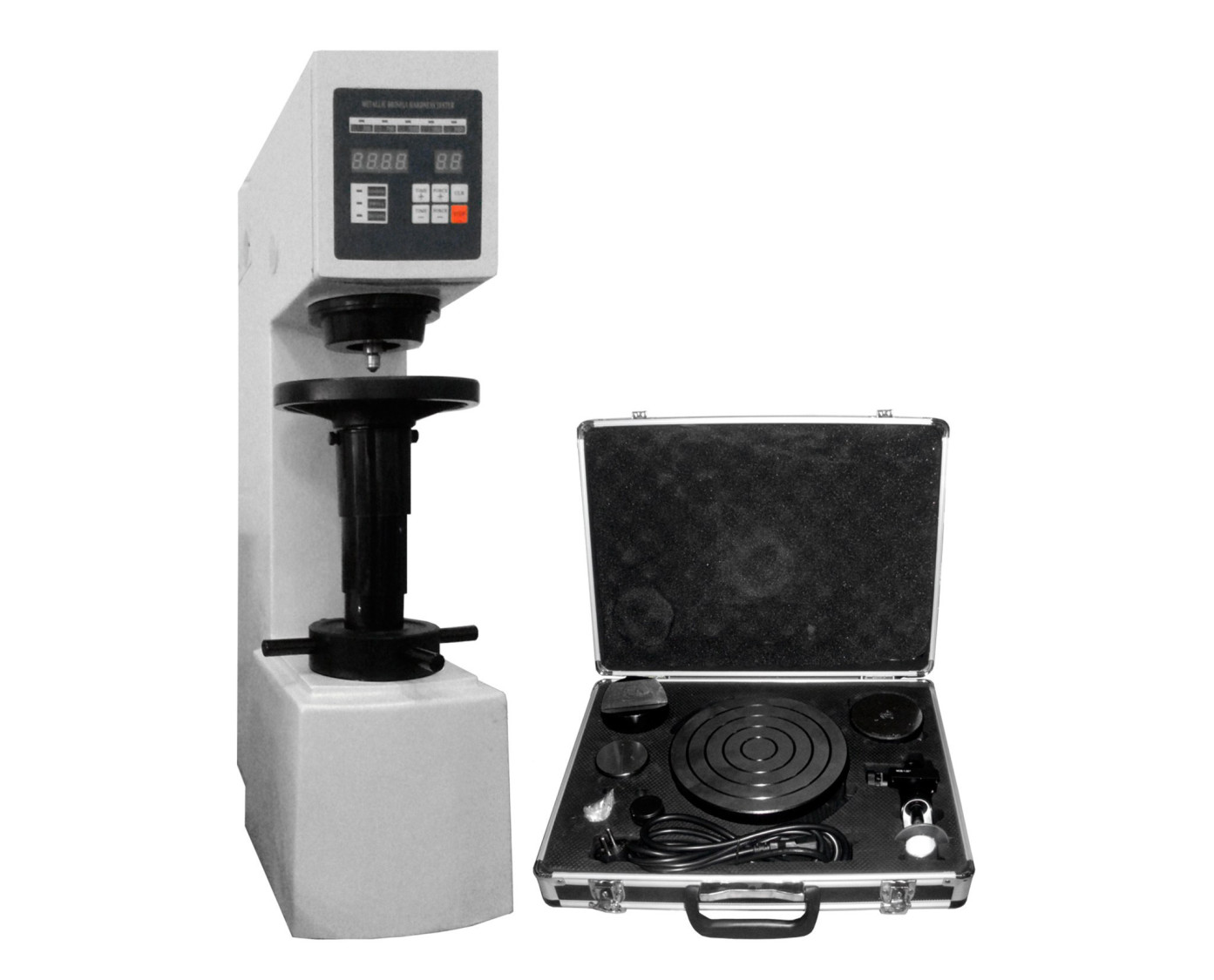

The Brinell Hardness Testing Unit, "EEDB", is a hardness tester that determines Brinell hardness in metals, hard alloys, tempered steels, etc. Besides, it can be used with other materials, such as rigid plastics, bakelite, etc.

A penetrating ball of specific diameter is used in the Brinell hardness test to press the surface of the test piece with a specific force. After the test force is held for a determined time, such test force is removed and the average diameters of the indentations on the surface of the specimen are measured with a microscope.

Brinell hardness number is obtained by dividing the force of the test multiplied by the area of the spherical shape marked by the indenter by the diameter of the indentation printed on the specimen.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

To learn how to use the instrumentation to perform hardness tests.
Study and familiarization with Brinell hardness test equipment.
Brinell hardness measurement on different materials.
To observe the behaviur of diverse materials under different loads applied.
To know the types of standard test pieces for these types of tests.
To know the types of standard indenters for these types of tests.
