MVV Gerät für Kragträger

7.1.6.- STRUKTURMECHANIK 14.1.6.- STRUKTURMECHANIK
UNSYMMETRICAL CANTILEVER UNIT - MVV

INNOVATIVE SYSTEME

The Unsymmetrical Cantilever Unit, "MVV", has been designed by EDIBON to demonstrate the unsymmetrical bending of beams.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV
 Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung
7HE
 Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

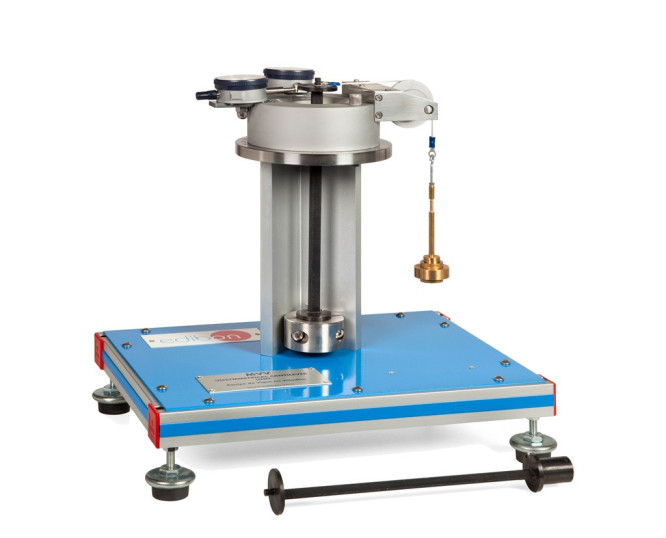

The system consists of a vertical cantilever rigidly clamped at its lower end to the main column which is attached to a rigid structure. Beams of different sections may be used.

A loading head, located at the upper end of the column, can rotate freely around the vertical axis of the beam at 15° intervals. A horizontal load may be applied to the free end of the beam by means of a cord attached to the beam and passing over a pulley mounted on the rotating head.

The Δu and Δv deflections of the beam are measured by means of two dial gauges mounted perpendicularly to each other on the head. To compensate any lateral deflection of the beam, the line of action of the applied load can be adjusted by lateral adjustment of the load pulley.

Two steel beams are supplied, one with rectangular section and the other one with L shape section.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Determining the deflection of the beam depending on theintensity of the force applied.
  2. Determining the deflection of the beam depending on thedirection of the force applied.
  3. Determining the Δu and Δv deflections at free ends of cantilevers.
  4. Studying the deflections at two planes, for several sections.
  5. Determining deflections for different angles of force applied.
  6. Studying the rigidity variation.
  7. Determining the position of the torsion centre of the beam (Itrequires the optional accessory MVV/1).
