TEDT Gerät für praktische Übungen zur thermischen Ausdehnung

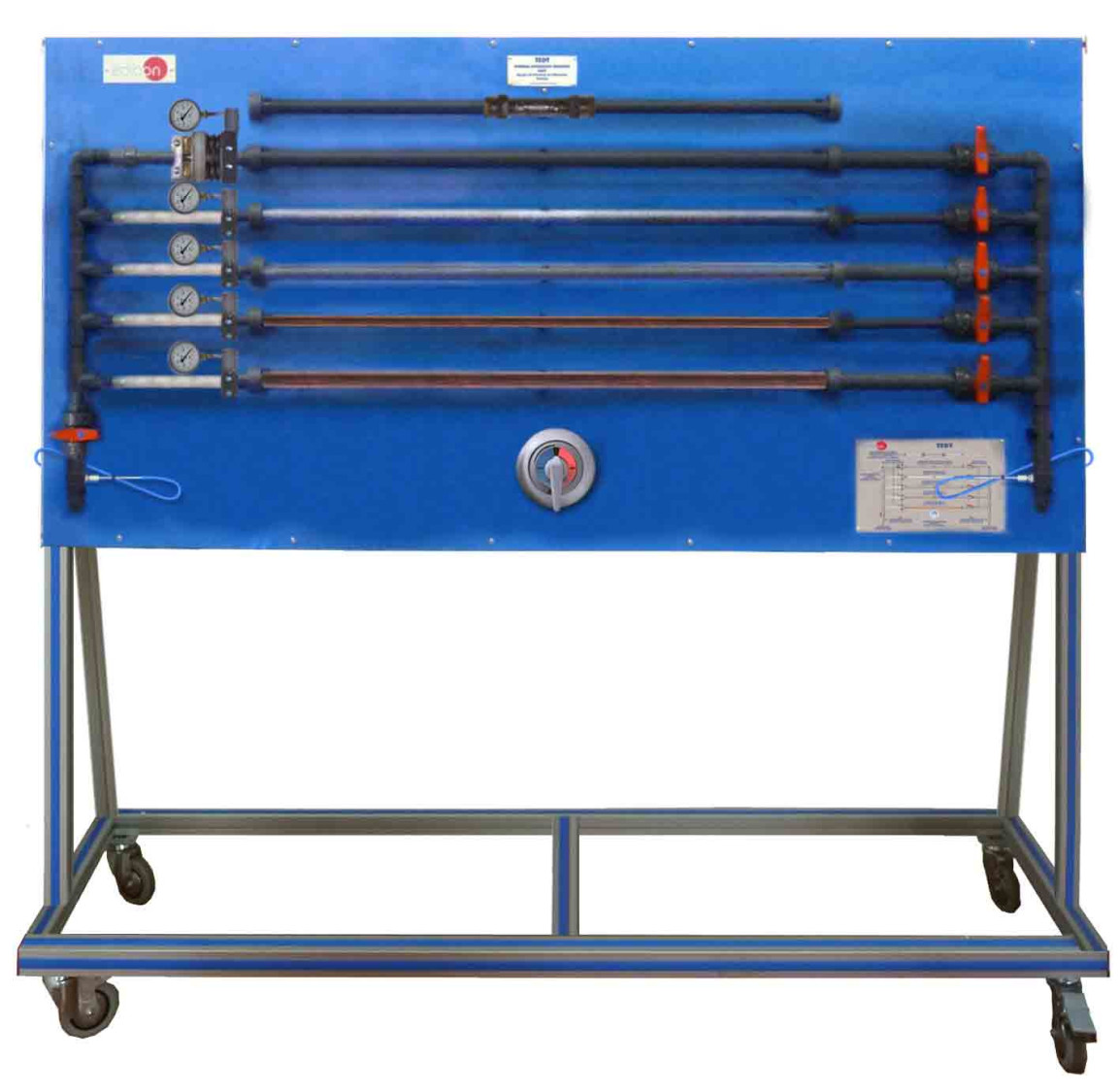

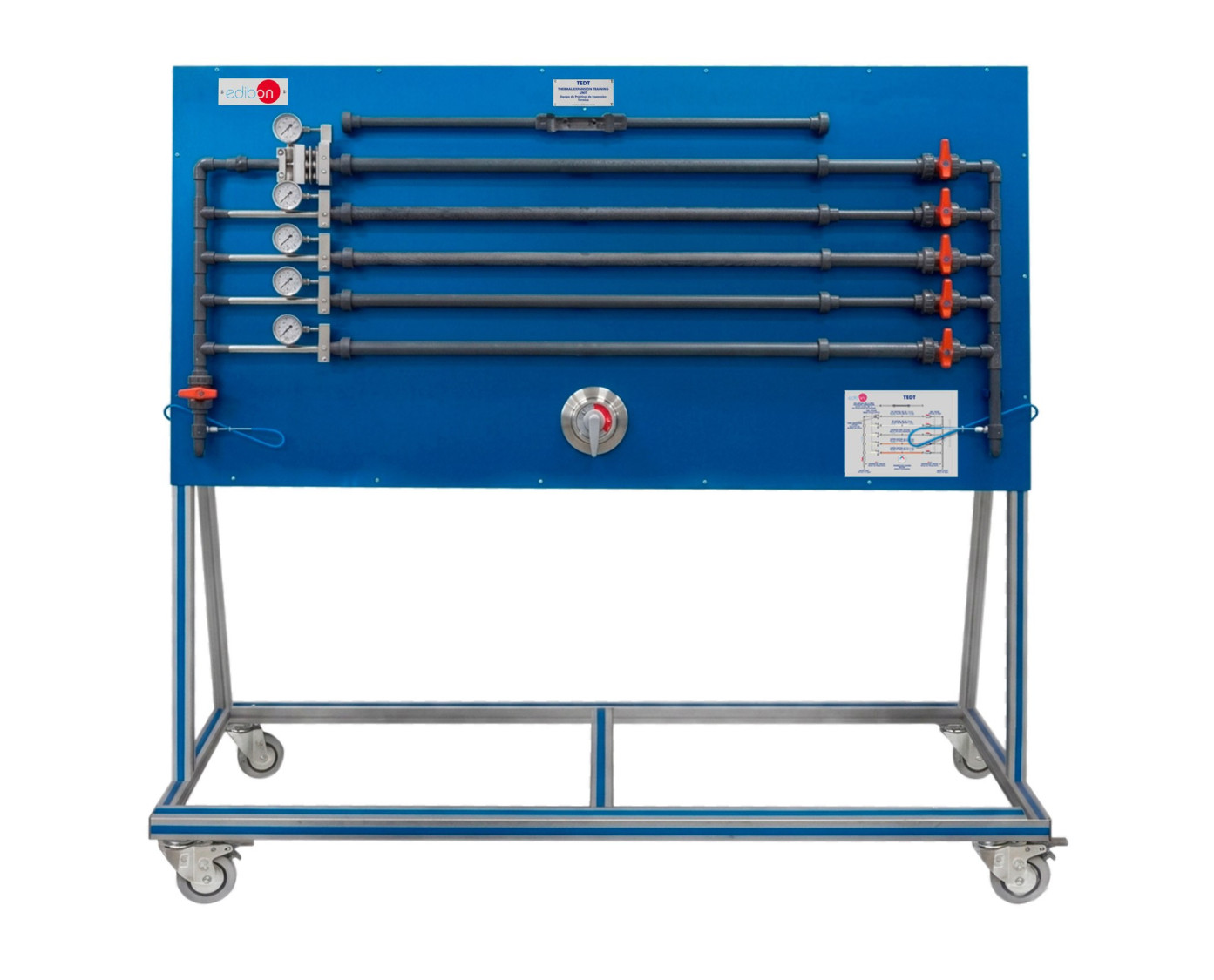

The Thermal Expansion Training Unit, "TEDT", allows to study the thermal expansion of different pipe sections and the thermal expansion force.

It comprises original components as used in heating and sanitation systems.
