MTB Gerät für Torsion

7.3.2.1.- MECHANISCHE TESTS 14.1.8.- MECHANISCHE TESTS
TORSION UNIT - MTB

INNOVATIVE SYSTEME

The Torsion Unit, "MTB", allows to verify the basis of torsion and to perform practical exercises to demonstrate: circular rods elastic torsion equation and the rigidity modulus of different materials.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV
 Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung
7HE
 Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Lesen Sie mehr
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

The Torsion Unit, "MTB", allows to verify the basis of torsion and to perform practical exercises to demonstrate:

  • Circular rods elastic torsion equation.
  • The rigidity modulus of different materials.

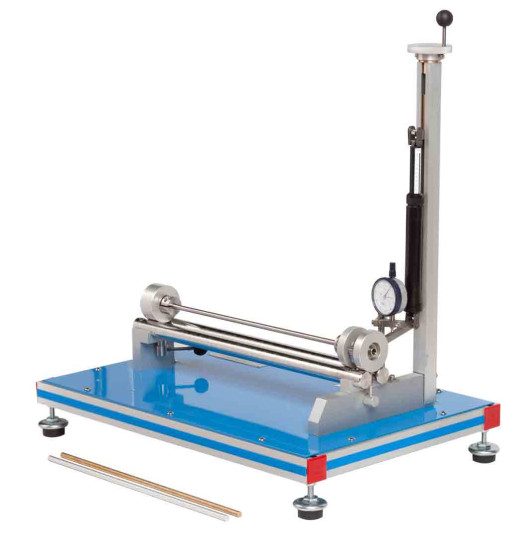

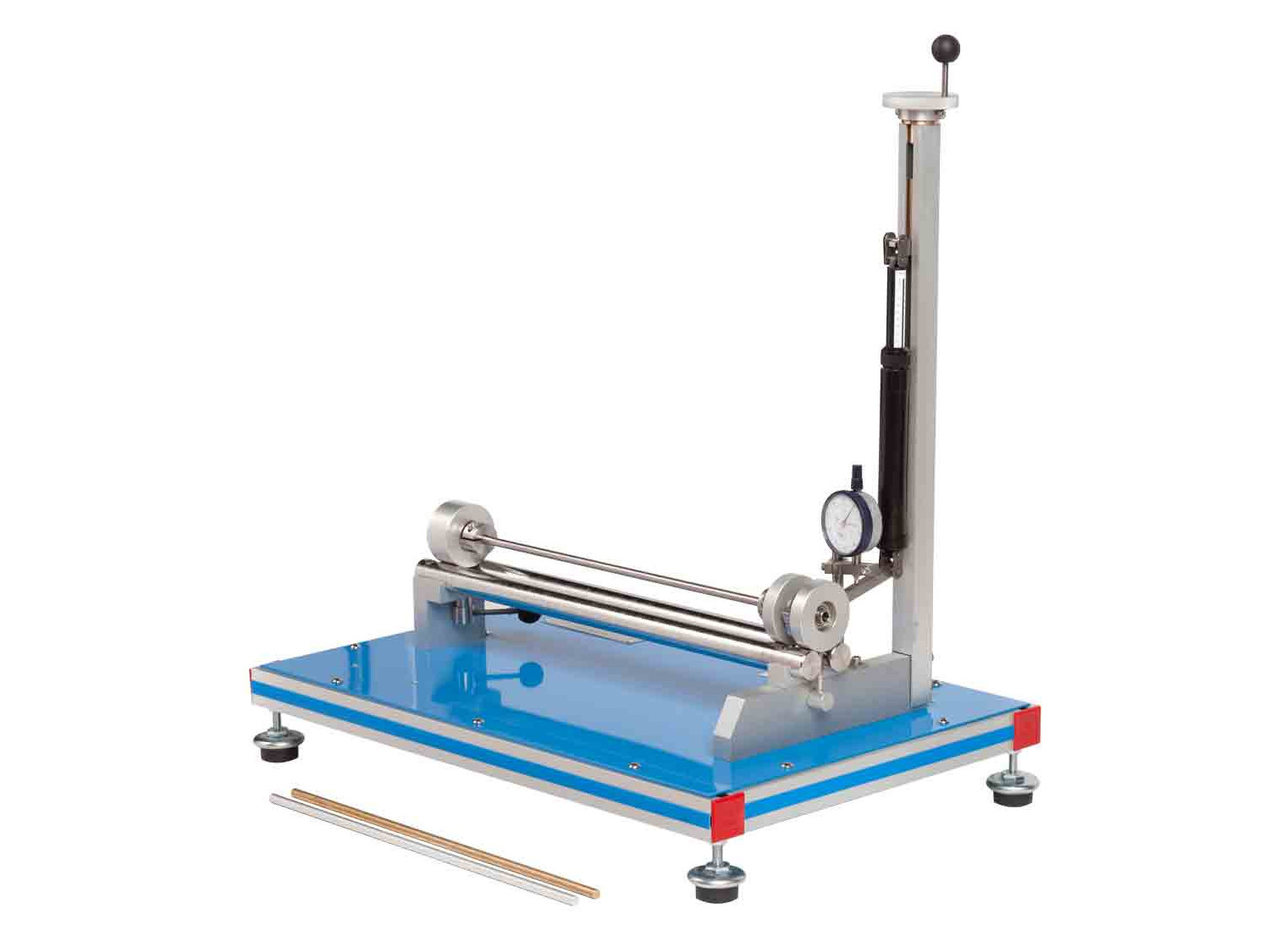

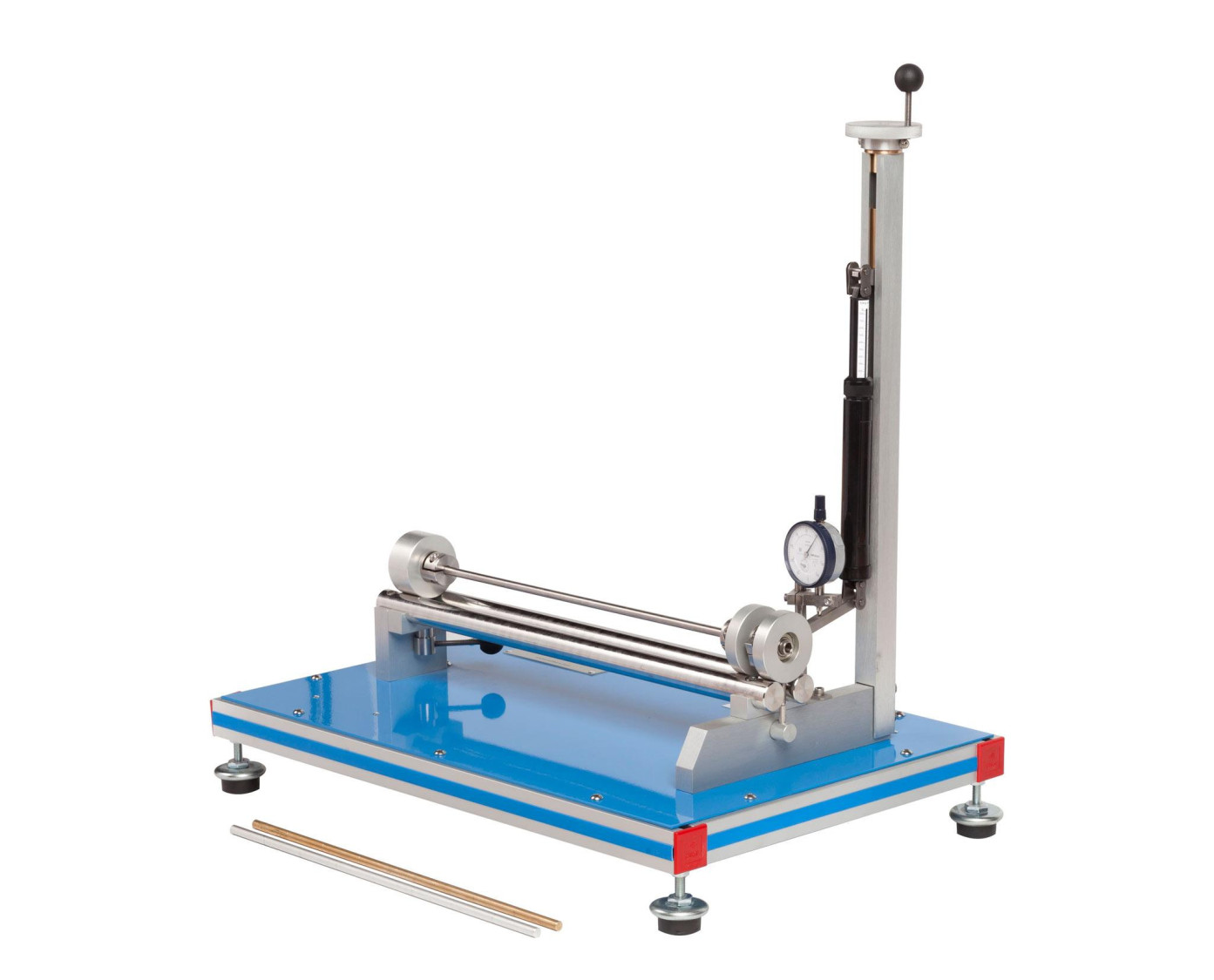

To perform the tests a metallic rod is fastened by clamps and subjected to the testing force. Force is gradually applied on the rod to observe the elastic tension generated. The force moment or torque is applied by a dynamometer with a lever. Deformation generated by the torsional stress is obtained by reading a dial gauge in contact with the arm. The torsional deformation angle is obtained by a simple trigonometric identity, providing the unit with important didactic characteristics.

Steel, brass and aluminum rods are supplied to perform the practical exercises. Additionally, rods made of other materials can be employed.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Verification of the elastic torsion equation of circular rods.
  2. Experimental determination of the relationship between the torsion moment and the shaft angular determination.
  3. Experimental determination of the relationship between the test rod length and the shaft turn angle for a same torsional force.
  4. Experimental determination of the calue of the Modulus of Rigidity for steel, brass and aliminum.

ÄHNLICHE VERFÜGBARE GERÄTE

TORSION AND BEND UNIT - MTP
  • MTP
Available
7.3.2.1.- MECHANISCHE TESTS
MTP
Gerät für Torsion und Biegung
The Torsion and Bend Unit, "MTP", is a combined apparatus for the demonstration of both torsion and bend to be used in the laboratory or as a complement of the theoretical study about torsion and bend. Its size and weight facilitate its transport...
Einheit Anzeigen
TORSION TEST UNIT (30NM) - MTT
  • MTT
Available
7.3.2.1.- MECHANISCHE TESTS
MTT
Gerät für Torsionsprüfung (30 Nm)

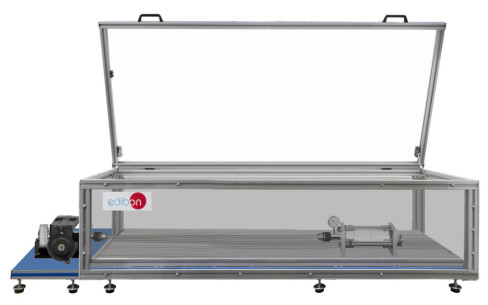

To perform the tests, the test specimen is clamped and twisted by means of a flywheel and a worm gear until it breaks. The force is gradually applied to the specimen to observe the elastic strain produced. The specimen will deform and manifest...
Einheit Anzeigen

QUALITÄT

KUNDENDIENST

Informationen anfordern
