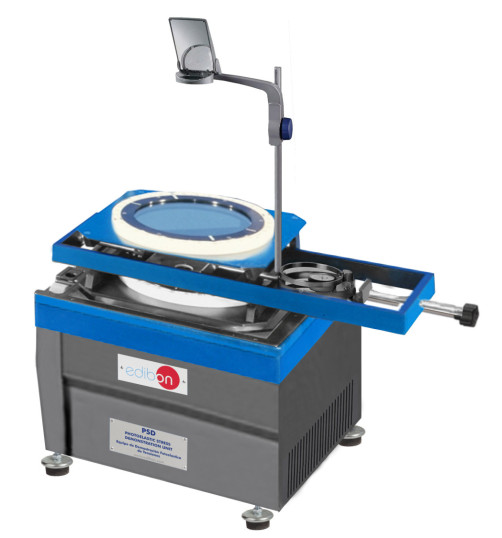

PSD Gerät zur fotoelastischen Demonstration von Spannungen

7.3.1.- FOTOELASTIZITÄT UND STRAIN-MESSUNG 14.1.7.- FOTOELASTIZITÄT UND STRAIN-MESSUNG
PHOTOELASTIC STRESS DEMONSTRATION UNIT - PSD

INNOVATIVE SYSTEME

The Photoelastic Stress Demonstration Unit, "PSD", designed by EDIBON, allows, together with a light source, to study and analyze stress distribution and concentration from line images obtained by photoelasticity tests.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Lesen Sie mehr
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

The Photoelastic Stress Demonstration Unit, "PSD", consists of a frame on which the test specimens are placed. The specimens are made of a special transparent material that has a double optical refraction effect under the action of a mechanical load.

The individual specimens are loaded by applying external forces and illuminated with a polarized light (required element). The load is applied by means of a spindle, allowing the application of tensile or compressive force, which is measured by means of a dynamometer.

Polarizing filters represent the stress distribution in colors. By using white or monochromatic light and a different configuration of linear and circular polarizer/analyzer we can obtain the direction of principal stresses and the difference of principal stresses. A filter is included to generate monochromatic light.

The Photoelastic Stress Demonstration Unit, "PSD" requires the light source.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Study of different plane stress states generated in different models subjected to compressive load.
  2. Study of different plane stress states generated in different models subjected to tensile loading.
  3. Study of stress distributions with linear or circularly polarized light.
  4. Investigation of the stress distribution by means of images obtained by photoelasticity.
  5. Investigation of stress concentration by means of images obtained by photoelasticity.

ÄHNLICHE VERFÜGBARE GERÄTE

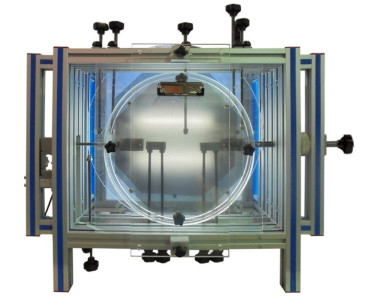

PHOTOELASTICITY UNIT - EFO
