MGE Gerät zur Herstellung von Zahnrädern

7.1.2.2.- VERZAHNUNG 14.1.2.2.- VERZAHNUNG
GEAR GENERATION UNIT - MGE

INNOVATIVE SYSTEME

The Gear Generation Unit, "MGE", has been designed by EDIBON to study rack and pinion systems.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV
 Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung
7HE
 Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

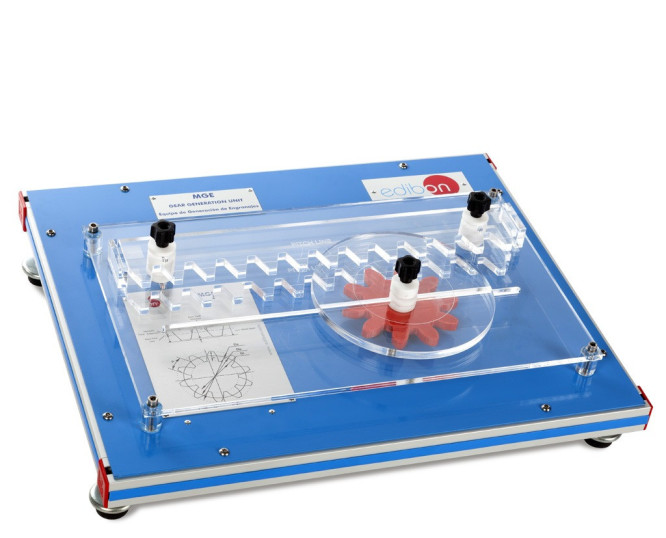

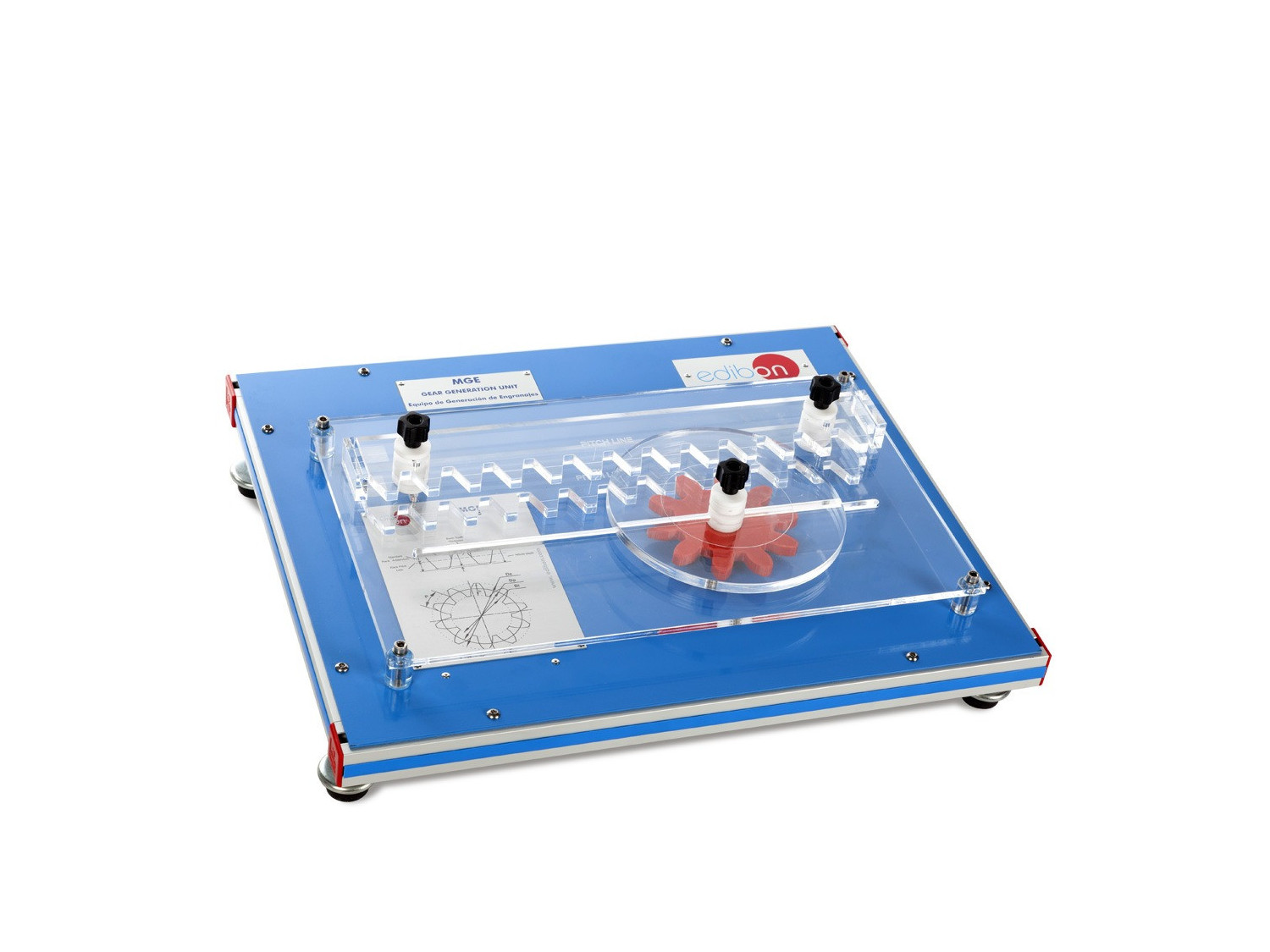

The Gear Generation Unit, "MGE", has been designed by EDIBON to study rack and pinion systems. With this unit the student can draw by an easy procedure the profile of a tooth, produced by the involute process of the rack when passing over the pinion. The user can adjust the rack radially (with respect to the central axis of the circular template) in such a way that the profiles of the corrected teeth can be made using the graphical method.

With this unit the student draw the outline of the tooth that corresponds to the pinion required to mesh in a specific standard rack. To that end, the unit consists of a circular support disc that can be laterally displaced and a standard rack for which the necessary pinion must be found. When the circular disc is linearly displaced, it will rotate together with the lower additional gear teeth to which it is linked, so that the rack performs the involute path on the template simulating the definite meshing state.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Determining the influence of corrections in rack and pinion systems.
  2. Determining the influence of modifications of the rack tooth head size in rack and pinion systems.
  3. Determining the influence of modifications in the effective number of teeth of a pinion on rack and pinion systems.
  4. Experimental determination of the shape and construction of the involute curve.

QUALITÄT

KUNDENDIENST

Informationen anfordern
