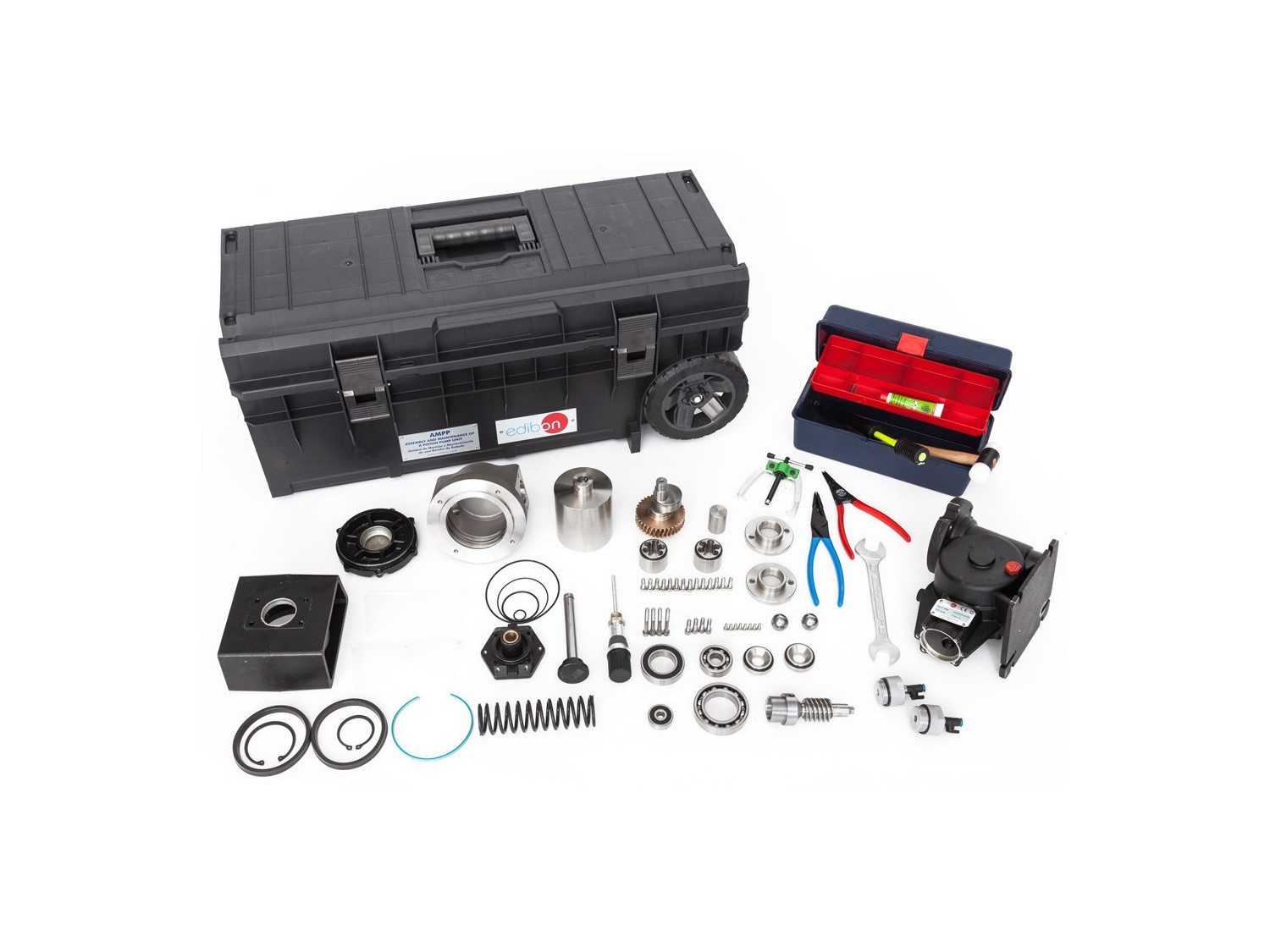

AMPP Gerät zur Montage und Wartung einer Kolbenpumpe

8.9.2.- ABNEHMBARE MODELLE

ASSEMBLY AND MAINTENANCE OF A PISTON PUMP UNIT - AMPP

INNOVATIVE SYSTEME

The piston pumps belong to the group of positive displacement pumps, where there are one or several fixed cavities whose volume can be changed due to the effect of a piston.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ALLGEMEINE BESCHREIBUNG

The piston pumps belong to the group of positive displacement pumps, where there are one or several fixed cavities whose volume can be changed due to the effect of a piston. The movement of the fluid is discontinuous and the charge and discharge processes are performed by valves which open and close alternately. The most important applications of this type of pumps include the transport of drinkable or industrial water in buildings, gardening, in the industry, in agriculture and in ships.
