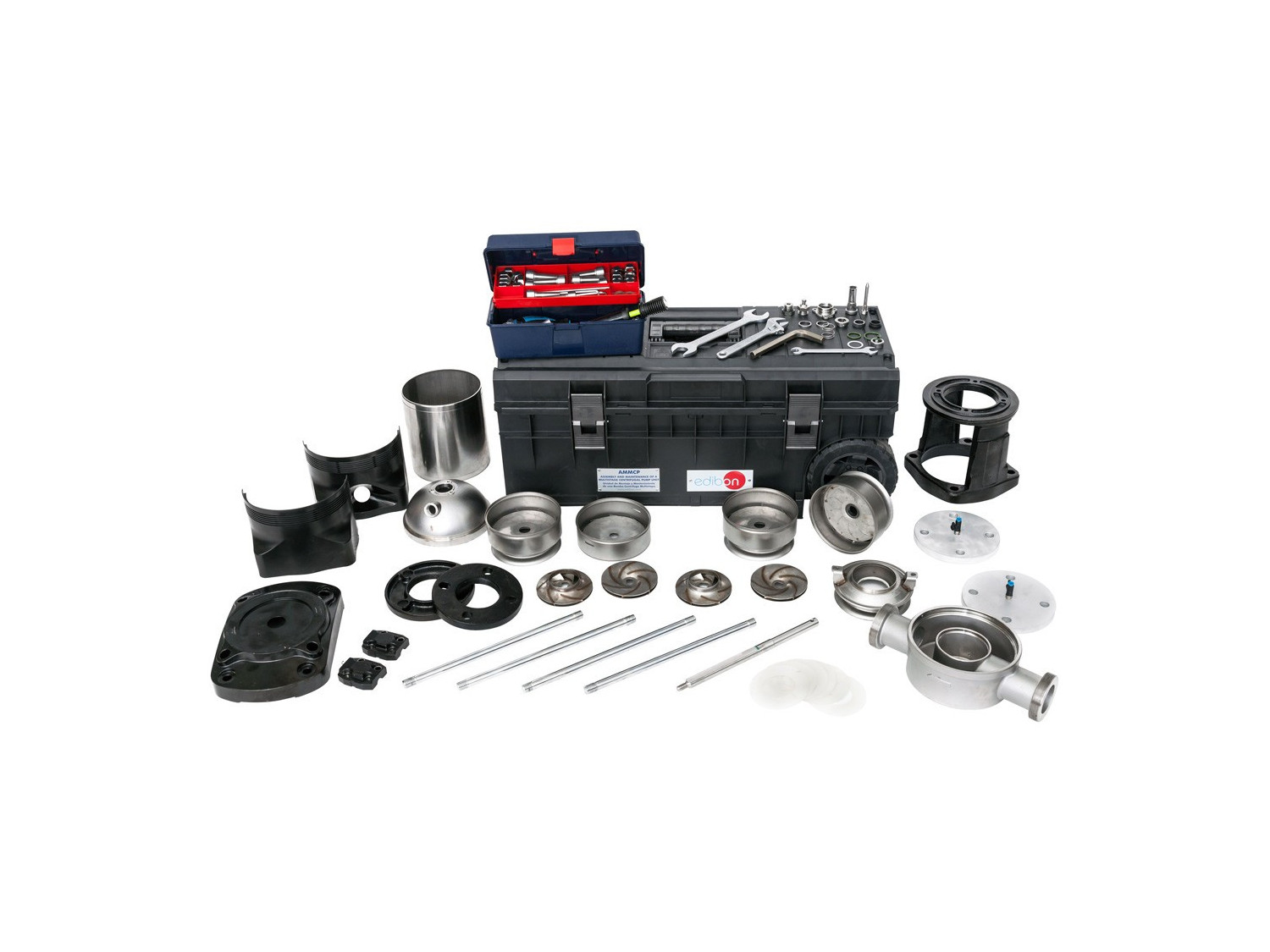

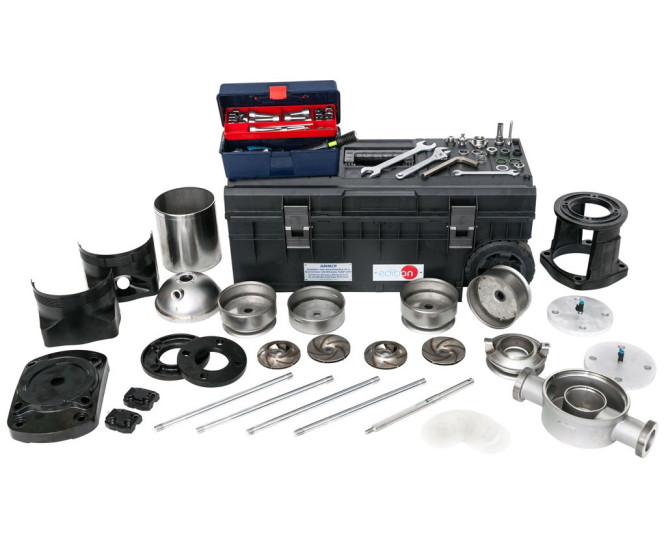

AMMCP Gerät zur Montage und Wartung einer Mehrstufen-Zentrifugalpumpe

8.9.2.- ABNEHMBARE MODELLE

ASSEMBLY AND MAINTENANCE OF A MULTISTAGE CENTRIFUGAL PUMP UNIT - AMMCP

INNOVATIVE SYSTEME

The multistage centrifugal pumps belong to the group of rotodynamic pumps, where the water is driven by centrifugal forces caused by the rotational movement of the impeller.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ALLGEMEINE BESCHREIBUNG

The multistage centrifugal pumps belong to the group of rotodynamic pumps, where the water is driven by centrifugal forces caused by the rotational movement of the impeller. Multi-stage centrifugal pumps can increase its lifting height, depending on the number of stages.

The most important applications of this type of pumps include the industry, water supply and shipbuilding. They are also used to transport liquids containing suspended solids, but not very viscous.
