THALAC/1 Gerät zur Steuerung von Kühlsystemen mit mehreren Kompressoren, computergesteuert (PC)

9.4.- KÜHLUNG
COMPUTER CONTROLLED REFRIGERATION CONTROL UNIT WITH SEVERAL COMPRESSORS - THALAC/1

INNOVATIVE SYSTEME

The THALAC/1 has been designed to allow the students to understand the behaviour and characteristics of a heat pump (with air evaporator and water condenser) working in the steam compression cycle and with three compressors connected in parallel.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
FSS

Fehlersimulationssystem
PLC

SPS Industrielle Prozesssteuerung
PLCHMI

Lokale/Remote IIoT-Steuerung und -Überwachung mit HMI
ELK

EDIBON Softwareentwicklungskit, Powered by NI LabVIEW™
ECR

Modulares Industriesystem von EDIBON mit NI CompactRIO
ESN

EDIBON Scada-Net Systeme
ECL

EDIBON Cloud Lernen

Laboratorien

9TV
 Labor für Thermodynamik und Thermotechnik für die technische und berufliche Bildung
9HE
 Thermodynamik- und Wärmetechniklabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Lesen Sie mehr
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

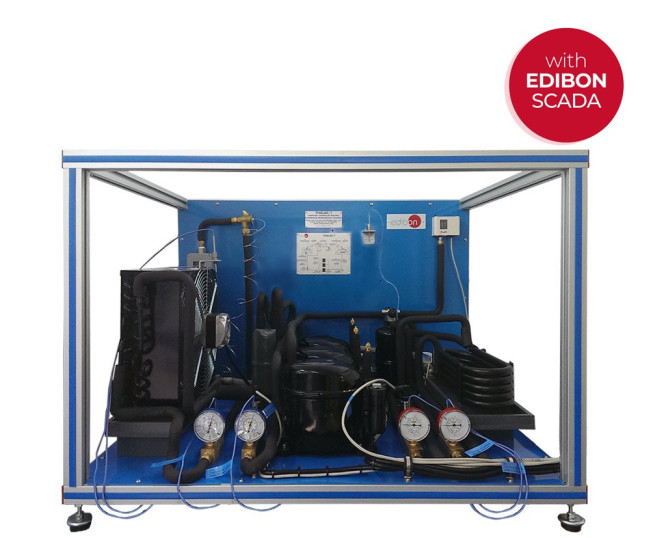

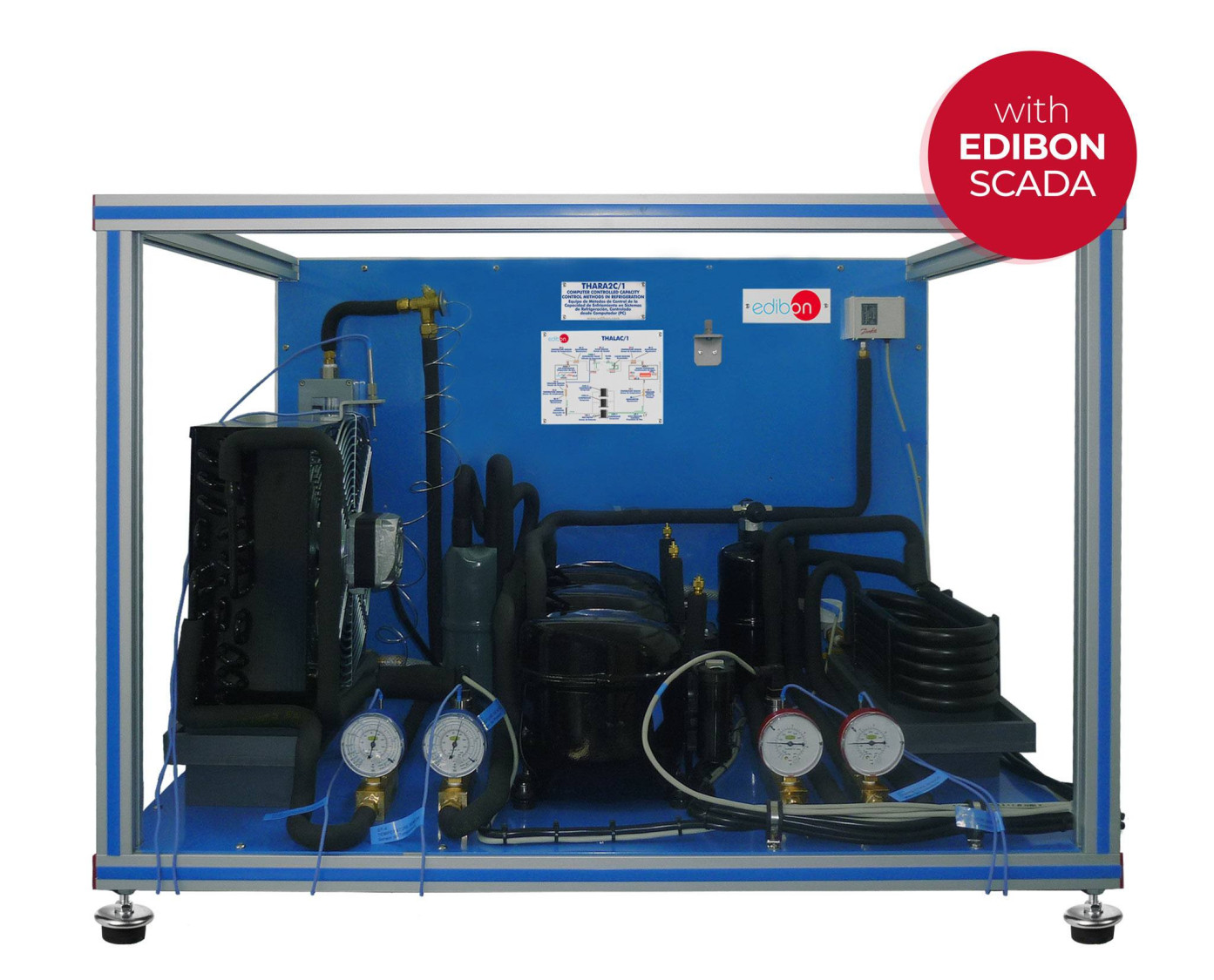

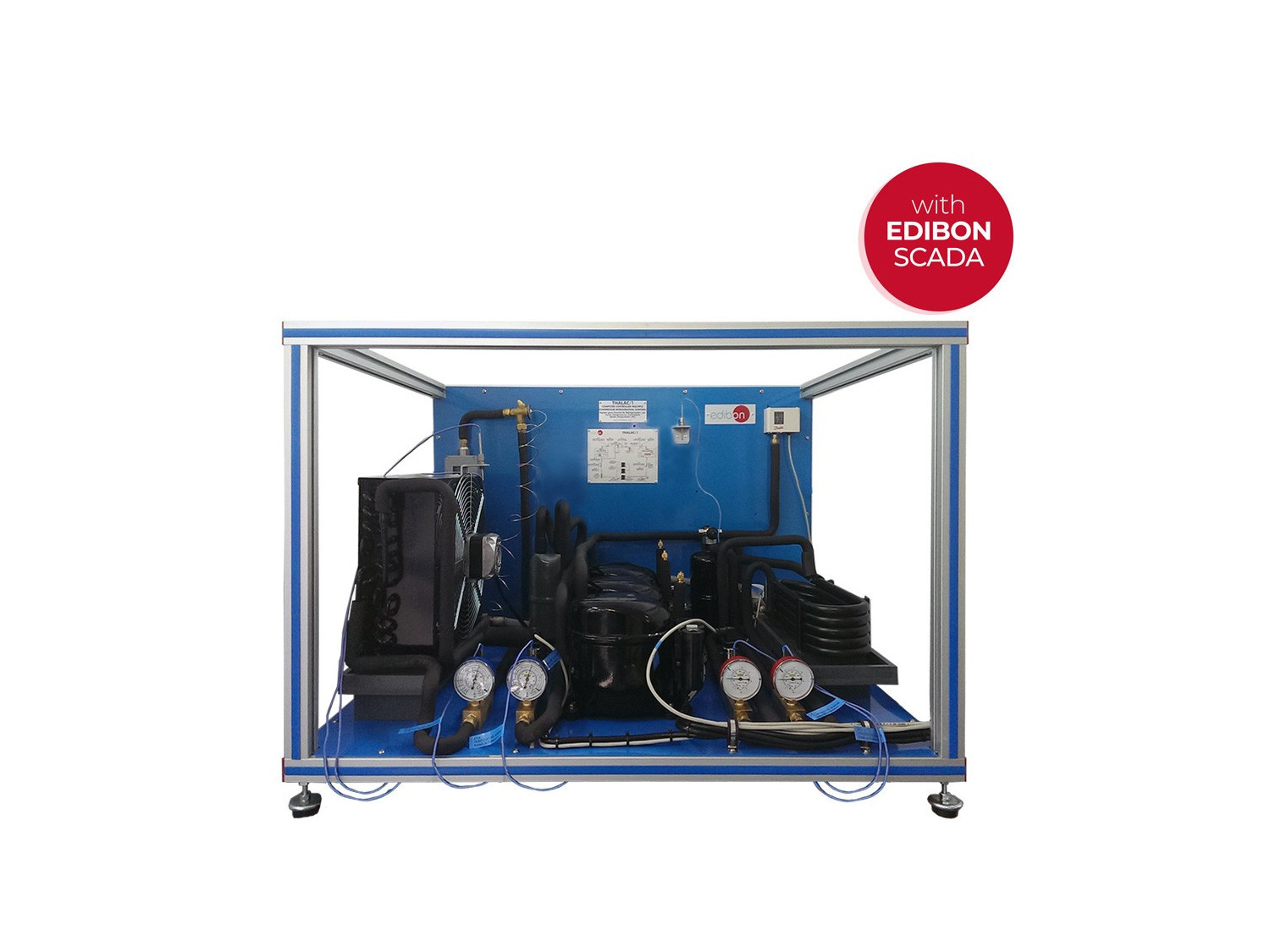

The THALAC/1 has been designed to allow the students to understand the behaviour and characteristics of a heat pump (with air evaporator and water condenser) working in the steam compression cycle and with three compressors connected in parallel.

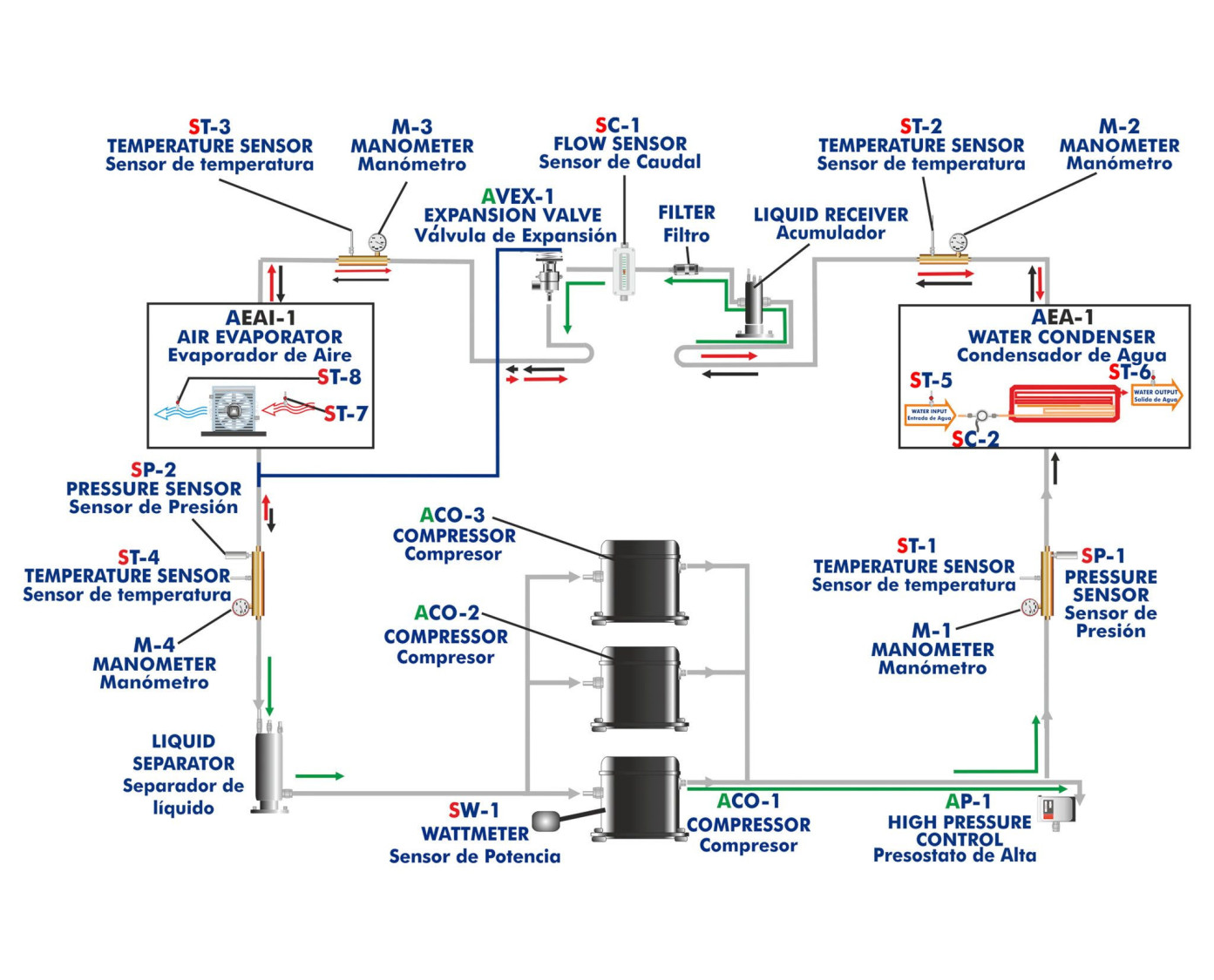

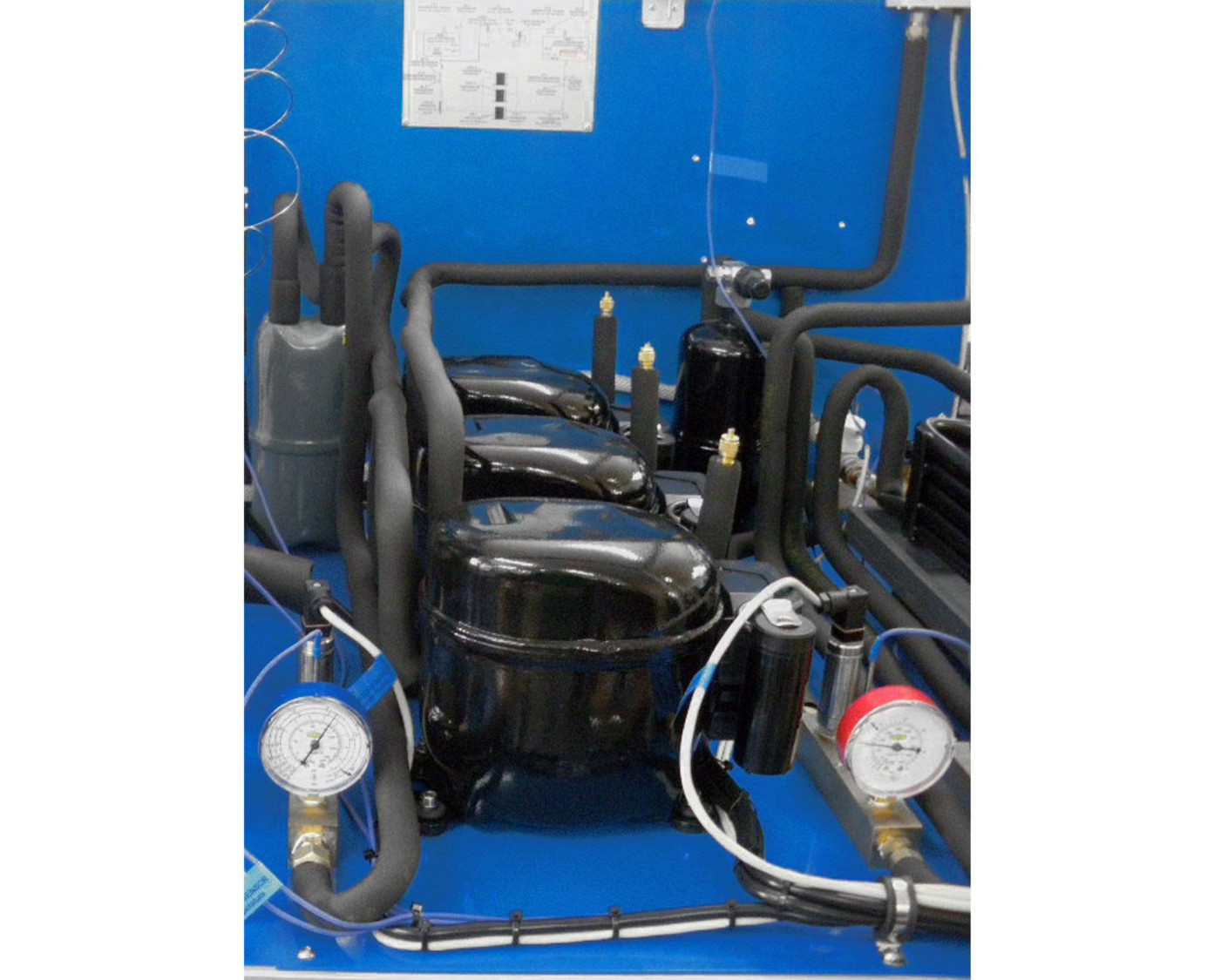

The refrigeration control unit with several compressors is basically composed of a refrigeration circuit. There is a water condenser, an air evaporator and three compressors located along it.

The low-grade heat source will be the air in the atmosphere. The heat generated by this unit is in form of hot water.

The work introduced is in form of electric energy supplied to the hermetic compressors.

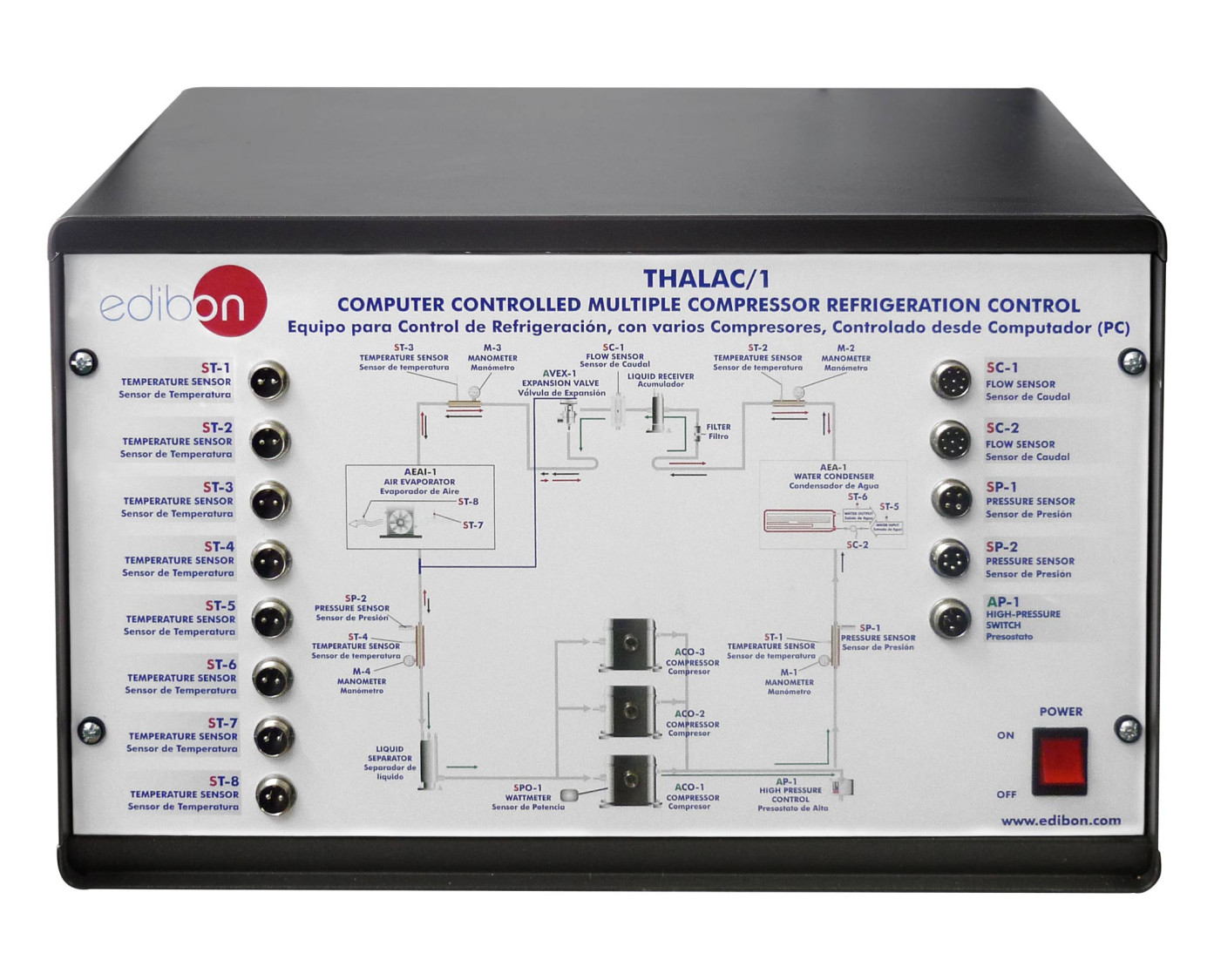

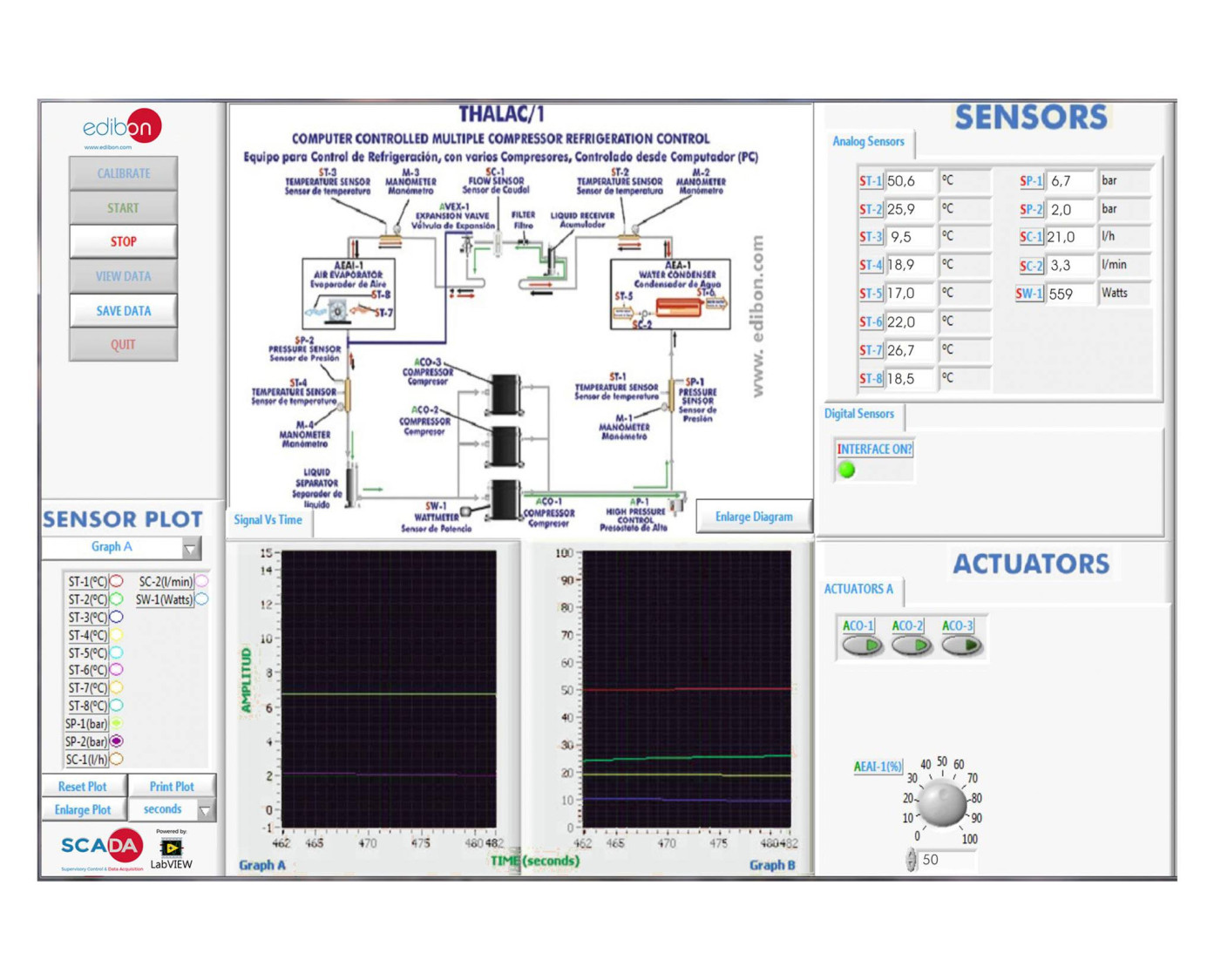

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Combined operation of compressors:
    1. Power measurement.
    2. Comparison of the energy for operating individual compressor and multiple compressors.
  1. Cyclic process on the p-h state diagram.
  2. Determination of the inlet power, heat produced and performance coefficient. Air as heat source.
  3. Preparation of performance curves of the unit with different inlet and outlet temperatures. Air as heat source.
  4. Lay out of the steam compression cycle in a diagram P-H and comparison with the ideal cycle. Air as heat source.
  5. Effect of refrigerant supercooling.
  6. Effect of the airflow rate on the condenser performance.
  7. Preparation of the performance curves of the unit based on the properties of the refrigerant and at different condensation and evaporation temperatures. Air as heat source.
  8. Energy balances.
  9. Sensors calibration.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Properties of the refrigerant R-513a.
  2. Enthalpy-pressure diagram for the refrigerant R-513a.

Other possibilities to be done with this unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the THALAC/1 unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the THALAC/1 unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.

QUALITÄT

KUNDENDIENST

Informationen anfordern
