MFCS2 Gerät zur Untersuchung von Kräften in hyperstatischen Fachwerken

7.1.6.- STRUKTURMECHANIK 14.1.6.- STRUKTURMECHANIK
UNIT FOR STUDYING FORCES IN AN OVERDETERMINATE TRUSS - MFCS2

INNOVATIVE SYSTEME

The Unit for studying Forces in an Overdeterminate Truss, "MFCS2", allows the comparison and investigation of bar forces in statically determinate and overdeterminate trusses.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV
 Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung
7HE
 Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

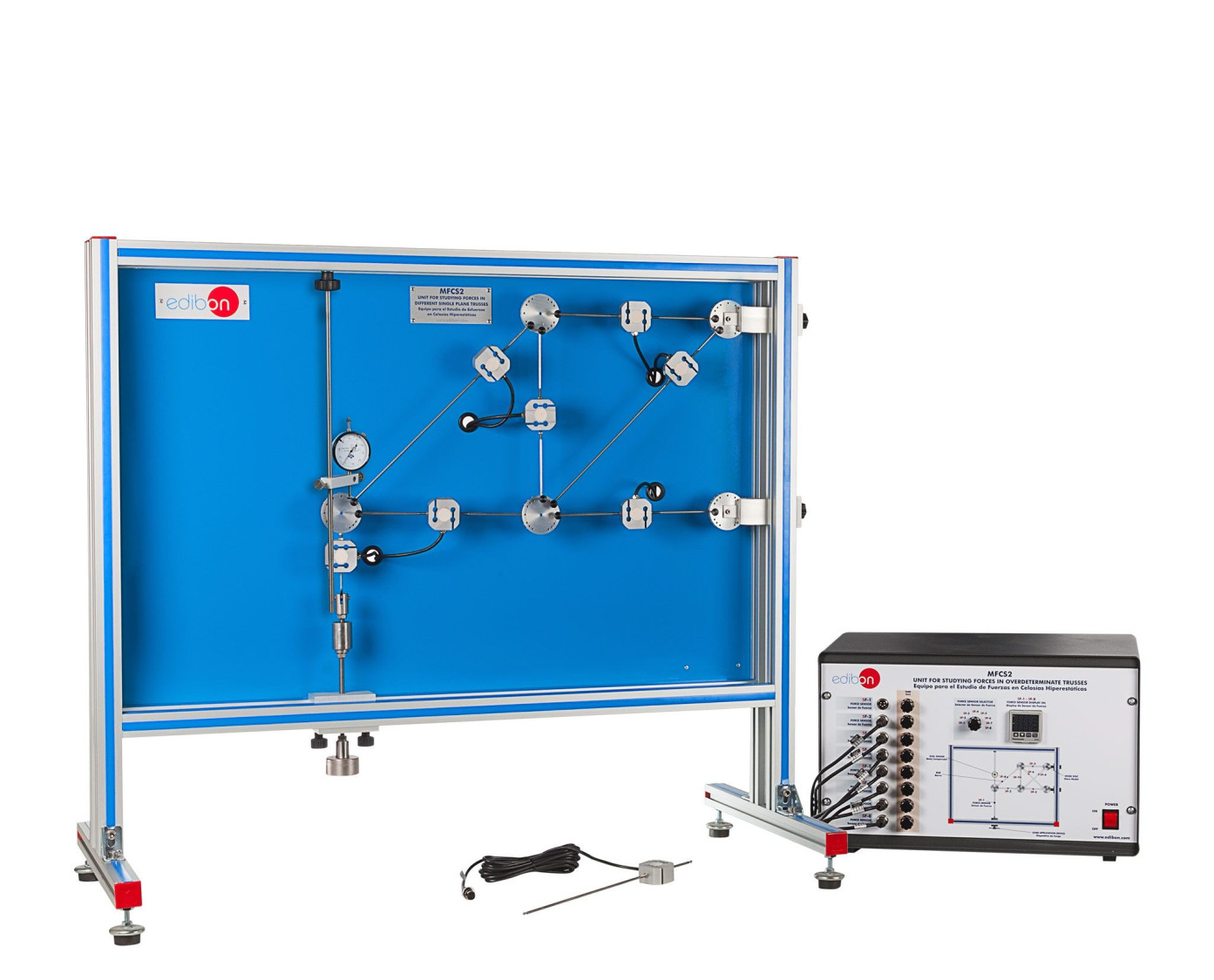

The Unit for studying Forces in an Overdeterminate Truss, "MFCS2", allows the measurement of the bar forces in a statically determinate truss and in a statically overdeterminate truss, the study of the distribution of forces in the single plane truss with a surplus bar, the study of the dependency of the bar forces on the external force and the comparison of the experimental bar forces with several mathematical methods, such as the method of knots, Ritter´s sections or Castigliano´s method.

The unit consists on eight bars of stainless steel with different lengths to form different trusses structures, one of them allows to convert the structure into hyperstatic. Between the bars will be placed a force sensor to measure the stresses on the bars, they will work with traction or compression and they will be placed forming triangular units with different angles. The bars can be considered ideal, because friction is neglected and nodes doesn´t transmit moments.

To generate an external force in the truss, a load application device will be attached to one of the node disks and with a force sensor the applied load will be measured.

The unit includes a dia gauge to visualize the deformation in any node when the structure is subjected to an external force. All the readings from the force sensor are shown on a digital display of the electronic console.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Investigation of forces in a statically determinate single plane truss.
  2. Investigation of forces in a statically overdeterminate single plane truss.
  3. Measurement of bar forces in the different configurations of the single plane truss using force sensors.
  4. Study of the distribution of forces in the statically determinate single plane truss.
  5. Study of the distribution of forces in the statically overdeterminate single plane truss (using a surplus bar).
  6. Study of the dependency of bar forces on the external force in the different configurations of the single plane truss with the direction of the force.
  7. Study of the dependency of the bar forces on the external force in the different configurations of the single plane truss with the magnitude of the force.
  8. Study of the dependency of the bar forces on the external force in the different configurations of the single plane truss with the application point of the force.
  9. Calculation of bar forces in the different configurations of the statically determinate and statically overdeterminate single plane truss by Ritter's method of sections.
  10. Calculation of bar forces in the different configurations of the statically determinate and statically overdeterminate single plane truss by the method of joints.
  11. Comparison of the experimental bar forces with Ritter's method of sections and the method of joints in the different configurations of the statically determinate and statically overdeterminate single plane truss.
  12. Calculation of the deformation at a point defined by the application of Castigliano's first theorem.
  13. Compare the deformations suffered under the same state of load by an isostatic and a hyperstatic trus.
  14. Comparison of the deformation of the experimental deformation with the calculated deformation.
