COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC

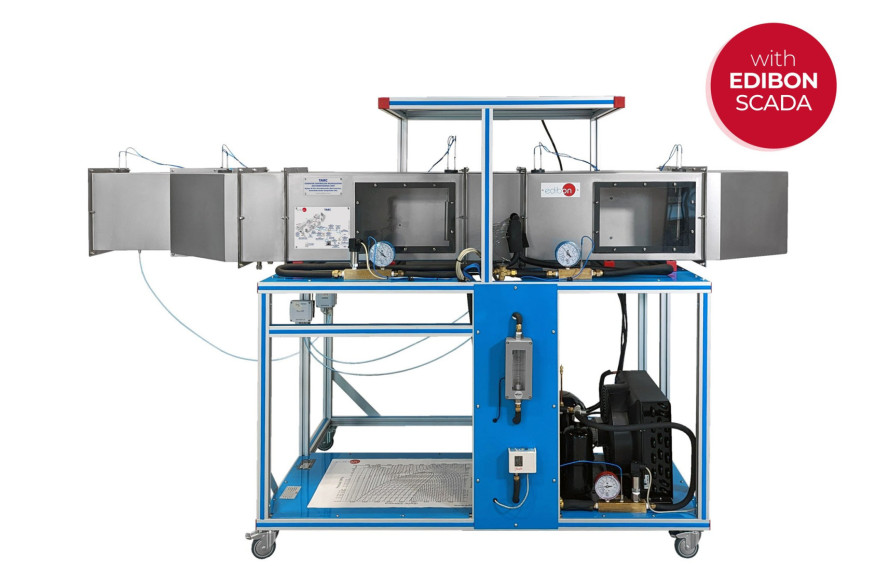

Unit: TARC. Computer Controlled Recirculating Air Conditioning Unit, with SCADA and PID Control

COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC

Unit details

COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC

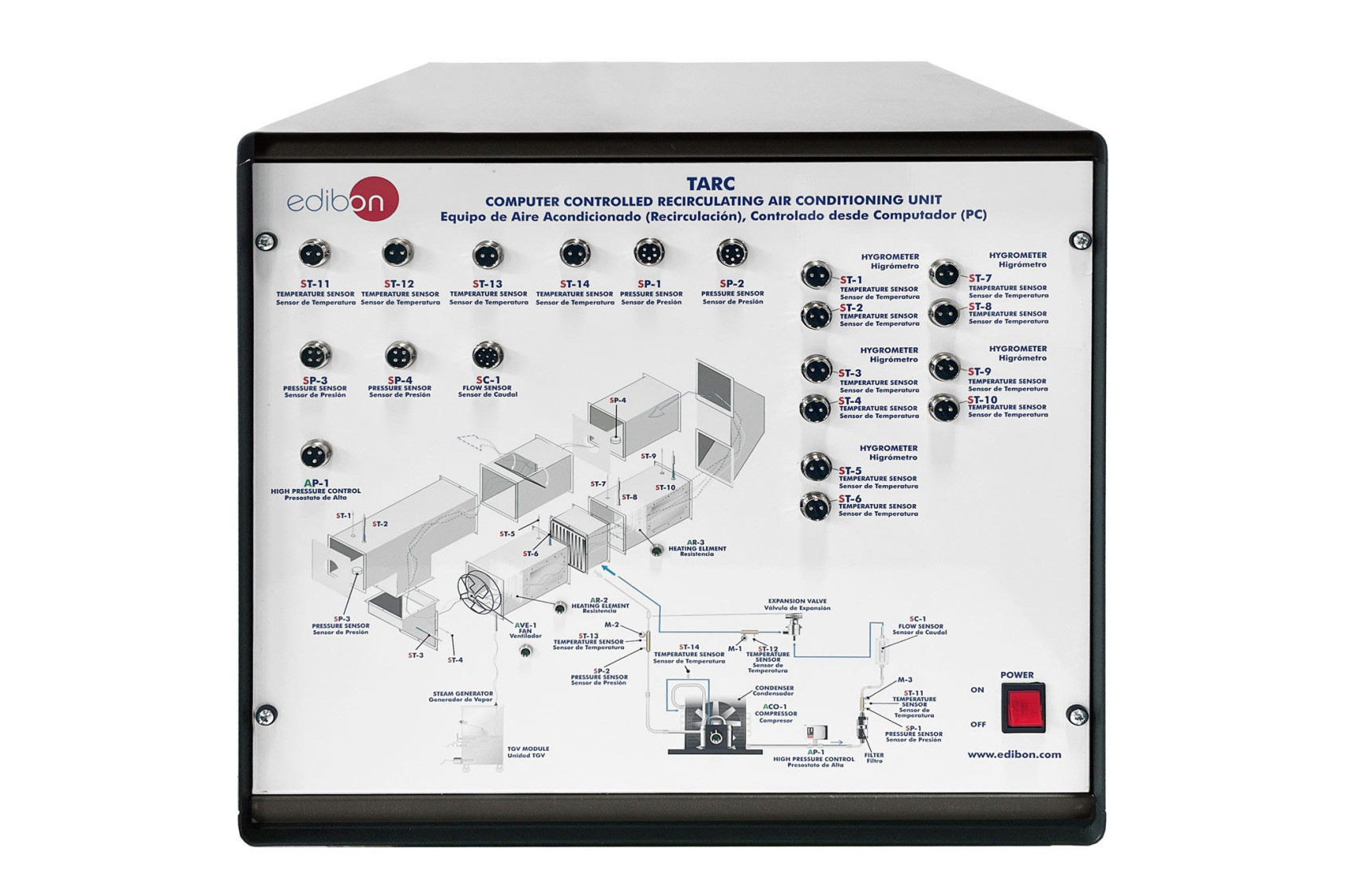

TARC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC

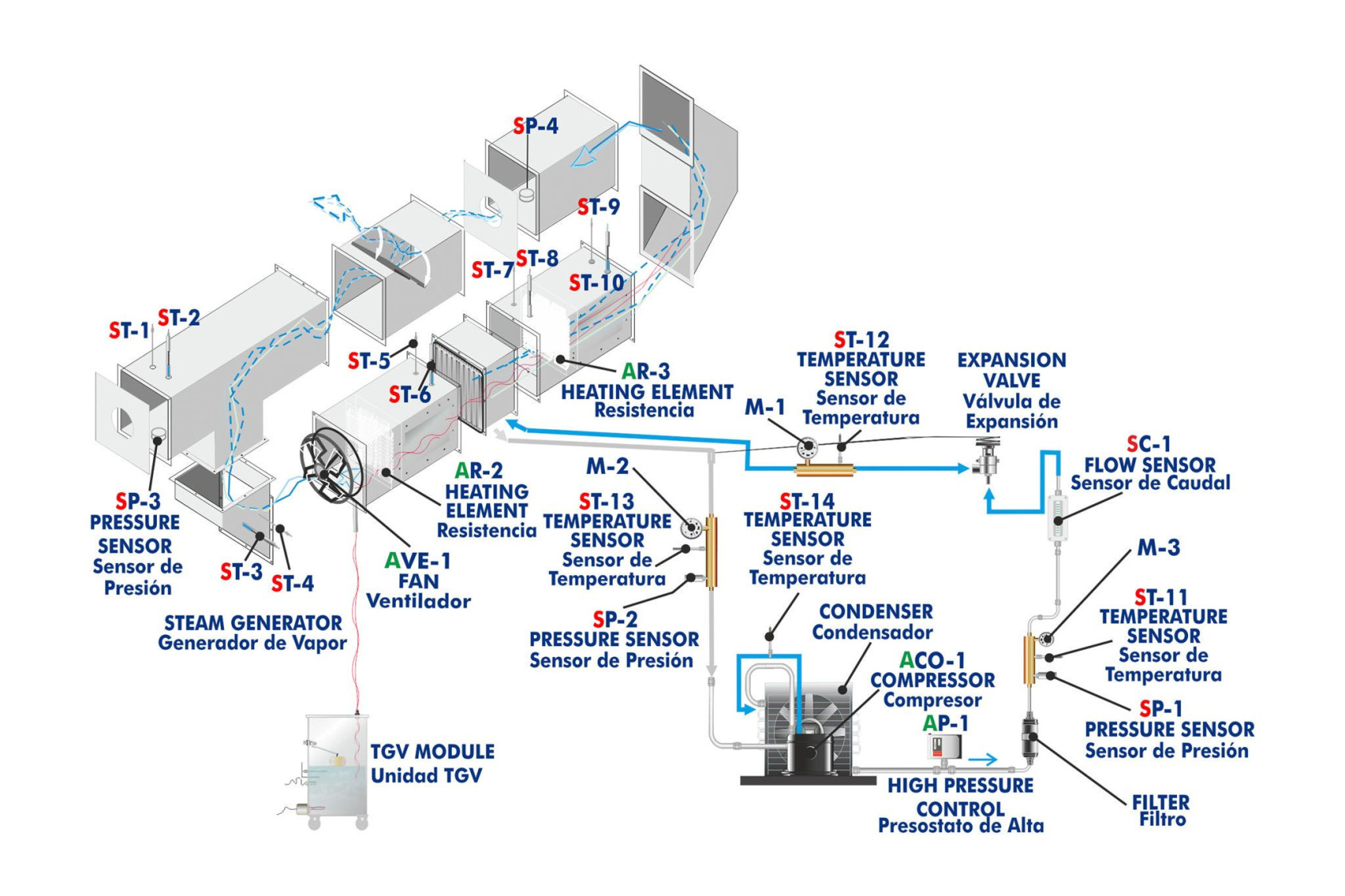

Process diagram and unit elements allocation

COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC

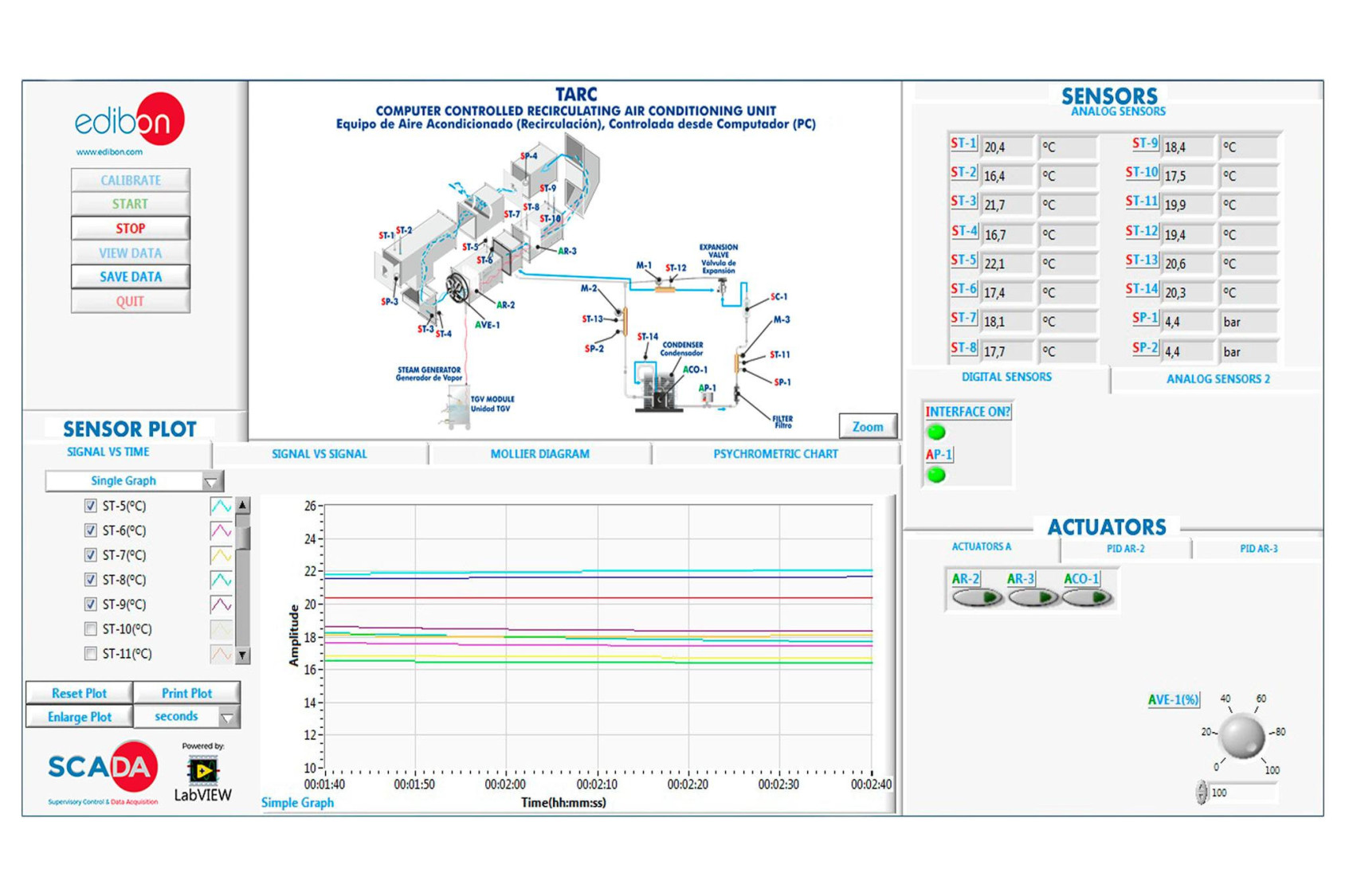

TARC/SOF. TARC Software. Main Screen

COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC
COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC
COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC
COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC
COMPUTER CONTROLLED RECIRCULATING AIR CONDITIONING UNIT - TARC

INNOVATIVE SYSTEME

The objective of Computer Controlled Recirculating Air Conditioning Unit, "TARC", is to introduce the student into the complex world of air conditioning systems, as well as studying and determining the optimal parameters for the operation of the unit in function of the environmental requirements (humidity, heat, temperature and cooling, etc.).

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
FSS

Fehlersimulationssystem
PLC

SPS Industrielle Prozesssteuerung
PLCHMI

Lokale/Remote IIoT-Steuerung und -Überwachung mit HMI
ELK

EDIBON Softwareentwicklungskit, Powered by NI LabVIEW™
ECR

Modulares Industriesystem von EDIBON mit NI CompactRIO
ESN

EDIBON Scada-Net Systeme
ECL

EDIBON Cloud Lernen

Laboratorien

9TV
 Labor für Thermodynamik und Thermotechnik für die technische und berufliche Bildung
9HE
 Thermodynamik- und Wärmetechniklabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Lesen Sie mehr
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Lesen Sie mehr
Setting up at University of Malta
Setting up at University of Malta
We have had the honor of installing our Computer Controlled Recirculating Air Conditioning Unit (TARC) in the department of Environomental Design in the University of Malta (UM). We are confident it will offer a very enriching teaching experience.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

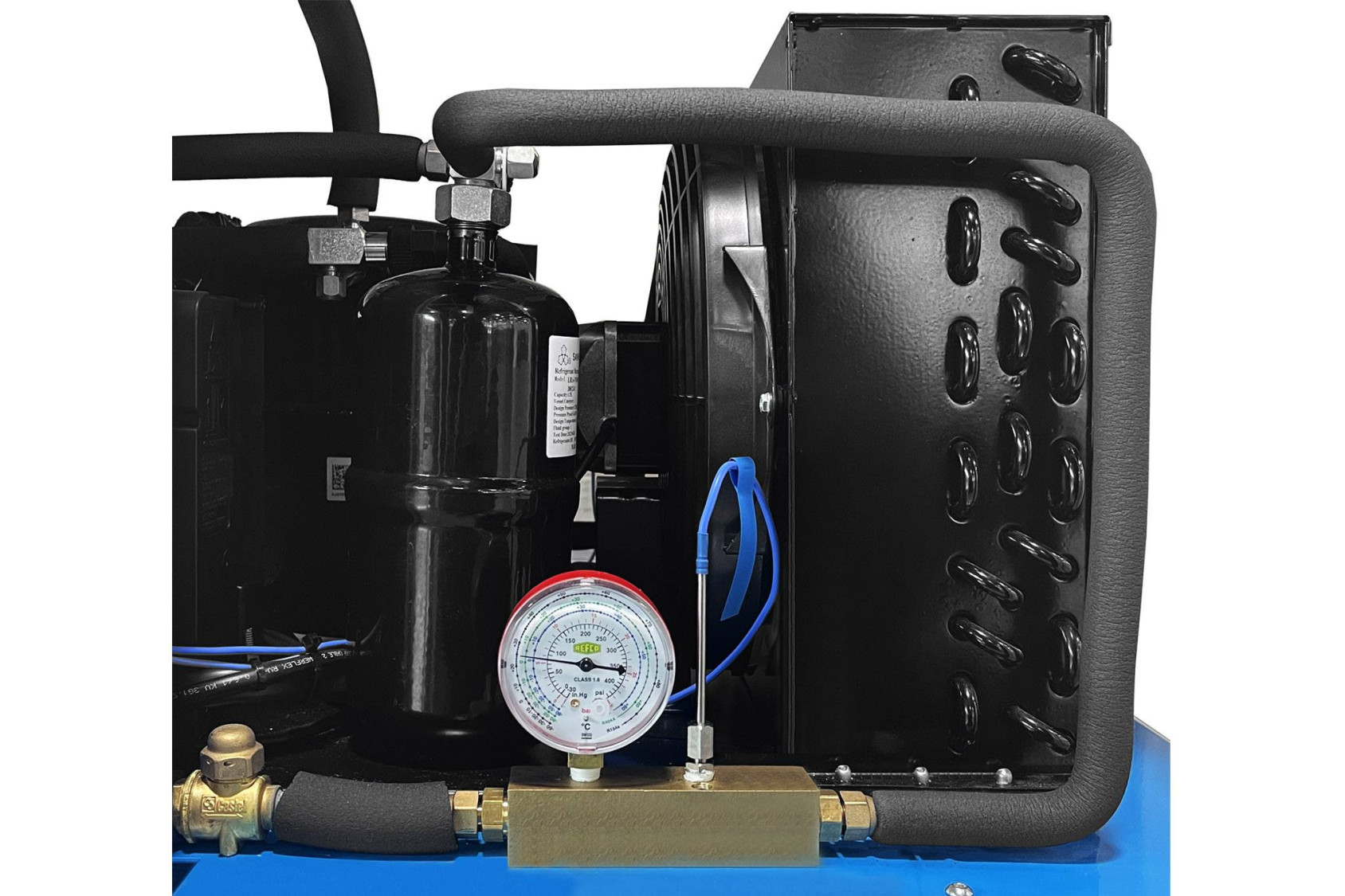

The Computer Controlled Recirculating Air Conditioning Unit, "TARC", has been designed to study both the changes in the air conditions and the refrigeration circuit. For that purpose, temperature sensors, pressure sensors and flow meters have been strategically located, allowing to study the refrigeration cycle and to quantify the capacity of the evaporation and condensation unit.

It can work with fresh air and recycled air.

The unit basically consists of a testing tunnel made of stainless steel, which has four windows (sight glasses). Inside there is an axial fan, two heating elements, one at the inlet of the evaporation unit of 2000 W and other at the outlet of 1000 W. There are also five hygrometers strategically located along the tunnel. These hygrometers consist of two temperature sensors (wet and dry bulb).

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Demonstration of the processes of air heating, cooling, humidification, de-humidification, recirculating and mixing.
  2. Efficiency determination of the preheating element.
  3. Preheating effect in an air conditioning installation.
  4. De-humidification process study.
  5. Mass balance in the evaporator.
  6. Energy balance in the evaporator.
  7. Re-heat effect.
  8. Experimental determination of the air specific heating capacity.
  9. Study of de-humidification in a recycling process.
  10. Sensors calibration.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Psychrometric chart.
  2. Usage of psychrometric chart.
  3. Determination of the airflow.
  4. Example of the air properties determination.
  5. Properties of the Refrigerant R-513a.
  6. Enthalpy-Pressure diagram for the refrigerant R-513a.
  7. Demonstration of recirculating and the adiabatic mixing of two air streams at different states.
  8. Obtaining of the steam generator efficiency curve.
  9. Energy balance in the steam generator.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TARC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TARC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
