N-EM-RAC Kompressorluftnetz

6.2.2.1.- HERSTELLUNGSSYSTEME

INNOVATIVE SYSTEME

"N-EM-RAC" represents a compressed air network composed by a service unit with an air compressor and an air tank and a pipe network to provide with air compressed an installation.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ALLGEMEINE BESCHREIBUNG

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

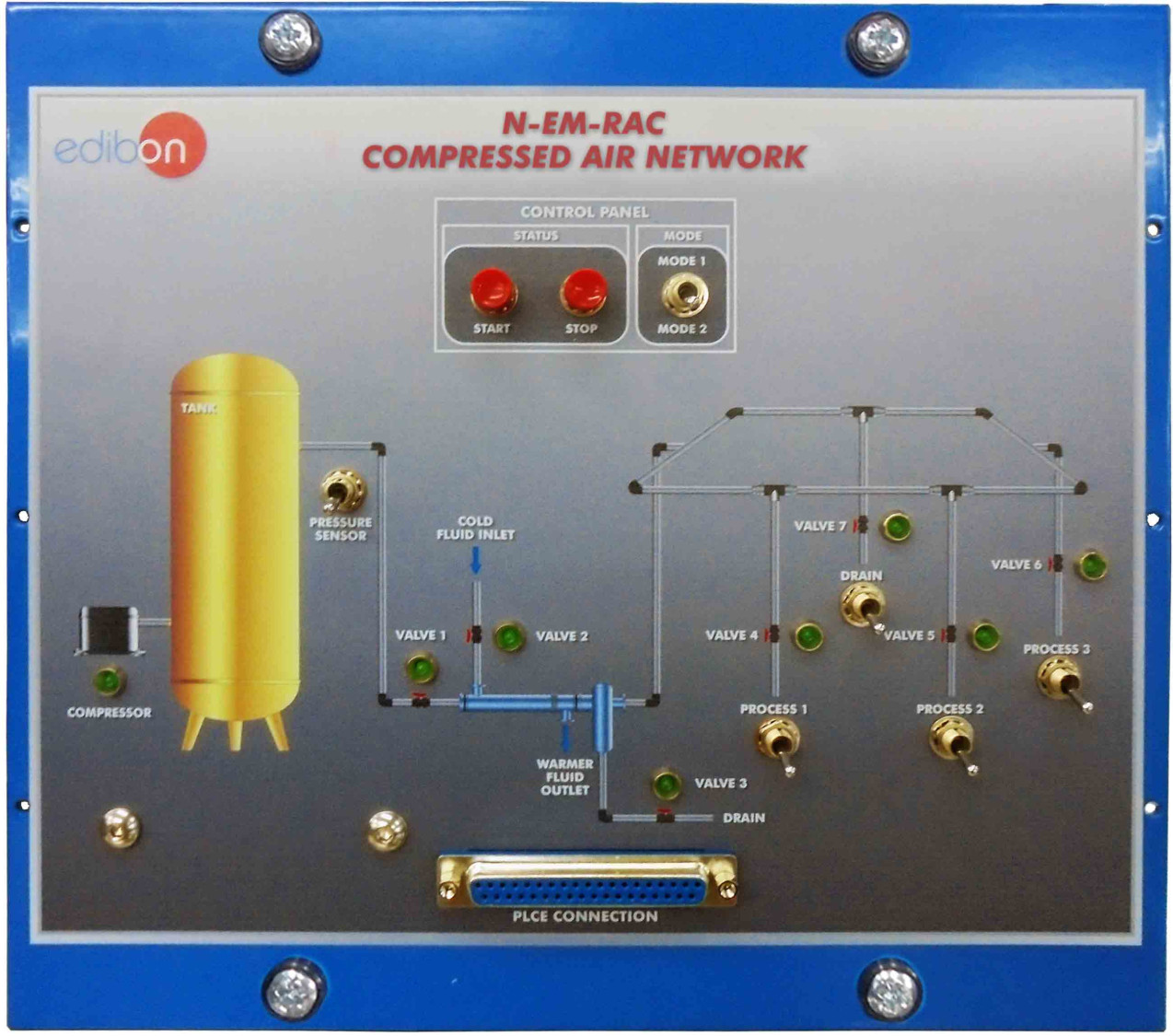

"N-EM-RAC" represents a compressed air network composed by a service unit with an air compressor and an air tank and a pipe network to provide with air compressed an installation. The different switches and pushbuttons emulate the pressure sensors, the drain valve, different process valves, etc.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.
