MAC Kupplungsmechanismus

7.1.2.1.- MECHANISMEN 14.1.2.1.- MECHANISMEN

INNOVATIVE SYSTEME

The Coupling Mechanism, "MAC", has been designed by EDIBON to study an Oldham coupling and its operation when the input and output shafts are laterally displaced.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV

Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung

7HE

Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ALLGEMEINE BESCHREIBUNG

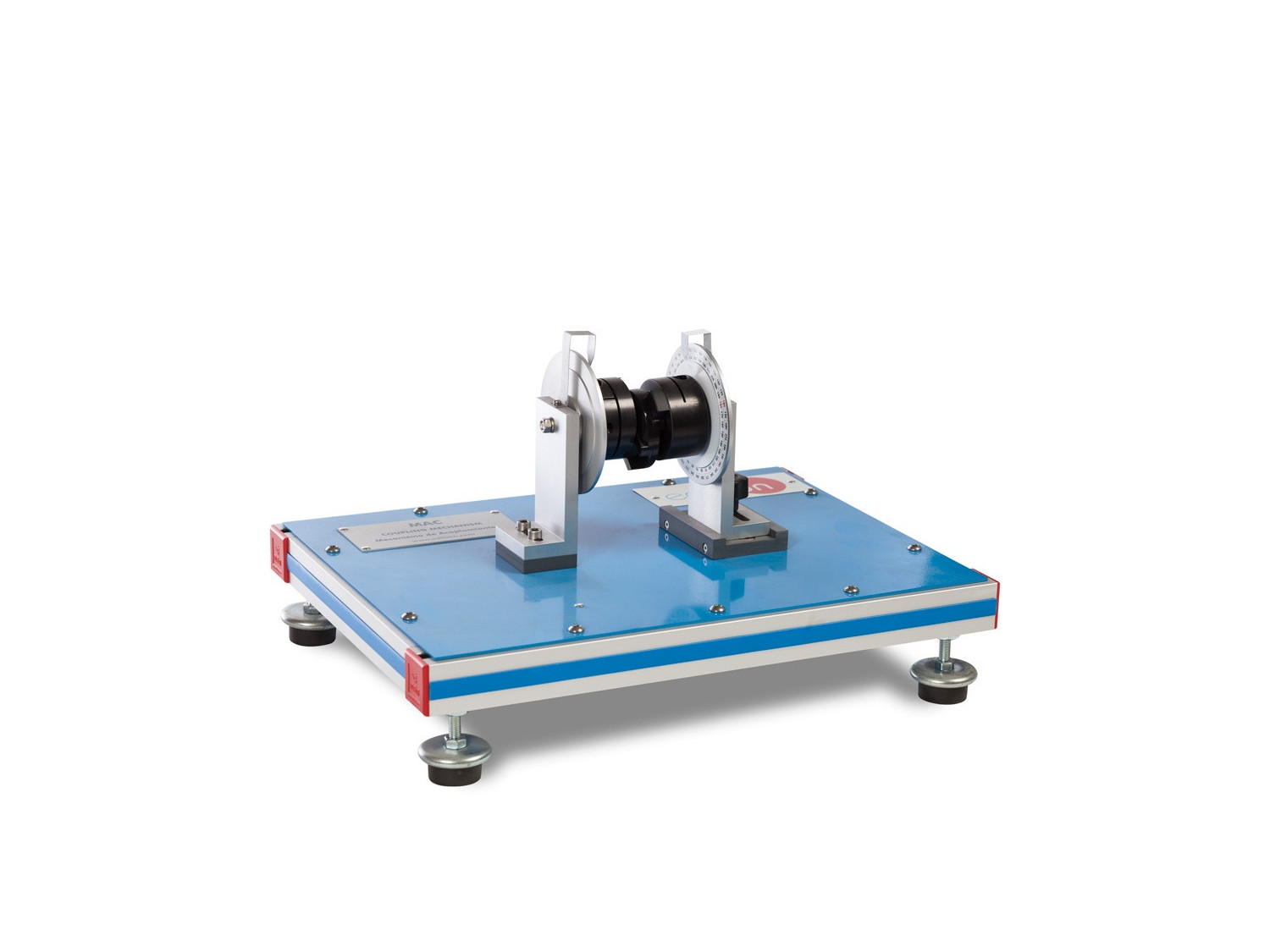

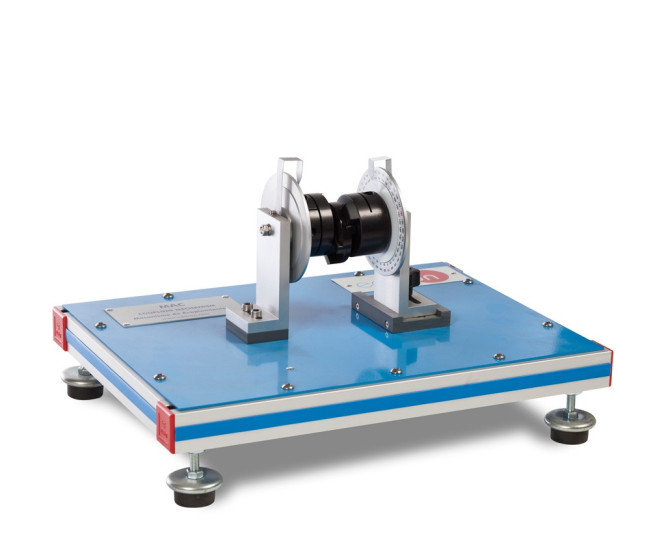

The Coupling Mechanism, "MAC", represents a simple Oldham type coupling. The lateral displacement of the input and output shafts may be varied and circular scales are fitted to the input and output flanges.

It consists of two outer discs made of aluminum and a central disc made of acetal. The central disc is located between both outer discs and it acts as the torque transmitting element. Torque transmission is accomplished by mating drive keys of the central disc, located on opposite sides and oriented 90° apart, with the slots of the outer discs.

Both outer discs are mounted in two graduated discs, where the angle of both outer discs can be measured.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Study of an Oldham mechanism.
Demonstration of the action of an Oldham coupling when the input and output shafts are laterally displaced.
Demonstration of the angular velocity conservation in a misaligned transmission shaft.

ERGÄNZENDE AUSRÜSTUNG

Available

7.1.2.1.- MECHANISMEN

MBD

Schubkurbelgetriebe

The Slider Crank Mechanism, "MBD", designed by EDIBON, is an example of slider-crank mechanism.This mechanism is made of aluminum and consists of a rotary element (graduated disc), called crank, connected to a rigid bar, calledconnecting rod. When...

Available

7.1.2.1.- MECHANISMEN

MYE

Kurbelschleife

The Scotch Yoke Mechanism, "MYE", designed by EDIBON, is an example of slider-crank mechanism for converting the linear motion of a slider into rotational motion or vice versa.It is made of aluminum and consists of a rotary element, called crank,...

MBM1

Available

7.1.2.1.- MECHANISMEN

MBM1

Kurbelgetriebe mit Nutverbindung

The Slotted Link Mechanism, "MBM1", is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion. It is made of aluminum and consists of a rotary element (graduated disk), called crank, connected to...

MBM2

Available

7.1.2.1.- MECHANISMEN

MBM2

Whitworth- Quick -Return Mechanismus

The Whitworth Quick Return Mechanism, "MBM2", is a mechanism able to transform circular movement into reciprocating movement. It ismade of aluminum and consists of a rotary element, called crank, with a graduated disk, connected to a rigid bar,...

Available

7.1.2.1.- MECHANISMEN

MCA

Kettenmechanismus

The Four-Bar Mechanism, "MCA", designed by EDIBON, is a bench-top unit to perform laboratory experiments.It is made of anodized aluminum and consists of two rotary elements (graduated discs) mounted on ball bearings. The discs include a scale to...

Available

7.1.2.1.- MECHANISMEN

MME

Genfer Stopp-Mechanismus

The Geneva Stop Mechanism, "MME", designed by EDIBON, is a mechanism that transforms continuous circular motion into intermittent motion. It is a positive drive in which the driven wheel is positively moved or locked.It is made of aluminum and...

Available

7.1.2.1.- MECHANISMEN

MUN

Kreuzgelenkmechanismus

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, represents a universal coupling, also called a U-joint, Hooke joint or cardan joint. The Hooke joint is a universal mechanism that is often used to transmit rotary motion between two...

Available

7.1.2.1.- MECHANISMEN

MEX

Nockenwelle mit Stößel

The Cam and Follower Mechanism, "MEX", allows to study the cam-follower and eccentric-follower mechanisms. For that purpose, several plate cam models in different forms, one eccentric and several roller-shaped, flat-shaped, wedge-shaped and...

Available

7.1.2.1.- MECHANISMEN

MBI

Kurbelgetriebe

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism. The piston is linearly displaced through a cylinder with the aid of a guide.Bearings are coupled...

Available

7.1.2.1.- MECHANISMEN

MDA

Ackermann-Lenkmechanismus

The Ackermann Steering Mechanism, "MDA", is a bench-mounted unit designed to determine the lead angle of a steering trapezoid in an Ackermann steering mechanism, the disadvantages of incorrectly adjusted track rods and the influence of the track...

MMEL

Available

7.1.2.1.- MECHANISMEN

MMEL

Windenmechanismus

The Winch Mechanism, "MMEL", allows to study the lifting velocity and load transmission of a winch. Efficiency and load transmission can be determined by force balance.The unit consists of a gear transmission mechanism. One gear is the input gear...

MBLU

Available

7.1.2.1.- MECHANISMEN

MBLU

Gerät für die Kopplung von Stäben

The Bar Linkages Unit "MBLU" allows many experiments using different arrangements of their parts.The "MBLU" unit includes a selection of more than twenty perforated bars of different lengths and pivots or "joints" to allow students to configure...
