MBI Kurbelgetriebe.

7.1.2.1.- MECHANISMEN 14.1.2.1.- MECHANISMEN
CRANK MECHANISM - MBI

INNOVATIVE SYSTEME

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV
 Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung
7HE
 Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

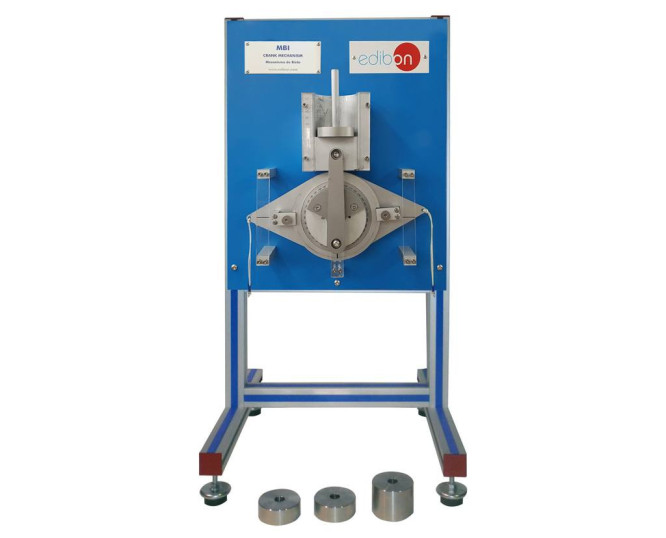

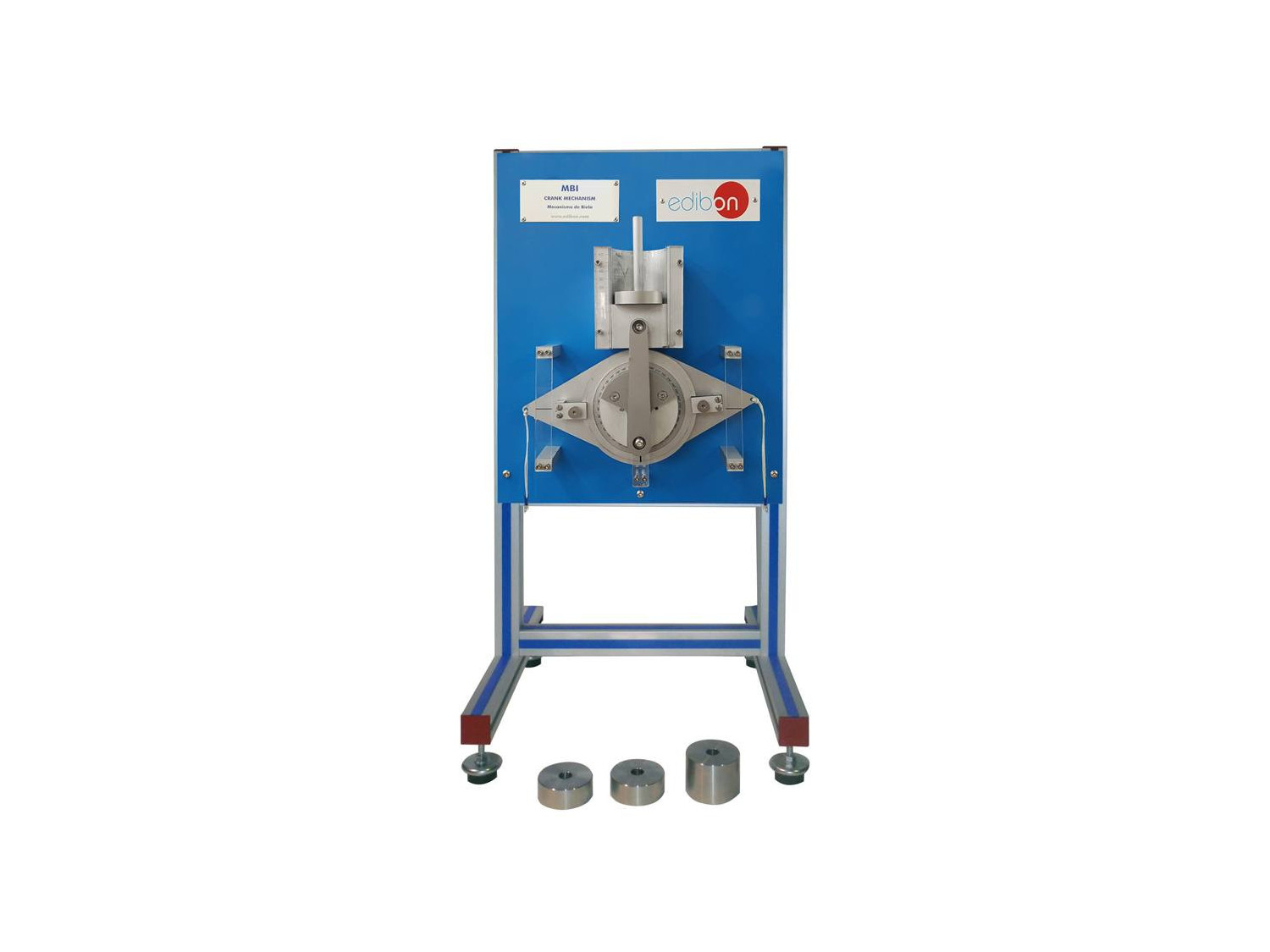

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism.

The piston is linearly displaced through a cylinder with the aid of a guide.

Bearings are coupled to the connecting rod so that friction is kept to a minimum.

There is a protractor attached to the crank, which can be rotated on the beam balance arm and locked in any predetermined angular position.

The piston displacement can be measured with a linear scale attached to the piston guide. The piston can be fitted with removable weights to change the piston mass.

The crank effort can be determined by attaching weights to the beam balance arm.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Determination of the crank effort.
  2. Balancing of the crankshaft.
  3. Measurement of the piston displacement.
  4. Experimental relationship between piston displacement and crank angle.
  5. Theoretical relationship between piston displacement and crank angle.
  6. Comparison of the piston displacement value theoretically and experimentally.
  7. Experimental relationship between turning moment and crankshaft angle.
  8. Theoretical relationship between turning moment and crankshaft angle.

QUALITÄT

KUNDENDIENST

Informationen anfordern
