MBM1 Kurbelgetriebe mit Nutverbindung.

7.1.2.1.- MECHANISMEN 14.1.2.1.- MECHANISMEN

INNOVATIVE SYSTEME

The Slotted Link Mechanism, "MBM1", is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV

Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung

7HE

Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ALLGEMEINE BESCHREIBUNG

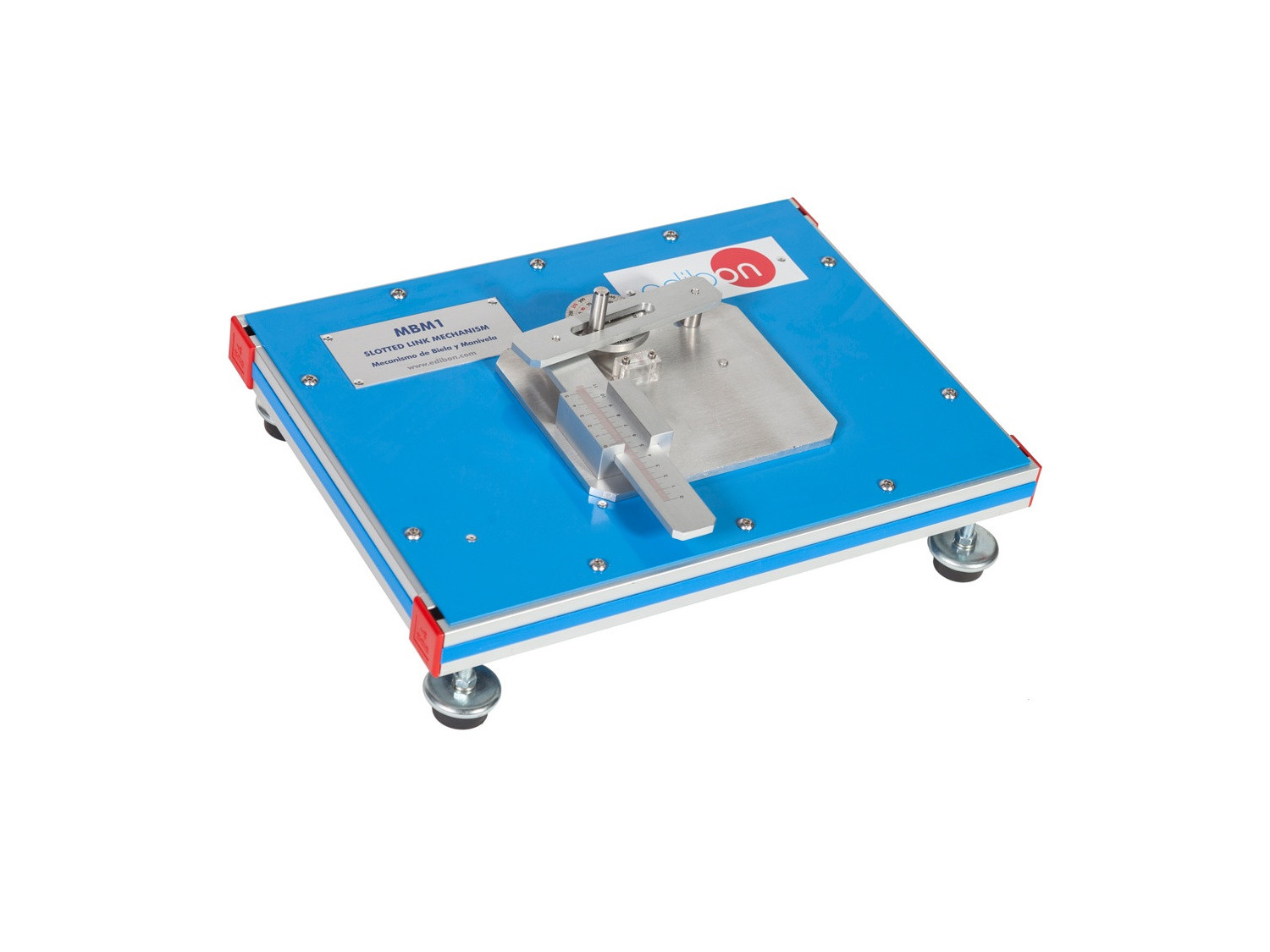

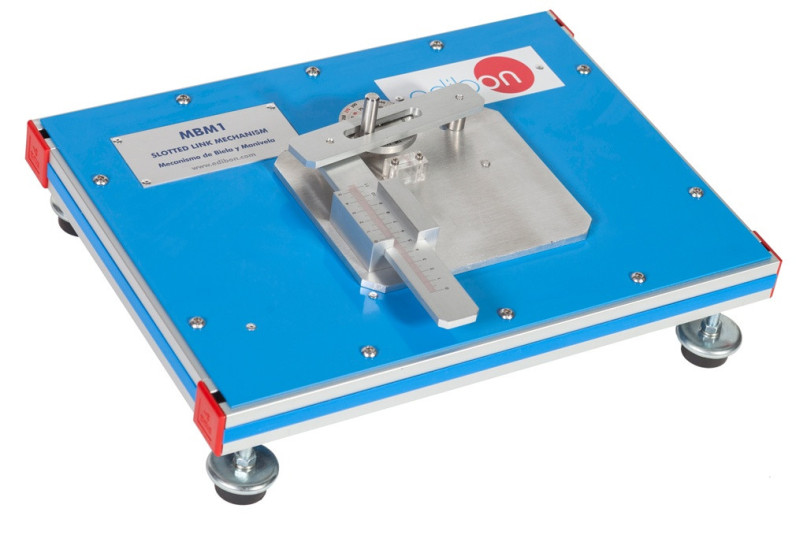

The Slotted Link Mechanism, "MBM1", is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion. It is made of aluminum and consists of a rotary element (graduated disk), called crank, connected to a rigid bar, called connecting rod.

When rotating the crank, the connecting rod moves back and forward. The rotation motion of a crank or crankshaft causes a rectilinear reciprocating motion of a piston or plunger. It is a reversible system through which the connecting rod can be displaced by turning the crank and the other way round. If the connecting rod generates the input motion (as a piston in a car engine does), the crank is forced to rotate.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Demonstration of the action of a simple crank and slotted link mechanism.
Graphic determination of the relationship between the linear displacement of the sliding block and the angular displacement of the input crank.

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

Los ejercicios más avanzados pueden incluir la determinación de la velocidad y aceleración del bloque deslizante mediantediferenciación gráfica y comparación con los valores obtenidospor diagramas de velocidad y aceleración.
