MYE Kurbelschleife.

7.1.2.1.- MECHANISMEN 14.1.2.1.- MECHANISMEN
SCOTCH YOKE MECHANISM - MYE

INNOVATIVE SYSTEME

The Scotch Yoke Mechanism, "MYE", designed by EDIBON, is an example of slider-crank mechanism for converting the linear motion of a slider into rotational motion or vice versa.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
MSAC

Modulares Erfassungs- und Steuerungssystem

Laboratorien

7TV
 Mechanik-, Automobil- und Werkstofflabor für technische und berufliche Bildung
7HE
 Mechanik-, Automobil- und Werkstofflabor für die Hochschulausbildung

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

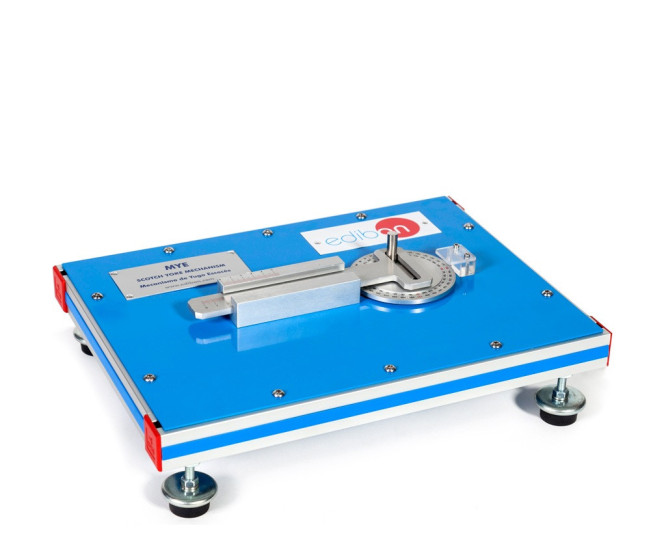

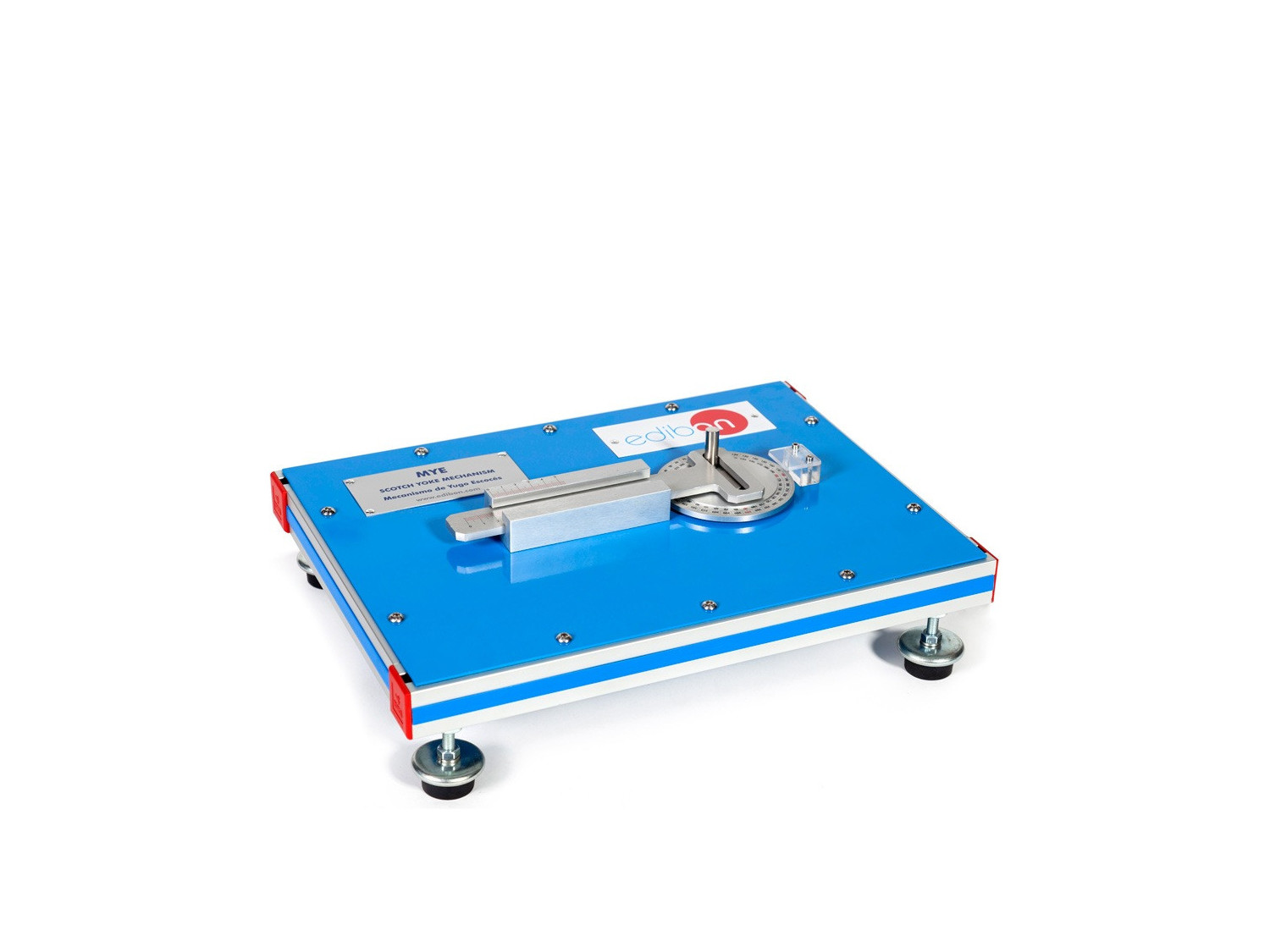

The Scotch Yoke Mechanism, "MYE", designed by EDIBON, is an example of slider-crank mechanism for converting the linear motion of a slider into rotational motion or vice versa.

It is made of aluminum and consists of a rotary element, called crank, with a graduated disc. This element and a piston are linked to a vertical pivot. The rotating motion of the crank generates the alternative linear motion of the piston.

It is a reversible system, if the piston generates the input motion (for example, a piston in a car's engine), the crank rotates.

The input angle is set on the ball bearing mounted crank disc and it is read on an angle measuring scale. A millimeter scale is fitted to measure the linear motion of the connecting rod.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Study of the conversion of smooth rotary motion into purely harmonic reciprocating motion.
  2. Demonstrating the behaviour of a simple crank-driven Scotch yoke mechanism.
  3. Plotting the relation between the linear displacement of the Scotch yoke and the angular displacement of the crank.
  4. Determining the velocity and acceleration of the Scotch yoke by graphical differentiation.
  5. Comparing the values obtained by the equations of motion.
