BS3 Modul für Druckprüfungen

2.4.1.- INSTRUMENTATION & KONTROLLE 6.1.2.1.- SENSOREN UND ELEKTRONISCHE INSTRUMENTATION 14.2.2.- INSTRUMENTATION & KONTROLLE
PRESSURE TEST MODULE - BS3

INNOVATIVE SYSTEME

The Pressure Test Module, "BS3", has been designed to teach the use and applications of this kind of sensors measurement systems. It shows the different pressure measurement techniques.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
EMSK

EDIBON Development KIT for Circuits Simulation, Powered by NI LabVIEW™

Laboratorien

2TV
 Elektroniklabor für technische und berufliche Bildung
2HE
 Elektroniklabor für die Hochschulausbildung
11PTC
 Labor für Petroleum Training Center

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

The Pressure Test Module, "BS3", has been designed to teach the use and applications of this kind of sensors measurement systems. It shows the different pressure measurement techniques.

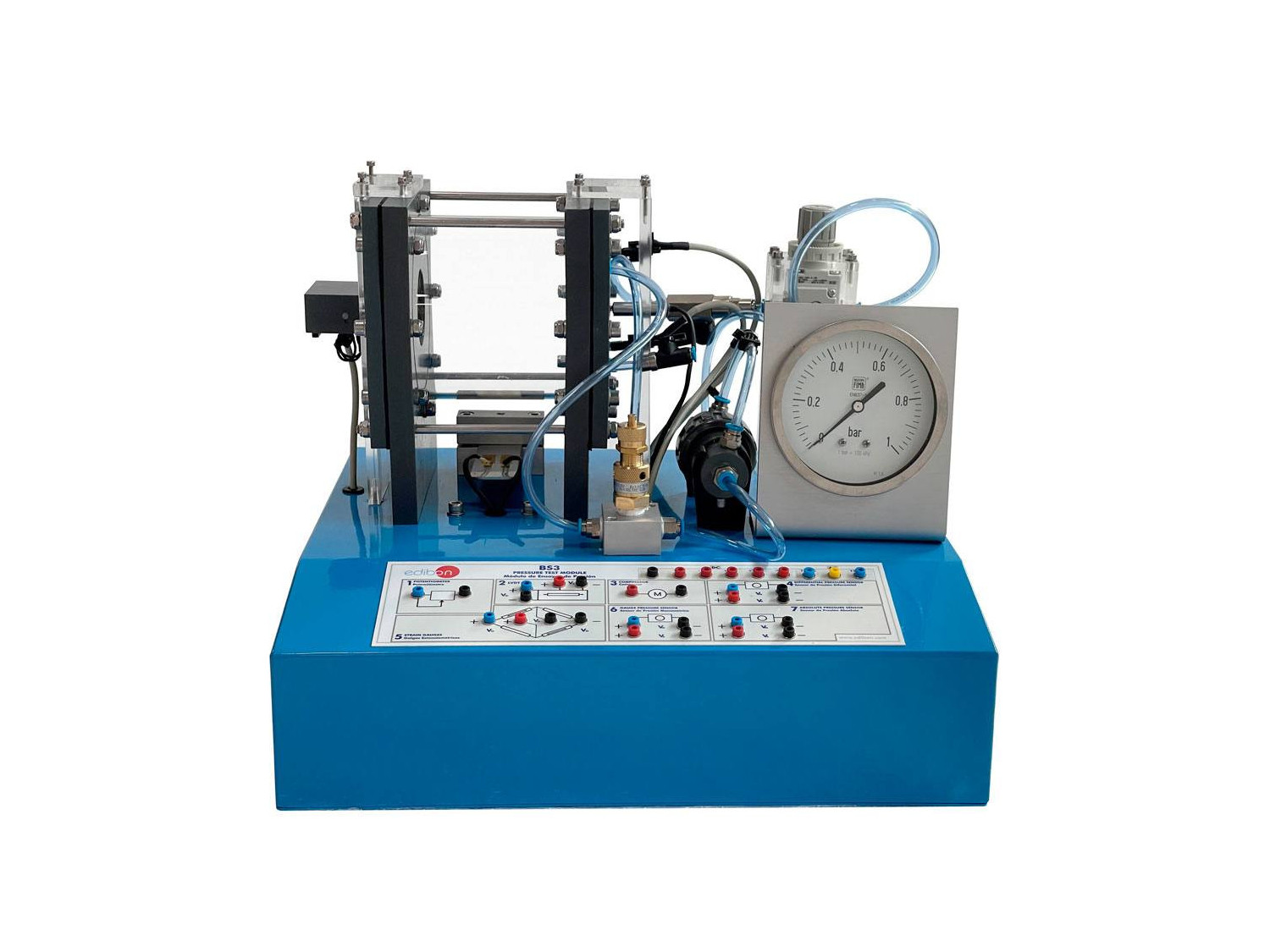

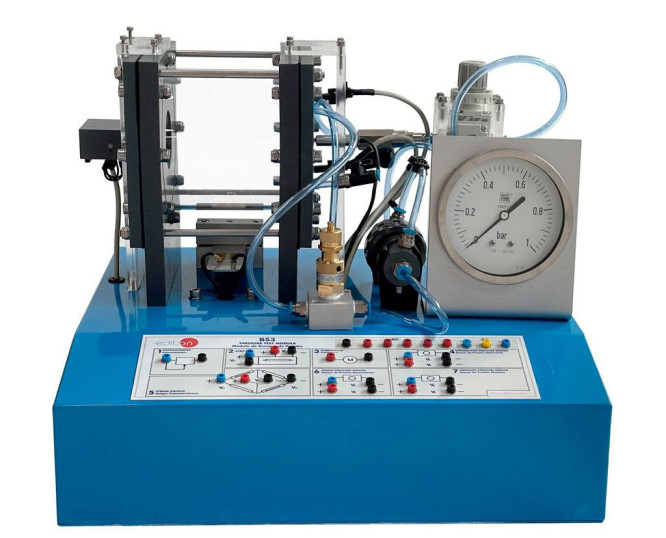

On the left upper side of the module there is a pressure chamber with several sensors adjusted to measure the pressure changes inside the chamber. Next to the pressure chamber on the left side there is a relay activates a compressor that gives the system pressure.

There are a compressor and a manometer connected next to the regulating valve with which the pressure chamber maximum pressure can be adjusted.

On both sides of the pressure chamber there are two diaphragms where displacement sensors are connected and some strain gauges that detect the diaphragm distortion as the pressure rises.

Included elements:

  • Linear positioning sensor (potentiometer).
  • LVDT sensor.
  • Differential pressure sensor with hole board system.
  • Strain gauges.
  • Manometric pressure sensor.
  • Absolute pressure sensor.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Use of linear positioning sensor (potentiometer) to detect the displacement produced by a diaphragm expansion caused by the air pressure.
  2. Use of a LVDT as an element to measure the diaphragm distortion that is consequence of the pressure inside the pressure chamber.
  3. Differential pressure sensor with hole-board system. Use of a differential pressure sensor of the semiconductor type to measure the pressure fall in a hole-board system.
  4. Strain gauges. To detect objects using an infrared sensor by light beam interruption.
  5. Measure the pressure in the chamber, using two different types of sensors (manometric and absolute pressure sensor).
  6. Strain gauges for measuring deformations: their resistance changes as the diaphragm expands due to the pressure coming from the pressure chamber.
