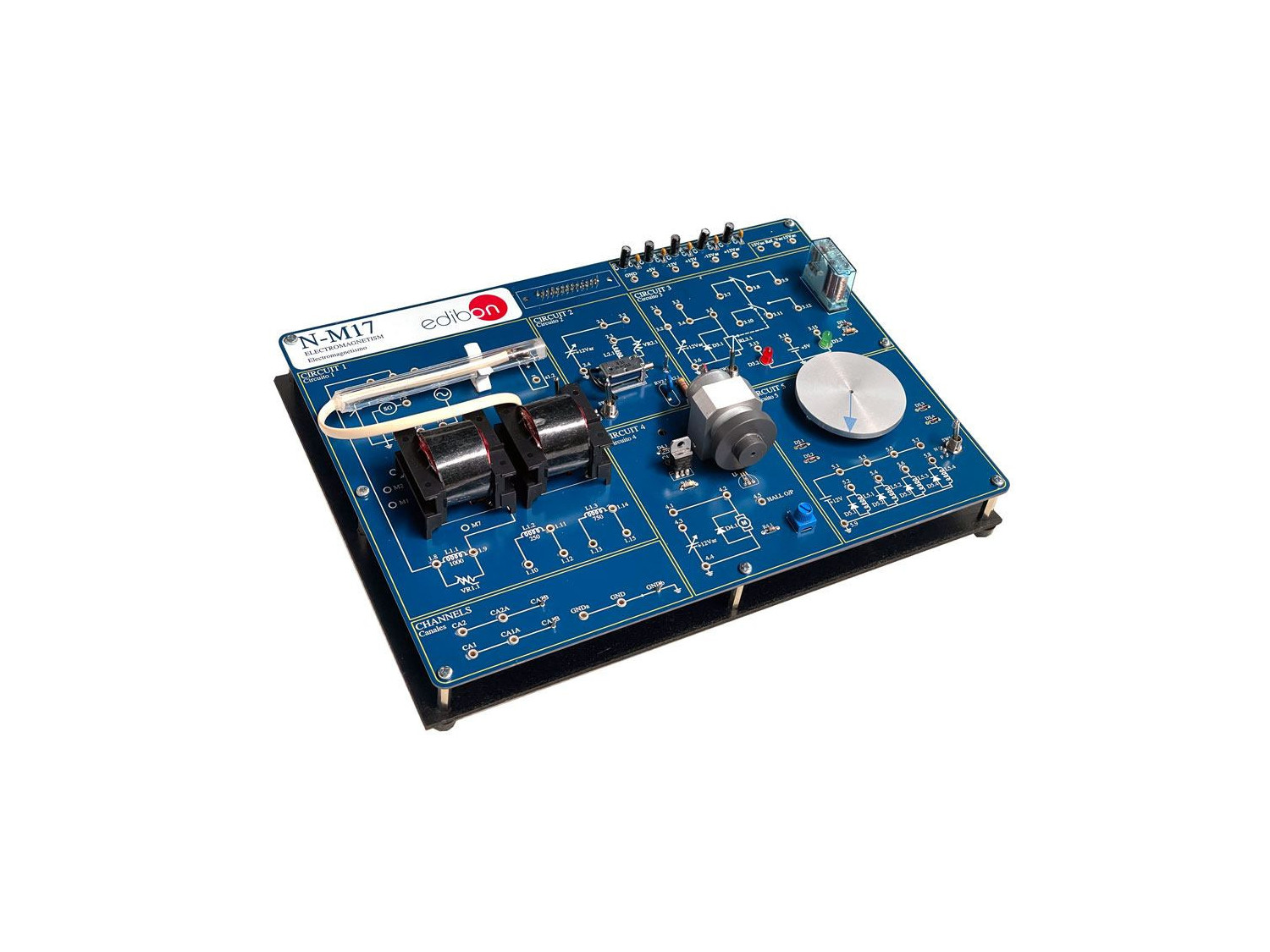

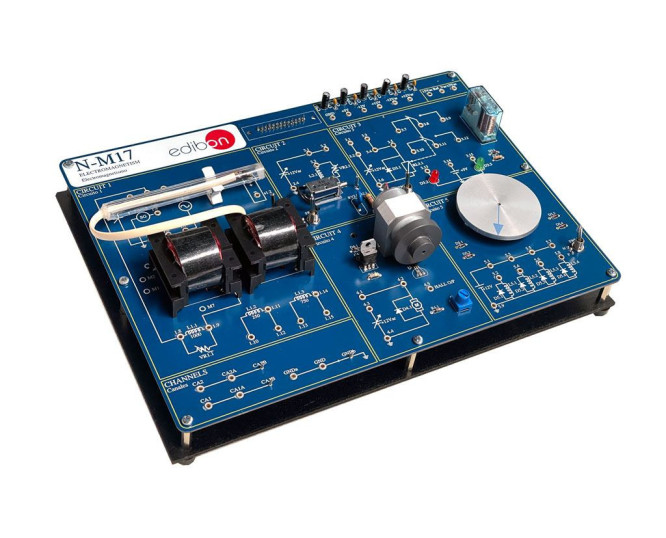

With the Electromagnetism Module, "N-M17", designed by EDIBON, the operation of electromagnetic applications such as transformer, solenoid, relay, stepper motor operation or DC motors can be studied.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
EMSK

EDIBON Development KIT for Circuits Simulation, Powered by NI LabVIEW™

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

Electromagnetism is the interaction between electric charges. It is described in terms of charges interacting between of electric and magnetic fields.

With the Electromagnetism Module, "N-M17", designed by EDIBON, the operation of electromagnetic applications such as transformer, solenoid, relay, stepper motor operation or DC motors can be studied.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

Magnetic fields:

  1. Magnetic fields measurement.
  2. Armature electromotive force. Coil reactance calculation.
  3. Theoretical/practical exercises.

Electromagnetic applications:

  1. Mutual Inductance.
  2. Basic operation of the transformer.
  3. Core effect in a transformer response.
  4. Failure 1. Fault study in circuit#1 (Coils. Hall effect probe. Materials).
  5. Basic operation of the solenoid.
  6. Failure 2. Faults study in the circuit#2 (Solenoid).
  7. Basic operation of a relay.
  8. Contacts position self-holding.
  9. Failure 3. Faults study in the circuit#3 (Excitation. Relays).
  10. Theoretical/practical exercises.

Direct current motor:

  1. Characteristic Speed/Voltage of a direct current motor.
  2. Motor used as DC generator.
  3. Counter-EMF.
  4. Theoretical/practical exercises.

Stepping Motor:

  1. Stepping motor working.
  2. Failure 4. Faults study in circuit#5 (Stepping motor).
  3. Theoretical/practical exercises.
