N-M9 Modul für Leistungselektronik

2.3.6.- LEISTUNGSELEKTRONIK (GRUNDLAGEN) 14.2.1.6.- LEISTUNGSELEKTRONIK
POWER ELECTRONICS MODULE - N-M9

INNOVATIVE SYSTEME

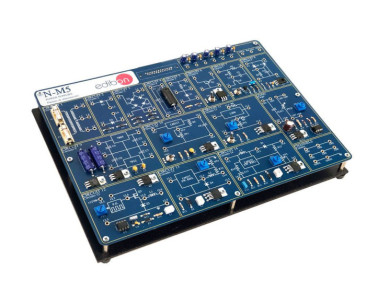

With Power Electronics Module, "N-M9", designed by EDIBON, the operation of MOSFET transistors, thyristors, TRIACs, etc. can be studied.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
EMSK

EDIBON Development KIT for Circuits Simulation, Powered by NI LabVIEW™

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

Semiconductors used in power electronics operate as switches and therefore it is interesting to know the conduction characteristics, switching and control methods.

With Power Electronics Module, "N-M9", designed by EDIBON, the operation of MOSFET transistors, thyristors, TRIACs, etc. can be studied.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

The bipolar power transistor:

  1. Study of the power transistor.
  2. Faults study in the power transistor.
  3. Theoretical/practical exercises.

The MOSFET transistor:

  1. Study of the MOSFET transistor.
  2. Faults study in the MOSFET transistor.
  3. Theoretical/practical exercises.

The thyristor:

  1. Study of the thyristor.
  2. Faults study of the thyristor.
  3. Theoretical/practical exercises.

The UJT transistor and trigger circuits of the thyristor:

  1. Study of the trigger circuits of the thyristor.
  2. Study of insulation circuits.
  3. Theoretical/practical exercises.

The TRIAC:

  1. Study of the TRIAC.
  2. Practical assembly of the TRIAC.
  3. Theoretical/practical exercises.
Mehr sehen

MEHR PRAKTISCHE ÜBUNGEN FÜR DAS GERÄT

  1. Half/Full wave control.
  2. Several other exercises can be done and designed by the user.
