PROXIMITY TEST MODULE - BS8

INNOVATIVE SYSTEME

The Proximity Test Module, "BS8", has been designed to teach techniques to detect the proximity of objects, focusing on the distance at which each sensor is able to detect the object and the type of material it can detect.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
EMSK

EDIBON Development KIT for Circuits Simulation, Powered by NI LabVIEW™

Laboratorien

2TV
 Elektroniklabor für technische und berufliche Bildung
2HE
 Elektroniklabor für die Hochschulausbildung
11PTC
 Labor für Petroleum Training Center

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

The Proximity Test Module, "BS8", has been designed to teach techniques to detect the proximity of objects, focusing on the distance at which each sensor is able to detect the object and the type of material it can detect.

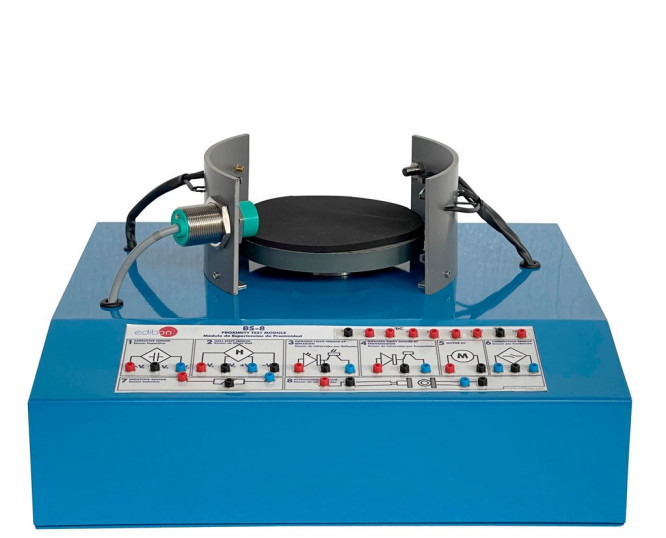

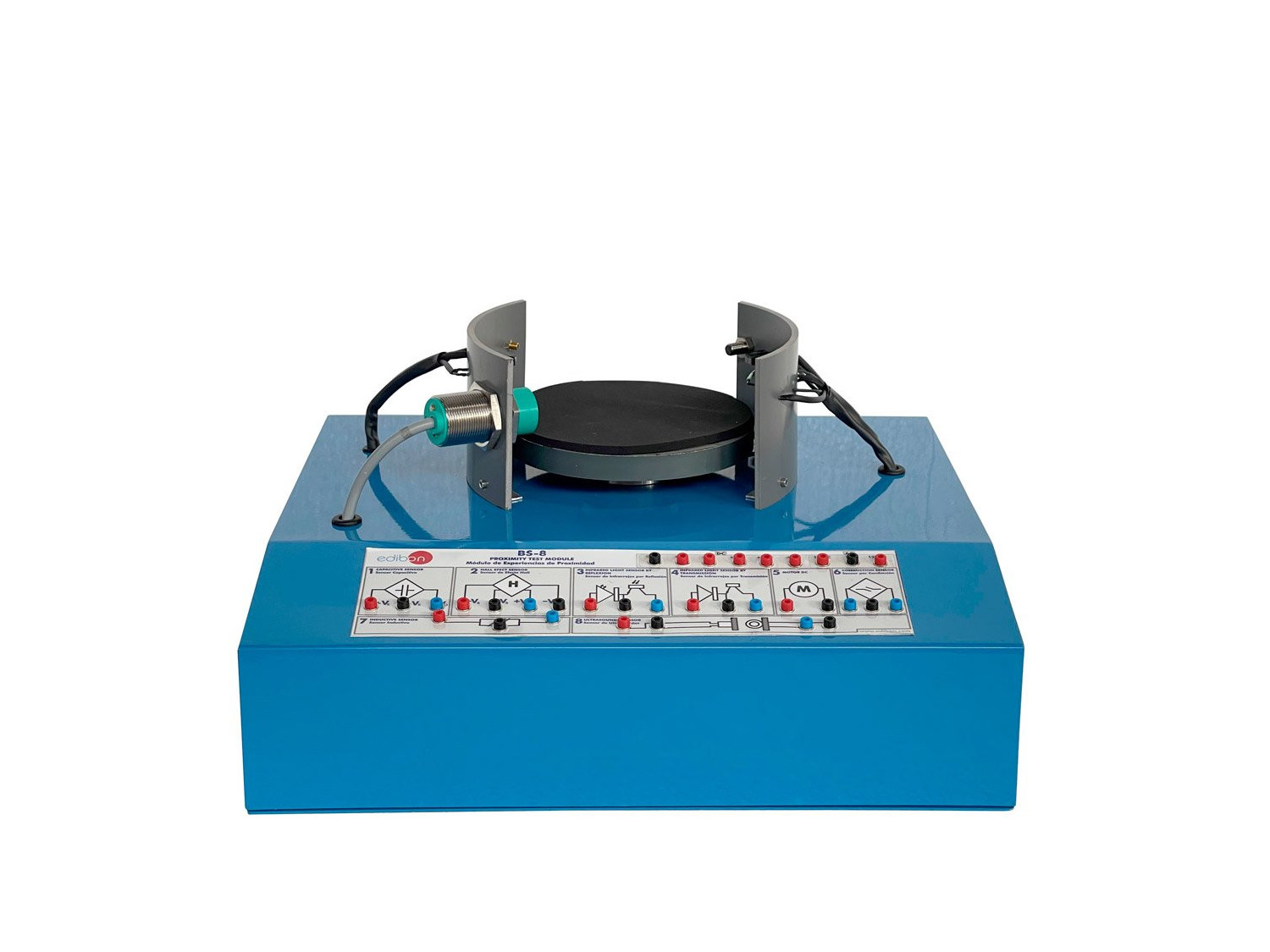

In the upper part there is a revolving disc on which the objects to be detected are placed. All sensors are situated in front of the disc on walls perpendicular to the disc, so that when the disc turns with an object on it, it will pass in front of each of the module sensors.

A DC motor moves the disc at different speeds, which allows studying the maximum frequency the sensor is able to detect.

Included elements:

  • Proximity capacitive sensor.
  • Hall effect sensor.
  • Retroreflective optical sensor.
  • Infrared transmission sensor.
  • Motor DC.
  • Conduction sensor.
  • Inductive sensor.
  • Ultrasonic sensor.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. How to use a capacitive sensor to detect metal objects as the pass in front of the sensor.
  2. To use a Hall effect sensor as an element to detect the presence of magnetic objects.
  3. Retroreflective optical sensor. To use an optical sensor that works through infrared light reflection.
  4. Infrared sensor by transmission. To detect objects using an Infrared sensor by light beam interruption.
  5. Conduction sensor. To detect magnetic objects using a REED switch sensor.
  6. To detect the presence of ferrous object using an inductive sensor.
  7. Ultrasonic sensor. To detect metallic and non-metallic object using high frequency sounds.

ERFORDERLICHE ELEMENTE

QUALITÄT

KUNDENDIENST

Informationen anfordern
