OVENS TEST MODULE - BS5

INNOVATIVE SYSTEME

With the Ovens Test Module, "BS5", is possible to study temperature measurement techniques using several kinds of sensors placed inside the sealed place that is used as oven.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
EMSK

EDIBON Development KIT for Circuits Simulation, Powered by NI LabVIEW™

Laboratorien

2TV
 Elektroniklabor für technische und berufliche Bildung
2HE
 Elektroniklabor für die Hochschulausbildung
11PTC
 Labor für Petroleum Training Center

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

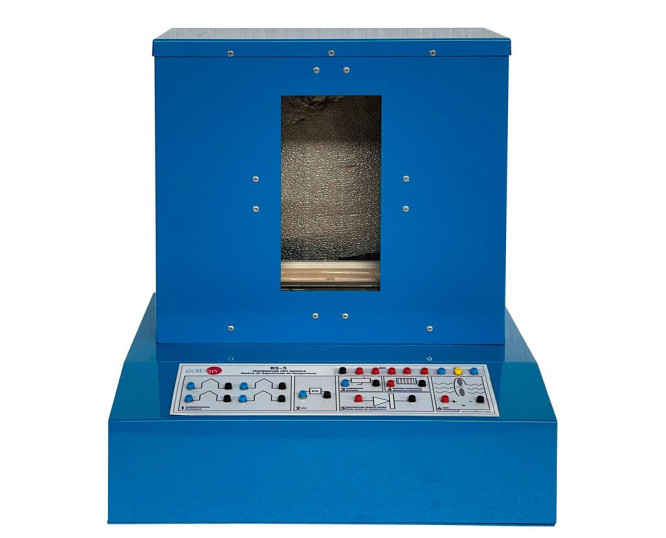

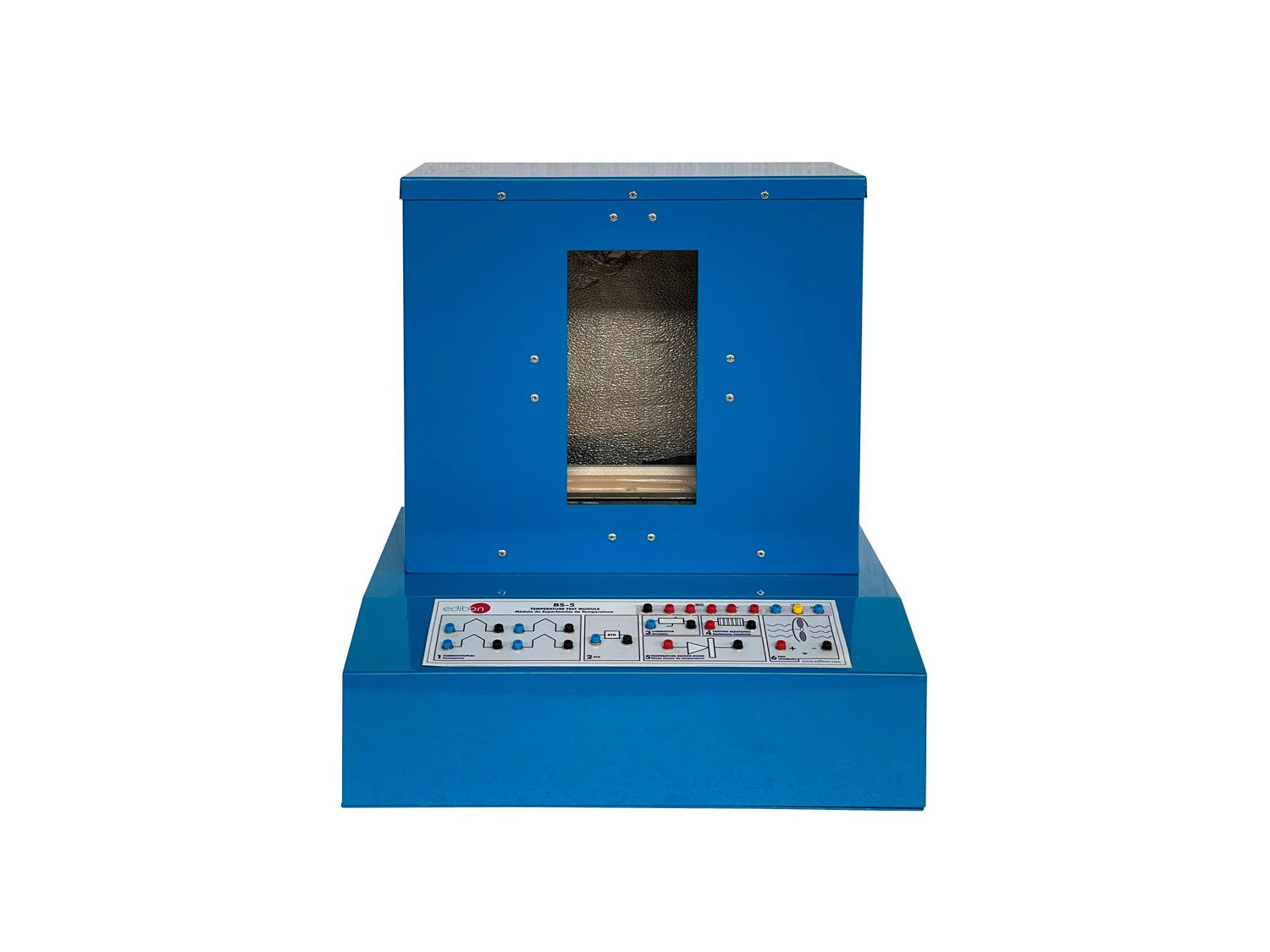

With the Ovens Test Module, "BS5", is possible to study temperature measurement techniques using several kinds of sensors placed inside the sealed place that is used as oven.

This module is basically made up of an oven that contains a changeable speed circular fan that enables to modify the oven time constant.

The heating element that the oven has can be manually controlled or work through a triac which can be regulated with a PID.

The measurement mechanisms the oven has are 4 identical thermocouples placed at different heights. The oven also has a platinum resistance thermometer, a thermistor and a semiconducting mechanism sensitive to temperature. Using any temperature gauge or thermometer it is possible to calibrate the different sensors by introducing the thermometer through the opening the oven has at its upper part.

Included elements:

  • Oven chamber.
  • Heating element.
  • Fan.
  • Thermocouples.
  • Platinum resistance thermometer.
  • Thermistor.
  • Semiconducting temperature sensor.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Heating element. Raise the oven internal temperature, over the environmental temperature, using a heating element to do tests and practices related with temperature measurement.
  2. To use a fan as refrigerating element of the oven.
  3. To use thermocouples as temperature sensors elements inside the oven. Temperature measurement using a thermocouple.
  4. To measure temperature inside the oven using a platinum resistance thermometer.
  5. To measure temperature inside the oven using a thermistor temperature sensor.
  6. Temperature measurement using a thermistor, based on its negative temperature coefficient.
  7. To obtain the temperature value inside the oven using a semiconductor sensor (diode).
  8. PID control.
