BS1 Modul für Schwingungs- und/oder Deformationsprüfungen

2.4.1.- INSTRUMENTATION & KONTROLLE 6.1.2.1.- SENSOREN UND ELEKTRONISCHE INSTRUMENTATION 14.2.2.- INSTRUMENTATION & KONTROLLE
VIBRATIONS AND/OR DEFORMATIONS TEST MODULE - BS1

INNOVATIVE SYSTEME

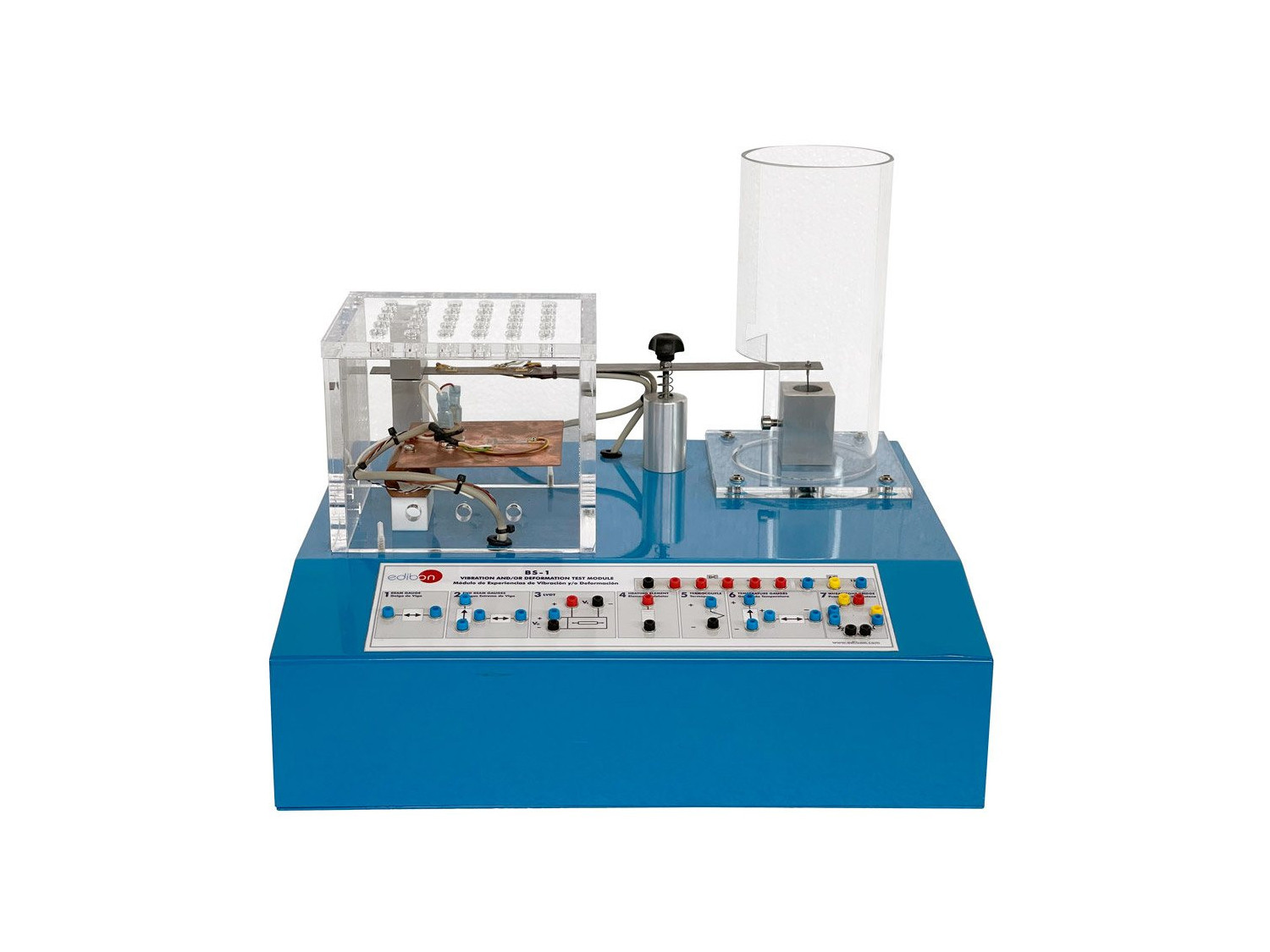

Vibrations and/or Deformations Test Module, "BS1" has been designed to teach mechanical vibration and displacement variable measurement techniques.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware
EMSK

EDIBON Development KIT for Circuits Simulation, Powered by NI LabVIEW™

Laboratorien

2TV
 Elektroniklabor für technische und berufliche Bildung
2HE
 Elektroniklabor für die Hochschulausbildung
11PTC
 Labor für Petroleum Training Center

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

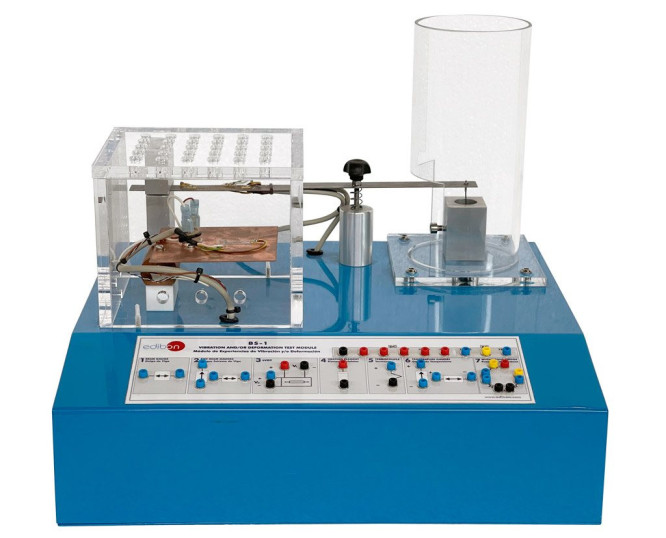

Vibrations and/or Deformations Test Module, "BS1" has been designed to teach mechanical vibration and displacement variable measurement techniques.

On the upper side of the test module there is a girder or elastic/vibrant sheet that is the one carrying the sensors, which can have many applications depending on the use we give to them during the performing the practices with the unit.

This girder is strongly fixed to the module chassis in one of its ends. This enables this free projection system to vibrate on a flat surface but also turns it resistant to the movement of other surfaces.

On the girder bottom there are different types of sensors that work in different ways.

When the girder is distorted, the surfaces are in traction or compression, as appropriate. Is at this moment when the sensor outlets are to be analyzed.

Near the girder fixed end there is also a mechanism to heat the system and a thermocouple to measure the temperature which is used to determine the dependence that studied material has on the temperature.

On the girder free end there are control instruments that can determine the movement variations, as for example lineal displacement and deformations.

The girder end vertical column has a coil that provides a signal that is proportional to the speed and a measurement system that can be used to give a signal that is proportional to the displacement.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. To measure the vibration of a vibrant girder using strain gauges.
  2. To use a heating element to rise the girder temperature in order to study the effect on the sensors. (Thermocouple and heating element).
  3. To detect the displacement of the BS-1 module vibrant girder using a LVDT sensor.
  4. Effect of temperature variation on the strain gauges.
  5. Effect of deformation on the resistance of a girder
  6. Measurement of the three deformation dimensions or deformation of spherical or cylindrical coordinates systems.
  7. Linear variable differential transformer (LVDT) for measuring displacements.
  8. Analysis of how to compensate the variation of resistance of a strain gauge due to temperature variations, using compensating gauges.
  9. Linear variable differential transformers (LVDT) as a weighing system.
  10. Effect on the vibration of a with different masses.
