AMP Montage und Wartung von Pumpen

8.9.2.- ABNEHMBARE MODELLE
ASSEMBLY AND MAINTENANCE OF PUMPS - AMP

INNOVATIVE SYSTEME

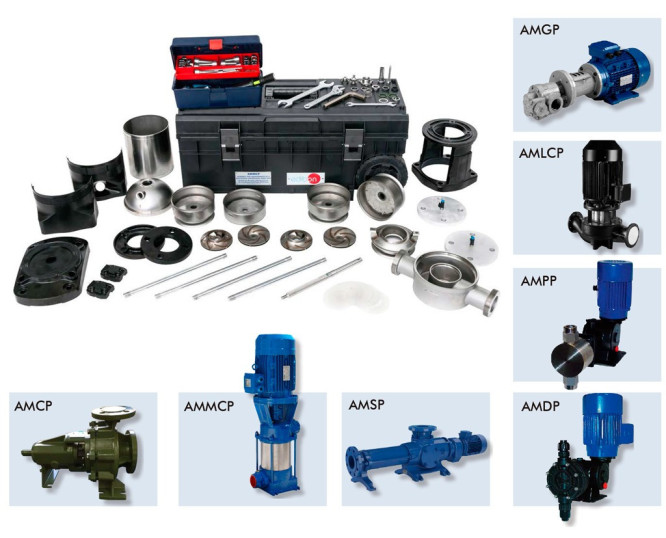

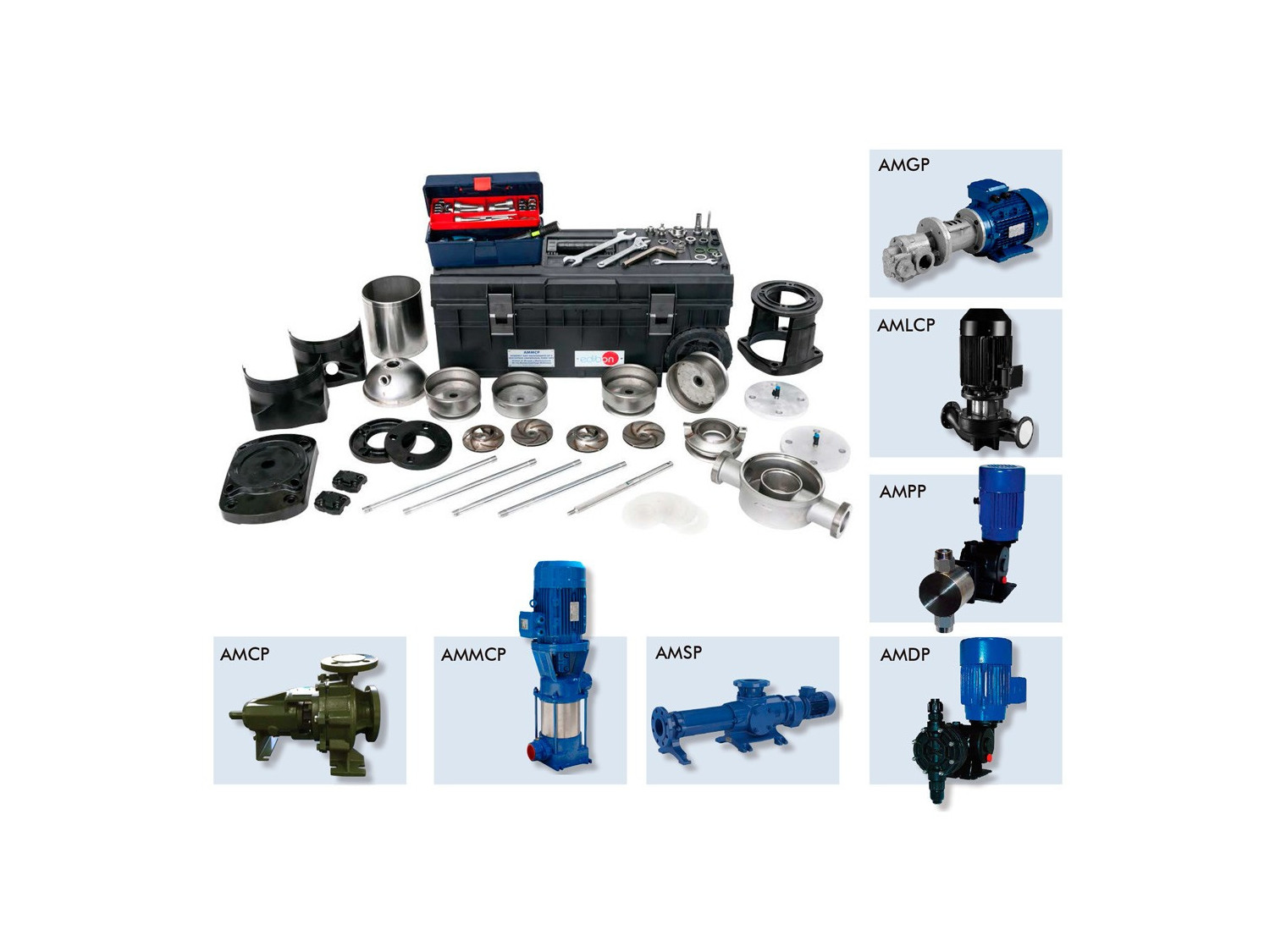

The different sets for the assembly and maintenance of pumps have all the parts in a case for an easy transport, facilitating the clearidentification of all the components and allowing the systematic assembly and disassembly, maintenance and repair of the main types ofpump that are usually used.

Allgemeine Beschreibung anzeigen

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

The different sets for the assembly and maintenance of pumps have all the parts in a case for an easy transport, facilitating the clearidentification of all the components and allowing the systematic assembly and disassembly, maintenance and repair of the main types ofpump that are usually used.

In addition, each set includes a tightness set for checking purposes, as well as a toolbox with compartments including everything neededto work with each set: open end wrenches, screwdrivers, non-ferrous hammers, spare gaskets, bearing puller, etc.

It serves to work both alone and in small groups, where the student will know all the components and their operation, as well as the structureand the pump operation. Each set is provided with the corresponding assembly diagrams, two-dimensional drawings, identification ofthe field of application, PFD and PID diagrams, operational data, technical designation, materials, exploded diagrams and operatingmanuals.

Zubehör

ASSEMBLY AND MAINTENANCE OF A CENTRIFUGAL PUMP UNIT - AMCP
  • AMCP
Available
8.9.2.- ABNEHMBARE MODELLE
AMCP
Gerät zur Montage und Wartung einer Zentrifugalpumpe
The centrifugal pumps belong to the group of rotodynamic pumps, where the fluid is boosted thanks to the acceleration acquired whenpassing through the operating impeller.This acceleration, which starts from the center of the impeller and goes to...
Einheit Anzeigen
ASSEMBLY AND MAINTENANCE OF A SCREW PUMP UNIT - AMSP
  • AMSP
Available
8.9.2.- ABNEHMBARE MODELLE
AMSP
Gerät zur Montage und Wartung einer Schneckenpumpe
The screw pumps belong to the group of positive displacement pumps, which use aneccentric helical screw (rotor) that moves inside a sleeve (stator), making the liquid flowbetween the screw and the sleeve. The most important applications of this...
Einheit Anzeigen
ASSEMBLY AND MAINTENANCE OF A DIAPHRAGM PUMP UNIT - AMDP
  • AMDP
Available
8.9.2.- ABNEHMBARE MODELLE
AMDP
Gerät zur Montage und Wartung einer Membranpumpe
Membrane pumps or diaphragm pumps belong to the group of positive displacement pumps, where the pressure increase is obtained by pushing elastic walls, known as, membranes or diaphragms, which change the volume of the chamber. Retention valves,...
Einheit Anzeigen
ASSEMBLY AND MAINTENANCE OF A PISTON PUMP UNIT - AMPP
  • AMPP
Available
8.9.2.- ABNEHMBARE MODELLE
AMPP
Gerät zur Montage und Wartung einer Kolbenpumpe
The piston pumps belong to the group of positive displacement pumps, where there are one or several fixed cavities whose volume can be changed due to the effect of a piston. The movement of the fluid is discontinuous and the charge and discharge...
Einheit Anzeigen
ASSEMBLY AND MAINTENANCE OF A GEAR PUMP UNIT - AMGP
  • AMGP
Available
8.9.2.- ABNEHMBARE MODELLE
AMGP
Gerät zur Montage und Wartung einer Zahnradpumpe
The gear pumps belong to the group of positive displacement, rotary piston pumps, which produce flow by transporting the fluid betweenthe teeth of two coupled gears. One of them is driven by the shaft of the pump (driving shaft), which turns the...
Einheit Anzeigen

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Analysis and study of the operation and structure of the main types of pumps by identifying the components of the structure:
  • Centrifugal pump.
  • Centrifugal Multistage Pump.
  • Screw Pump.
  • Diaphragm Pump.
  • Dosing Piston Pump.
  • Centrifugal In-line Pump.
  • Gear Pump.
  1. Set Assembly and Disassembly Study and Exercises.
  2. Study of tightness by means of the cable gland principle.
  3. Analysis of frequent breakdowns.
  4. Analysis and establishment of work planning, primarily maintenance and repair of damages and anomalies.
  5. Study and performance of replacement exercises of different components.
  6. Reading comprehension of technical drawings and instructionmanuals.
