N-EM-MAC Motor mit Anschlussringen

6.2.2.4.- STEUERUNG VON ELEKTRISCHEN MASCHINEN

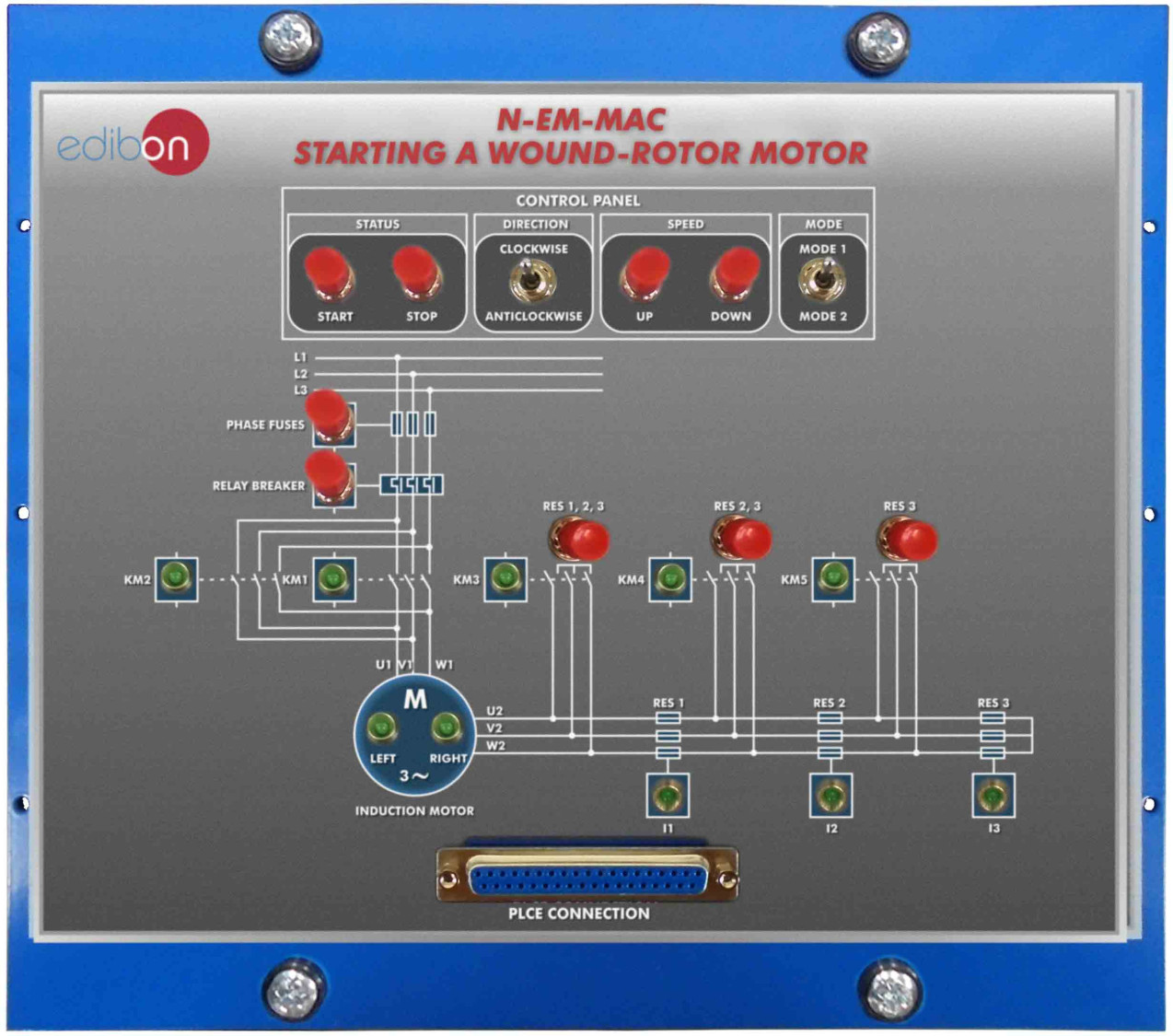

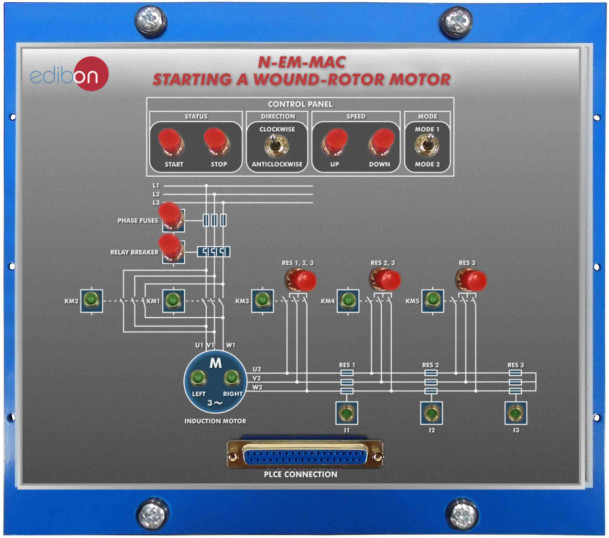

STARTING A WOUND - ROTOR MOTOR - N-EM-MAC

INNOVATIVE SYSTEME

"N-EM-MAC" represents the starting of a wound-rotor motor where is possible to emulate the motor’s movement when different load are connected through three phase contactors.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ALLGEMEINE BESCHREIBUNG

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

"N-EM-MAC" represents the starting of a wound-rotor motor where is possible to emulate the motor’s movement when different load are connected through three phase contactors. The system also allows to use the different switches to emulate faults in the three phase fuses and magnetothermics.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.
