MEMT-4 Rollreibung bei Rädern

7.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG) 14.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG)

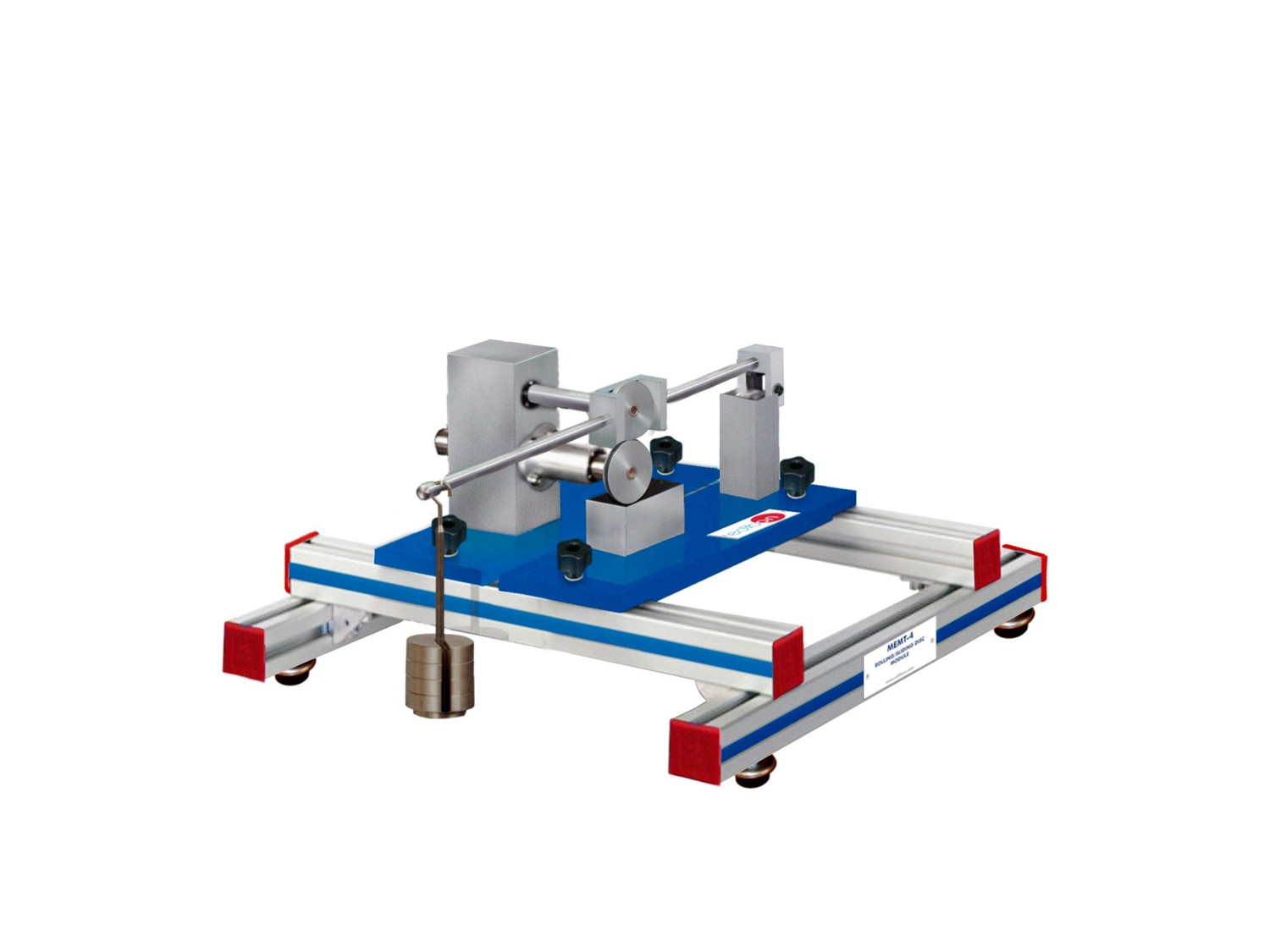

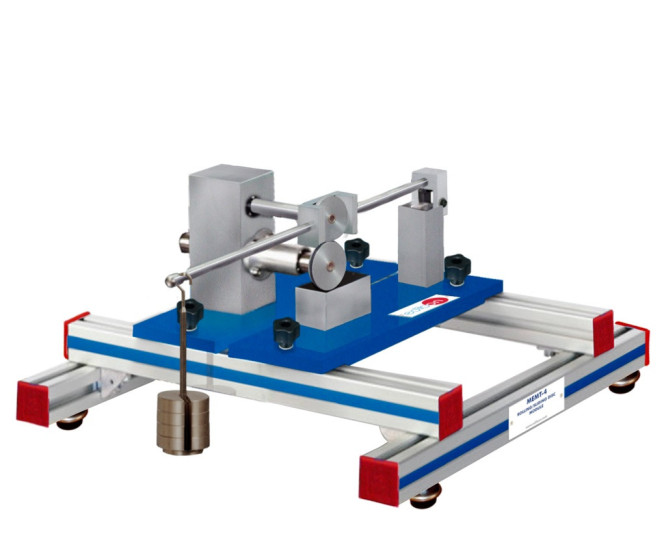

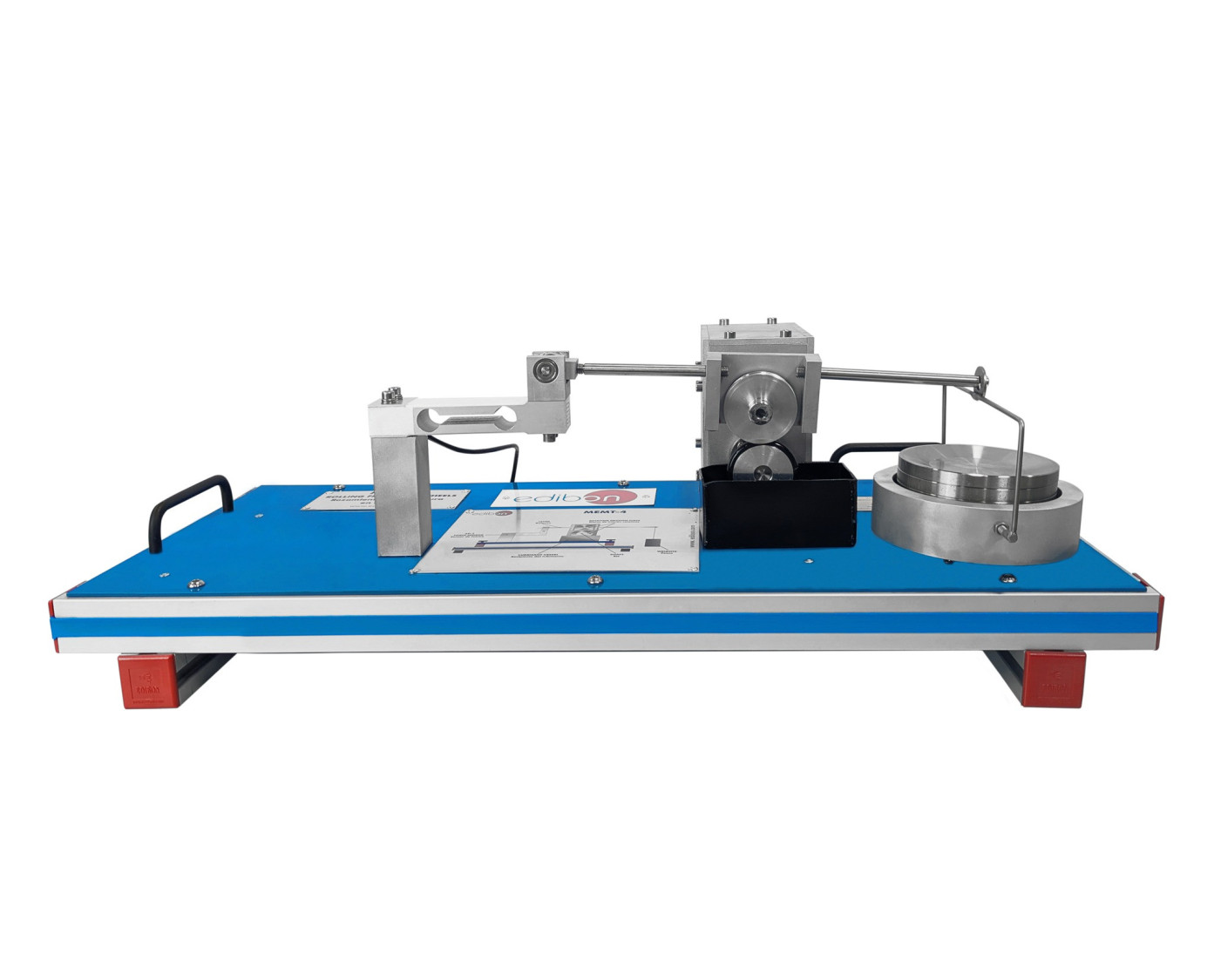

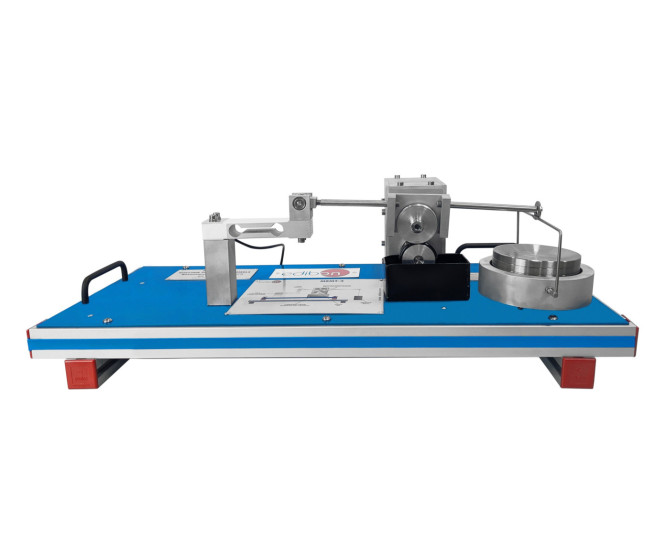

ROLLING FRICTION IN WHEELS - MEMT-4

INNOVATIVE SYSTEME

This module allows to determine the slip forces between two rotating friction discs in contact.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

This module allows to determine the slip forces between two rotating friction discs in contact.

The slip between the discs is maintained constant by a gearbox. The pressure can be adjusted with a lever and a set of weights. The unit includes a vessel for supplying lubricant. A force sensor measures the friction forces as a function of the load, the rotating speed and the lubricant. Several knurled screws enable to change the rotating friction discs easily.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Determination of the slip forces between two rotating discs in contact.
  2. Investigation of friction forces as a function of the load.
  3. Investigation of friction forces as a function of the operating speed.
  4. Investigation of friction forces as a function of the lubrication.
