WIRING INSTALLATION TRAINING FOR AC AND DC INDUSTRIAL ELECTRICAL MOTORS - WIT-IEM

INNOVATIVE SYSTEME

The Wiring Installation Training for AC and DC Industrial Electrical Motors, "WIT-IEM", has been designed by EDIBON for training at a practical-professional level in the field of installation, wiring and commissioning of industrial electric motors, both AC and DC. With this unit, students will learn how the motors themselves work, as well as the necessary elements for their correct operation and protection.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ÄHNLICHE NEUIGKEITEN

The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Lesen Sie mehr
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

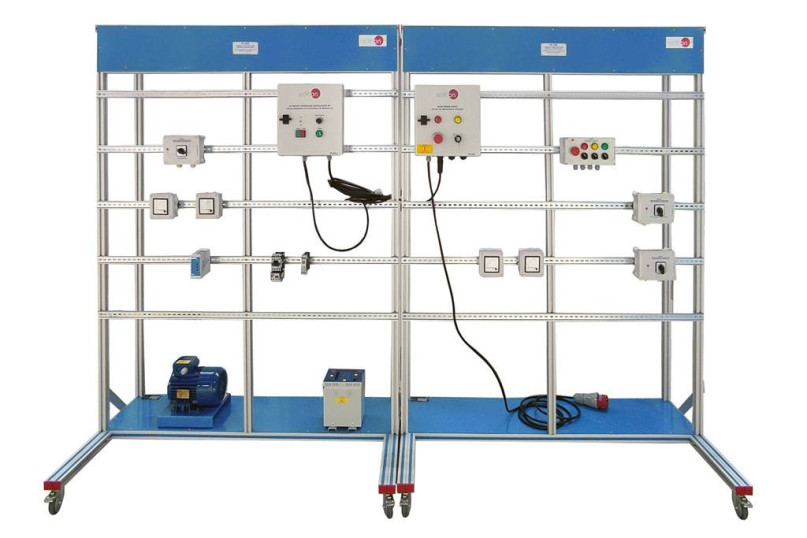

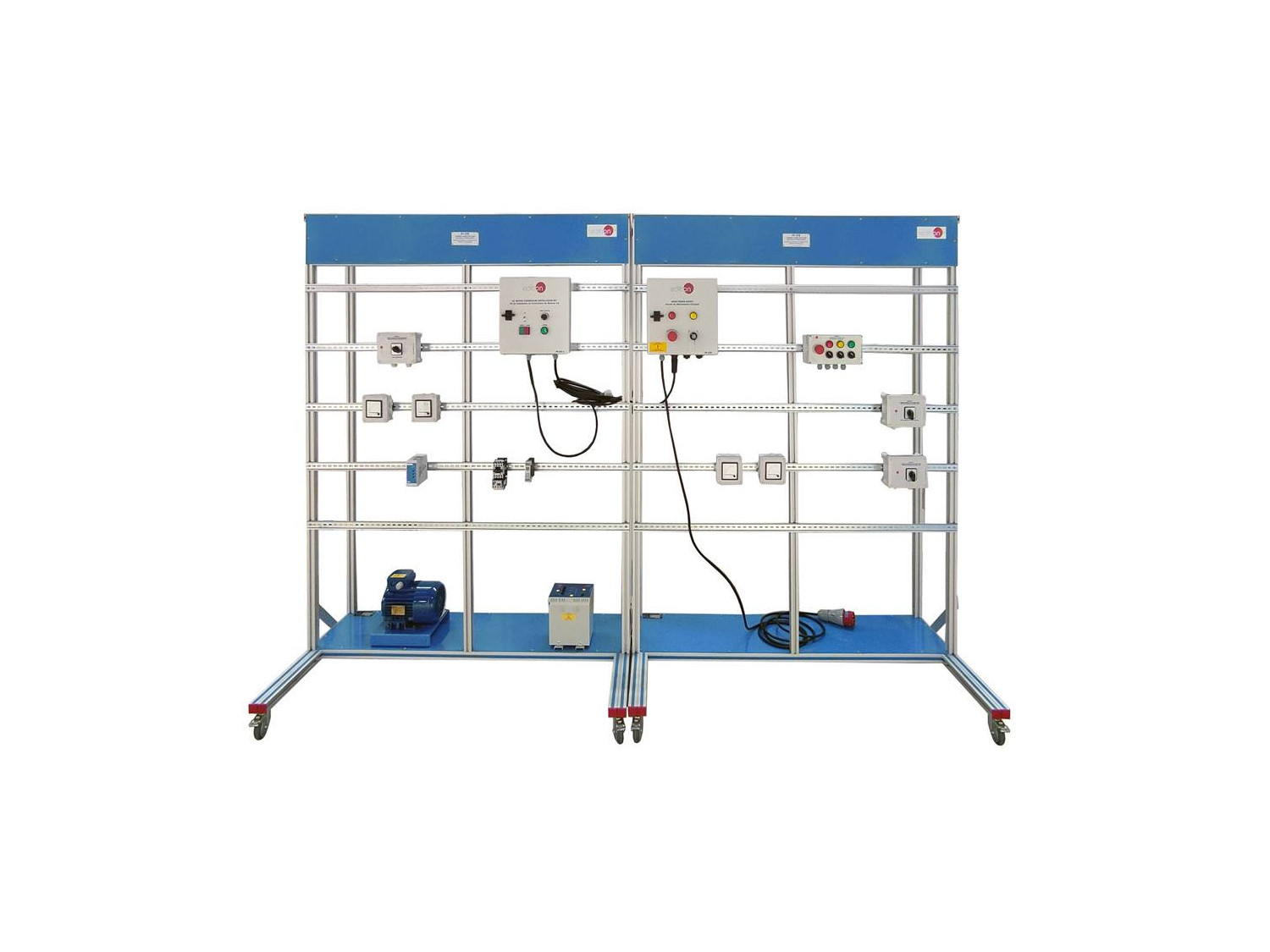

The Wiring Installation Training for AC and DC Industrial Electrical Motors, "WIT-IEM", has been designed by EDIBON for the formation at professional-practical level in the field of the installation, wiring and commissioning of industrial electrical motors.
