MDU-SCO Set für Kupplungen

7.4.3.- INSTALLATIONS- UND WARTUNGSPRAXIS

INNOVATIVE SYSTEME

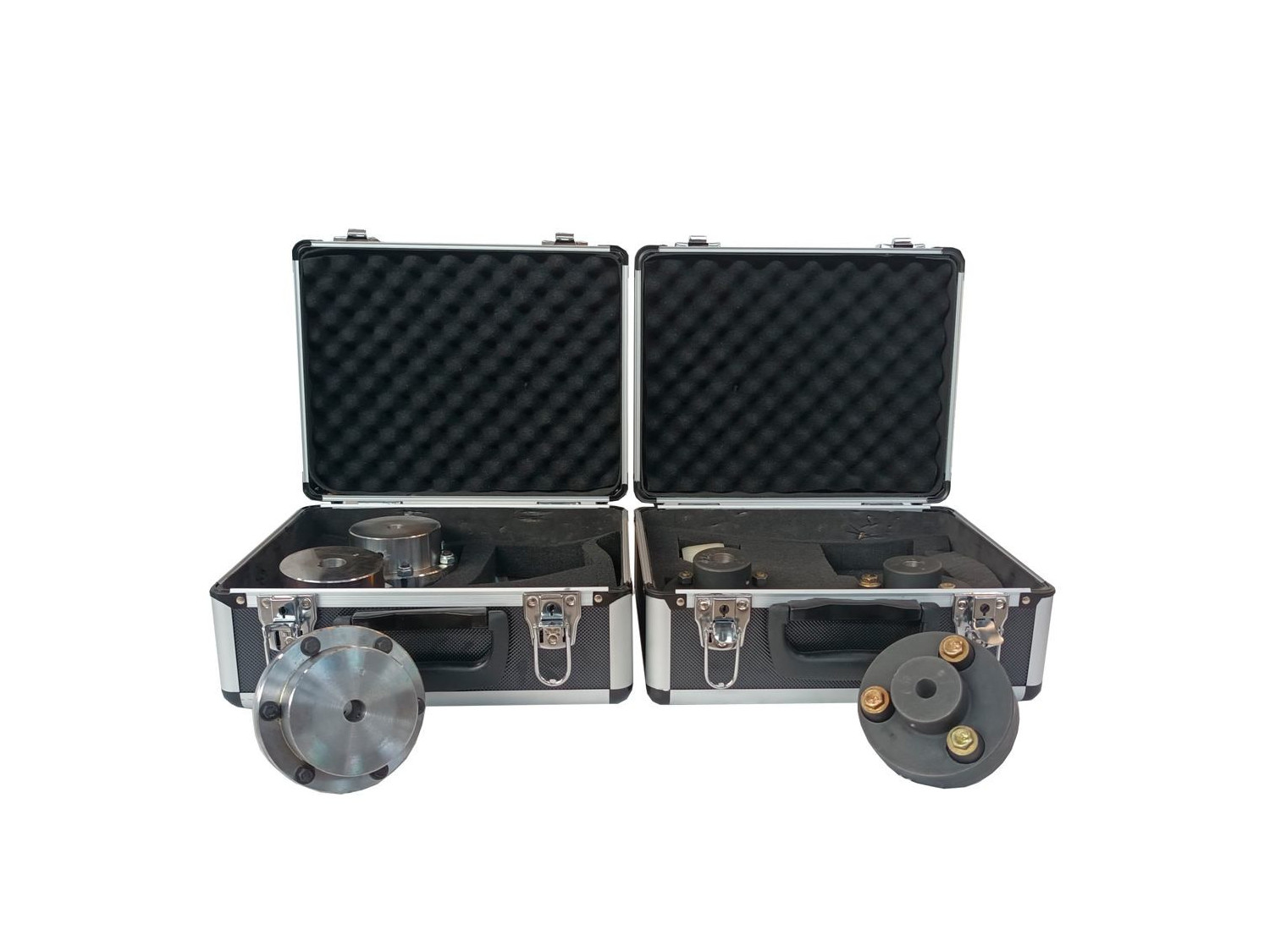

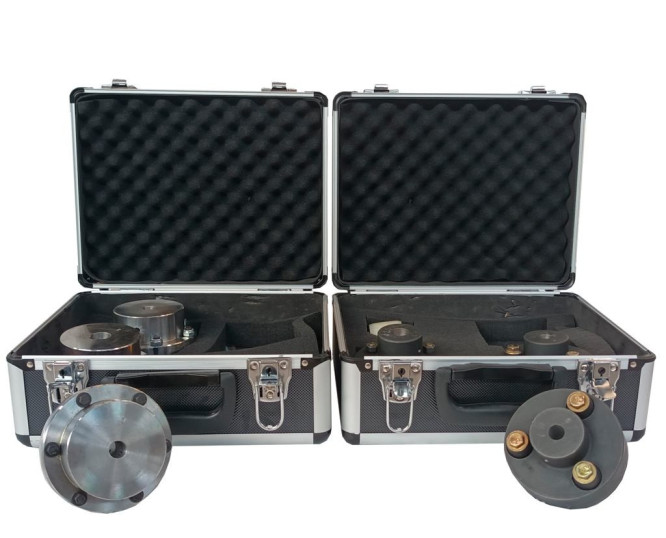

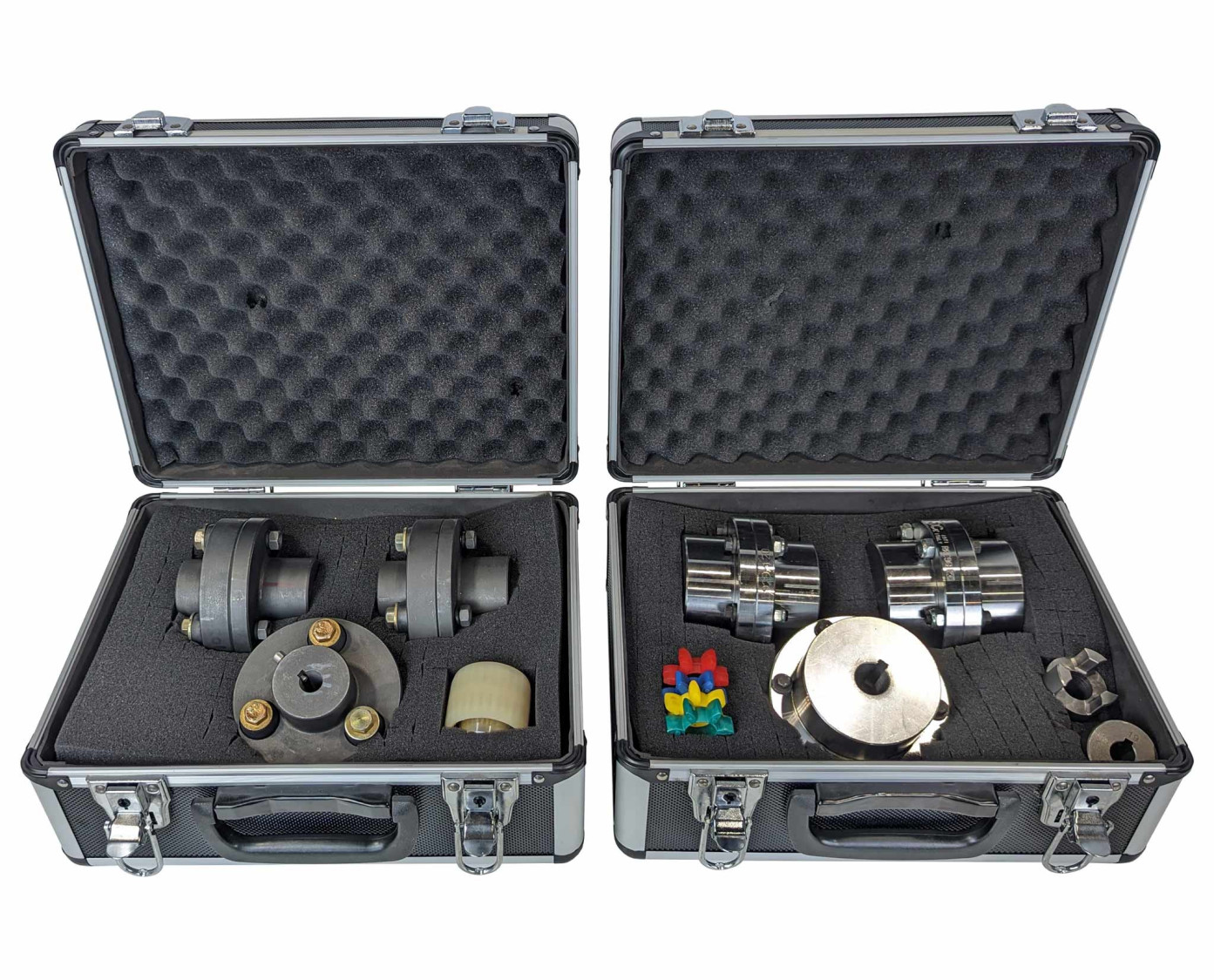

The Set of Couplings, "MDU-SCO", allows to compare the properties of different couplings such as curved tooth, bolt, flange and claw couplings.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

ALLGEMEINE BESCHREIBUNG

The Set of Couplings, "MDU-SCO", allows to compare the properties of different couplings such as curved tooth, bolt, flange and claw couplings.

The vibrational behavior of the different types of couplings is important to draw conclusions about faults or defects in the manufacturing or assembly of rotating machines. The usual faults are eccentricity, oscillation and pitch errors.

The Set of Couplings, "MDU-SCO", consists of different couplings to make shaft connections, allowing the study of different types of couplings, faulty and non-faulty.

ERFORDERLICHE ELEMENTE
