MDU-SSVF Set für Schwingungen in Gebläsen für MDU

7.4.3.- INSTALLATIONS- UND WARTUNGSPRAXIS

INNOVATIVE SYSTEME

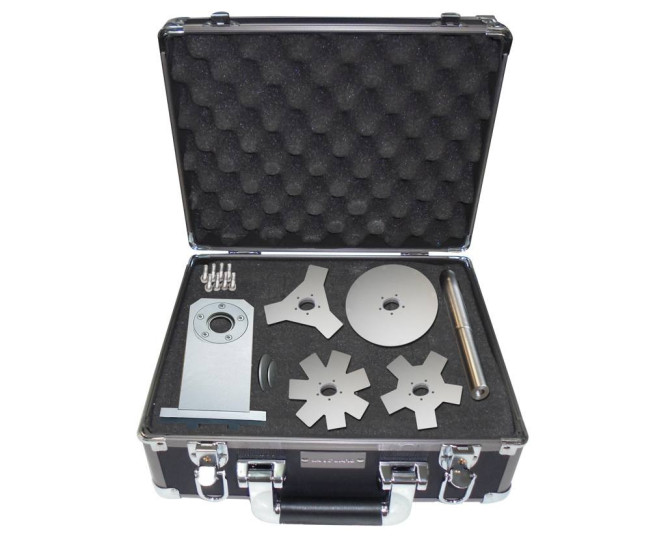

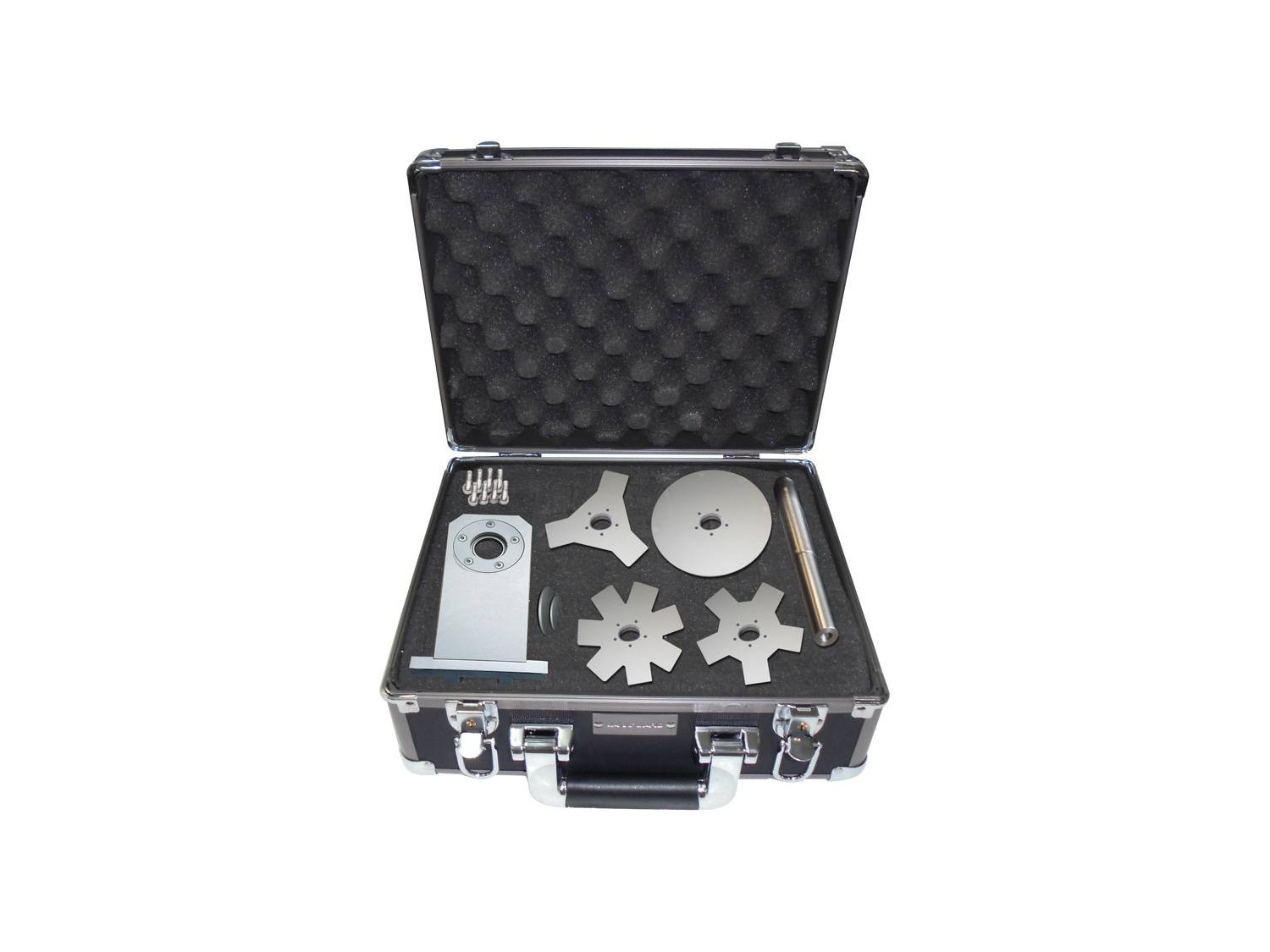

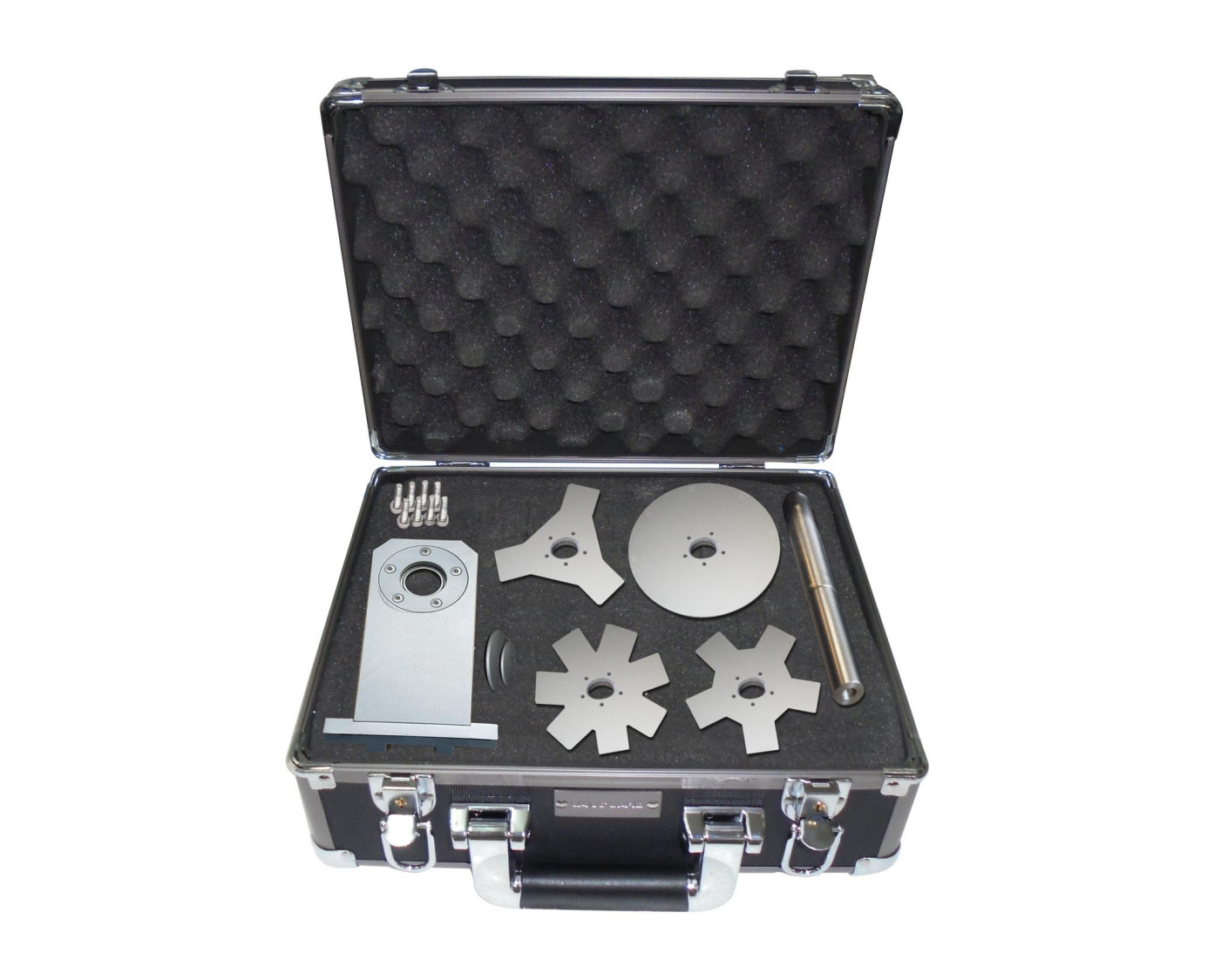

In the Blower Vibration Set for MDU, "MDU-SSVF", the vibrations are magnetically induced. It is possible to study three impellers with a different number of movable vanes. It is also possible to study the gyroscopic effect by mounting the flywheel plate at an oblique angle.

Allgemeine Beschreibung anzeigen

Katalog

Wettbewerbsspezifikationen

ALLGEMEINE BESCHREIBUNG

A regular fault in the rotation of the roller is induced by the action of a magnet.

The blower can be driven directly through an elastic coupling or the Set of Belt Drive, "MDU-SBD".
