8.1.- FLUID MECHANICS MODULAR LABOR

Hydraulik ist der Zweig der Wissenschaft, der sich mit den mechanischen Eigenschaften von Flüssigkeiten befasst, und die Strömungsmechanik ist die Grundlage der Hydraulik. EDIBON bemüht sich, auf die akademische Nachfrage nach der Vermittlung und dem Lernen der Grundlagen der Strömungsmechanik auf einfache und praktische Weise zu antworten. Zu diesem Zweck bietet es ein flexibles und modulares System zum Erlernen der Grundkenntnisse der Strömungsmechanik an.

Mehr sehen

Mit der Serie vorgeschlagener Module führen die Studenten Experimente durch, die die Gesetze der Hydraulik klar demonstrieren. Durch diese Experimente erwerben die Studenten auf natürliche, angenehme und unkomplizierte Weise Erfahrung im Umgang mit hydraulischen Instrumenten und Werkzeugen.

Die im Strömungsmechanik-Labor enthaltene Ausrüstung ermöglicht Flüssigkeitscharakterisierungen, Durchflussmessungen und -steuerungen, Studien der wichtigsten Phänomene und Prinzipien, die die Strömungsmechanik bestimmen, sowie das Kennenlernen von Anlagen, die in der Industrie weit verbreitet sind.

Siehe Produkte

FLUID MECHANICS MODULAR LABOR SYSTEME FÜR TECHNISCHE AUSBILDUNG

1 - 30 von 45 Artikel(n)

BASIC FLUIDS MECHANICS INTEGRATED LABORATORY - LIFLUBA

LIFLUBA

Available

8.1.7.- HYDRAULISCHE MASCHINEN: TURBINEN

LIFLUBA

Integriertes Labor für Grundlagen der Fluidmechanik

Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...

FME00

Available

8.1.1.- BASISEINHEITEN

FME00

Gerät des hydraulischen Prüfstands

The Hydraulics Bench, "FME00", designed by EDIBON, allows the study of fluid behaviour, hydraulic theory and the properties of fluid mechanics.It is formed by a movable hydraulics bench used to hold a wide variety of modules, which allow the...

FME00/B

Available

8.1.1.- BASISEINHEITEN

FME00/B

Gerät der hydraulischen Versorgungseinheit

The Basic Hydraulic Feed System, "FME00/B", designed by EDIBON is a service unit for different Fluid Mechanics Units as: "FME" type modules, Fluid Friction in Pipes Unit "AFT", etc., increasing the equipment profitability.

FME02

Available

8.1.2.- MESSUNG

FME02

Gerät des Strömungsflusses über Wehrkronen

The Flow over Weirs, "FME02", designed by EDIBON, has many elements that are used in combination with the Hydraulics Bench (FME00): A special mouthpiece is coupled to the outlet mouthpiece for water in the Hydraulics Bench (FME00).Two soothing...

FME10

Available

8.1.2.- MESSUNG

FME10

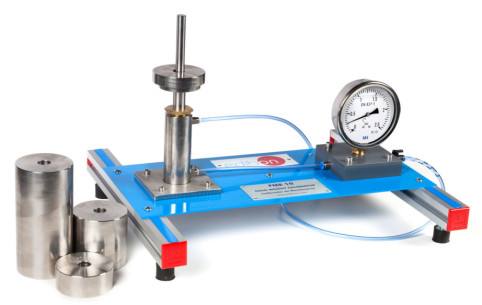

Gerät des Manometer-Kalibrators

The Pressure Gauge Calibrator, "FME10", designed by EDIBON, allows the study of the operation of a Bourdon type pressure gauge using a standard set of calibrated weights and the determination and the study of the pressure gauge hysteresis...

FME37

Available

8.1.2.- MESSUNG

FME37

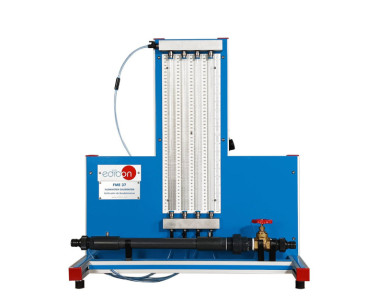

Gerät des Kalibrators für Durchflussmesser

The Flowmeter Calibrator, "FME37", designed by EDIBON, allows for the assessment of the accuracy and performance of the most commonly used flow meters. It features a panel of four-tube pressure gauges displaying pressure differences at various...

FME18

Available

8.1.2.- MESSUNG

FME18

Gerät der Demonstration von Durchflusssystemen

The Flow Meter Demonstration, "FME18", designed by EDIBON, allows through 3 different flow measurement accessories: Venturi tube, orifice plate and a variable area meter installed in series in the unit, the study to find the flow rate of the fluid...

DEPRESSION MEASUREMENT SYSTEM (VACUUM GAUGE) - FME26

FME26

Available

8.1.2.- MESSUNG

FME26

Gerät des Vakuummesssystems (Druckmessung)

The Depression Measurement System (vacuum gauge), "FME 26", is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system. Such system will be...

FME30

Available

8.1.2.- MESSUNG

FME30

Gerät des transparenten Vortex-Durchflussmessers

The Transparent Vortex Flow Meter, "FME30", designed by EDIBON allows to perform studies and experiments of different volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.This unit...

FME30/I

Available

8.1.2.- MESSUNG

FME30/I

Gerät des Vortex-Durchflussmessers

The Vortex Flowmeter, "FME30/I", designed by EDIBON, allows to perform different studies and experiments of various volumetric and mass flow measurement methods, as well as the comparison of continuous and discontinuous methods.This unit includes...

FME32

Available

8.1.2.- MESSUNG

FME32

Gerät des Pitot-Rohres

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.The Pitot static tube can be moved across the whole cross-section of the tube, and thus to measure the pressure profile.This tube is...

FME34

Available

8.1.2.- MESSUNG

FME34

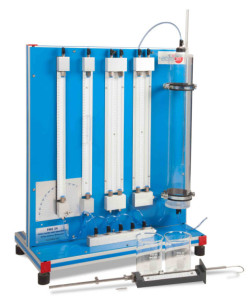

Gerät der Fluidstatik und Manometrie

The Fluid Statics and Manometry, "FME34", designed by EDIBON, allows the study of static fluids and manometry providing the user with an introduction in the behavior of liquids under hydrostatic conditions (fluids at standstill) and the...

FME36

Available

8.1.2.- MESSUNG

FME36

Gerät des Rotameters

The Rotameter, "FME36", designed by EDIBON, is a variable area flowmeter with floater. This type of flowmeter can be used for flow measurements in almost any environment.The operation mode of this type of flowmeter is based on the fact that if a...

FME38

Available

8.1.6.- HYDRAULISCHE MASCHINEN: PUMPEN

FME38

Gerät der hydraulischen Widderpumpe

The Hydraulic Ram Pump, "FME38", designed by EDIBON, utilizes the water hammer effect to raise water to a higher level than its power source. It operates by harnessing the rapid change in water velocity in a pipe that occurs when its flow is...

DATA ACQUISITION SYSTEM AND SENSORS - BDAS

BDAS

Available

8.1.7.- HYDRAULISCHE MASCHINEN: TURBINEN

BDAS

System zur Datenerfassung und Sensorik

BDAS is designed to monitor the measurements of each unit type "FME" from a computer (PC).This system can monitor any unit, checking the revolutions given by the water pump or the torque, differential pressures for Bernoulli theorems, pressure...

FME08

Available

8.1.3.- HYDROSTATISCH

FME08

Gerät des Drucks auf Oberflächen

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.When the...

FME11

Available

8.1.3.- HYDROSTATISCH

FME11

Gerät der Demonstration der Metazentrischen Höhe

The Metacentric Height Demonstration Unit, "FME11", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height.The unit consists of a floating methacrylate prismatic base, on which a vertical...

METACENTRIC HEIGHT DEMOSTRATION OF A "V" SHAPED FLOATING BODY - FME11-A

FME11-A

Available

8.1.3.- HYDROSTATISCH

FME11-A

Gerät der Demonstration der metazentrischen Höhe eines V-förmigen schwimmenden Körpers

The Metacentric Height Demostration of a "V" Shaped Floating Object, "FME11-A", designed by EDIBON, allows the study of the stability of a floating object by calculating the metacentric height of a floating object starting from a V-shaped floating...

METACENTRIC HEIGHT DEMOSTRATION OF A "U" SHAPED FLOATING BODY - FME11-B

FME11-B

Available

8.1.3.- HYDROSTATISCH

FME11-B

Gerät der Demonstration der metazentrischen Höhe eines U-förmigen schwimmenden Körpers

The Metacentric Height Demostration of a "U" Shaped Floating Object, "FME11-B", designed by EDIBON, allows the study of the stability of a floating object by calculating its metacentric height starting from a U-shaped floating body.The unit...

PASCAL'S PRINCIPLE DEMONSTRATION - FME33

FME33

Available

8.1.3.- HYDROSTATISCH

FME33

Gerät der Demonstration des Pascalschen Prinzips

The Pascal's Principle Demonstration Unit, "FME33", designed by EDIBON, allows to demonstrate Pascal's principle, i.e. that the pressure in an incompressible fluid is independent of the column size section but depends only on its height (liquid...

FME35

Available

8.1.3.- HYDROSTATISCH

FME35

Gerät der Eigenschaften von Flüssigkeiten

The Fluid Properties Unit, "FME35", designed by EDIBON, allows the study of the fluids fundamental properties that affect their behavior in practical applications.We can study capillarity, density and relative density (specific gravity), buoyancy...

FME01

Available

8.1.4.- HYDRODYNAMIK

FME01

Gerät des Aufpralls eines Strahls auf Oberflächen

The unit consists of a cylindrical tank with lateral transparent surfaces where a nozzle, connected to the Hydraulics Bench (FME00), is aligned with a device in which the problem surface is fitted. The vertical force made by the water against the...

BERNOULLI'S THEOREM DEMONSTRATION - FME03

FME03

Available

8.1.4.- HYDRODYNAMIK

FME03

Gerät der Demonstration des Bernoulli-Theorems

The Bernoulli's Theorem Demonstration unit, "FME03", designed by EDIBON is mainly composed of a circular section pipe with the shape of a truncated cone, transparent and with seven pressure taps that allows to measure, simultaneously, the static...

FME04

Available

8.1.4.- HYDRODYNAMIK

FME04

Gerät der Durchflussmessung durch Öffnungen

The Orifice Discharge Unit, "FME04", designed by EDIBON allows the study of the different concentration, discharge and velocity coefficients for thin and/or thick wall for different types: colloidal, Venturi or diaphragm.The unit consists of a...

FME14

Available

8.1.4.- HYDRODYNAMIK

FME14

Gerät des freien und erzwungenen Wirbels

The Forced and Free Vortex unit, "FME14", designed by EDIBON, allows the study of the fluid rotation in relation to an axis and the study of circular flow at changing velocities.The unit has a cylindrical and transparent deposit with two inlet...

FME17

Available

8.1.4.- HYDRODYNAMIK

FME17

Gerät für Strahl- und Lochmessung

The Orifice and Free Jet Flow unit, "FME17", designed by EDIBON, allows the study of the different discharge and velocity coefficients in permanent or variable regime as well as the calculation of the discharge times.The unit consists of a...

CAVITATION PHENOMENON DEMONSTRATION - FME19

FME19

Available

8.1.4.- HYDRODYNAMIK

FME19

Gerät der Demonstration der Kavitation

The Cavitation Phenomenon Demonstration unit, "FME19", designed by EDIBON is composed of a Venturi tube with a rectangular cross section, one of its sides being transparent, allowing a better visualization of the cavitation phenomenon.It includes...

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

FME22

Available

8.1.4.- HYDRODYNAMIK

FME22

Gerät für Venturi, Bernoulli und Kavitation

The Venturi, Bernoulli and Cavitation unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.This unit is designed for demonstrating some practical possibilities with...

FME06

Available

8.1.5.- FLUSSVISUALISIERUNG

FME06

Gerät der Demonstration von Osborne Reynolds

The Osborne Reynolds Demonstration Unit, "FME06", designed by EDIBON, consists of a cylindrical tank endowed with a nozzle, that is fitted to a methacrylate pipe, which allows the fluid visualization.A spillway guarantees the homogeneity of the...

FME09

Available

8.1.5.- FLUSSVISUALISIERUNG

FME09

Gerät der Strömungsvisualisierung in Kanälen

The Flow Visualization in Channels unit, "FME09", designed by EDIBON, allows the visualization of liquid spillage phenomena in weirs and the study of objects submerged in a fluid stream (aerodynamics).The unit consists of a transparent...
